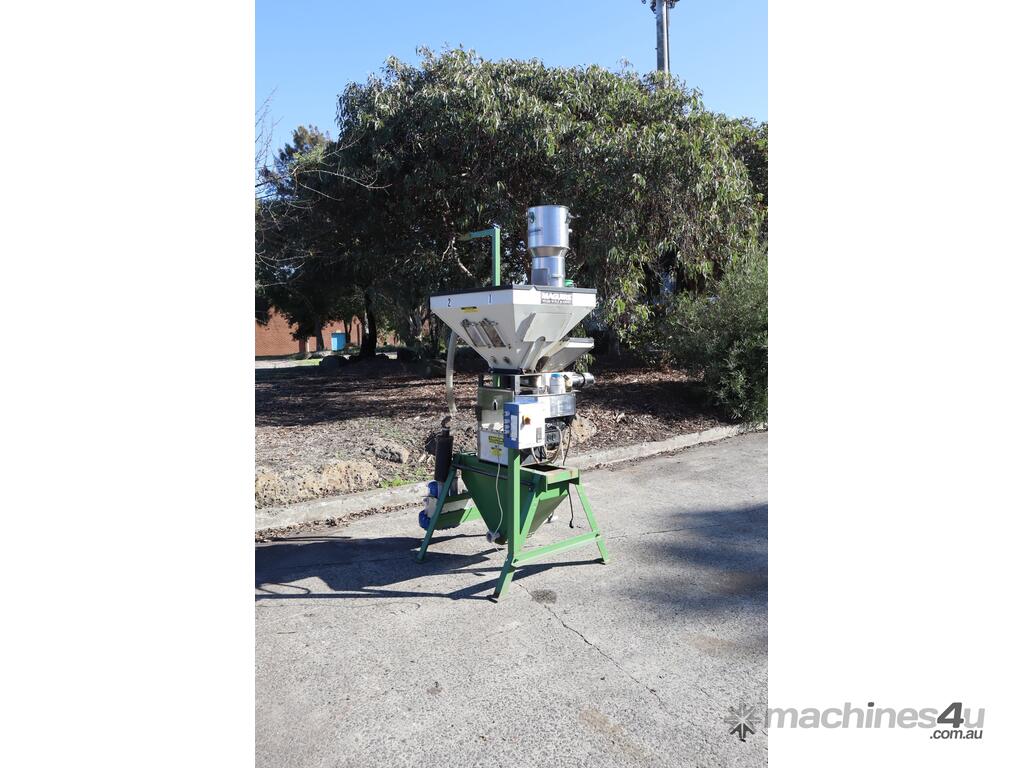

Weigh Scale Blender with Vacuum Hopper Loader - Maguire WSB-222T

Name: Weigh Scale Blender with Vacuum Hopper Loader - Maguire WSB-222T
Brand: maguire
SKU: 1000136
Price: 10909 AUD
Availability: InStock

BROADMEADOWS, VIC - Delivers Nationally

Play Video

$10,909 AUD($12,000 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$39.49
Per Week

4.65% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

Used

Category:

Injection Moulding Equipment

Make:

MAGUIRE

Model:

WSB-222T

Year:

Not specified

Member Since: May 2010

Gold Member

Listings: 1666

Description

This unit is in good usable condition.

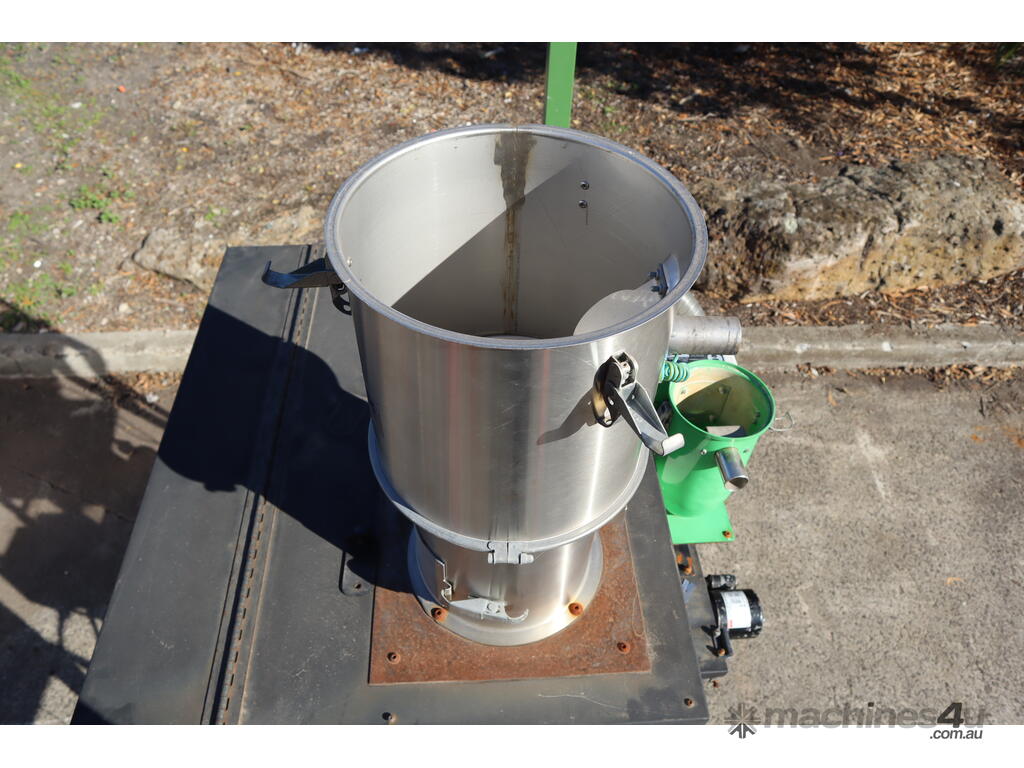

It has a Labotek vacuum hopper loader system built on.

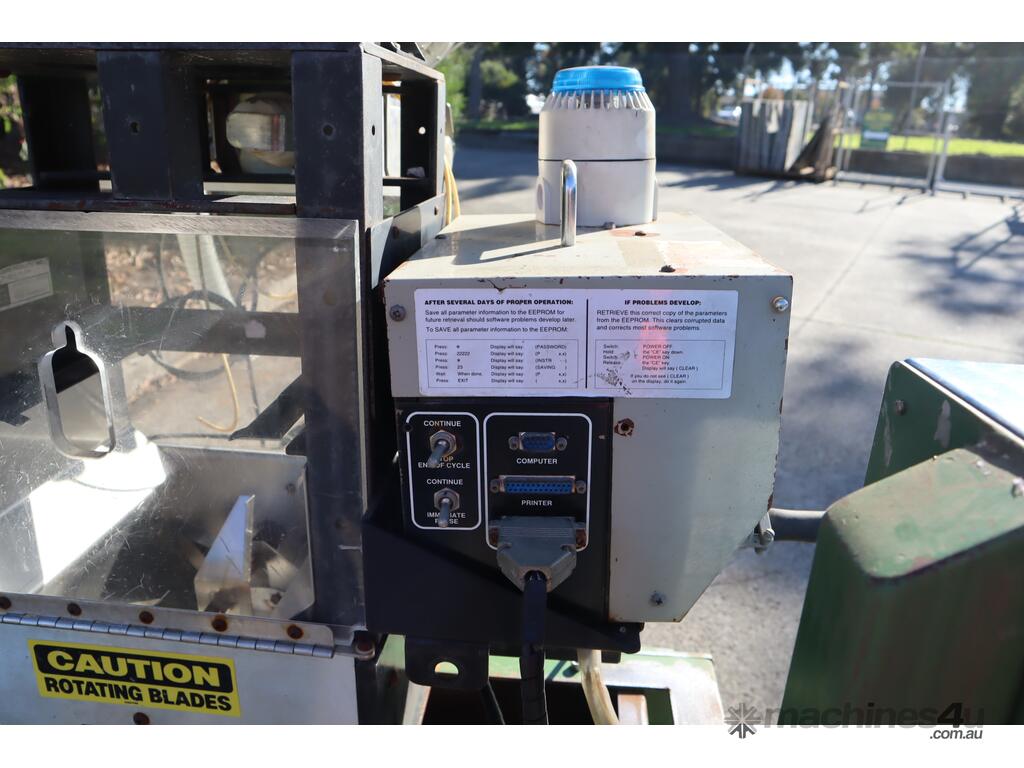

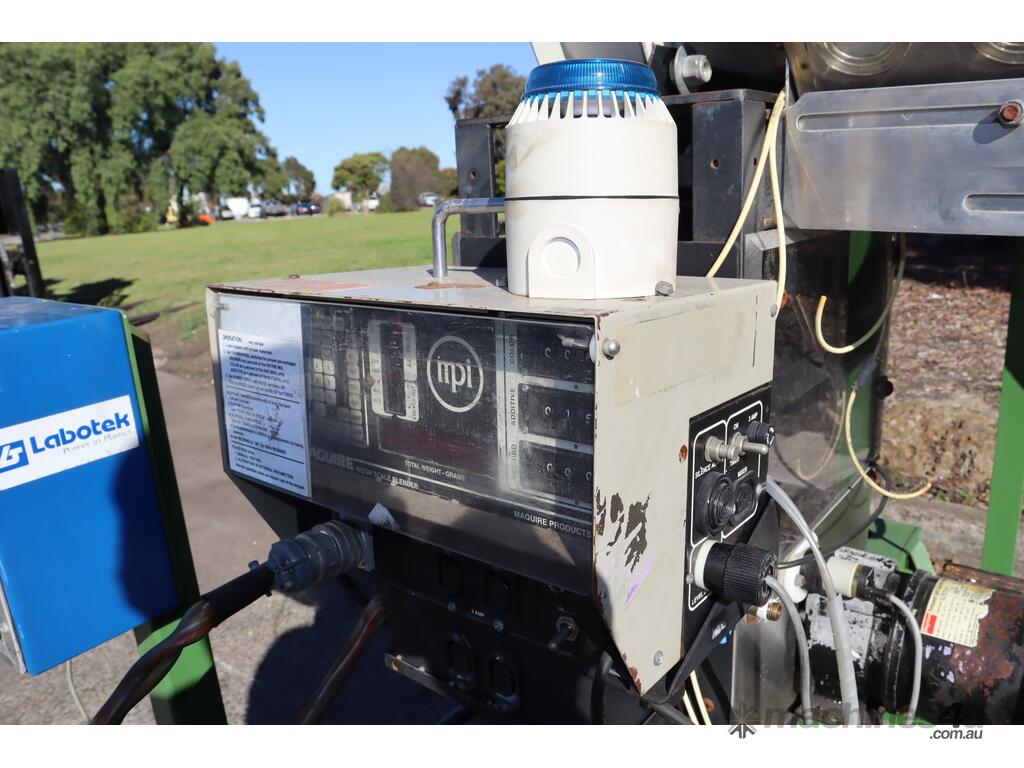

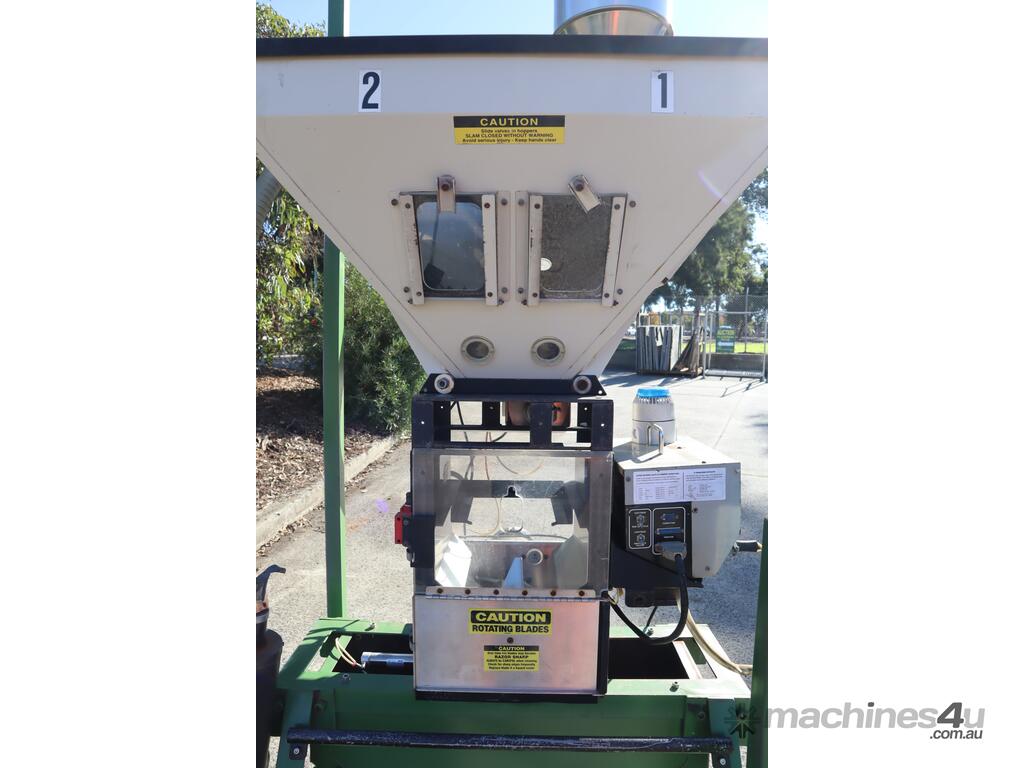

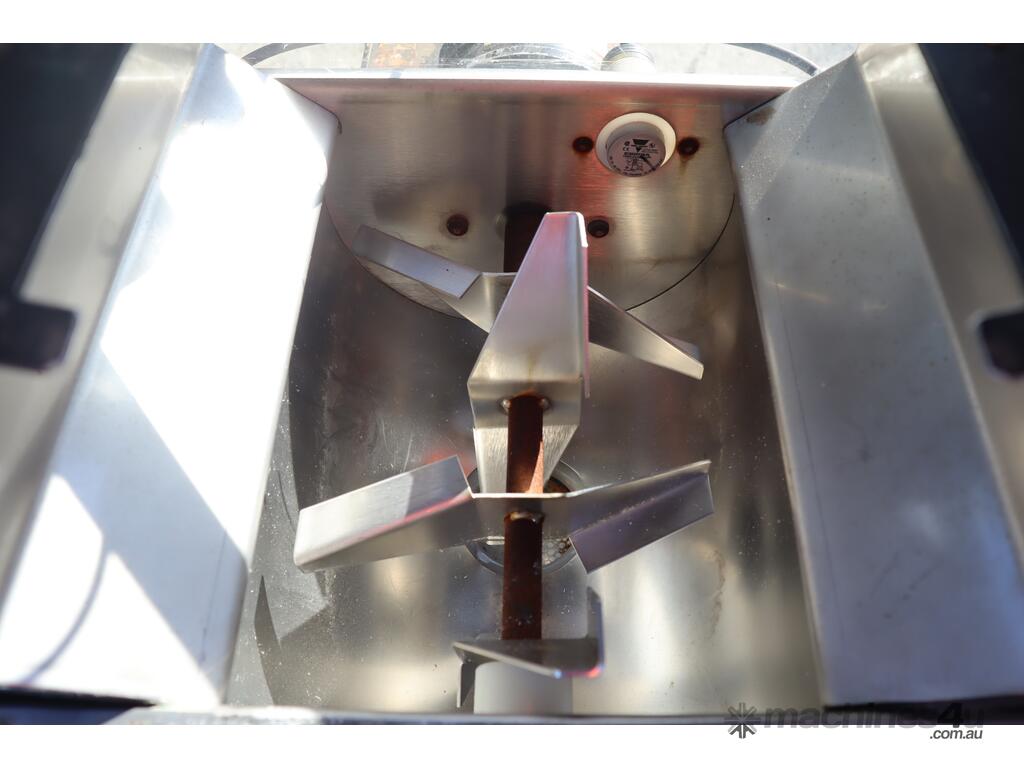

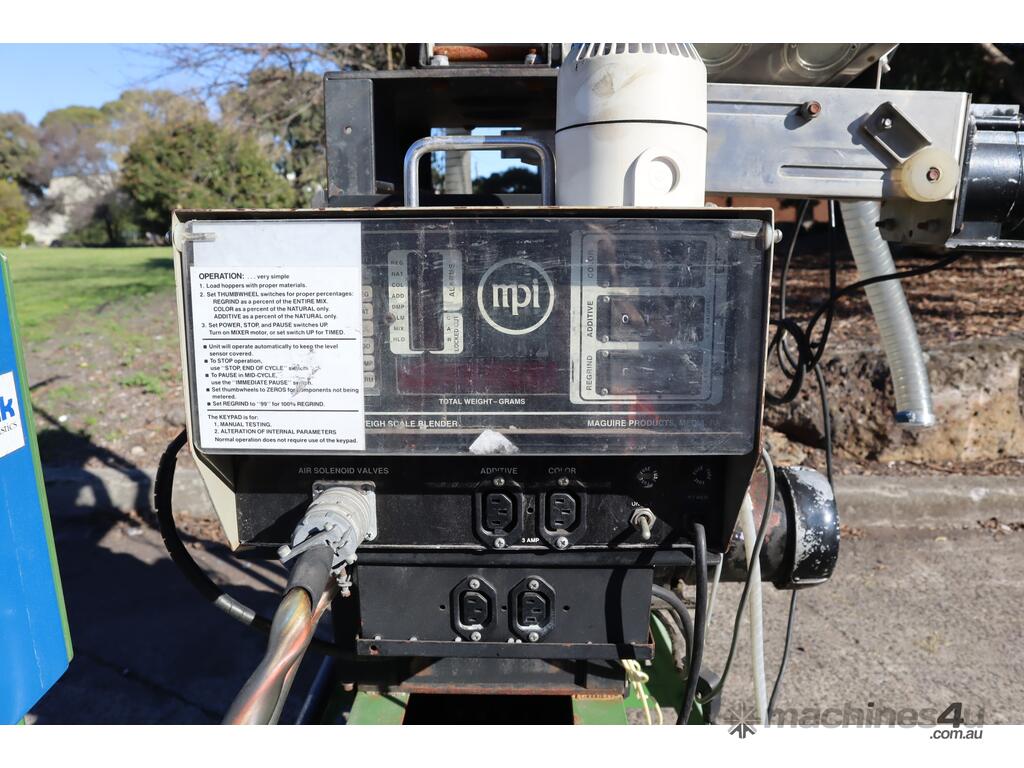

All components are blended by weight based on the setting shown on the master controller. The blending is done in batches of 2,000 grams depending on model. Each component is dispensed separately into a single weighing chamber, and then all components are dropped together into a continuous mixing chamber. The entire unit is designed to mount over the feed throat of the process machine.

Dispense Sequence:
- REGRIND is dispensed first according to the percent required. If no REGRIND or a limited amount is present, then the portions of NATURAL, COLOR, and ADDITIVE are increased to bring about a full batch weight.
- NATURAL material is added second. This amount is calculated to leave exactly the right amount of room for the COLOR and ADDITIVE.
- Once the NATURAL fill portion of the cycle has ended, the exact weight of the NATURAL that has actually dispensed is determined to detect even the smallest error.
- Based on this actual weight of NATURAL material, COLOR is then metered into the mix to the ratio requested.
- ADDITIVE is now added in the same way.

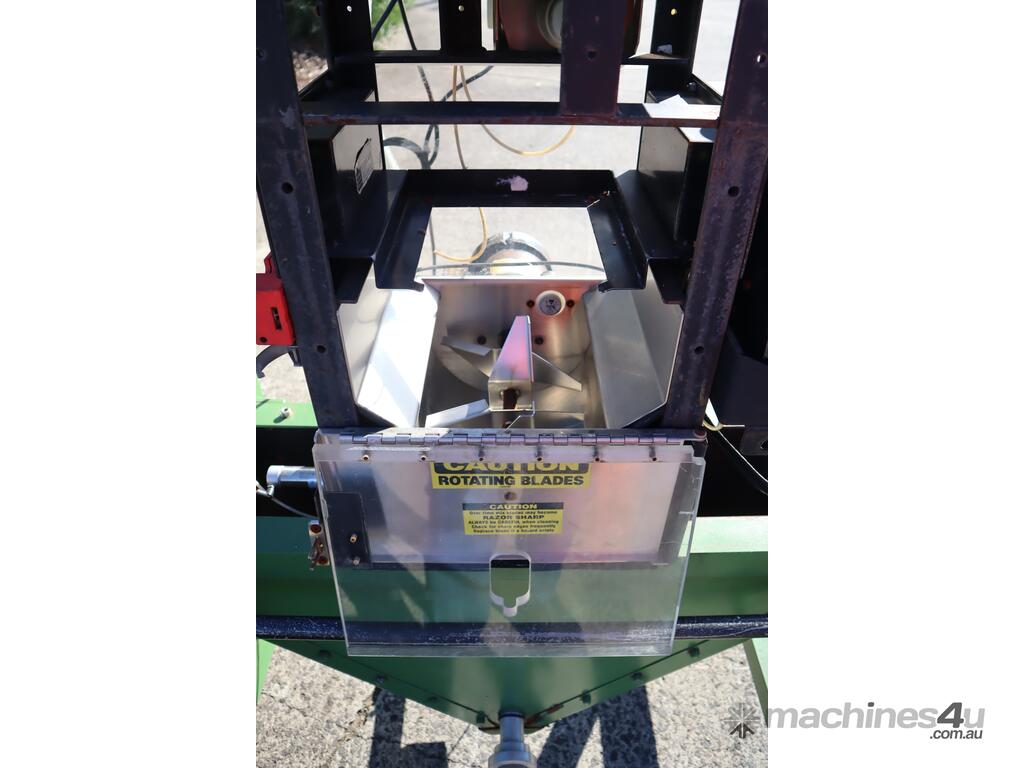

- All components are then dumped into the continuously running mixing chamber

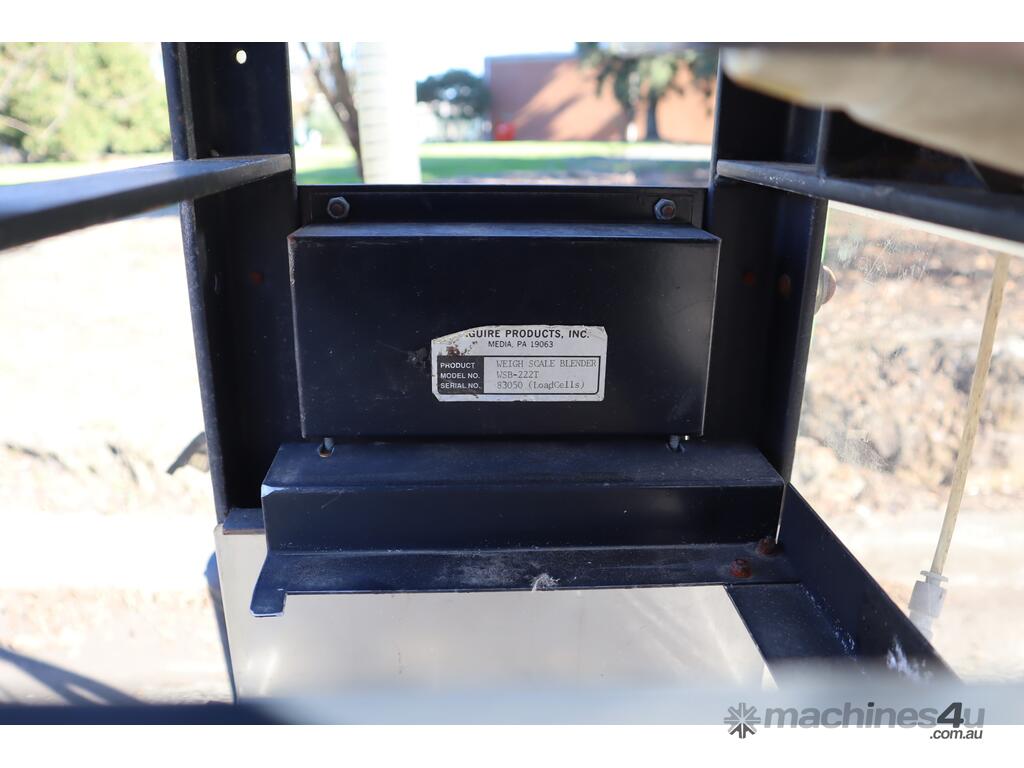

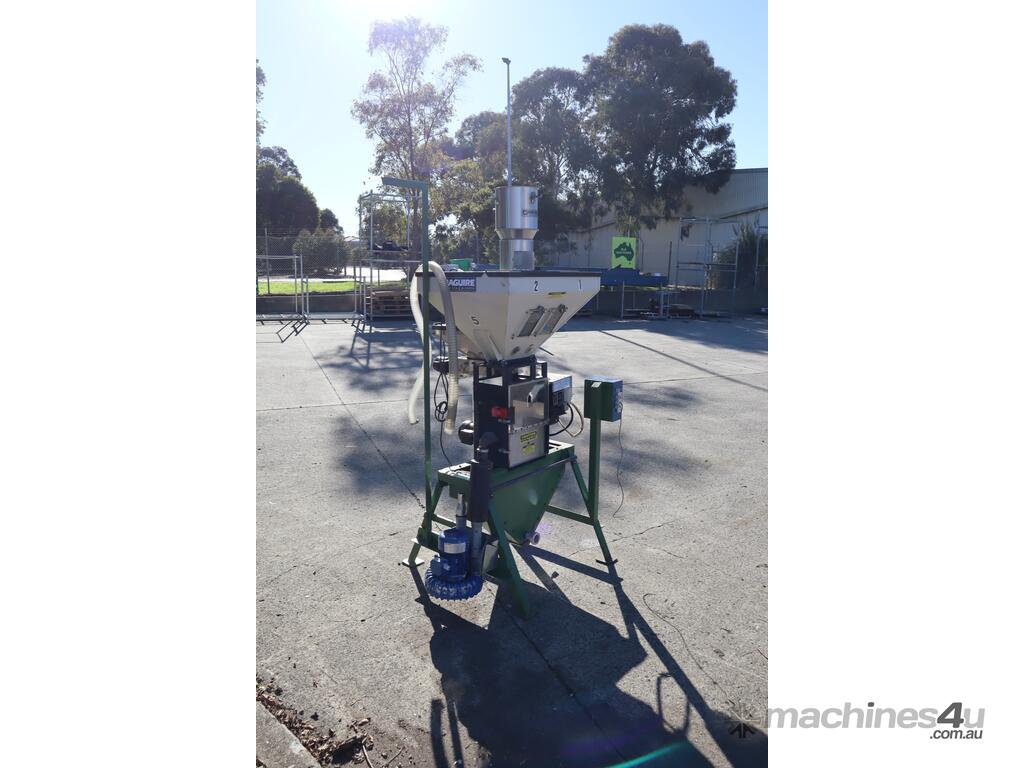

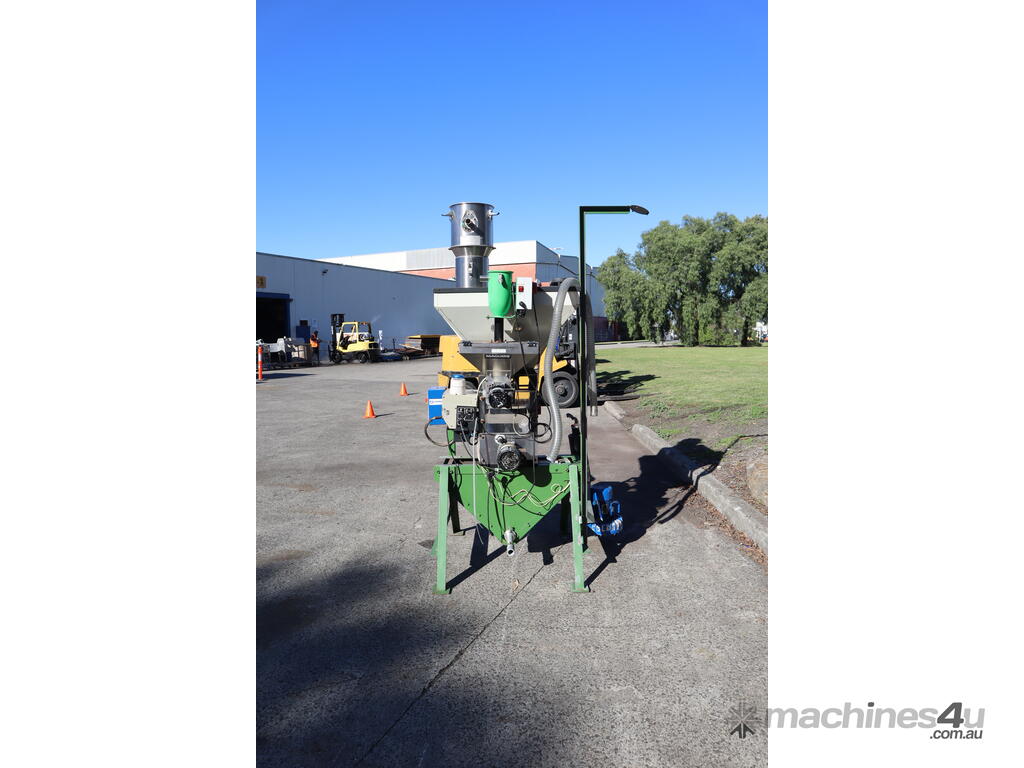

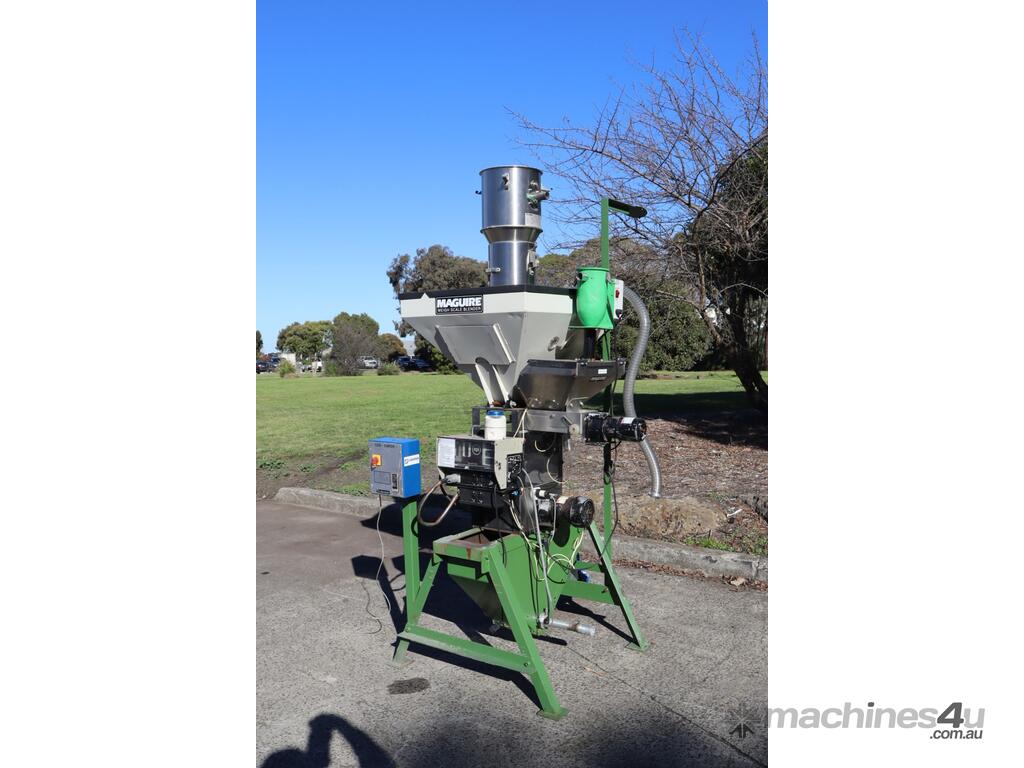

Weigh Scale Blender Make: Maguire
Model: WSB-222T

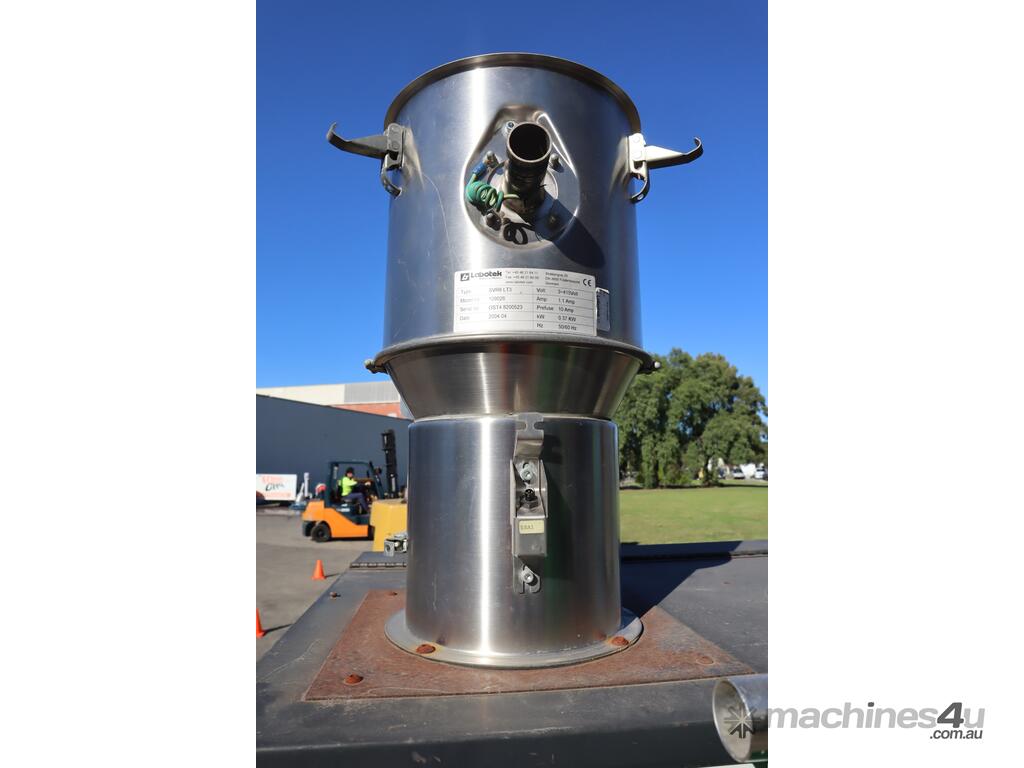

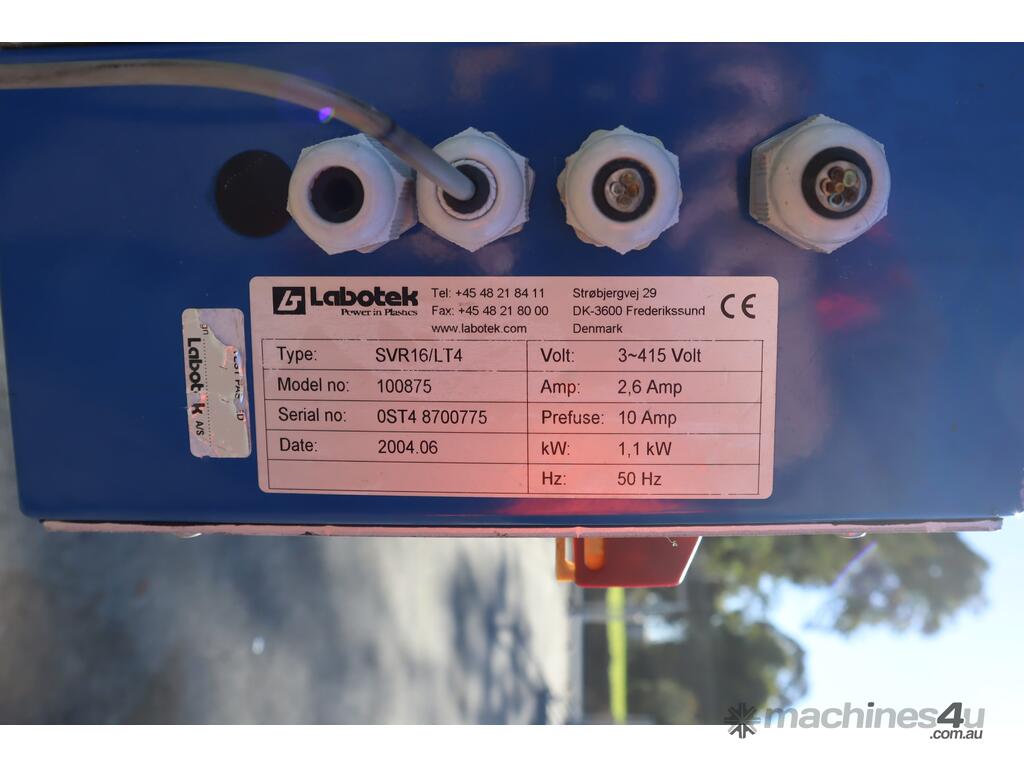

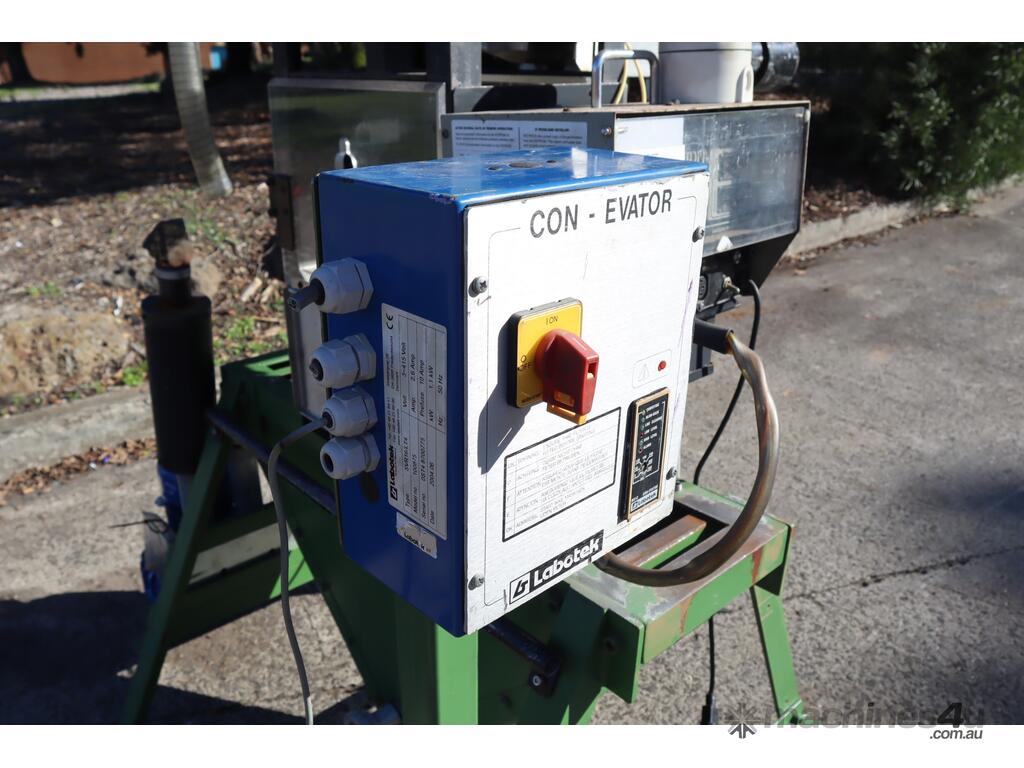

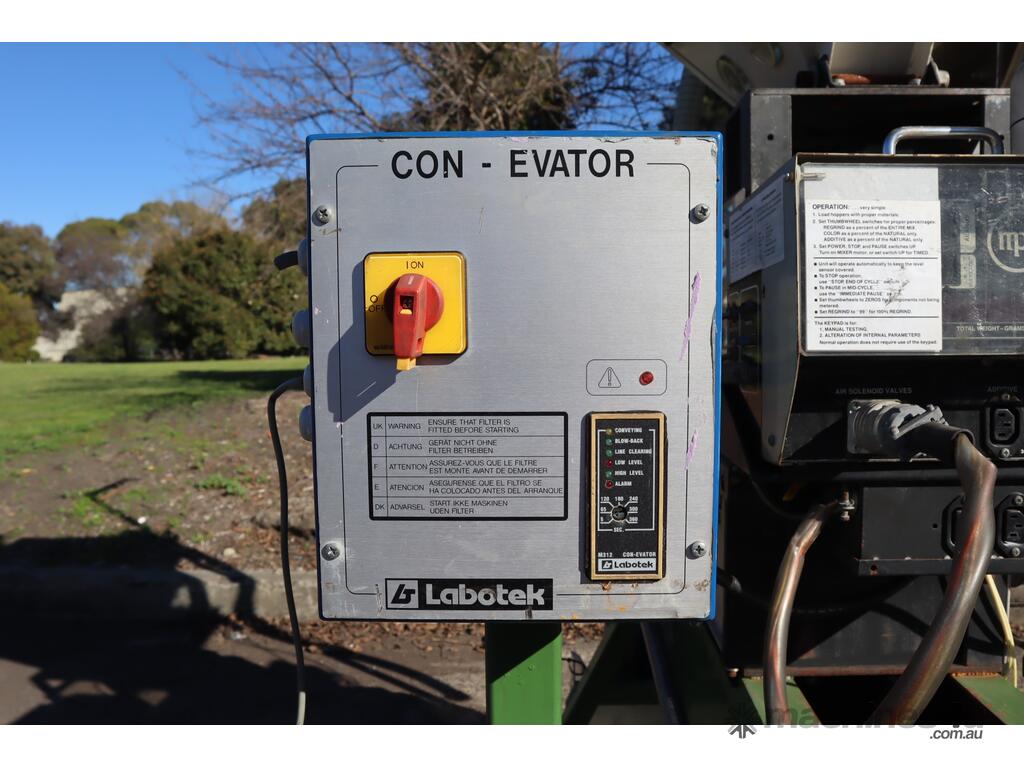

Hopper Loader Make: Labotek

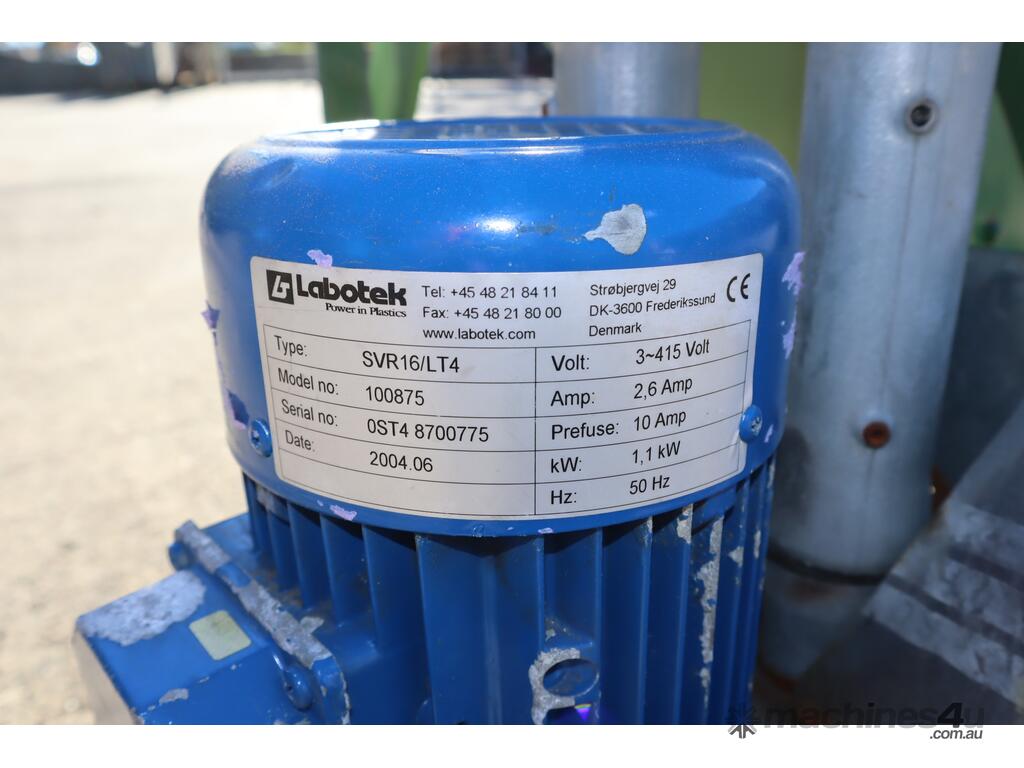

Model: SVR16/LT4 CON-EVATOR

SPECS -
Batch Size: 2kg
Components: 4
Slide Gate: 2
Feeders: 2
Capacity: up to 408kg/hr

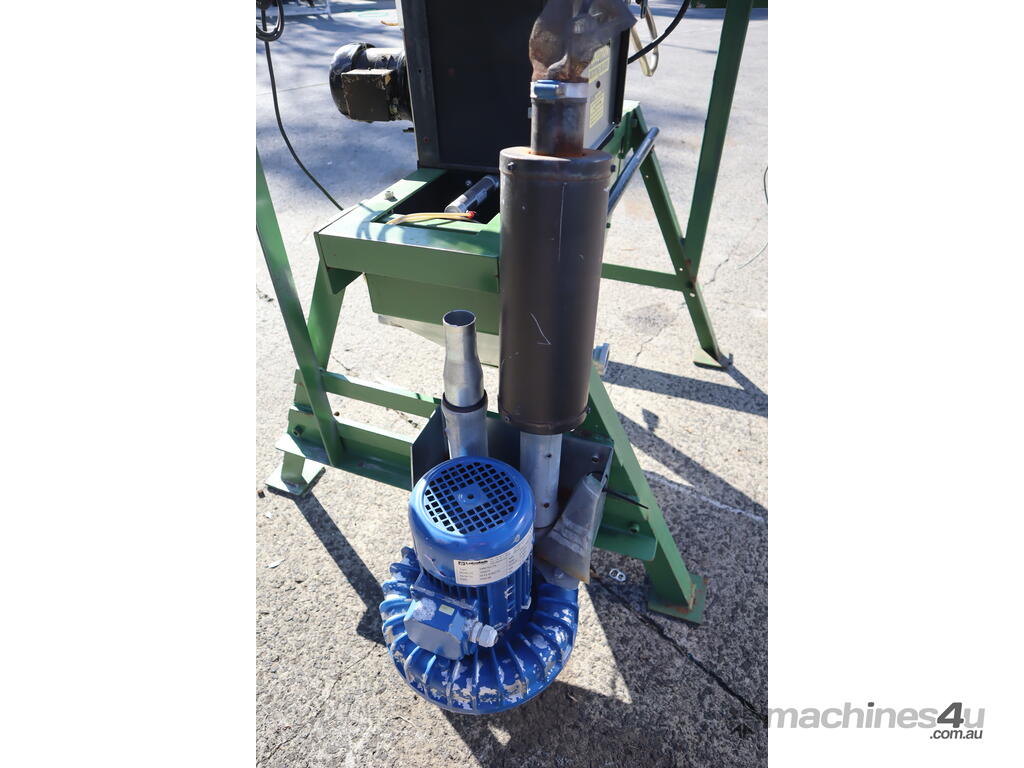

Vacuum Power: 1.1kW 415V

Overall Dimensions (mm): 1410 L x 1165 W x 2215 H
