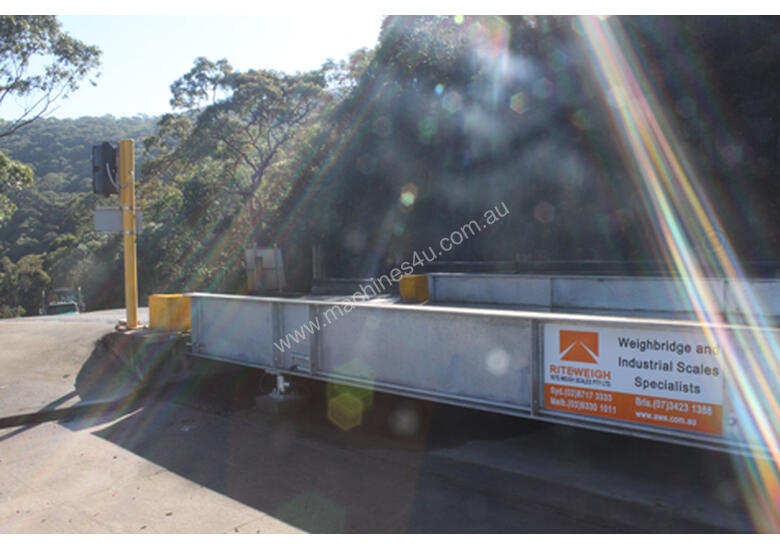

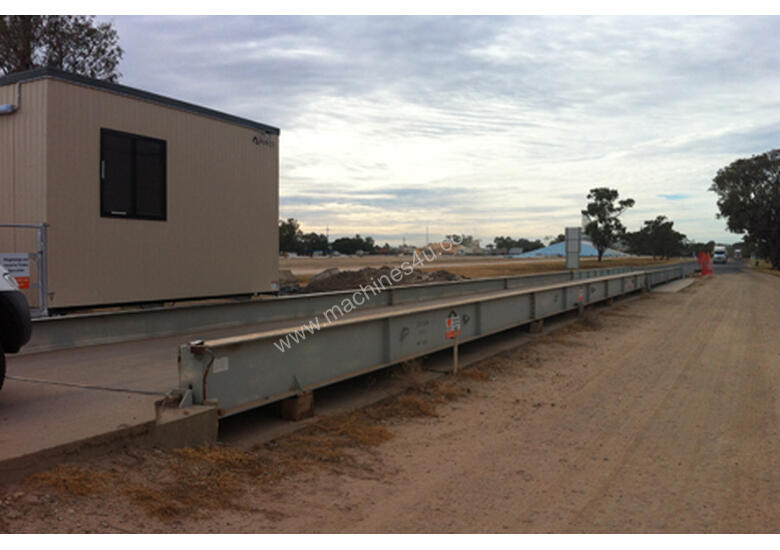

Weighbridge: Above Ground: - Freightweigh

Semi-Permanent Weighbridge at a lower cost than In-Ground installation. Strong design. Trade approved. Customised to your needs.

KEY FEATURES:
- Strong design - 530mm to 600mm steel universal beam structure, cross-braced every 5 metres to prevent twisting, and strong 8mm welds
- Galvanised steel frames and components to prevent corrosion
- Weatherproof hermetically sealed load cells made of 17-4PH stainless steel

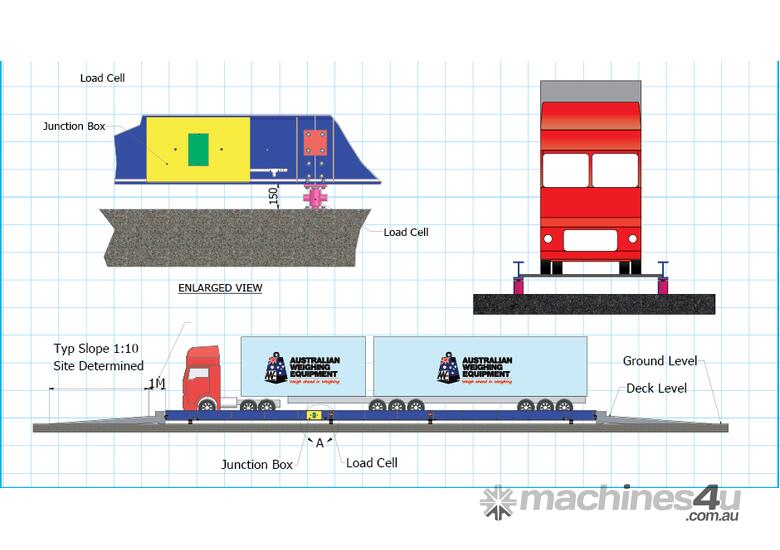

- 150mm clearance underneath weighbridge allows access for cleaning
- NMI Trade Approved
- Steel or concrete deck options
- Can have split decks for axle weighing on 4.5t p/axles trucks
- Weighbridge can be customised to your business needs with an availability of several add-on accessories

BENEFITS:
- Great investment for efficiency and safety
- Prevent overloading vehicles to comply with Chain of Responsibility legislation
- Avoid fines, damage to vehicles and possible accidents
- Check incoming goods to ensure you are getting what you pay for
- Check outgoing vehicles to ensure you are not giving away extra goods
- Above ground weighbridges can be relocated at a later date
- Cheaper to install than pit weighbridges because they require less civil work
- Better water drainage than pit weighbridge

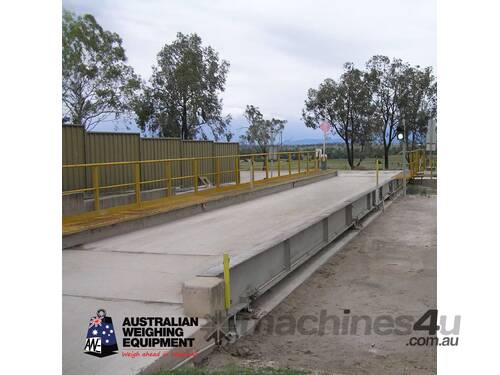

CONCRETE DECK
Concrete is ideal for permanent installations with heavy load applications
- Up to 30% less cost than steel
- Concrete doesn’t rust
- Concrete will last longer than a steel deck
- Provides better traction when wet
- Not affected by most chemicals

STEEL DECK
Ease of installation of a steel deck makes this material ideal if you need to relocate
- Steel decks fabricated off-site and installed by crane forklift so installation is quicker
- Steel deck won’t crack like concrete
- Eliminates the lengthy cure time needed for concrete decks
- Checker plate reduces slipperiness

SAFETY & TRAFFIC ADD ONS:
- SECURITY CAMERAS: Video all traffic entering and leaving your weighbridge
- TRAFFIC LIGHTS: Green and Red light to prompt drivers to enter or leave
- GUARD RAILS: Safety precaution for vehicles and pedestrians
- BOOM GATES: Control traffic entering and leaving the weighbridge

DISPLAY ADD ONS:
- DIGITAL INDICATORS: Capture and view information from weighbridge
- LARGE REMOTE DISPLAYS: Suitable for outdoor use and viewing from distances

QUALITY CONTROL ADD-ONS
- WHEEL WASHERS: Wash any contaminants off wheels of vehicles entering and leaving the site
- WIRELESS LINK TO FRONT END LOADERS: Send recorded data from the bucket to the cab, or to the weighbridge office

REMOTE MANAGEMENT ADD ONS:
- DRIVER CONTROL STATIONS: Run unmanned sites - customisable for your business
- CONTROL HUTS: Built offsite and delivered to your site for quick and easy set-up

REPORTING ADD ONS:
- PRINTERS: Print tickets for customer and office records
- ACCOUNTING SYSTEM INTERFACING SOFTWARE: We can customise software to suit your specific requirements:
- Records weights into databases
- Integrates with your accounting package
- Print invoices and dockets
- Meets EPA requirements
- Stores transaction history
- Manned & unmanned computer solutions
- Send reports to via CSV, PDF, TXT with formats of your choice. Fully customisable. Similar functionality you get with MS Access or SQL Databases.
- Print reports on the fly

TRUCK FLEET MANAGEMENT SOFTWARE
- More software customisation options available. Talk to our consultants about your specific requirements so we can find the best software features to connect your weighbridge and business.
- Drivers & Operators can enter details of loads
- Take pictures of weighed vehicle
- Linked to a video camera - every vehicle weighed can be photographed for visual confirmation

SPECIFICATIONS:
Model: Single Deck and Multi Deck
Maximum Axle Loading:
- Single Axle 9 Tonne
- Tandem Drive Axle 16.5 Tonne
- Tri Drive Axle 20 Tonne
- Designed Axle Spacing: 1.3 Metre

Standard Capacities:
- 10 Tonne
- 30 Tonne
- 60 Tonne
- 80 Tonne
- 100 Tonne
- Other capacities available upon request

Accuracy:
± 10 KG
± 20 KG
± 50 KG

Construction: Galvanised Steel Installation

Deck Construction: Steel or Concrete

Load Cell Model: Titan Industrial Stainless Steel (Hermetically sealed IP68)

Load Cell Capacity (each):
20,000 KG
40,000 KG
45,000 KG

Sealing & Load Cell Cabling: Rigid PVC & Flexible Steel Conduit

Digital Indicator: Gedge Instrument

Design Loading: Designed to comply with RTA Axle load limits

Ground Compaction: 160 kPa required

NMI Approved (For Trade Version Decks): Loadcell Weighbridge 6B/206
