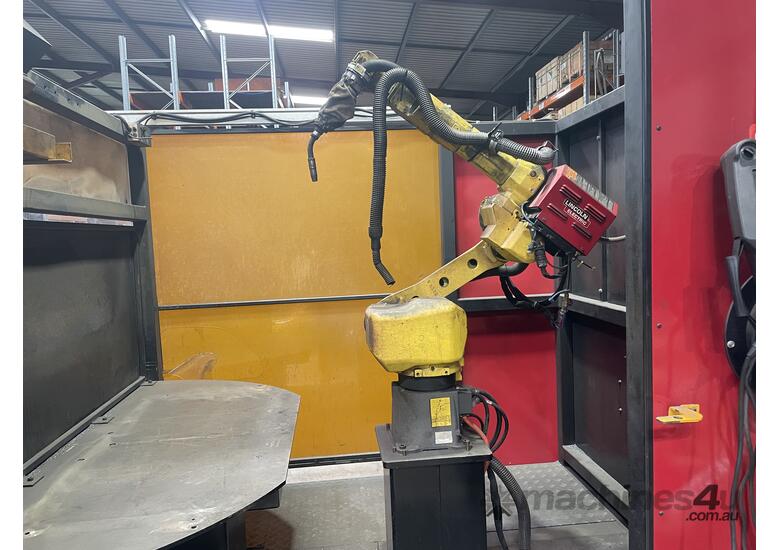

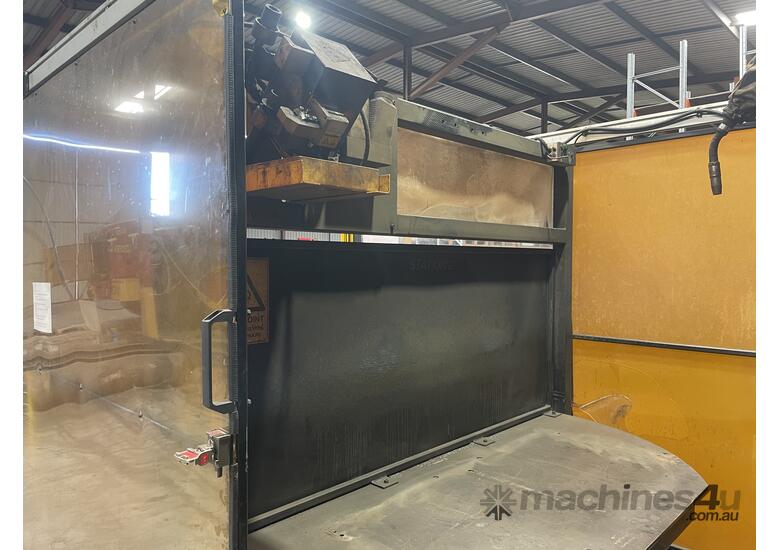

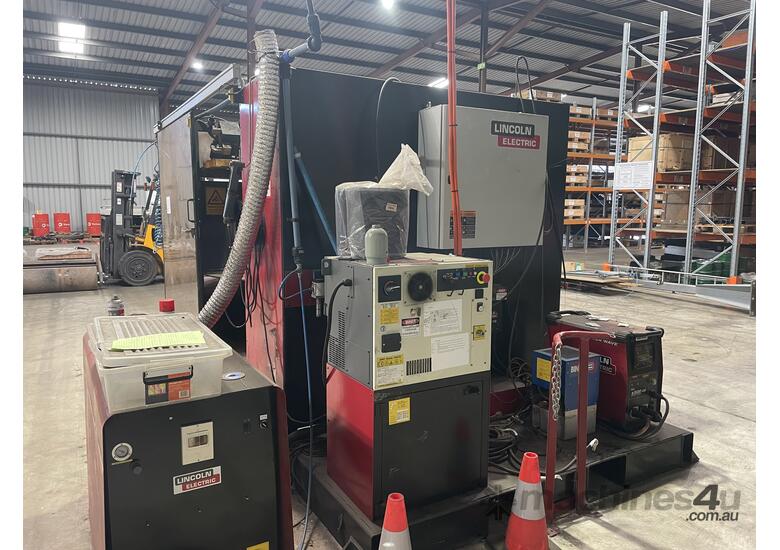

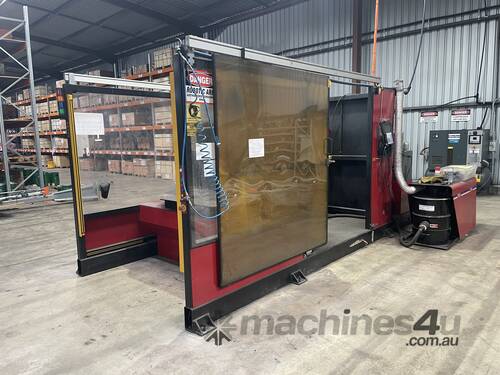

Welding Robot Cell (Fanuc Robot ARC Mate 100iC)

Robotic Equipment
- Fanuc ArcMate 100iC/7L robot
- Fanuc R-30iB controller A Cabinet


Welding and torch Equipment
- Lincoln Electric PowerWave S500 CE
- Lincoln Electric AutoDrive 4R220 robotic wire feeder
- Binzel inline water cooled welding torch 500A
- Binzel water cooler

Safety and Controls
- Perimeter fencing
- Integrated controls

Robot cleaning station & antispatter applicator
- Binzel BRS-LC cleaning station

High Vacuum Fume Extractions System
Scope of Supply
- MB-500A high vacuum fan/filter with pre-separator
- Torch mounted fume nozzle

Electrical Input Requirements
415V, 3 phase 50Hz – 32A (welder)
- 415V, 3 phase 50Hz – 20A (Fume)
- 415V, 3 phase 50Hz – 10A (robot and controls)
- 240V, 1 phase 50Hz – 10A (water cooler)
