Wet & Dryer Sheet / Plate Linishing Deburring Machine - Must Have for All Laser / Plasma Finishing

SG630-WJS. Wet Dry Linishing & Deburring Machine. Jonsen. 630mm wide capacity, 1-70mm Working Thickness, Variable Speed - Thickness Setting, PLC Operation, Volt

Features
?JONSEN deburring machines are leaders in the market of deburring equipment.
?with a complete range of products we can offer you the best solution to your deburring applications.
?an extremely robust machine.
?perfect for deburring of punched and laser cut parts, as well as deburring / deslagging machines for flame and plasma cut parts.
?dry deburring machines are extremely low in maintenance, and should be chosen if no material mix has been processed, suitable for stainless steel fabricators and plasma cut parts.
?wet deburring machines are ideal when a material mixed out of steel, stainless and aluminium is to be deburred. this ensures that there will be no contamination of stainless with steel debris and vice versa.
?call through with your requirements now.

JONSEN Metal Grinding Machine
Model: SG630-WJS
Application: Steel, Stainless steel, non-ferrous metal

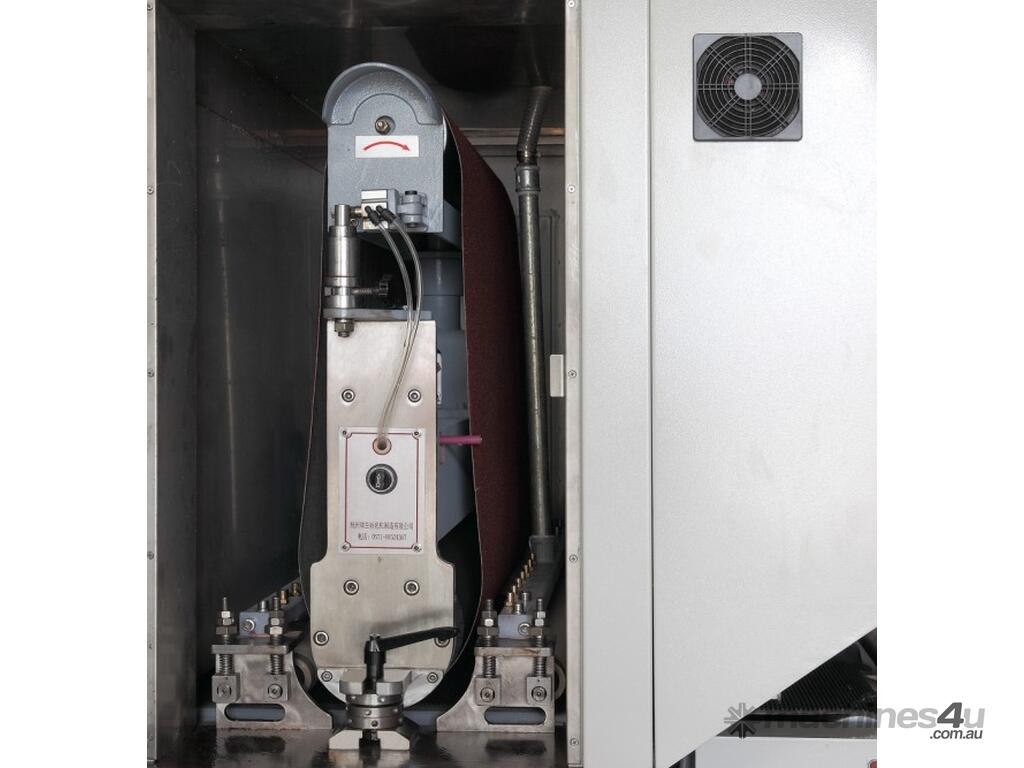

1. Grinding head: Single head wet operation
?Contact rollers and pinch rollers are covered with high quality, heat and oil resistant rubber. The diameter of the contact roller is 240mm standard.
The durometer is 55°, different durometers are available upon request.
? 3 Seconds emergency disk brake of main motor.

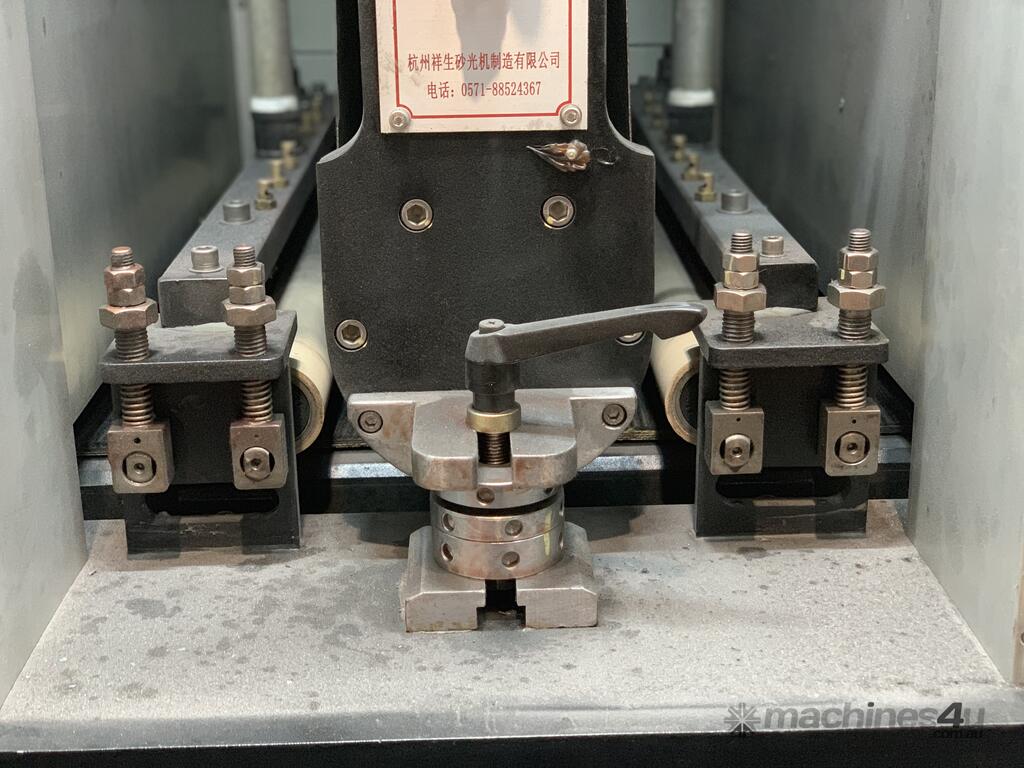

? Front lock on grinding head, with fine adjustment.
?SKF spherical bearings are used on the contact roller. A
central lubricating system insures a long life.

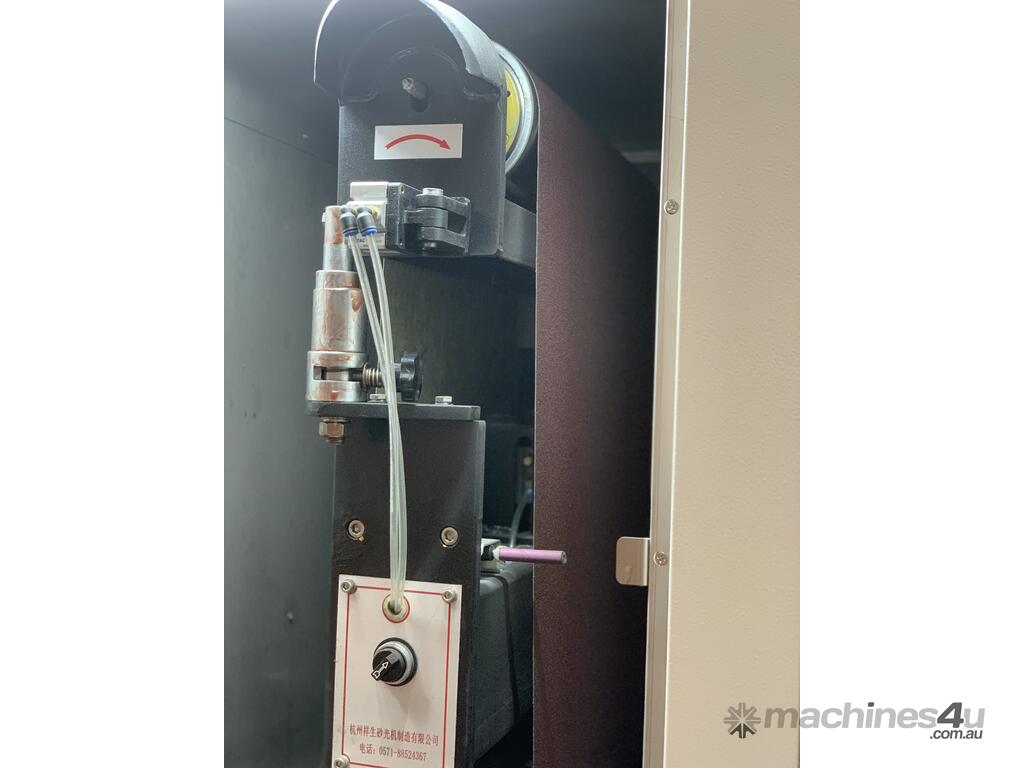

?In order to correct the deflection of abrasive belt the tension roller oscillates.
?Photo eye controlled abrasive belt tracking.
?The oscillating air cylinder and tension cylinder are of heavy duty construction and easy to maintain.
? Fine adjustment of oscillation
? Contact roller is driven by a tapered shaft pulley assembly.

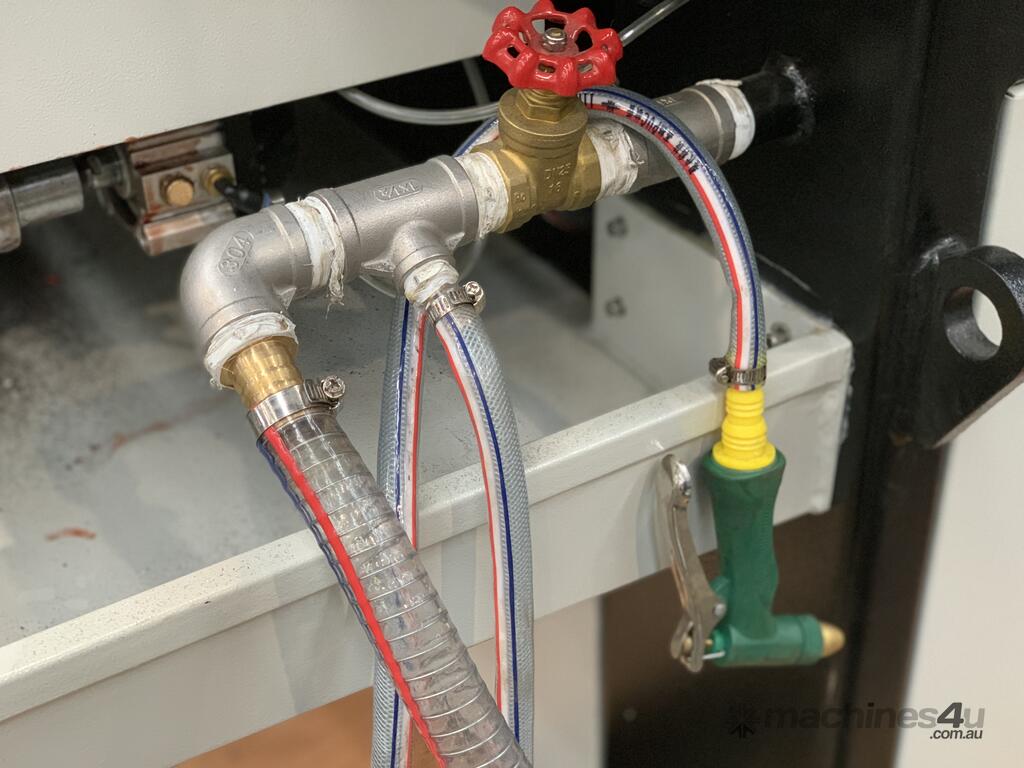

? Water coolant pipes are located in front of and in back of each contact roller. A portable spray hose is also provides to clean the machine.
? Water-proof of each bearing, prolong the lifetime.

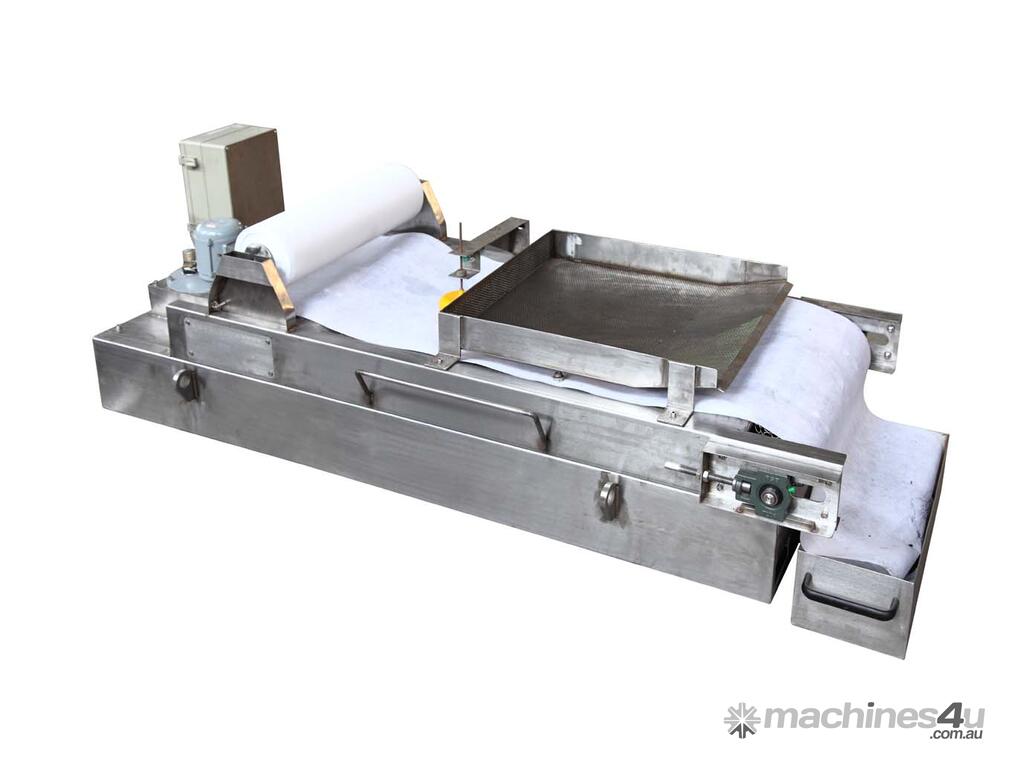

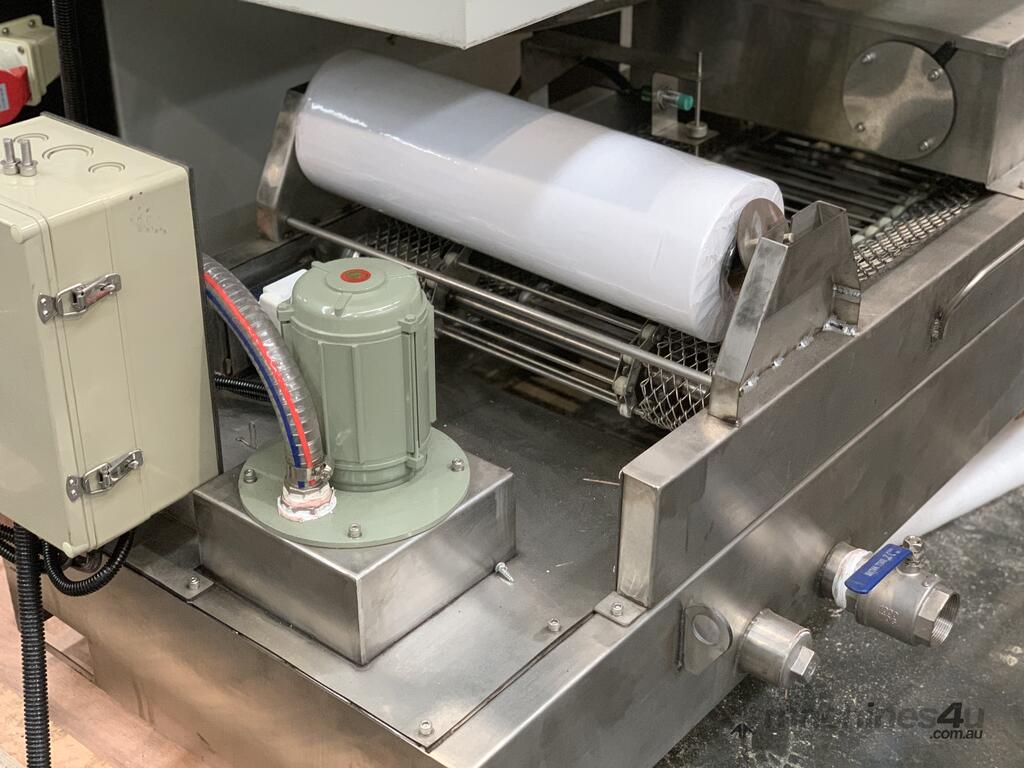

?Freestanding automatic paper filtration system.

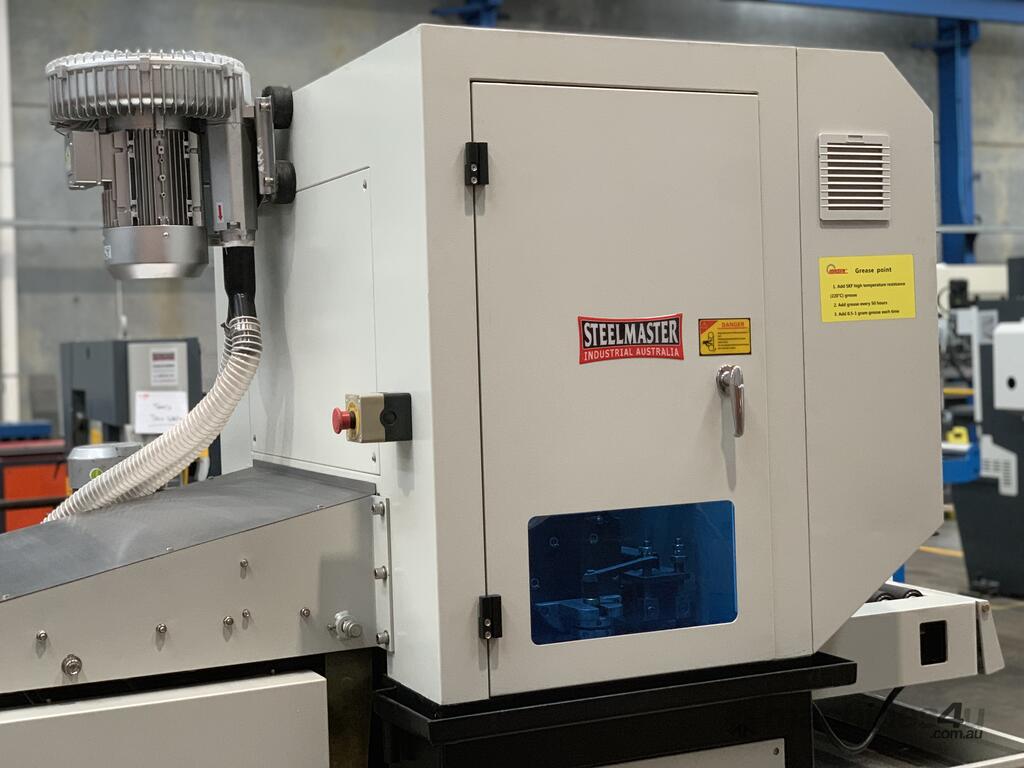

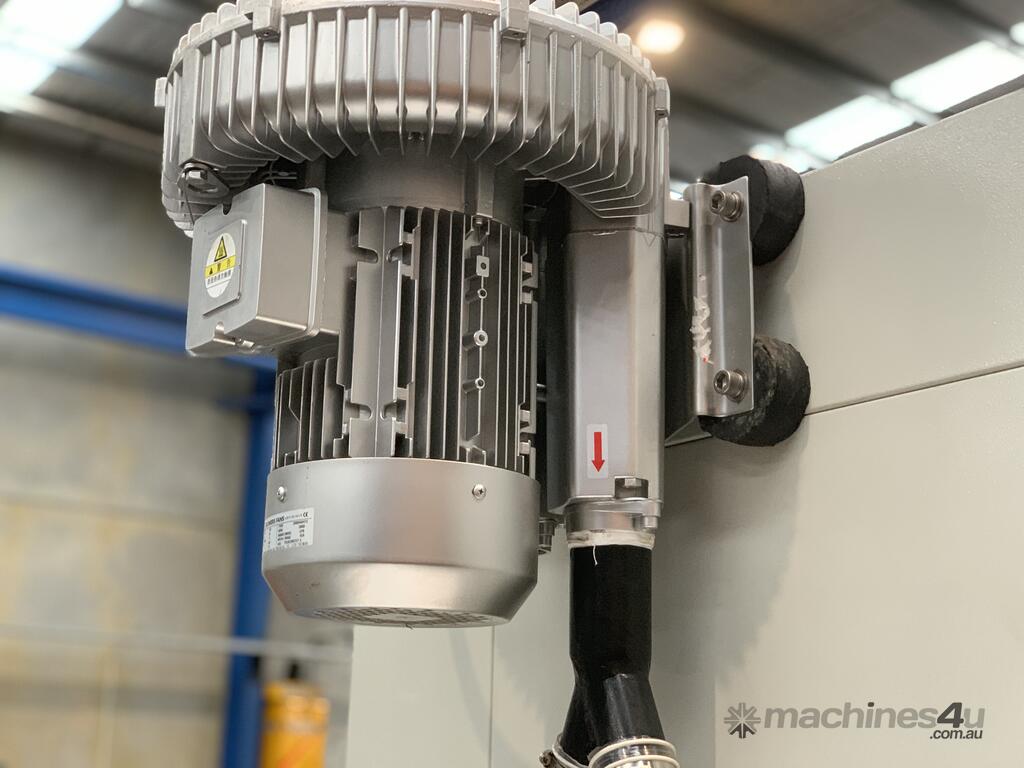

?High pressure air blower device at machine outlet.

2. Conveyer
? High-quality rubber rough top conveyer belt standard and rubber covered drive roller.

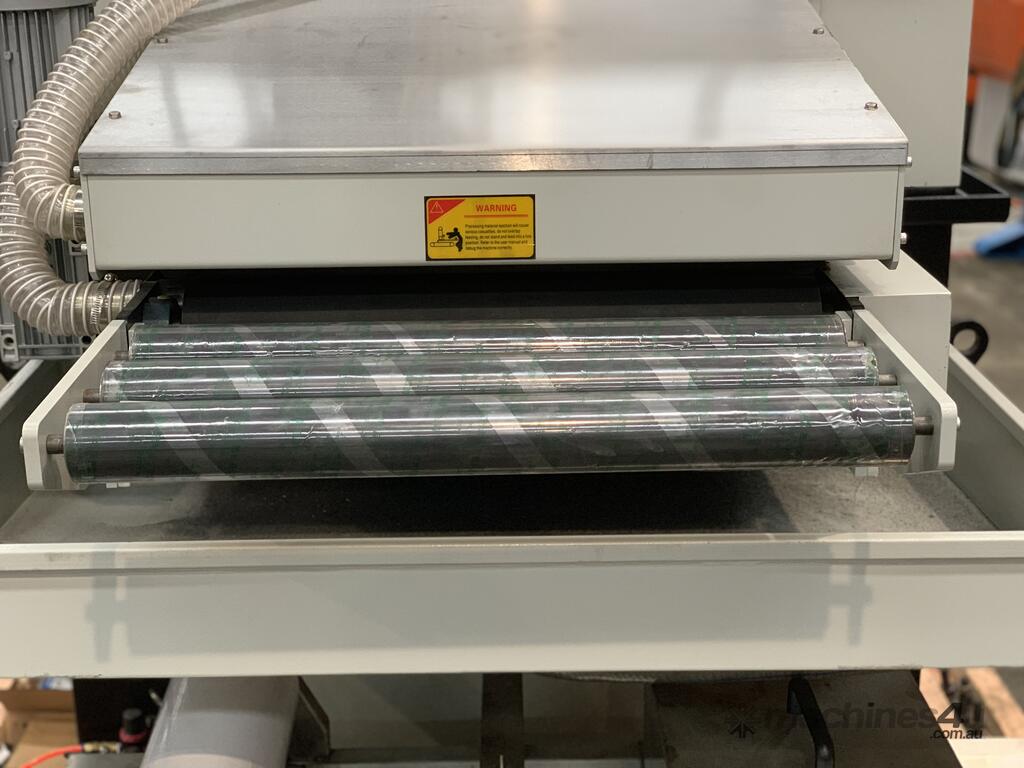

? Rubber covered pinch rollers before and behind aggregate, heat and oil resistant 60mm diameter.
? Electronic automatic abrasive belt tracking.
? 4-pillar synchronized jack system electrically operated with manual fine adjustment of work table.
?Patented external jack screws are mounted externally so as not to touch the fluids prolonging the life.
?Magnetic grid positioning sensor for work piece thickness calibration.

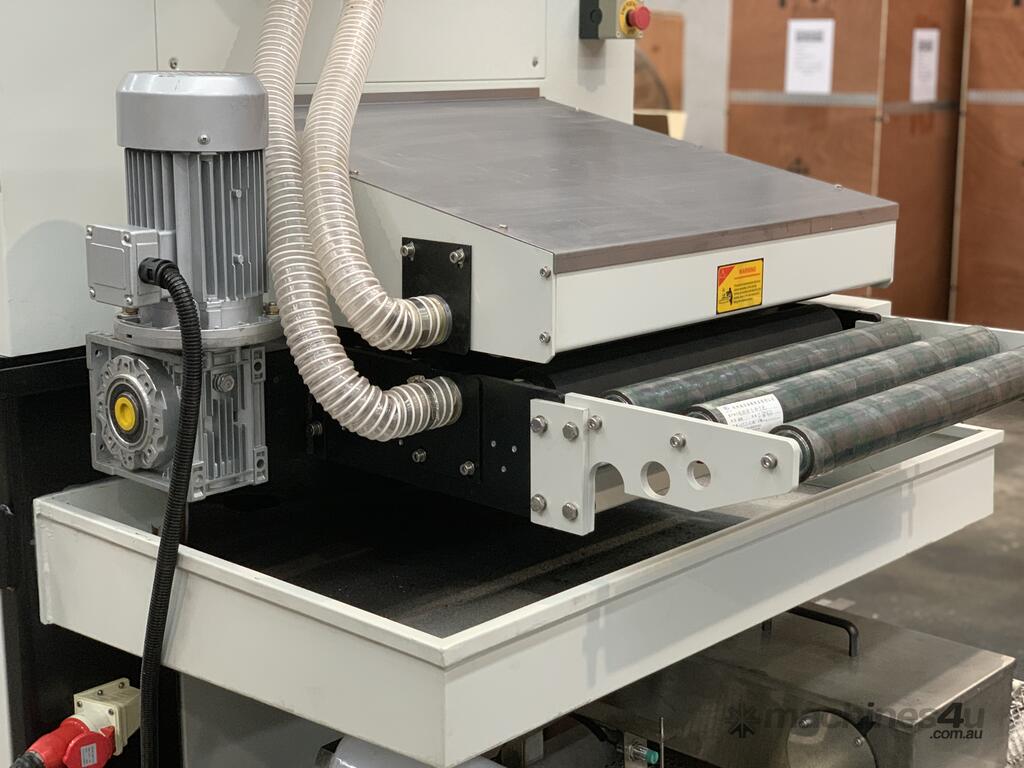

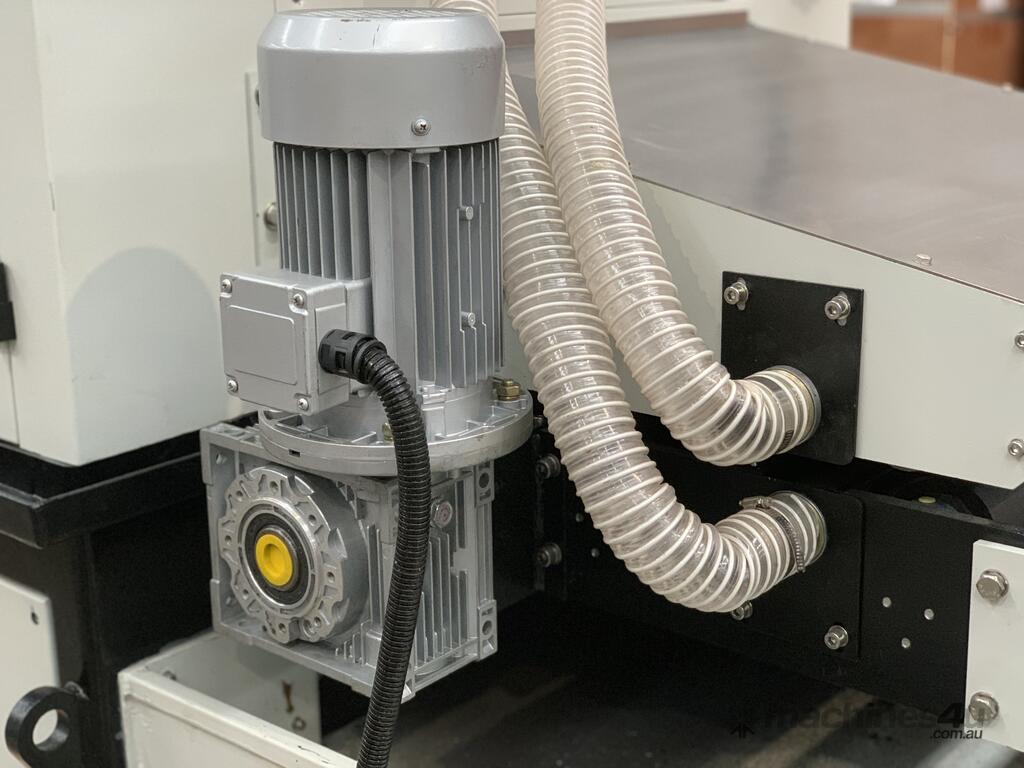

?The conveyor is a motor ?frequency controlled? and worm gear box to provide variable speed of 2-11 m/min.
?Table capacity1-70mm.

3. Electricity
? Voltage: V, 3 phases. 50HZ
Voltage of controller: 24V
Total Power: 29.7KW
? Main Motor: 7.5KW
Feed Motor: 0.75KW
Lifting Motor: 0.18KW
Pump Motor: 0.37KW

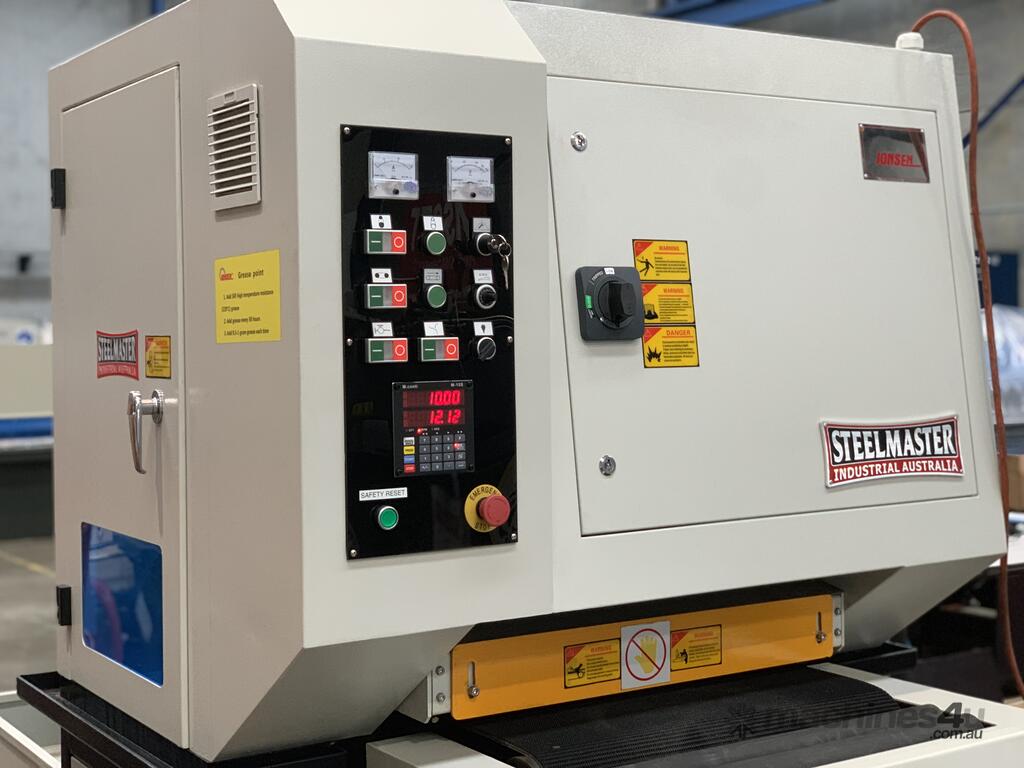

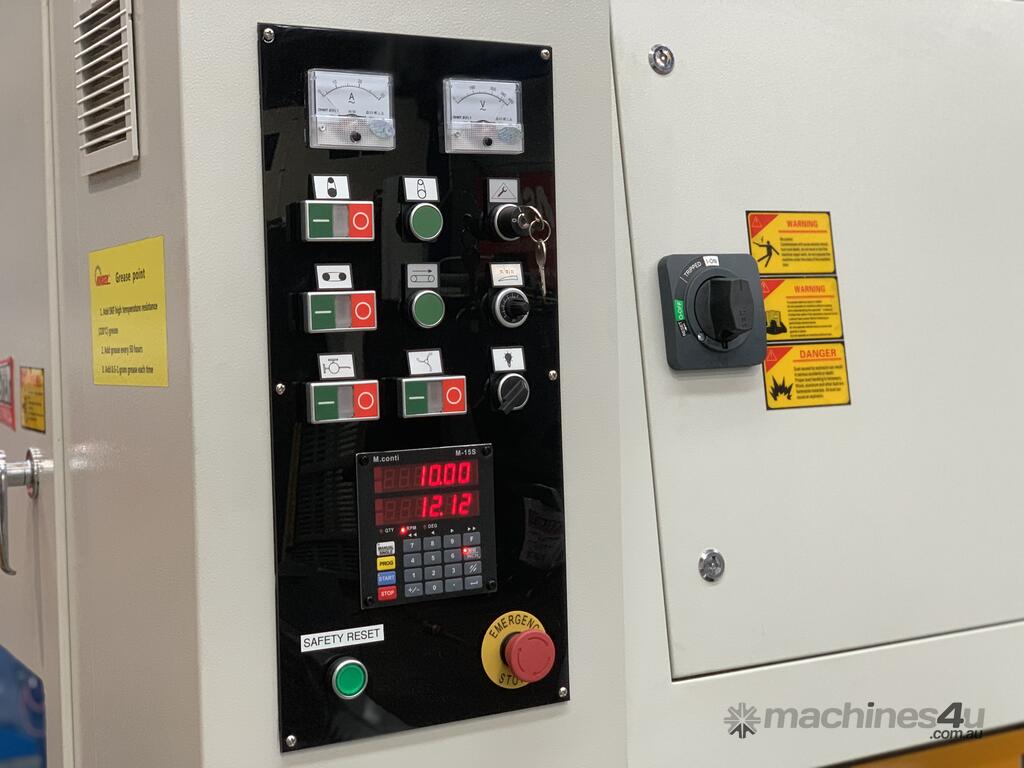

? Inching switch for lift of worktable, conveyor returning button,
start & stop of coolant pump and dryer on
Front of centralized operating panel.
?MINICOK digital read out, in inch or metric.
? Conveyer speed is controlled by frequency inverter.
? Main electrical switch disconnect on front door of electrical cabinet?safety interlocks on all access doors.

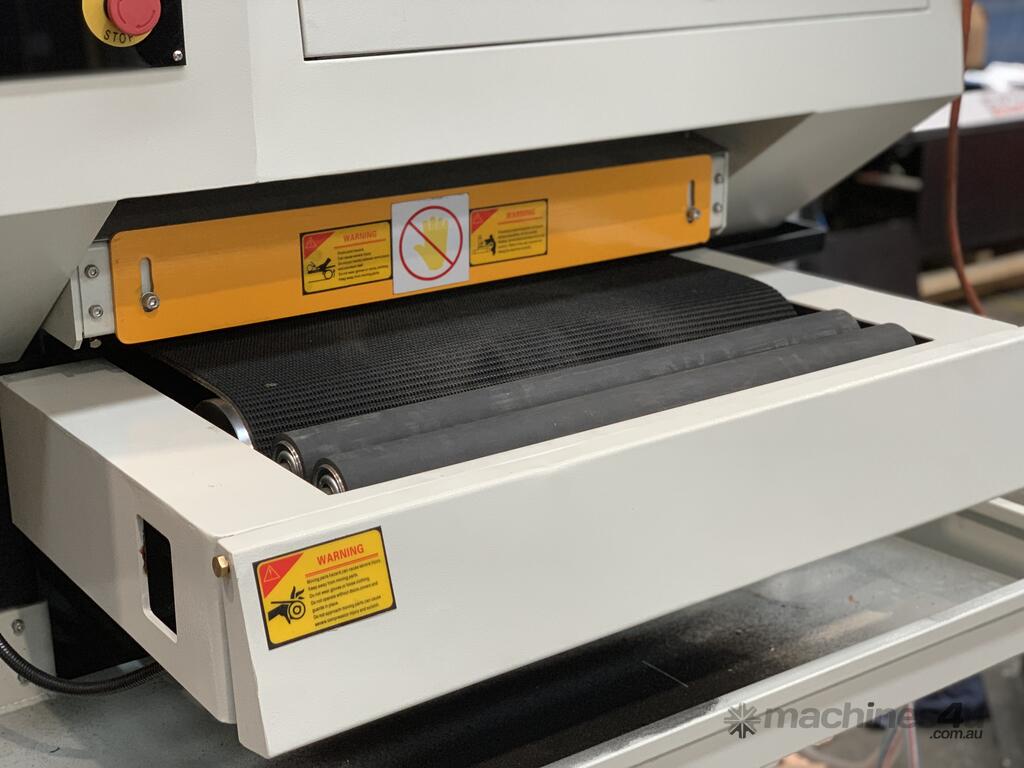

? Emergency finger protection guard is found on the front of the conveyor table at entrance to avoid injury.

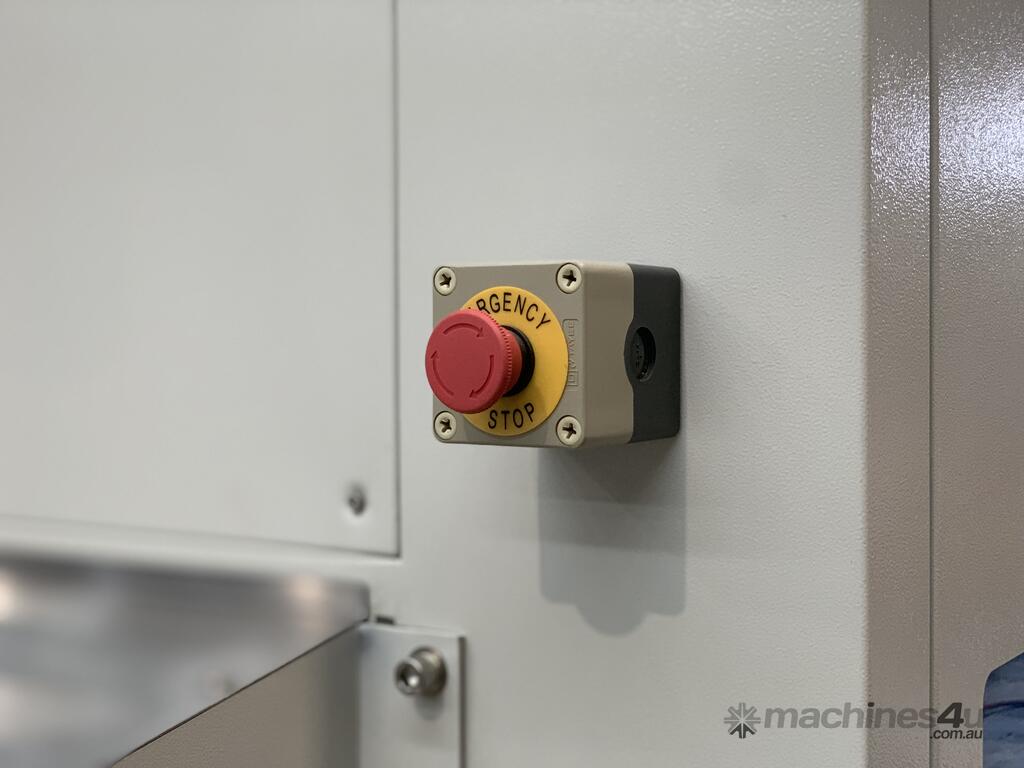

?A total of 6 protection switches, including 2 abrasive belt switches, 1 conveyer belt switch, and 3 emergency switches to insure safety of operator.
? Amp meter to monitor abrasive belt load.
?Air pressure regulation is located on front bottom portion of the frame.
?Service key in electrical cabinet.

4. Rack and construction
? Under-rack is a high rigid steel sheet of 6mm, after folding, cutting, welding.
? Upper-rack is a high quality cold rolled steel sheet of 1.5-2.0mm.
?All rollers are made of carbon steel 45#.
?All rotating shafts are balanced.
?A water-prevent roller is located on the inlet of the feed. Two
Groups (total four) of water pressure rollers are on the outlet, pressure the work piece, to avoid no water breakage during grinding.
? The whole machine is anti-rusty
? Inside of upper-rack is made of stainless steel sheet.

5. Options
? Inverter Variable Speed Control – Add $2100AUD+GST

6. Technical parameters
?Maximum working width: 630mm
?Working thickness: 1-70mm
?Minimum working length: 270mm
?Feed speed: 2-11m/min
?Total motor power: 13.5KW (standard)
?Measurement of abrasive belt: 630×1900mm
?Dimension: 1850×1720×1900mm
?Weight: Kg

DRY MACHINE V WET MACHINE TO CONSIDER.

DRY MACHINE
Advantage of dry machine:
1. Lower cost of purchase.
2. Easy operation and very less maintenance.

Disadvantage of dry machine:
1. Dust during operation needs to be collected / extracted
So the dust collector is an extra cost.
2. Cause heat during grinding / may cause issues with aluminium

WET MACHINE
Advantage of wet machine:
1. Low heat during grinding and Linishing

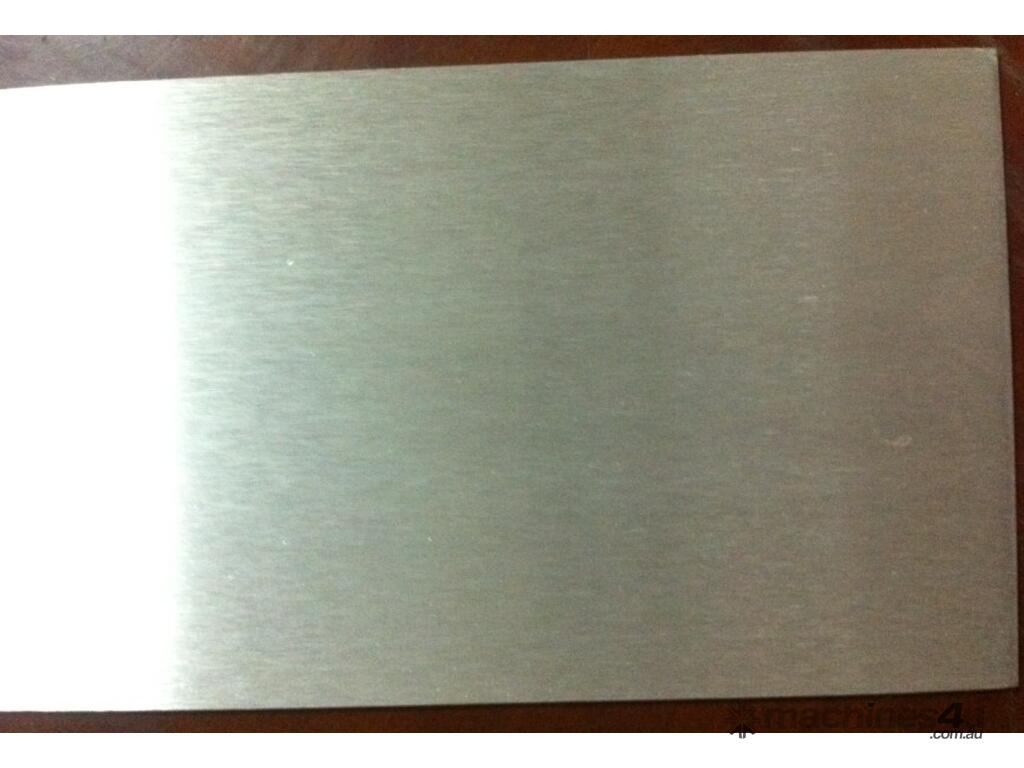

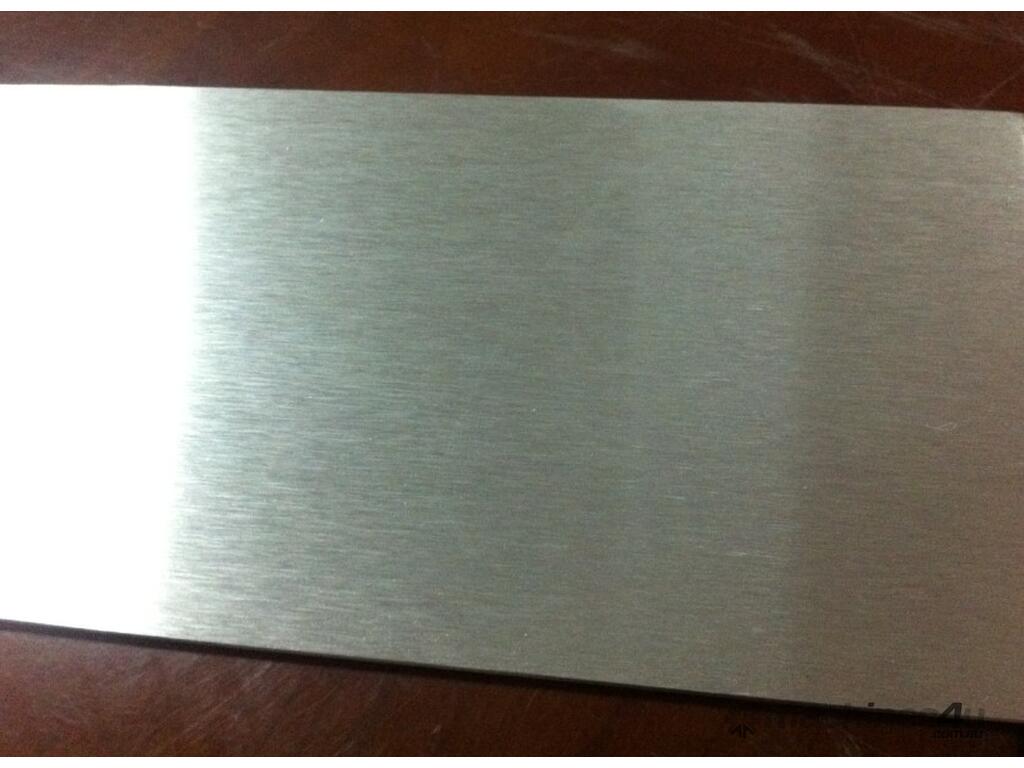

2. Perfect surface finishing on all your materials
3. No dust, dust and grains are collected by an automatic paper filter.

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
