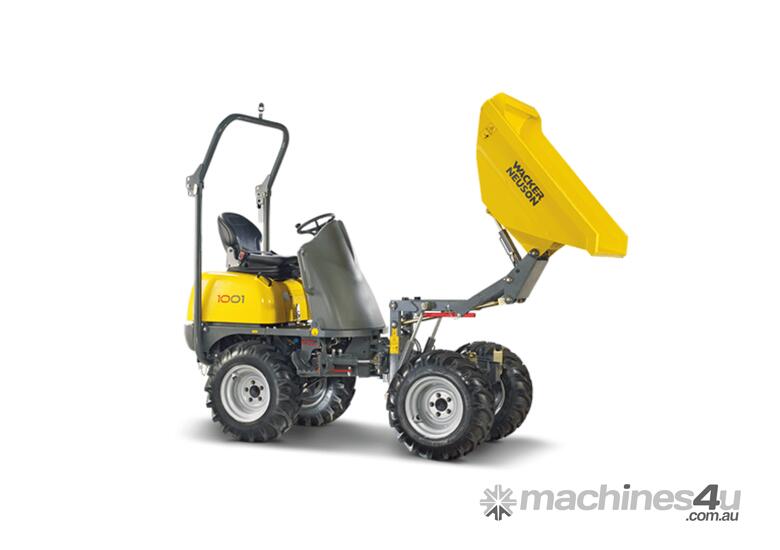

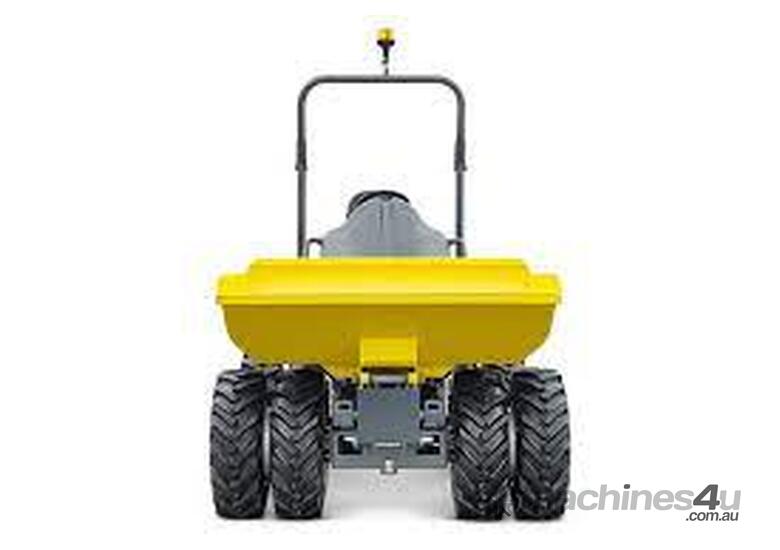

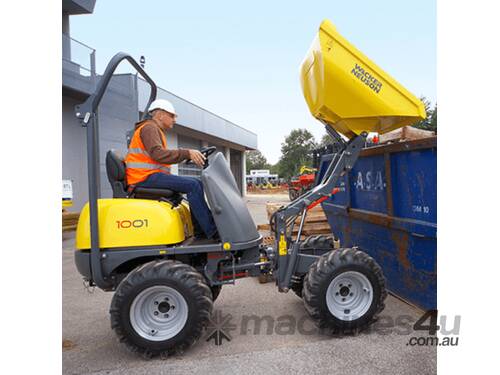

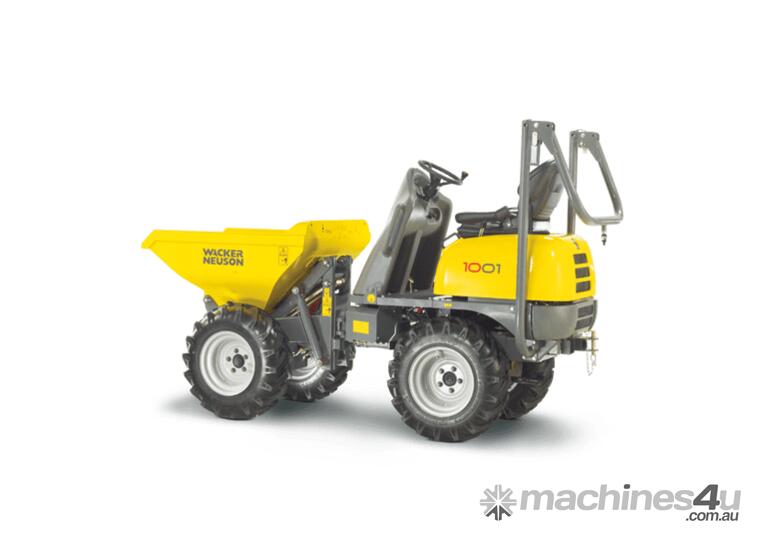

Fast, safe and easy transport even on the roughest of terrain and a discharge height of up to 1.56 m… the four-wheel dumper 1001 is particularly versatile, agile and extremely robust.
High-tipping skip (1.56 m dumping height); maximum payload 1000 kg.
Compact dimensions, optional narrow tires (990 mm machine width).
Hydrostatic twin-lock four-wheel drive; continuously variable speed up to 14 km/h max.
Large service and maintenance access.
Clearly laid out instrument panel and wide, robust leg protection
Twin Lock-Drive System
On highly uneven surfaces, one wheel loses traction at some point and rotates freely. The Twin Lock all-wheel drive system from Wacker Neuson responds quickly: as each of the four wheels has its own hydraulic motor, power is always optimally distributed.
All-wheel drive with its own hydraulic motor
Easy maintenance and cost savings because no changing of gear oil and brake fluid is necessary
General
Safe payload 1,000 kg
Hydraulic power high lift skip, 415 l struck / 525 l heaped
Safety bar (ROPS)
Speed: 16 km/h
Tires: 10.0/75-15.3 (Mitas TS-05) profile with very good traction also for use in industrial operation.
Engine
Water-cooled YANMAR-diesel engine, type 3TNV76, 3-cylinder / 1,116 ccm, power output 18,9 kW (25,7 hp), rated speed 3,000 min-1
Hydraulic
Permanent four wheel drive
Hydrostatic drive, system TWIN-LOCK
Gear pump (25 l/min)
Hydrostatic drive working also as hydrostatic brake
Hydrostatic centre-pivot steering (load sensing)
