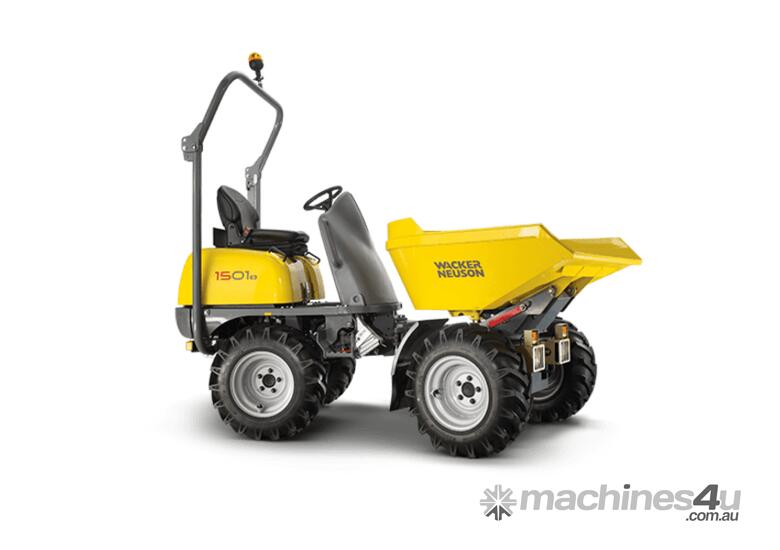

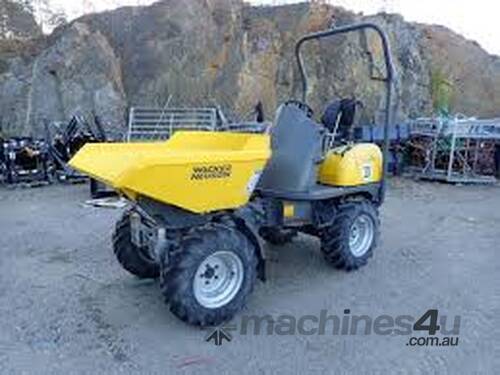

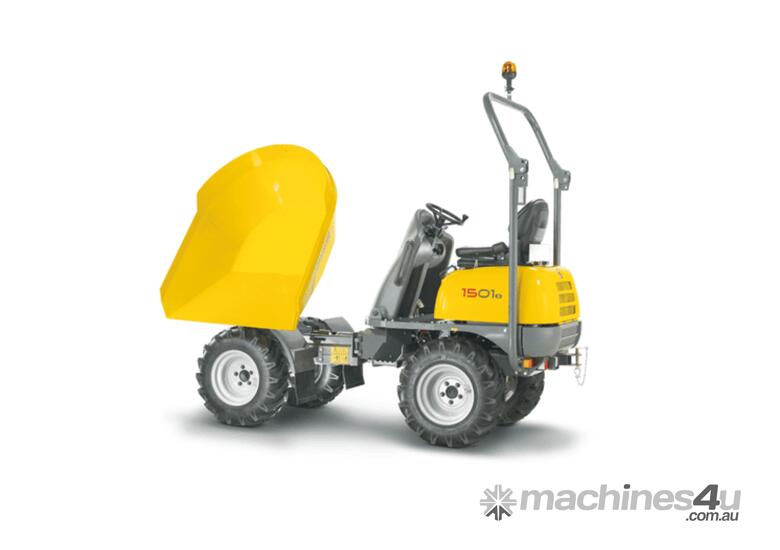

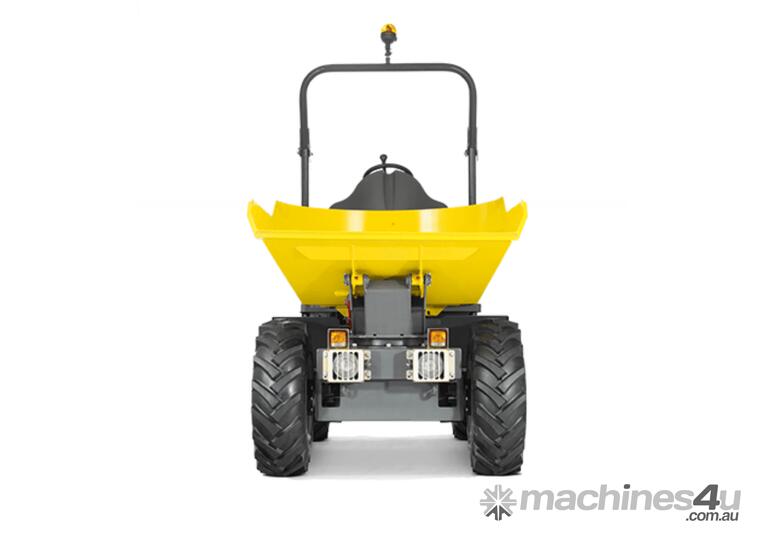

New wacker neuson Site Dumper for sale - Wheel Dumper

The 1,500 kg payload and optional swivel tipping skip enhance the range and variety of the dumper’s applications. Even in very confined spaces, materials can be dumped precisely.
High-tipping skip (1.45 m dumping height); optional swivel tipping skip, maximum payload 1,500 kg.

Hydrostatic twin-lock four-wheel drive.
Continuously variable speed up to 16 km/h max.
Large service and maintenance access.
Clearly laid out instrument panel and wide, robust leg protection.

Equipment Services & Machinery are located outside Brisbane in Rocklea. Please feel free to call our friendly team if you have any questions we are more than happy to help. Also see our Machines4u showroom for more listings available via the the View More Listings button below.

Twin Lock-Drive System

On highly uneven surfaces, one wheel loses traction at some point and rotates freely. The Twin Lock all-wheel drive system from Wacker Neuson responds quickly: as each of the four wheels has its own hydraulic motor, power is always optimally distributed.

All-wheel drive with its own hydraulic motor
Easy maintenance and cost savings because no changing of gear oil and brake fluid is necessary

Please note that product availability can vary from country to country. It is possible that information / products may not be available in your country.

1501 Standard components

General

Safe payload 1,500 kg
Hydraulic power high lift skip, 650 l struck / 800 l heaped
Safety bar (ROPS)
Speed: 16 km/h
Tires: 10.0/75-15.3 (Mitas TS-05) profile with very good traction also for use in industrial operation.

Engine

Water-cooled YANMAR-diesel motor, type 3TNV76, 3-cylinder / 1,116 ccm, power output 18,9 kW (25,7 HP), rated speed 3,000 min-1

Hydraulic

Permanent four wheel drive
Hydrostatic drive, system TWIN-LOCK
Gear pump (25 l/min)
Hydrostatic drive working also as hydrostatic brake
Hydrostatic centre-pivot steering (Load sensing)
