The compact and robust DW30 wheel dumper not only increases productivity in material handling, but also, thanks to countless safety features, increases the safety of the driver and that of the entire job site. All-wheel drive, constant tractive force combined with the articulated pendulum joint and gradeability of up to 50% make the DW30 a true off-road and on-road professional. At the same time the low service and maintenance costs are simply convincing.
Ascent and descent on both sides: Even if the device stands close to an obstacle or is used for unloading on one side, the control stand can be left and climbed quickly, easily and above all safely on the other side.
Thanks to the intuitive joystick operating concept and the clearly arranged dashboard, the operator has all important functions within easy reach.
The articulated pendulum joint adapts to any unevenness on the construction site and remains stable in any situation. In combination with the partially locked differential on the front axle, excellent off-road mobility is guaranteed.
Reliable, wear-free and durable, the spring-spoke parking brake is applied automatically as soon as the driver switches off the engine.
Optional Hydrostatic drive:
Just get on it and drive: With the hydrostatic all-wheel drive, the driver can concentrate on his work without having to change gears frequently. The continuous constant tractive force from 0 to maximum speed and a hydrostatic braking effect round off the pleasant driving experience.
The hydrostatic all-wheel drive not only ensures optimum driving conditions but also a very low-wear drive with very low service and maintenance costs, which not only saves time but also money.
Always optimum view, in all directions:
The front and rear view cameras minimize the machine’s blind spots and provide double protection for the surroundings. The operator can see more precisely what is happening around him and can detect obstacles at an early stage. This significantly increases safety for the operator, the machine and the environment.
Safety:
The seat contact switch ensures that the machine can only be started when the driver is seated. When the driver stands up, the speed is reduced in a controlled manner. For maximum safety on the job site.
The ascent in signal colour increases safety and ensures better visibility of the steps and grab handle. This draws more attention to these areas, which are important for safety during ascent and descent.
The orange-coloured belt signals its control function by the connection with the green LED light visible from the outside. It lights up when the belt is fastened and the operator properly secures the machine.
Service and maintenance:
The maintenance intervals, which are twice as long, enable additional cost savings through higher utilization of the machine and less downtime for maintenance work.

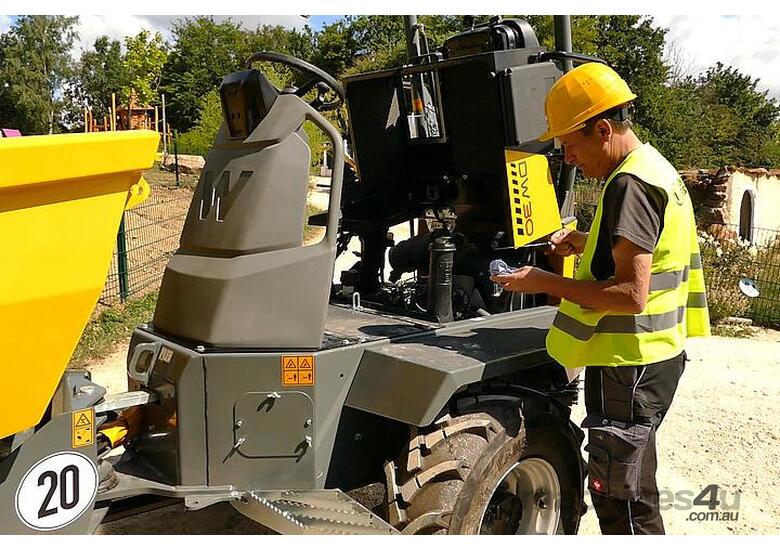

The easily attainable service and maintenance access through the hinged hood makes regular maintenance easier than ever before. All the necessary access points and covers are easily accessible, perfectly positioned and easy to reach.
Roll over protection bar:
The folding roll bar with gas pressure spring ensures a very low headroom and high safety standards at the same time. It also saves space during transport. The gas pressure spring facilitates manual folding of the ROPS bar.
Skip variants:

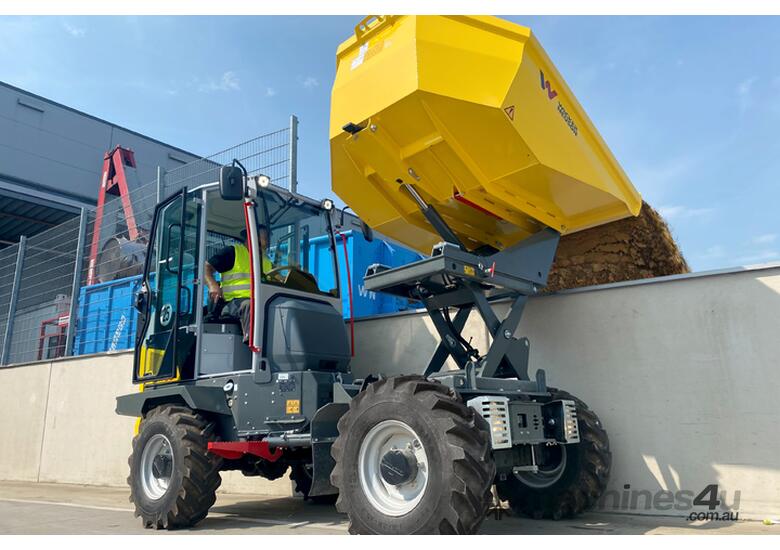

The very versatile swivel tip skip enables lateral discharge in all directions, perfect for lateral filling or levelling when transporting liquids on inclines. It brings the material exactly to the point thanks to stepless 180° tilting, which also allows it to be used in confined spaces.
With the standard front tip skip, a large amount of material can be transported in the shortest possible time and ensures great stability due to a low centre of gravity and a low discharge height.
Please note that product availability can vary from country to country. It is possible that information / products may not be available in your country.
General
Safe payload 3,000 kg
Safety bar (ROPS)
Speed: 20 km/h
Tires: 11.5/80-15.3 (Mitas, TS-05) profile with very good traction also for use in industrial operation.
Engine
Water-cooled YANMAR diesel engine, type 3TNV76, 3-cylinder / 1.116 ccm, power output 18.9 kW (25.7 HP)
Hydraulic
Permanent four wheel drive
Partially locked differential on the front axle
Three-gear forward and one reverse gear
Hydrostatic frame articulated steering (load sensing)
Electrically operated spring brake parking brake
