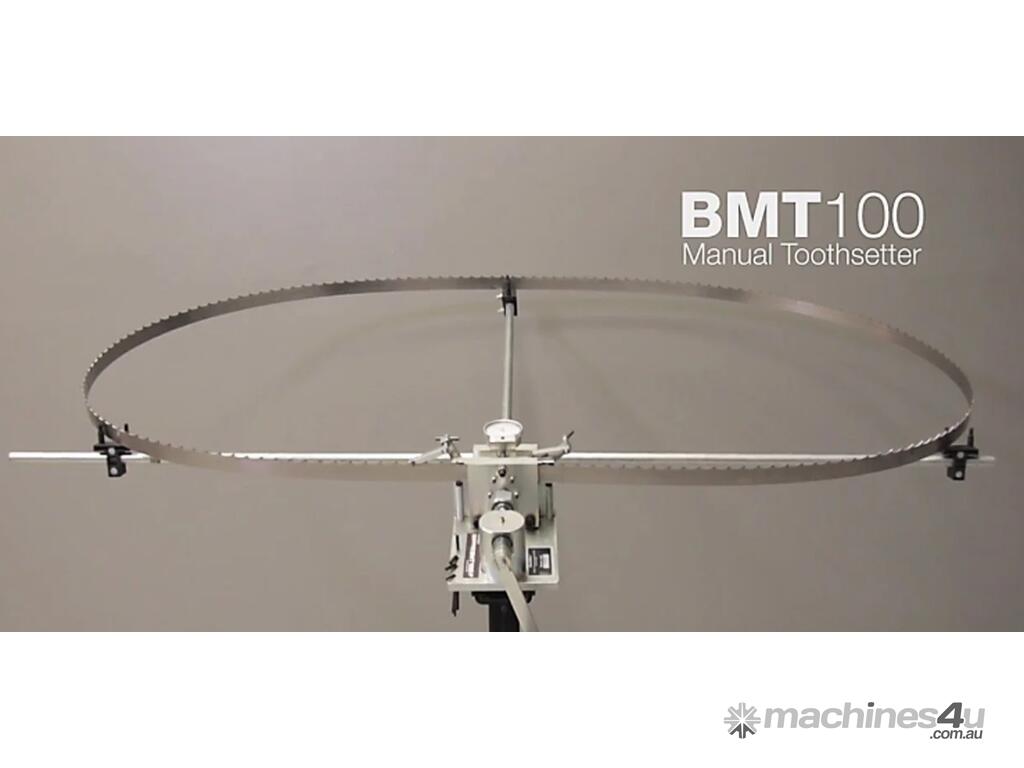

Wood-Mizer BMT100 Manual Tooth Setter

The BMT100 is a manually operated economical tooth setter that sets one tooth at a time. The BMT100 is a reliable option for low volume operations that demand consistent set patterns.

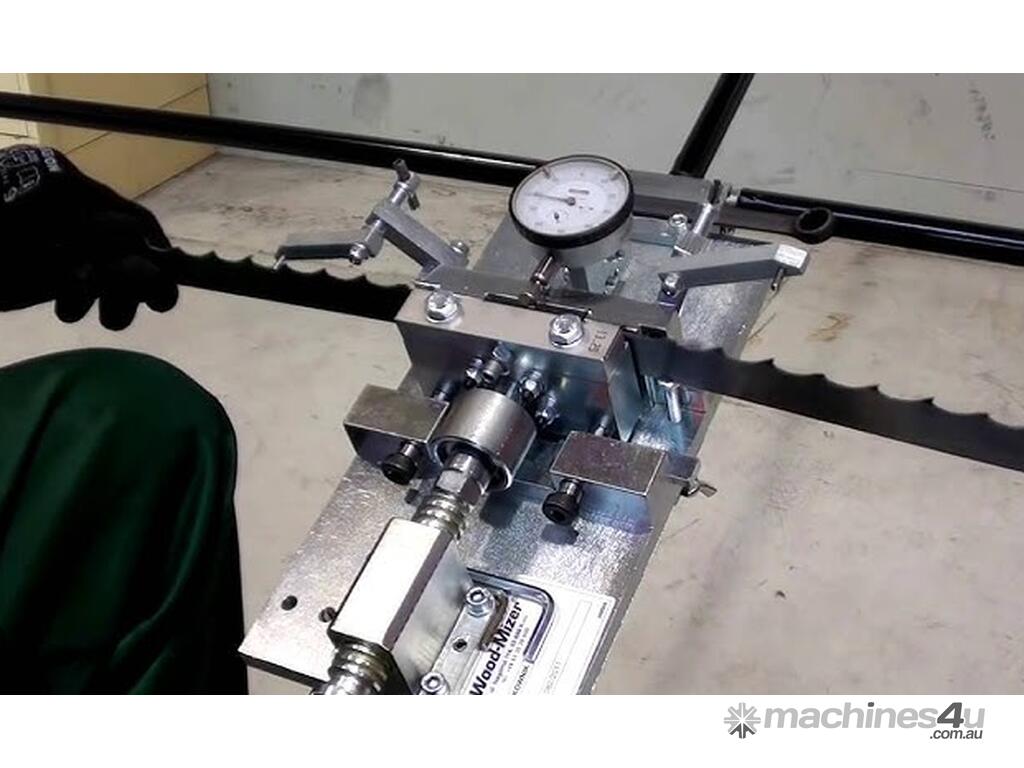

The BMT100 is a manually operated economical tooth setter that sets one tooth at a time. This unit contains a dial indicator that accurately measures the tooth set while the blade is manually advanced by hand, setting one side at a time. Once this entire side is set the blade must be inverted for completion of teeth on the other side.

This manual tooth setter will ensure that your set is symmetrical and consistent tooth-to-tooth and side-to side. The BMT100 is a reliable option for low volume operations that demand consistent set patterns. This setter comes with a “Bend Back Tool” that allows for correcting over set teeth.

For the individual who has low volume but who needs to ensure consistent set, the BMT100 is a great way to get started.

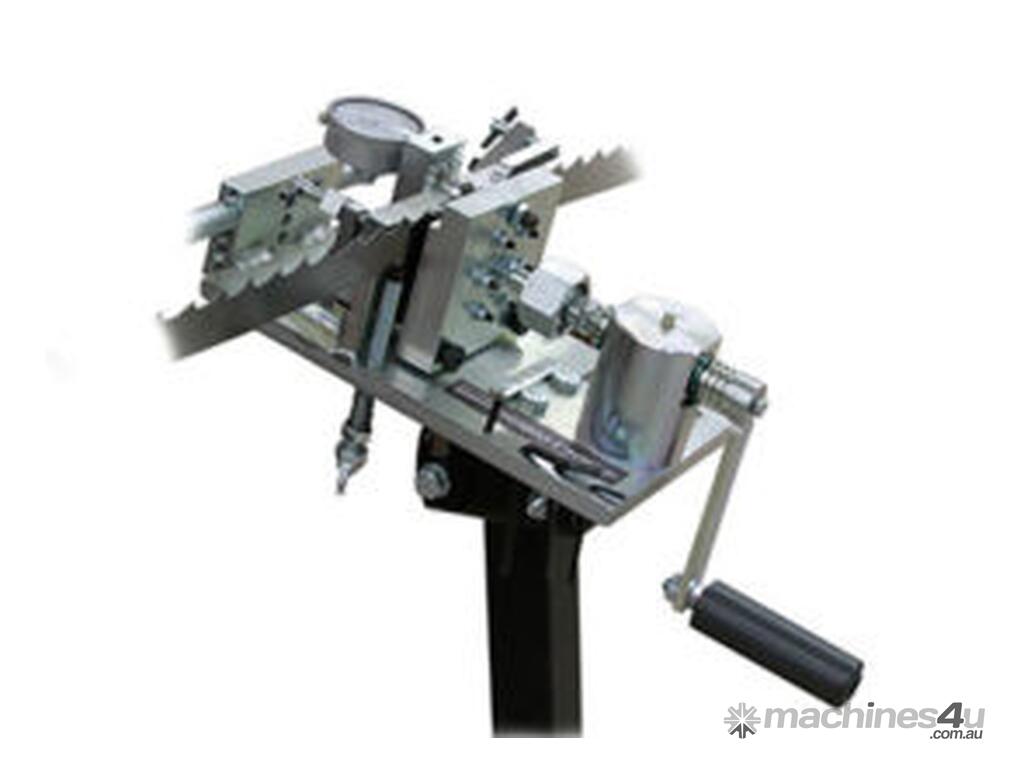

Features
Easy to operate manual crank handle
Adjustable clamp nut for handle positioning
Adjustable toothset dial indicator
Blade indexing pawls for adjusting tooth spacing
Blade height adjustment screws for 25 - 50mm wide blades
Adjustable set screw for setting point location
Blade support arms

Benefits
Inexpensive
Easy to operate
Precise set reading

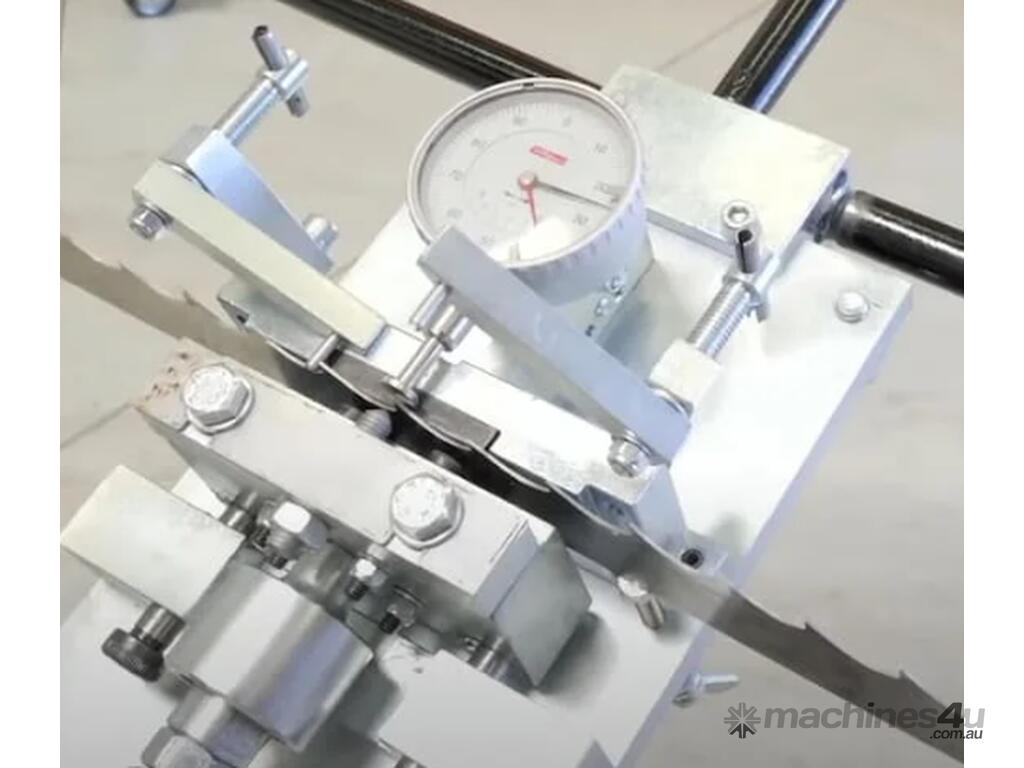

Adjustable Tooth Set Dial

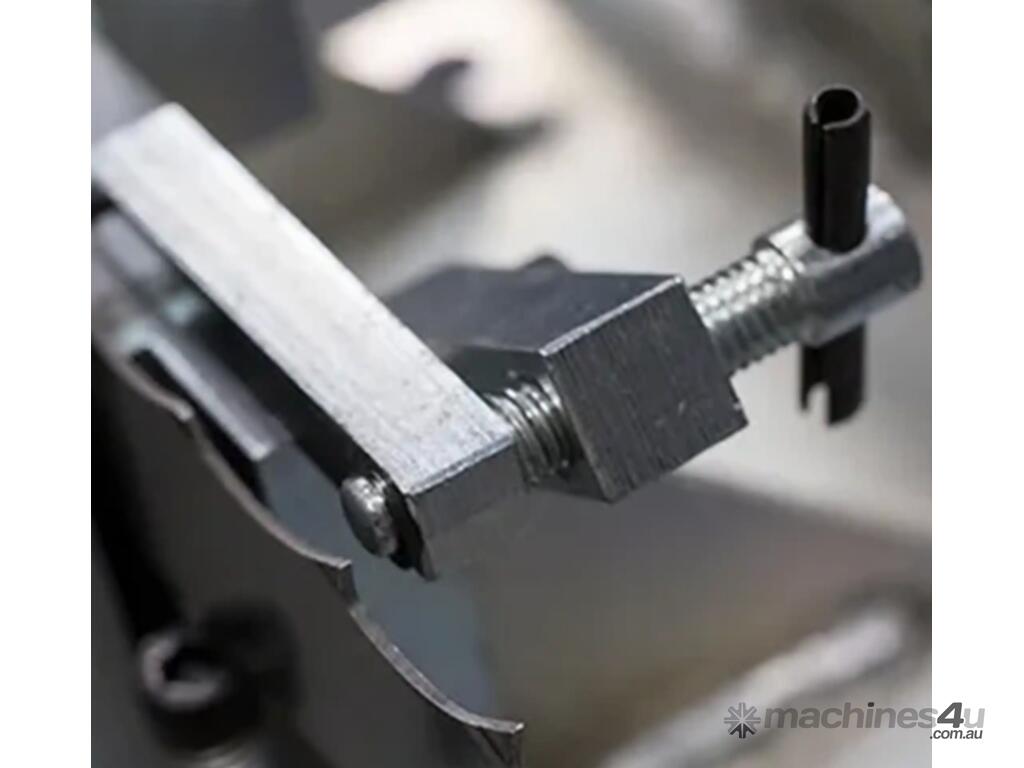

Blade Height Adjustment
For 25 - 50mm wide blades.

Blade Indexing Pawls
Adjusts tooth spacing.

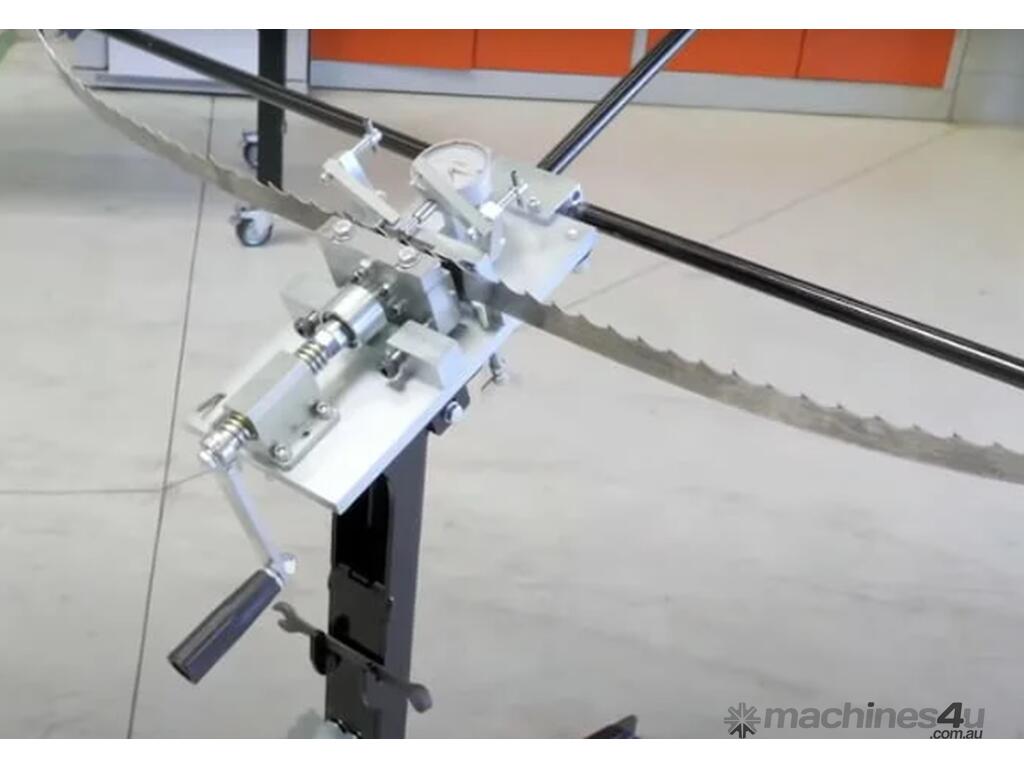

Blade Support Arms
Adjustable brackets.

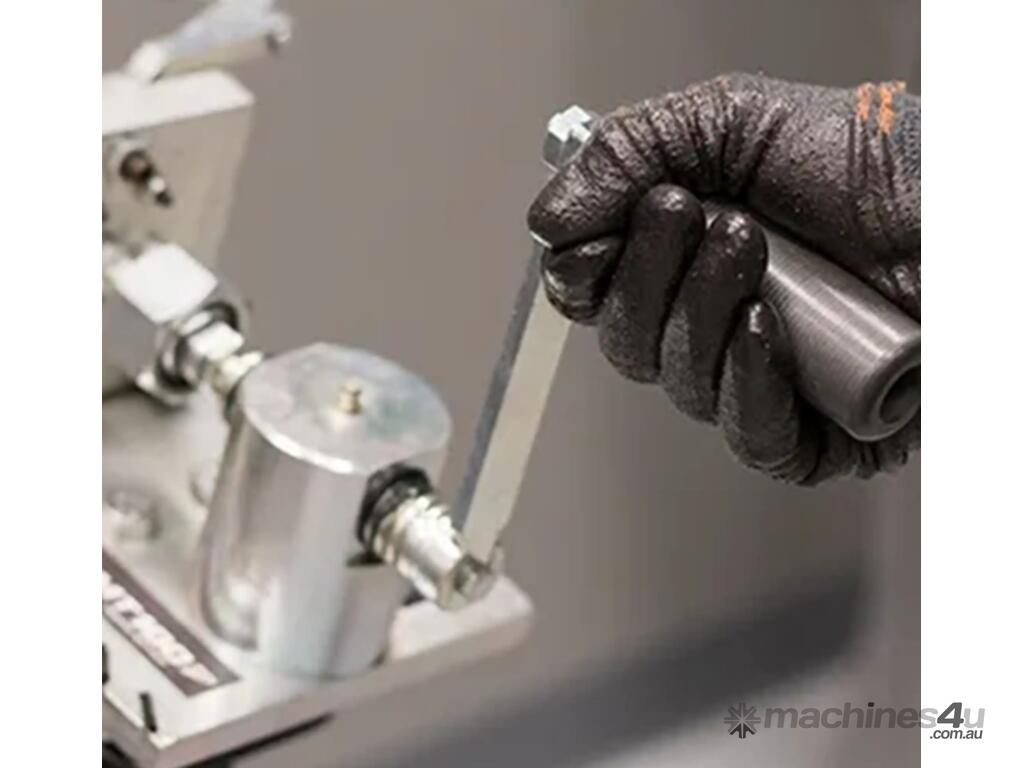

Manual crank handle


Specifications
FEATURES & OPERATION
Tooth Set Gauge 1 Tooth Set Gauge (On Machine)
Blade Support 3 Support Arms with Adjustable Blade Brackets
Adjustments Set point, Indexing, Blade Widths
Blade Advancement Manual Crank Handle
Blade Widths 25 - 50mm (1" - 2")

DIMENSIONS & REQUIREMENTS
Safety Standards CE
