Wood-Mizer BMT150 Manual Tooth Setter

The BMT150 is a manually operated tooth setter that sets two teeth at a time, increasing efficiency but remaining affordable.

The BMT150 is a manually operated tooth setter that sets two teeth at a time. A ratchet lever is used to advance and set both sides of the blade in one cycle, eliminating the need to invert the blade. This setter comes with a “Set Master Gauge” which allows for consistent and accurate setting. The BMT150 features adjustable tooth spacing from 6mm to 32mm and can be used for 25mm-76mm blades blades.


Features
One cycle lever action
Blade height adjustment for 25mm-76mm blades
Adjustable tooth spacing
Set master gauge included

Benefits
Efficiently sets both sides in one cycle
Consistent and accurate
Economical bench mount

Adjustable tooth spacing

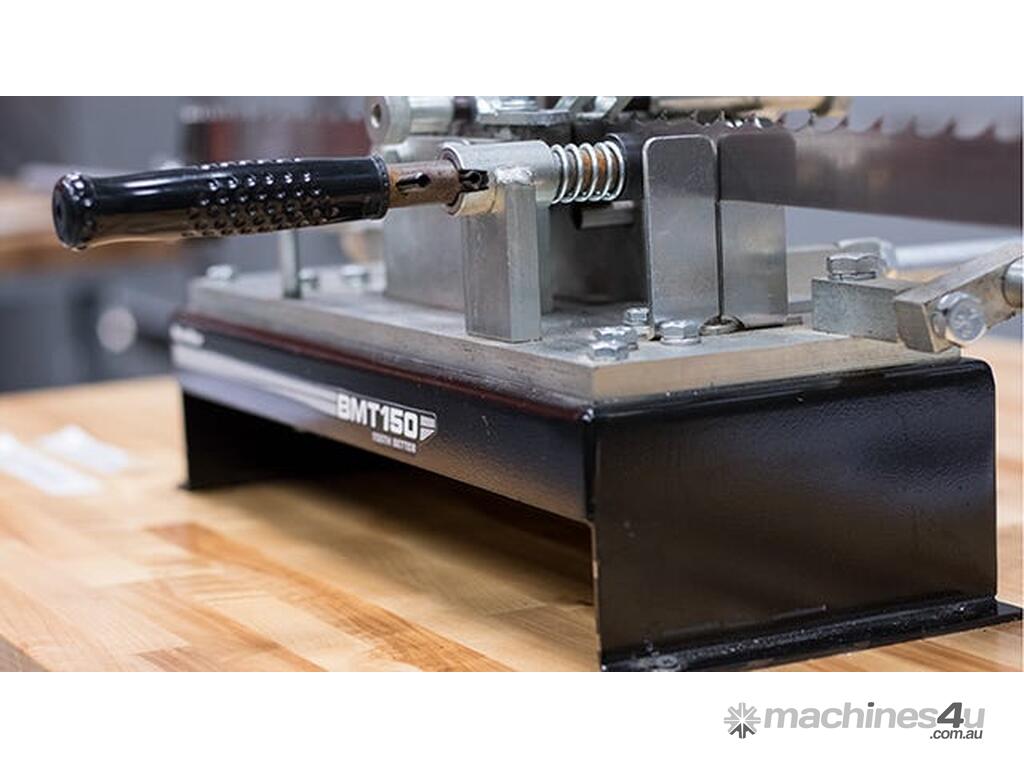

Bench Mount

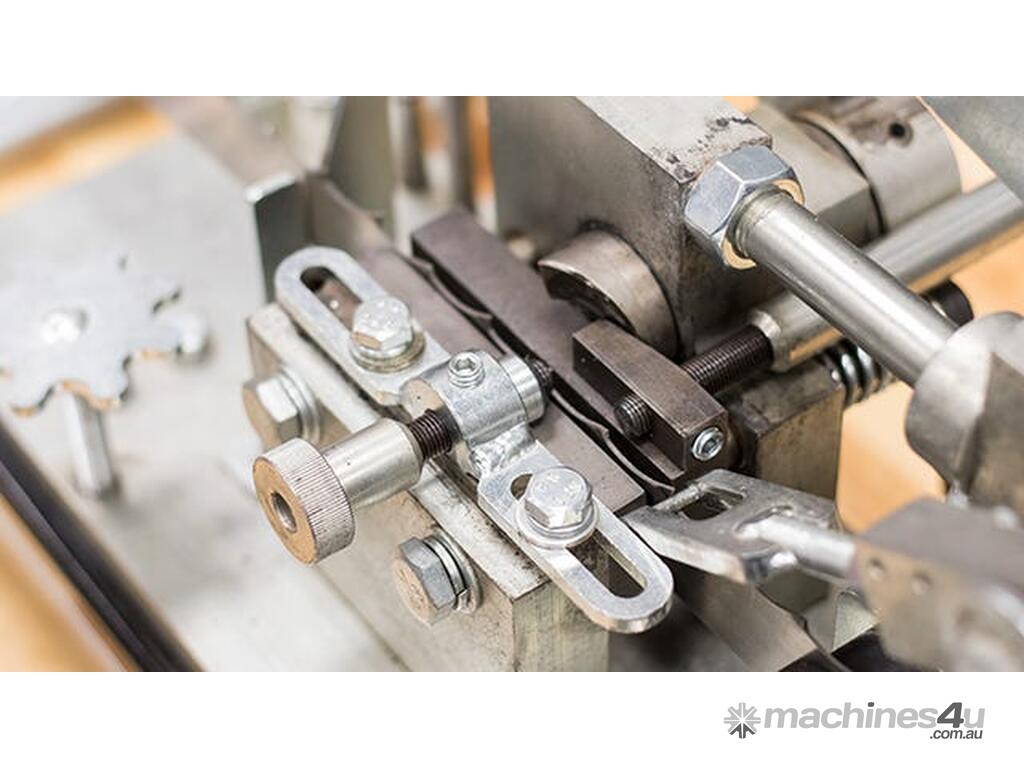

Blade Adjustment
Adjust height for 25mm - 76mm wide blades.

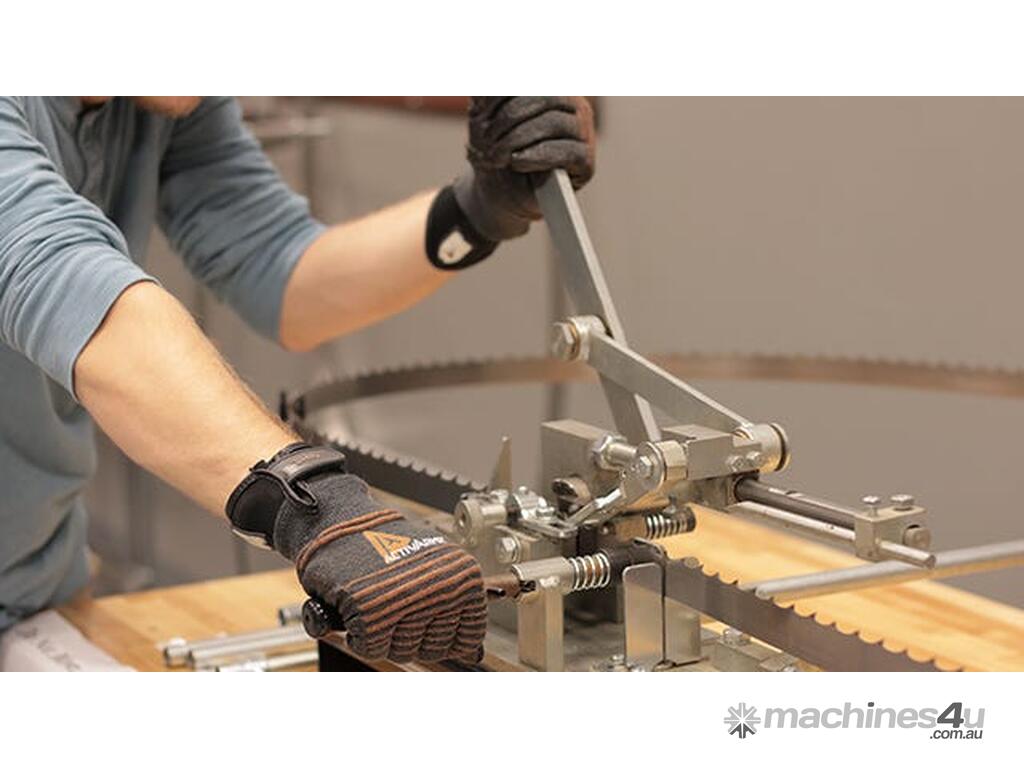

One Cycle Lever Action

Sets 2 sides at once
Efficiently sets both sides in one cycle.

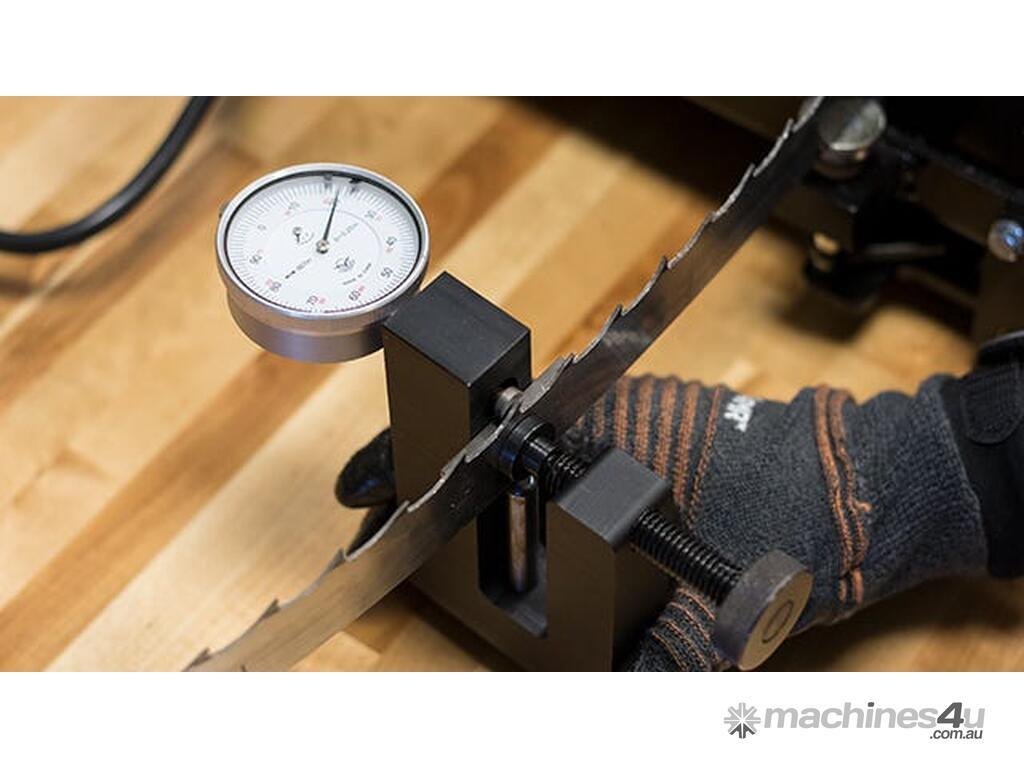

Tooth Setter Gauge
Included for consistent and accurate setting.


Specifications
FEATURES & OPERATION
Tooth Set Gauge 1 Tooth Set Gauge (Separate from machine)
Blade Support 3 Support Arms with Adjustable Blade Brackets
Blade Advancement Manual Lever
Blade Widths 25 - 75 mm (1 - 3")

DIMENSIONS & REQUIREMENTS
Safety Standards CE
