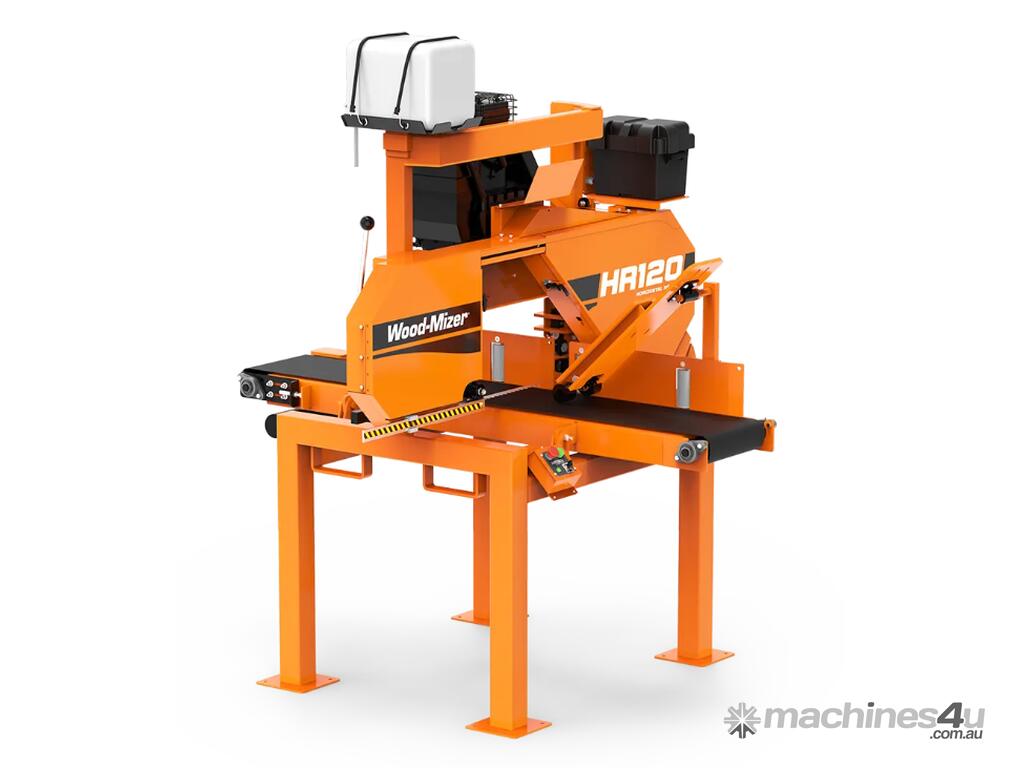

Wood-Mizer HR120 Horizontal Resaw

Basic, affordable resaw with petrol/diesel/electric power, powered blade height adjustment, 8° tilting bed, 0 - 18 m/min variable feed, and large 406 mm x 305 mm cant capacity.

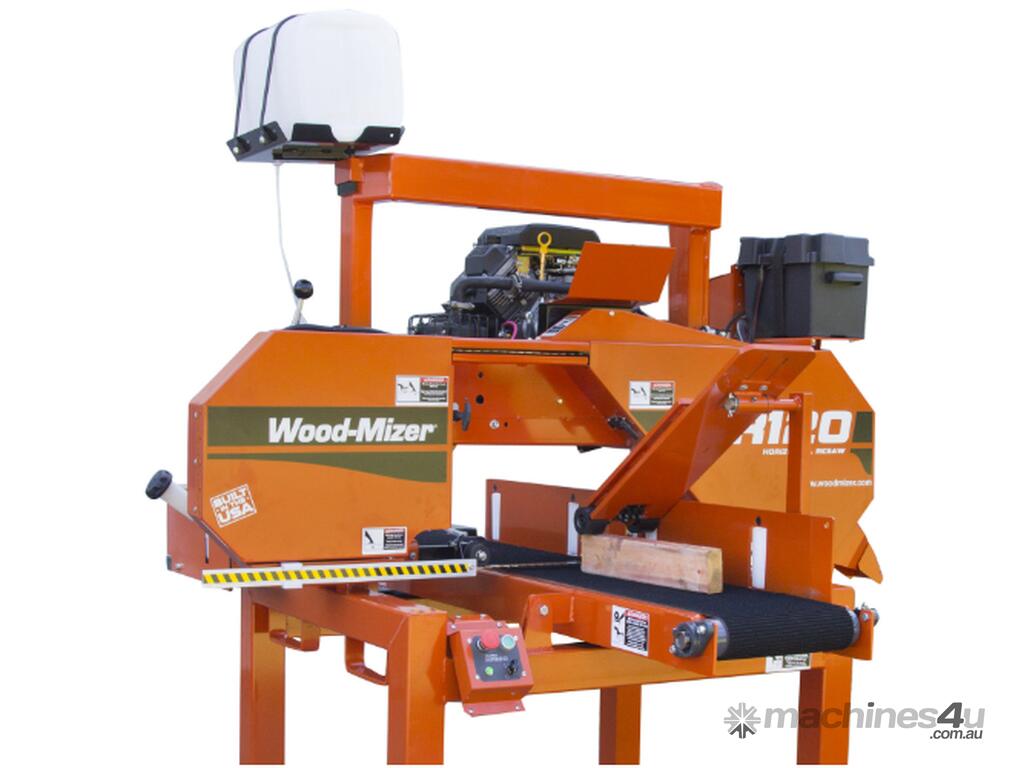

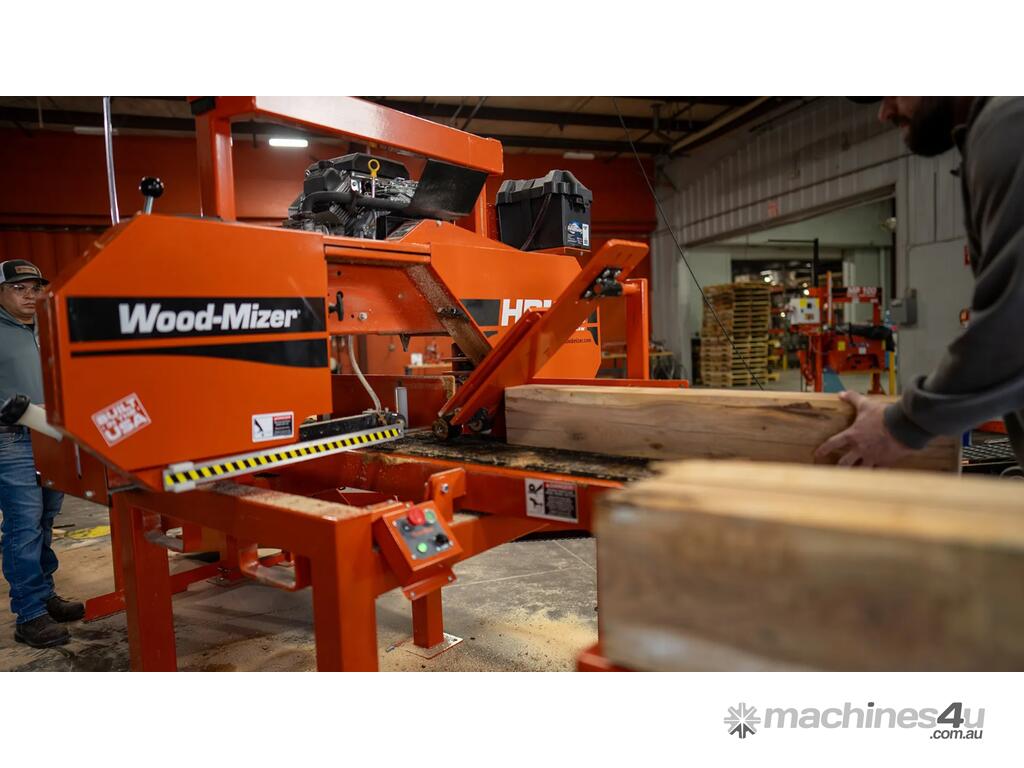

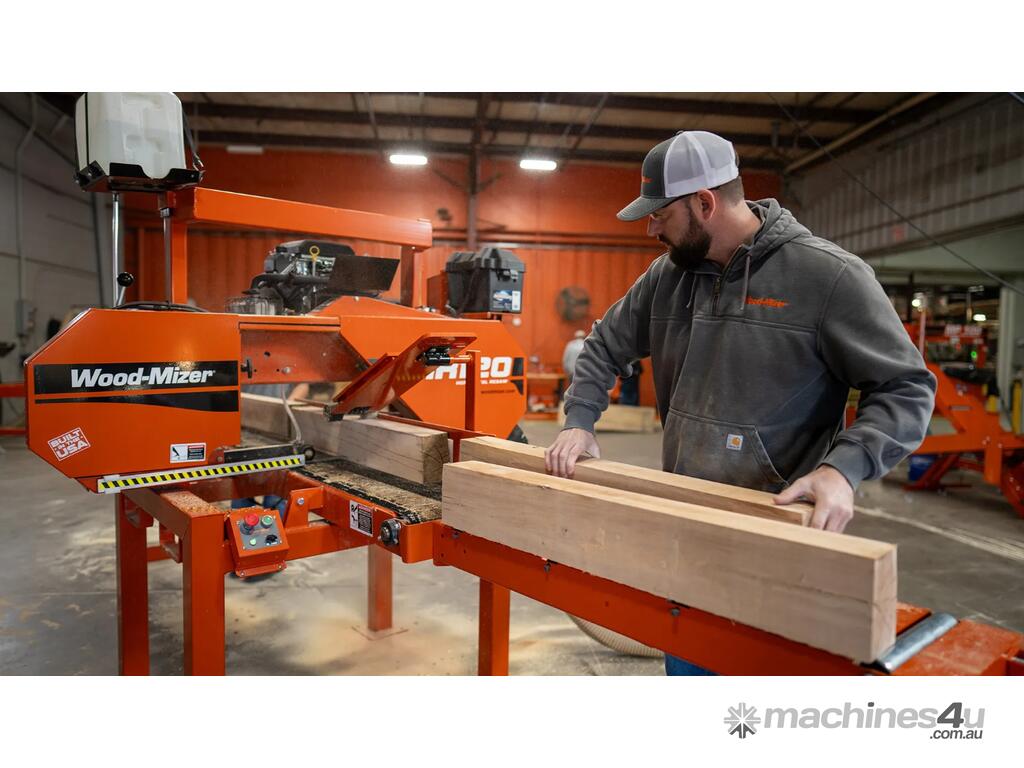

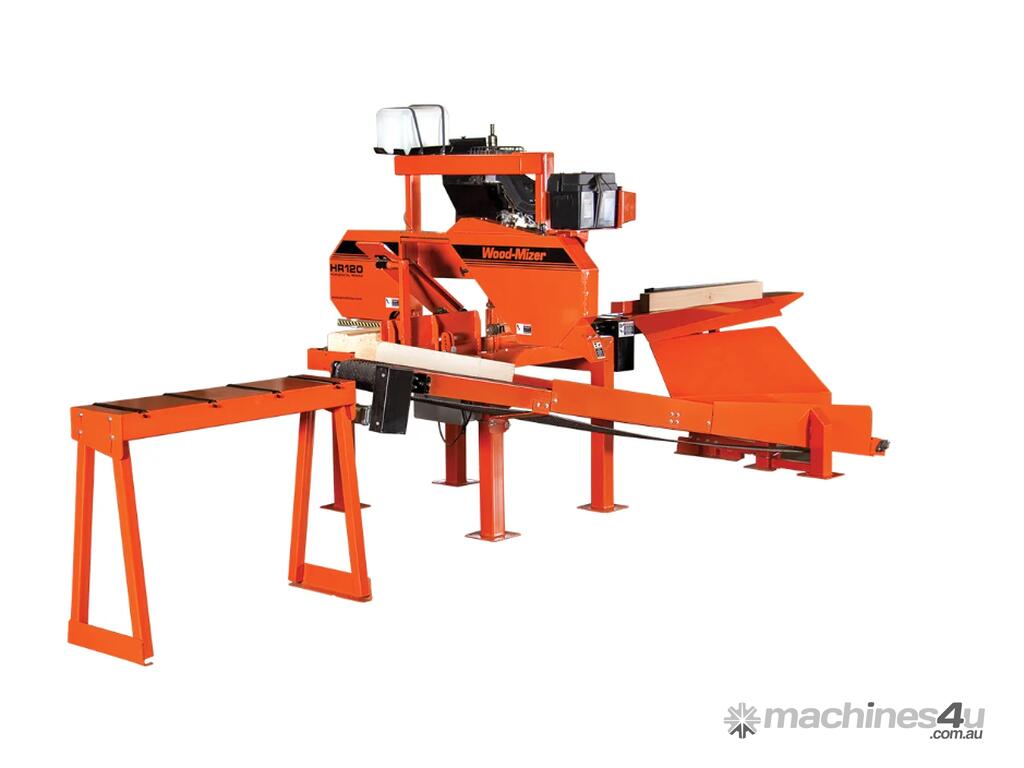

The HR120 Horizontal ReSaw is a basic, affordable resaw, with an innovative design that cuts extremely accurate lumber. Different from most basic resaws, the HR120 has a large 406 mm width capacity and is powered by either petrol, diesel, or electric power. This unit also features all electrical drives, eliminating the need for hydraulics.


Features
Optional Shingle Belt

8° Tilting Bed
Ideal for angled cuts that produce lap siding.

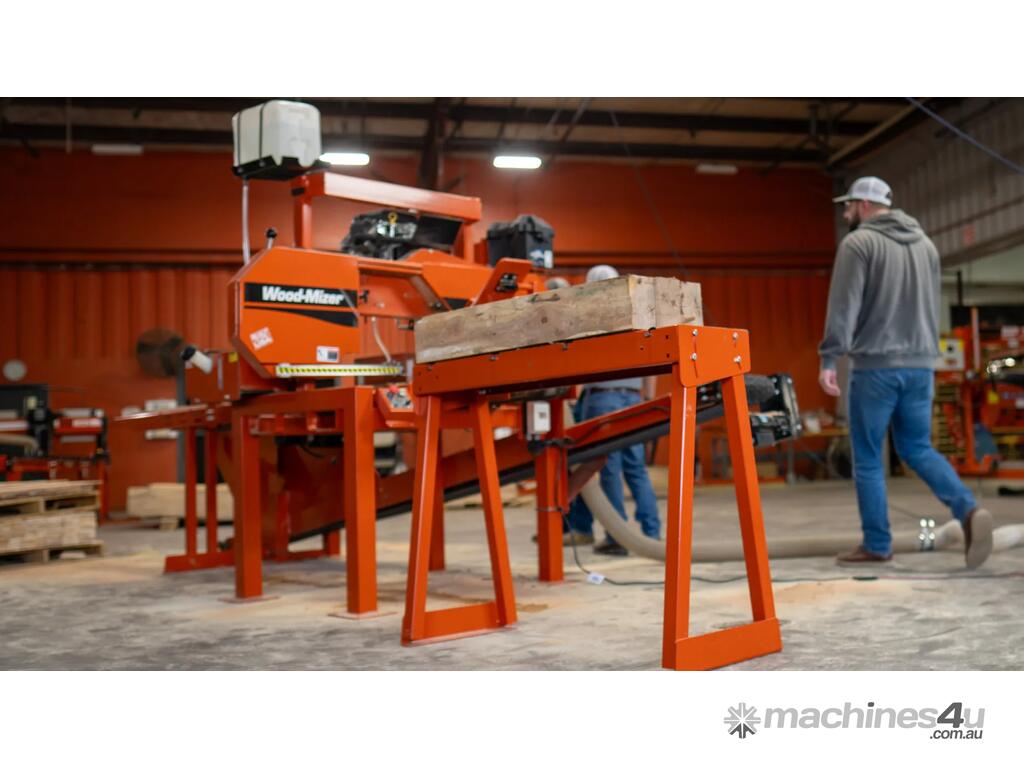

Powered Board Return System


Specifications
POWER SELECTIONS
7.5kW electric
17HP diesel
19HP petrol
25HP petrol

CUTTING CAPACITIES
Max Cant Width .46m (18 1/8")
Min Cant Height 6 mm (1/4")
Max Cant Height 305mm (12")
Max Cant Length N/A

BLADE
Blade Length 4,010mm (158'')
Blade Wheel Diameter 483mm (19")
Blade Wheel Type Belted Blade Wheels
Blade Thickness Varies
Blade Width 32mm (1 1/4'')
35mm (1.37")
Blade Guides Size 31.75mm (1 1/4")
38.10mm (1 1/2")

HEAD FEATURES & OPTIONS
Setworks N/A
Head Up/Down 1/15 Hp 12VDC Motor Up/Down
Head Configuration Horizontal
Controls Configuration On-machine Controls
Head Tilt Angle 0º - 8º

FEED SYSTEM & OPERATION
Feed Speed 0-20 m/min (0-65 ft/min)

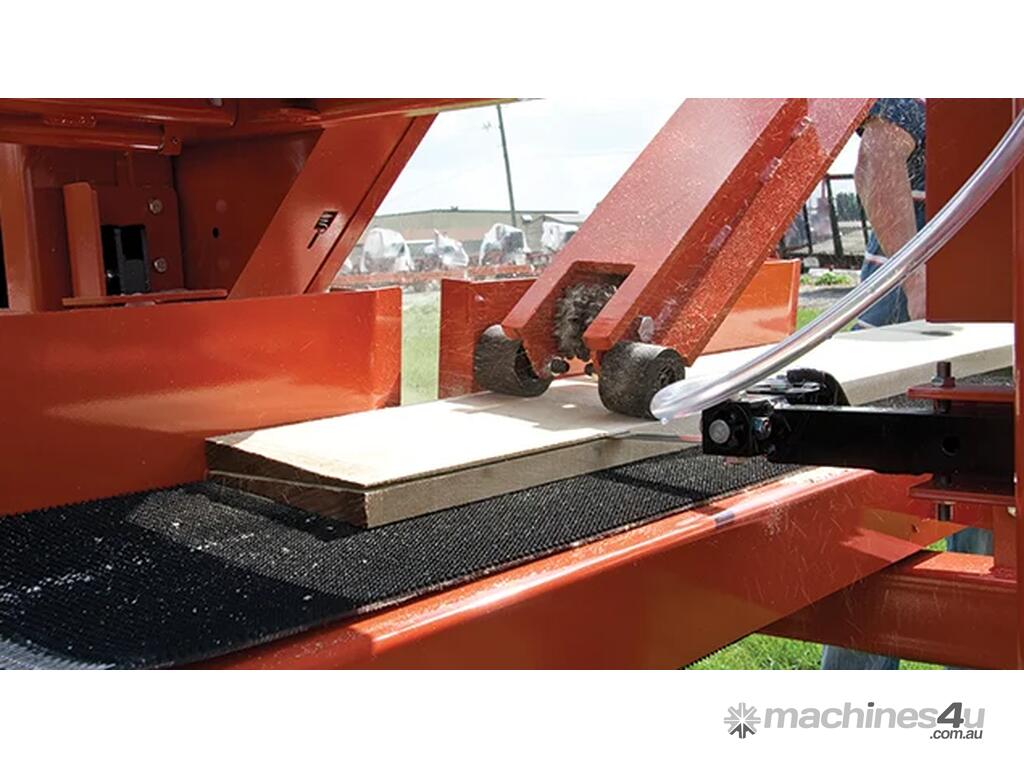

Feed System Rubber Conveyor Belt
Feed Motor MOTOR, 12V X 1/4HP GEAR 43:1 FEED

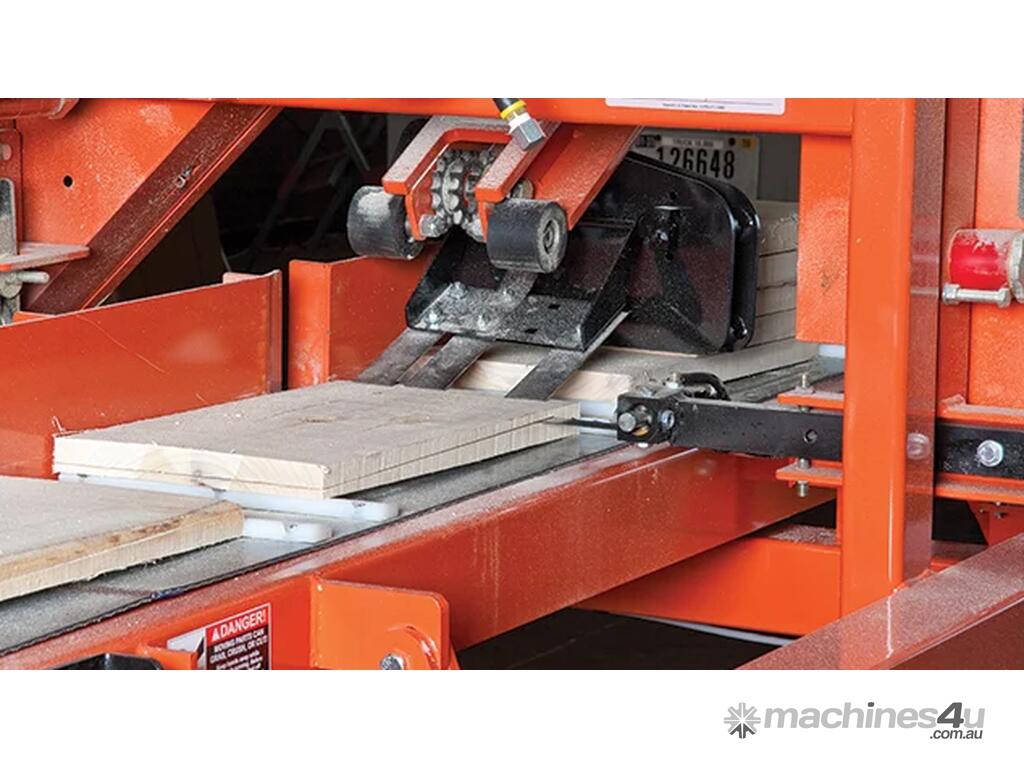

Material Hold-down Smooth Rollers
Options Shingle Belt
Manual Board Return
Powered Board Return

MACHINE DIMENSIONS & REQUIREMENTS
Electrical Requirements 230V 1Ph
