Wood-Mizer MP365 Planer / Moulder

High Production Four-sided Moulder and Planer with Universal Spindle.

For the ultimate in workshop flexibility for producing whatever your client demands, the MP365 gives you the full functionality of a four-sided planer/moulder, plus a fifth spindle cutter that can tilt up to 270 degrees, so you can add additional profiles from any side, or attach sanding or brushing tools to deliver a final finish to your profiled timber.


Specifications
4-SIDED MOULDING CAPACITY
Max. Width - 4 Sided Planing 360mm (14 1/8")
Max. Height - 4 Sided Planing 160mm (6")

2-SIDED MOULDING CAPACITY
Max. Width - 2 Sided Planing 410mm (16 1/8")
Max. Height - 2 Sided Planing 230 mm (9")

1-SIDED MOULDING OR THICKNESSING CAPACITY
Max. Width - 1 Sided Planing 510mm (20")
Max. Height - 1 Sided Planing 230mm (9")

FEATURES & OPTIONS
Number of Horizontal Cutters 2
Number of Spindles 3
Number of Sawdust Extraction Ports 5
Viewing Window Yes
Options Support Rollers
Infeed Table 2m (78")
Board Fence Extensions

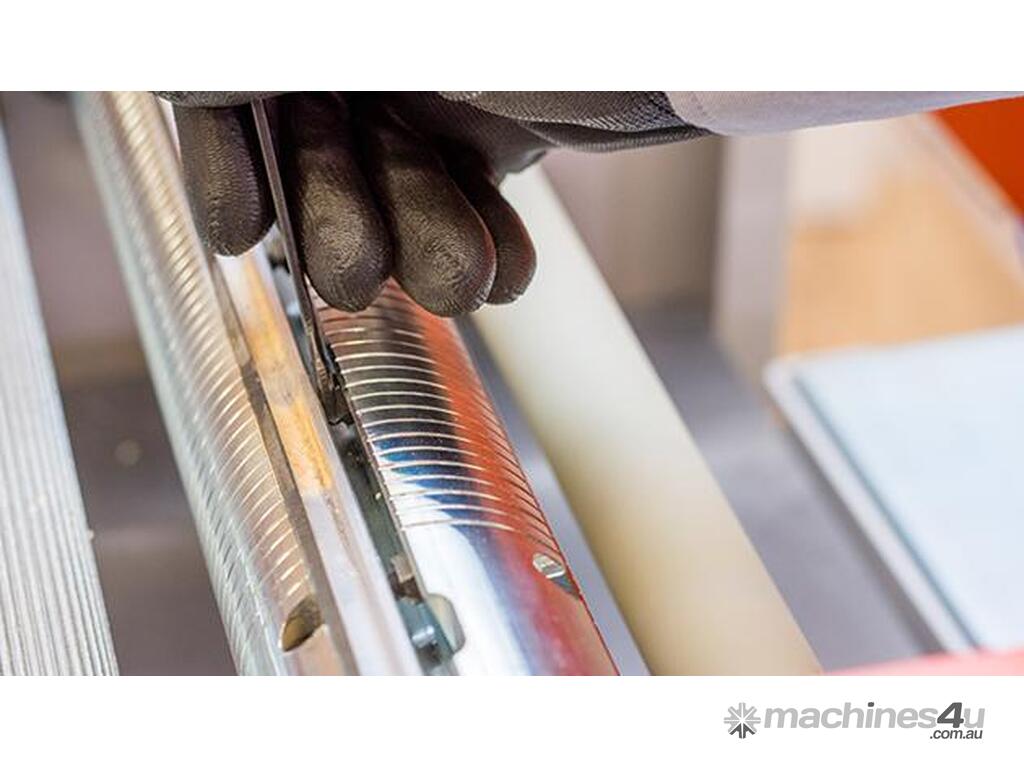

UPPER HORIZONTAL CUTTER
Upper Horizontal Cutter Diameter 88mm (3 7/16")
Upper Horizontal Cutter Width 510 mm (20")
Upper Horizontal Cutter Power 5.5kW
Upper Horizontal Cutter Speed 6000rpm / 50Hz
Upper Horizontal Cutter Max Cutting Depth 8mm (5/16")
Upper Horizontal Cutter Max Profile Depth 20mm (3/4")

LOWER HORIZONTAL CUTTER
Lower Horizontal Cutter Diameter 72mm (2 13/16")
Lower Horizontal Cutter Width 410mm (16 1/8")
Lower Horizontal Cutter Power 4kW
Lower Horizontal Cutter Speed 6000rpm
Lower Horizontal Cutter Cutting Depth 0-8mm (0-5/16")
Lower Horizontal Cutter Profile Depth max 10mm (3/8") (slot drill 15mm (1/2")

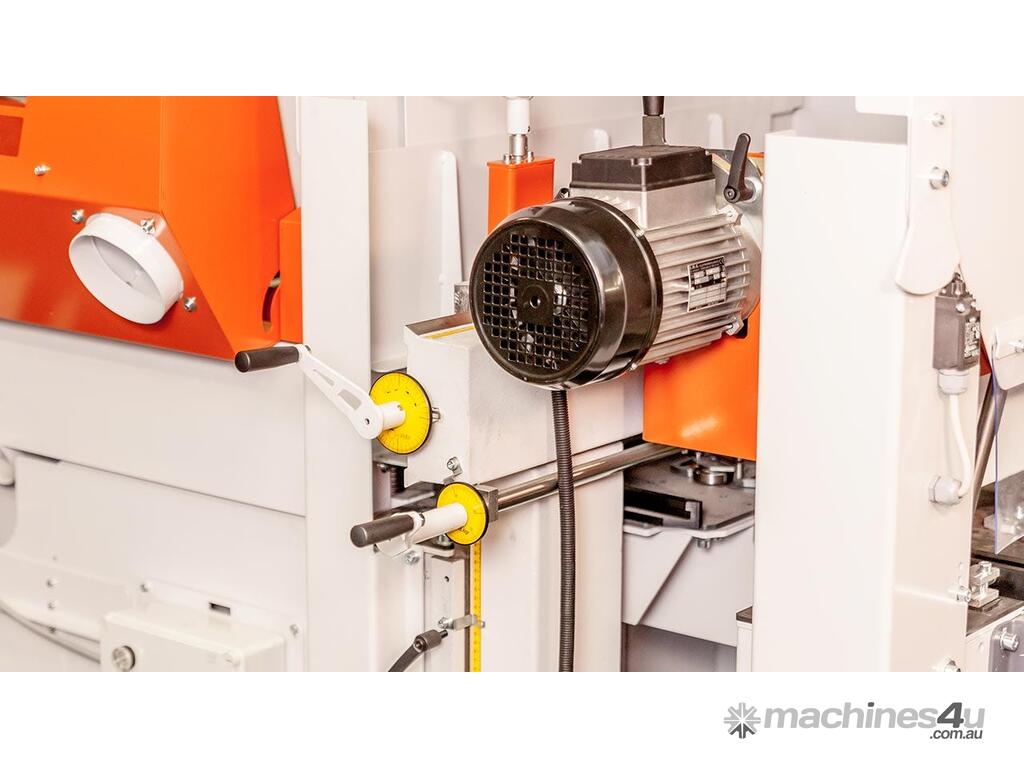

VERTICAL CUTTERS
Vertical Cutters Spindle Diameter 30mm (1 3/16")
Vertical Cutters Max Cutter Height 160mm (6 1/4")
Vertical Cutters Max Diameter 160mm (6 1/4")
Vertical Cutters Power 3kW
Vertical Cutters Rotation Speed 6000rpm
Vertical Cutters Max Cutting Depth 30mm (1 3/16")

STANDARD VERTICAL CUTTERS INCLUDED
Type TB90
Diameter 90 mm (3.5")
Height 40 mm (1.5")
Knife Type HSS
Knife Width 50mm (2")

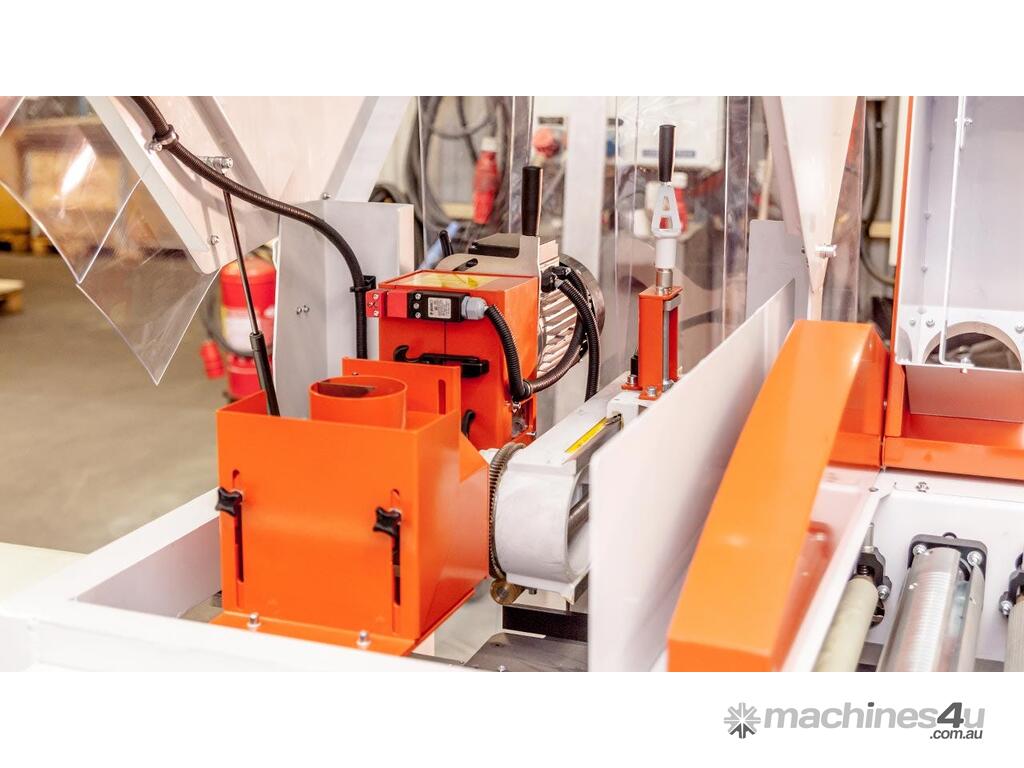

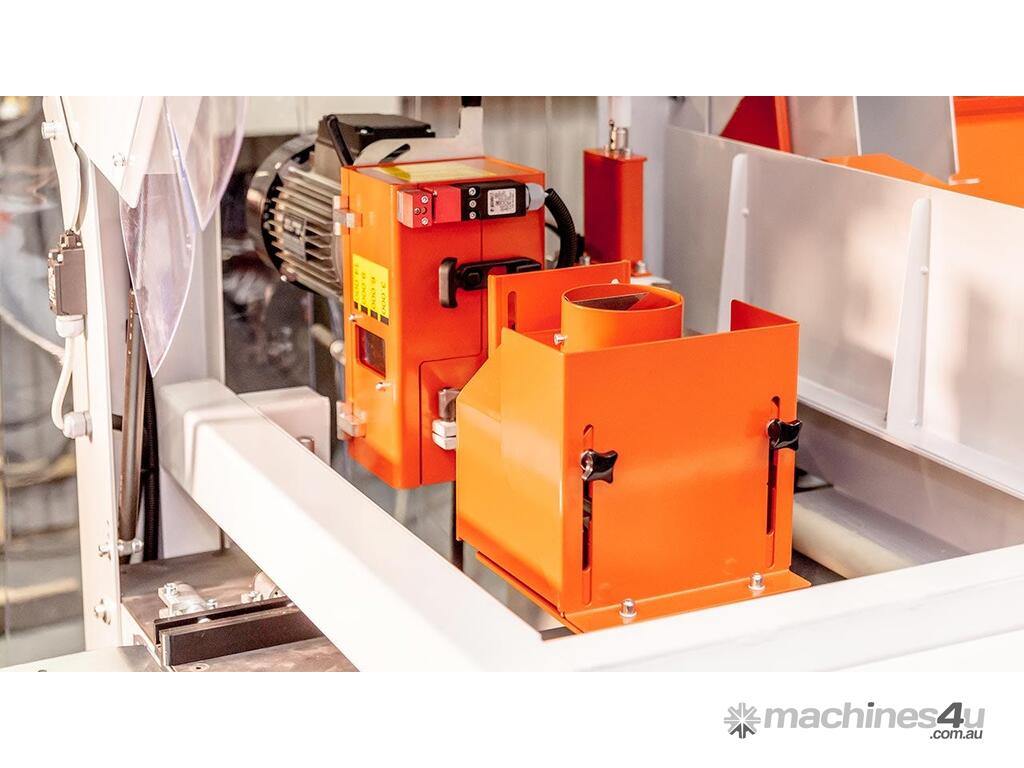

UNIVERSAL SPINDLE
Universal Spindle Diameter 30mm (1 3/16")
Universal Spindle Max Cutter Height 130mm (5")
Universal Spindle Max Diameter 200 mm (7 7/8")
Universal Spindle Power 3kW (4HP)
Universal Spindle Rotation Speed 3000, 6000, 9000 RPM
Universal Spindle Tilt 0º-270º

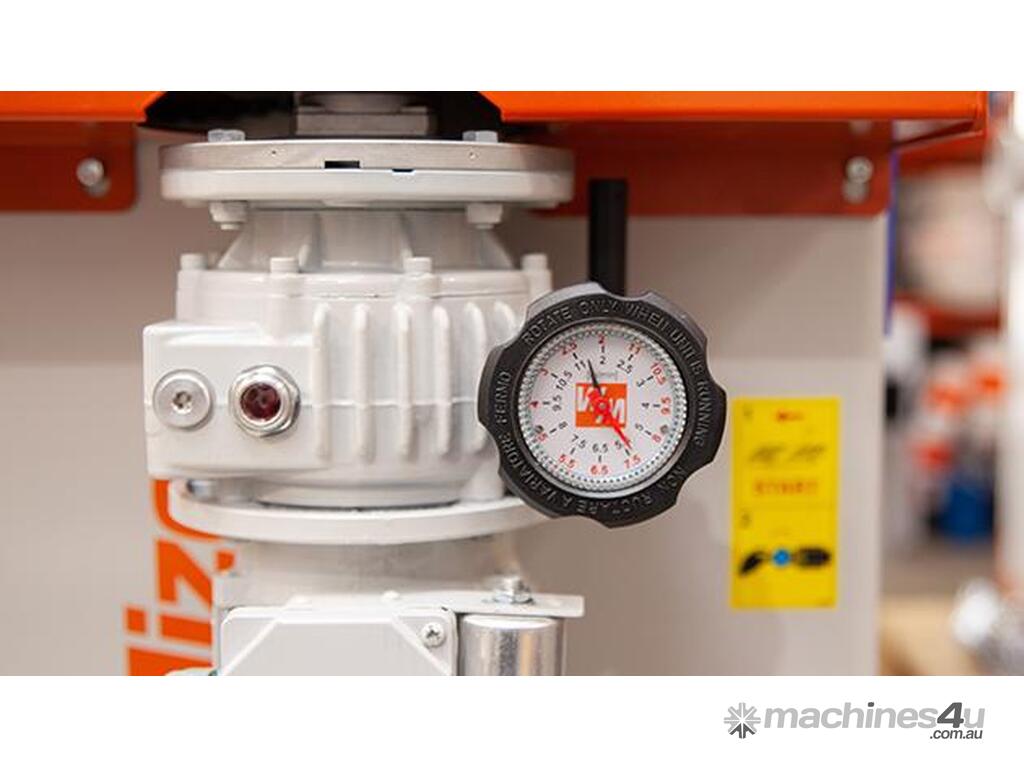

POWER FEED
Feed Motor 0.75kW (1HP)
Feed Speed 3-15 m/min 50Hz

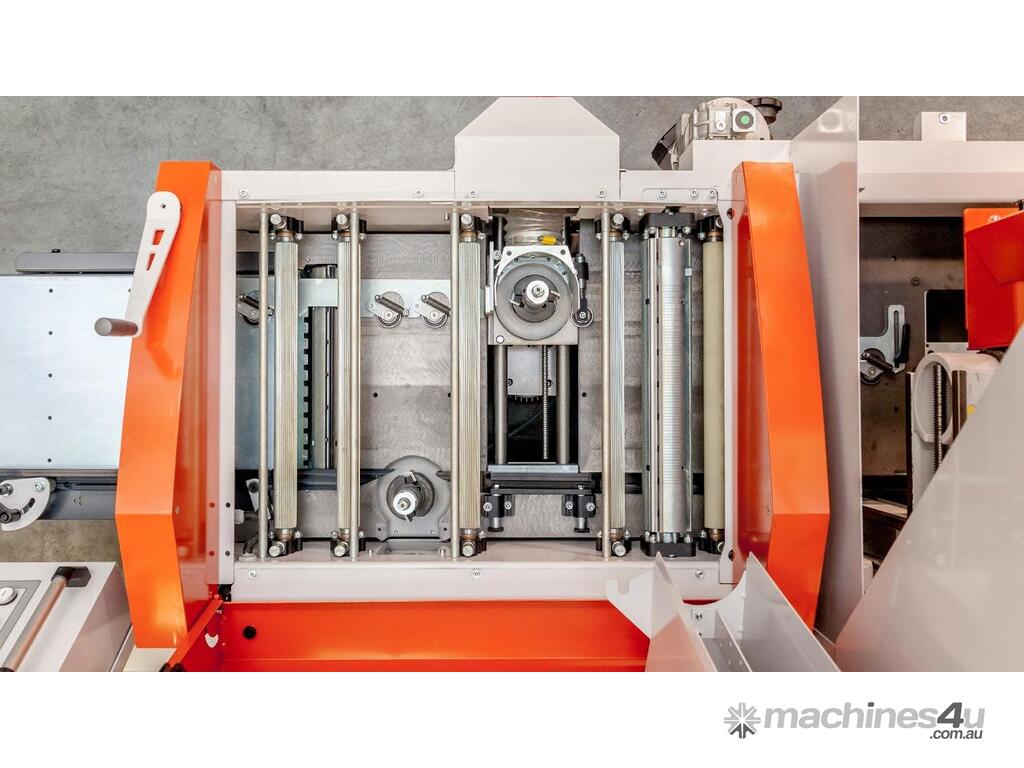

Feed Rollers 4 Steel + 1 Polyurethane Rollers
5 Polyurethane Rollers (Optional)

DIMENSIONS & WEIGHT
Length 3660mm (144")
Width 1125 mm (44 1/4")
Height 1430mm (56 1/4")
Weight 1000kg (2200 lbs)
Shipment Weight 1120 kg (2,500lbs)

MACHINE STANDARDS & REQUIREMENTS
Total Power 19.25kW
Electrical Requirements 3-phase, 400 V, 20-32 A
3-phase, 230 V, 32-50 A

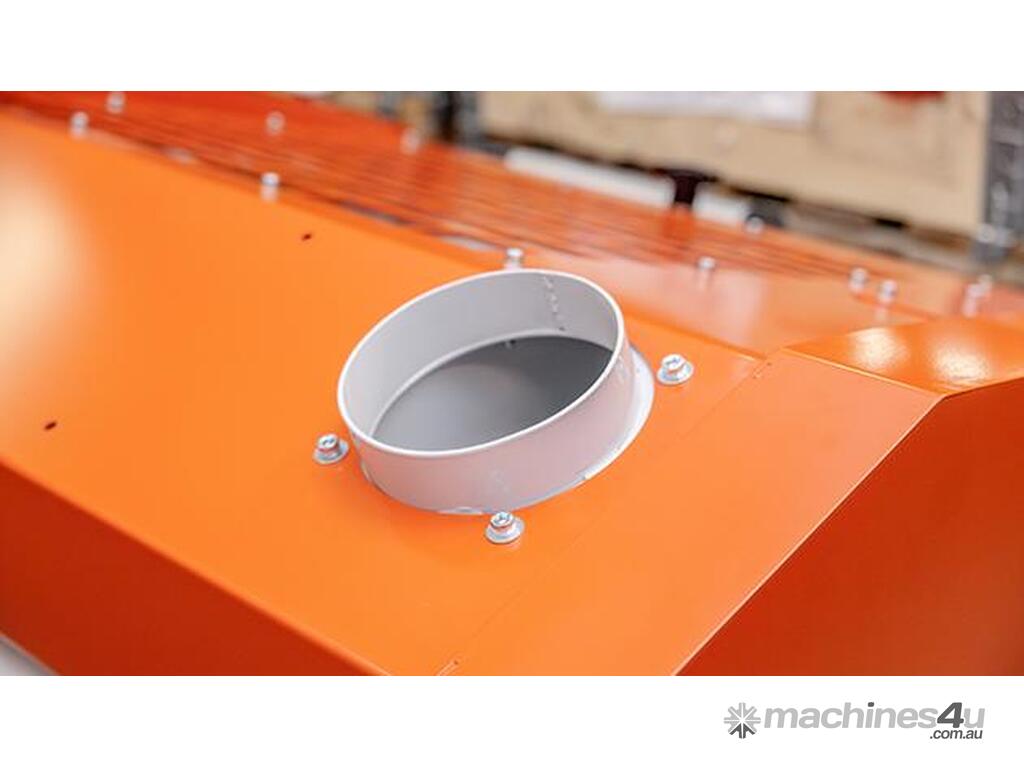

Sawdust collection port diameter 4 x 100 mm + 1 x 125 mm
Safety Standards CE
