Wood-Mizer SVS Vertical Resaw

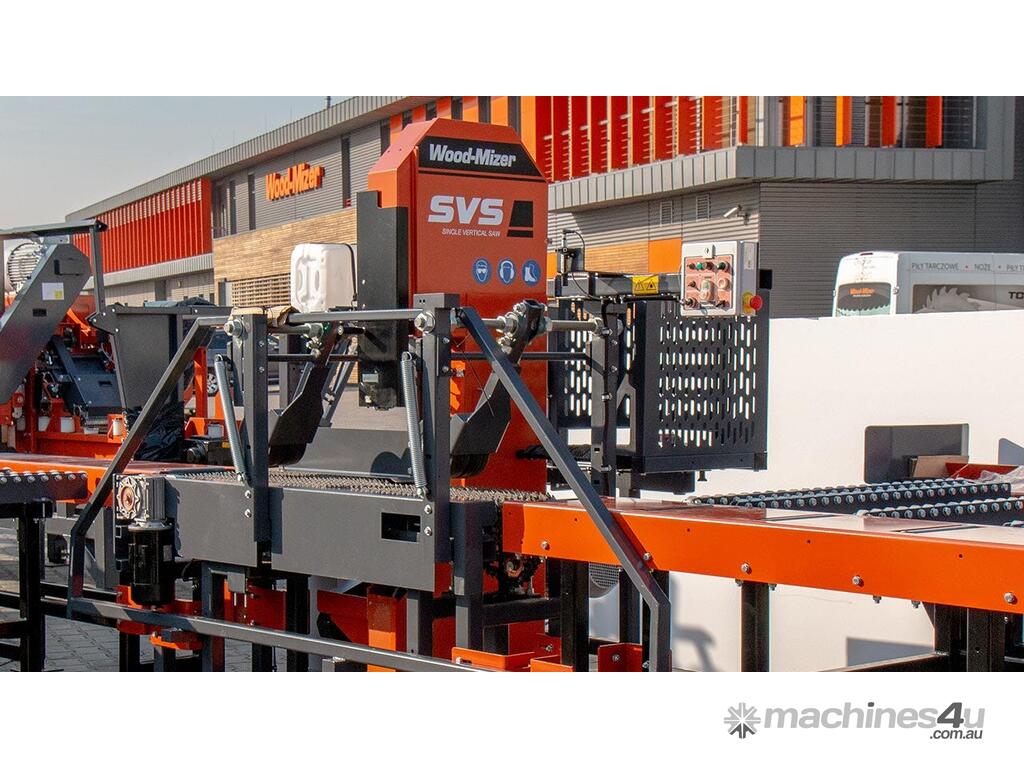

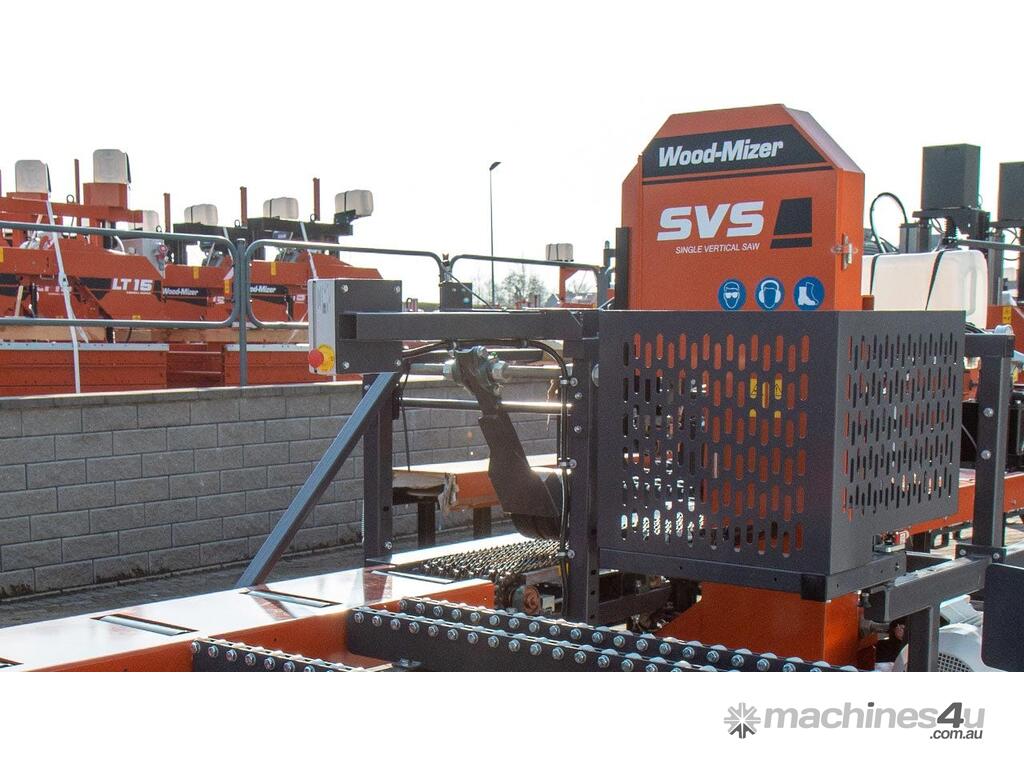

The SVS Single Vertical Saw simplifies the removal of the third side of a log during processing. Placed in the line behind the TVS, the SVS prepares the cant to move on to the resaw.

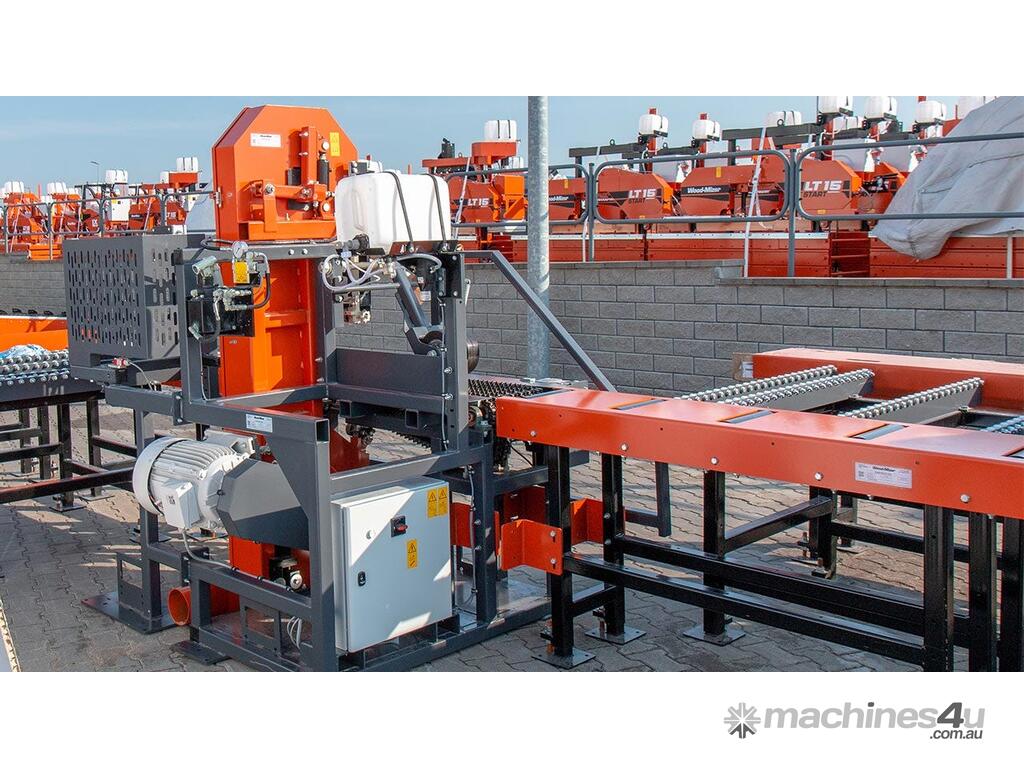

The SVS has a maximum cut width of 300mm. The maximum material size is 400mm wide by 250mm high. The SVS is fitted with infeed and outfeed roller tables. A steel spiked chain belt moves material through the blade up to 25 metres per minute.

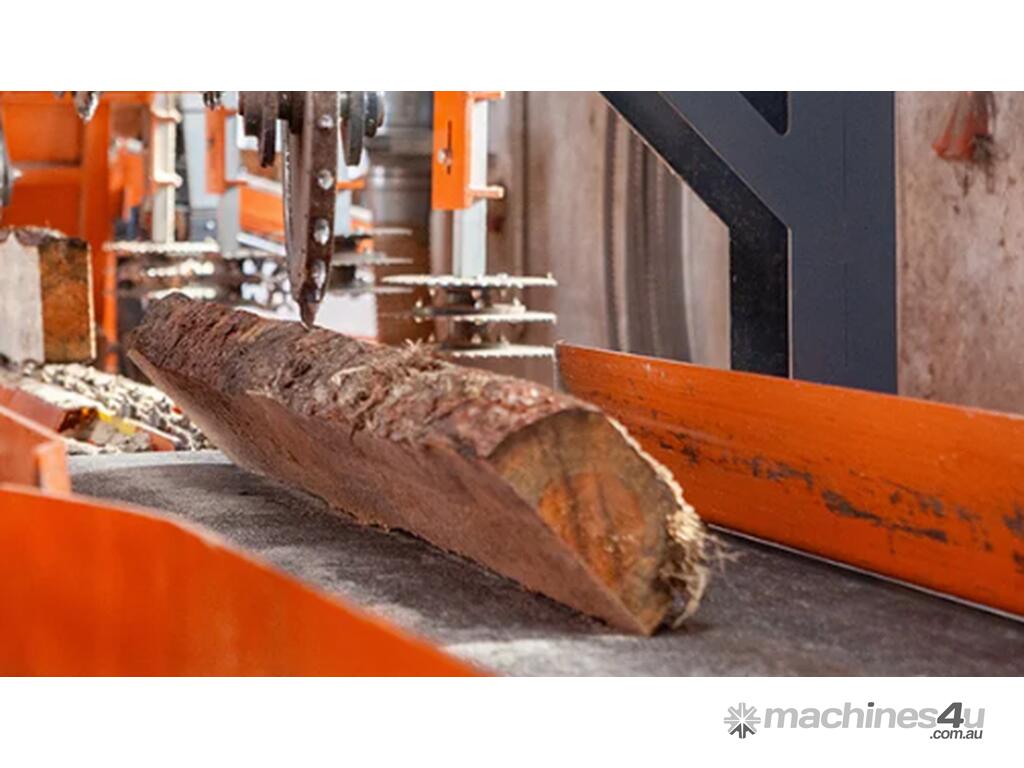

With the standard laser, the operator can align the cant precisely for maximum recovery before pushing it onto the moving chain feed. Roller hold-downs make sure the log remains straight during cutting. The SVS can also be used to take one side off a slab, which can then be passed to a horizontal resaw.

The SVS shares the same head and many individual components as the TVS (Twin Vertical Saw), simplifying blade and spare parts ordering.


Features
Variable Feed Belt Speed

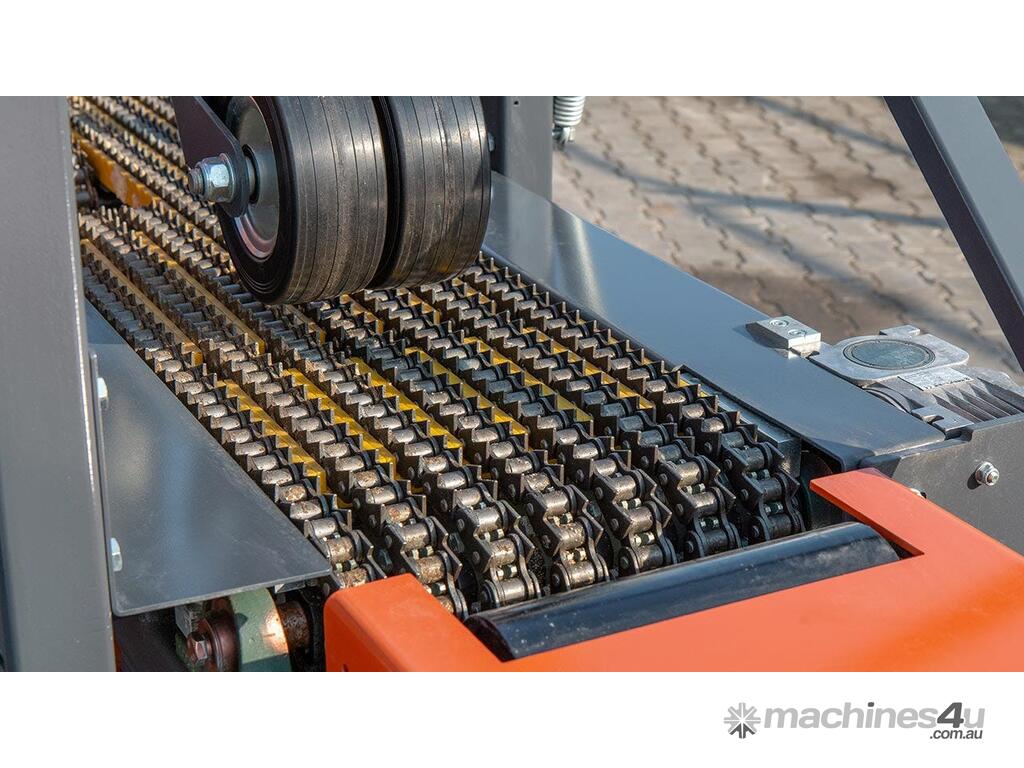

The spiked steel feed belt carries the cant through the saw at up to 6.1-12.2 mpm

11 kW Electric Motor

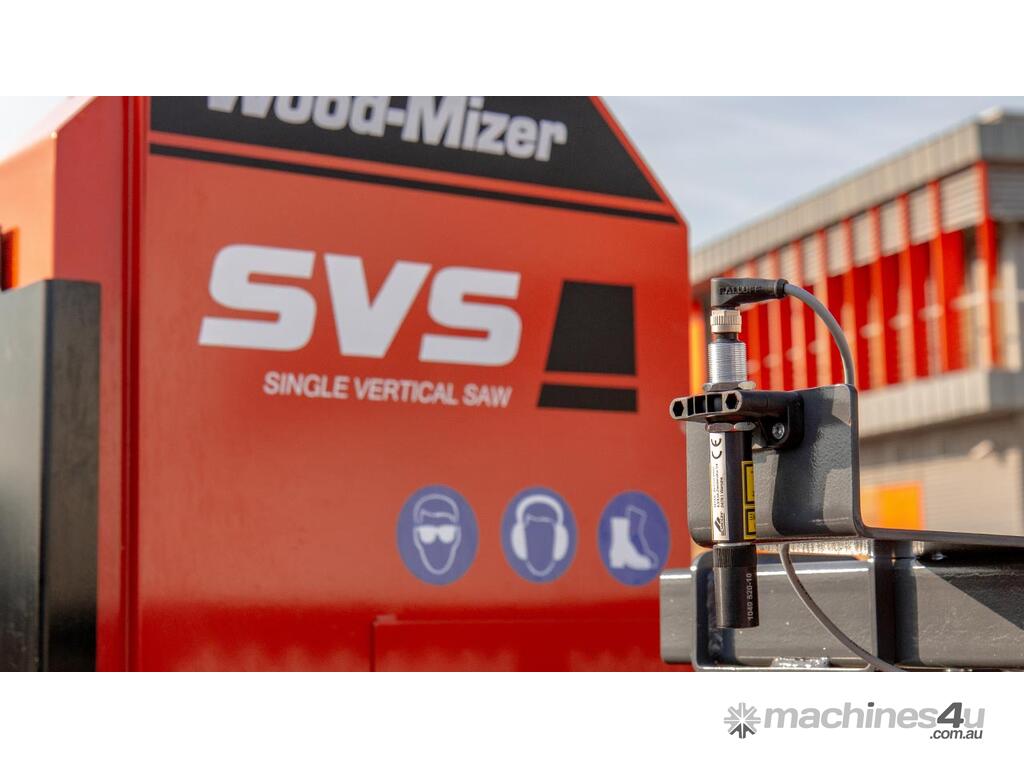

Laser sight
Align cants for maximum recovery with the standard laser.

Designed for Standardisation
Uses the same blade size and many of the same parts as the other machines in the SLP line, facilitating ordering spare parts.

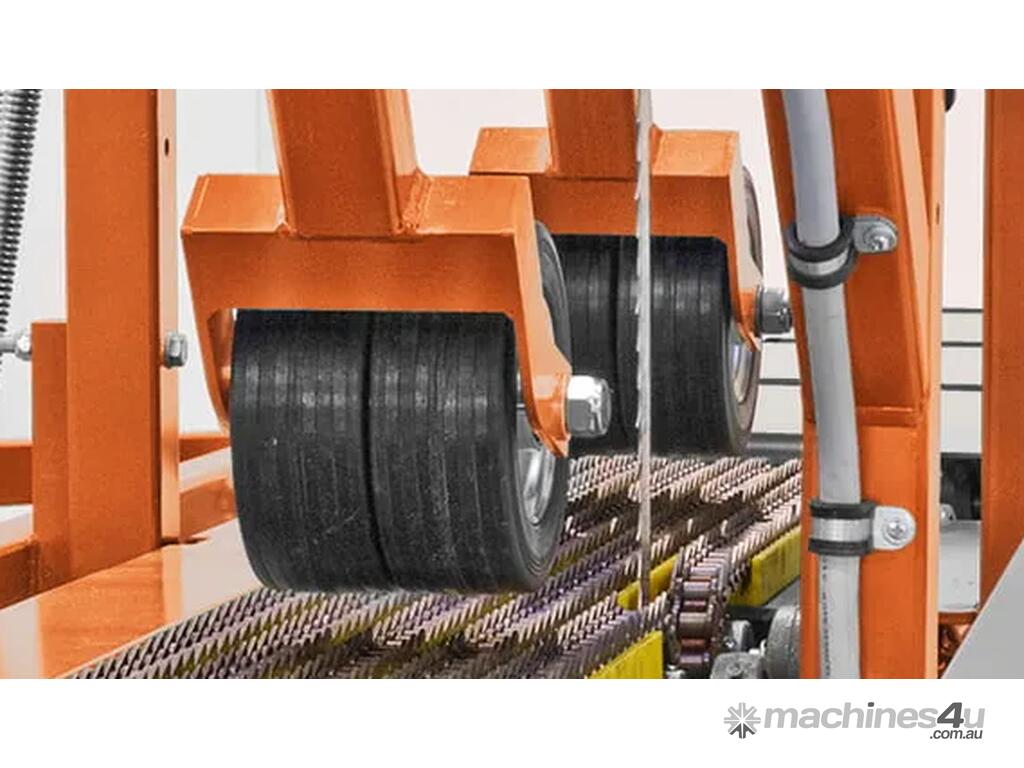

Two Roller Hold-downs
Wide hold-down rollers keep the cant stable during cutting.


Specifications
POWER SELECTIONS
7.5kW electric
11kW electric

BLADE
Blade Length 4,670mm (184'')
Blade Wheel Diameter 600mm (24")
Blade Wheel Type Belted Cast Steel
Blade Width 32 - 38 mm

CUTTING CAPACITIES
Min. Material Length 900 mm (35.4")
Max. Material Length 3600mm
Max. Material Width 400mm (16")
Max. Material Thickness 250mm (10")
Min Width of Cut 10 mm
Max Width of Cut 30cm (11.7")

FEED SYSTEM & OPERATION
Feed Motor 1.1 kW (1.5HP)
Material Hold-down Hold-down rollers
Alignment Laser 1 Laser

MACHINE DIMENSIONS & REQUIREMENTS
Electrical Requirements 400V 50Hz 3Ph
Safety Standards CE
Sawdust collection port diameter 150mm (6")
