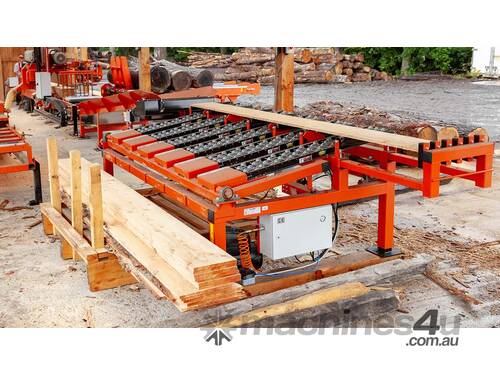

Wood-Mizer Transfer Table

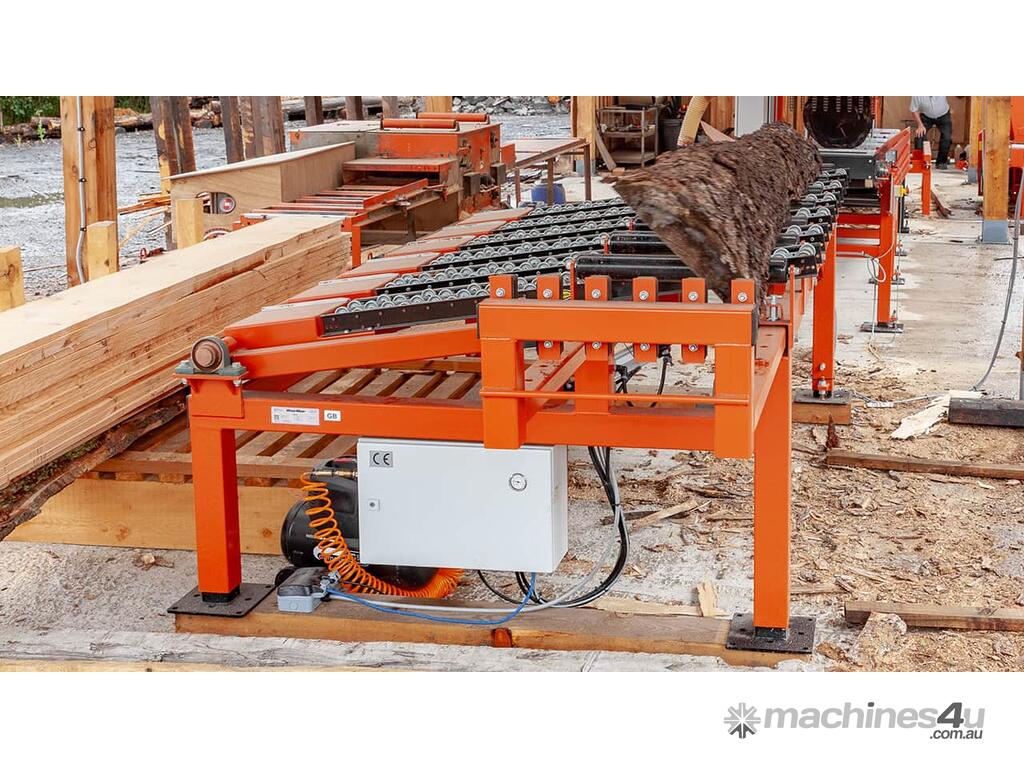

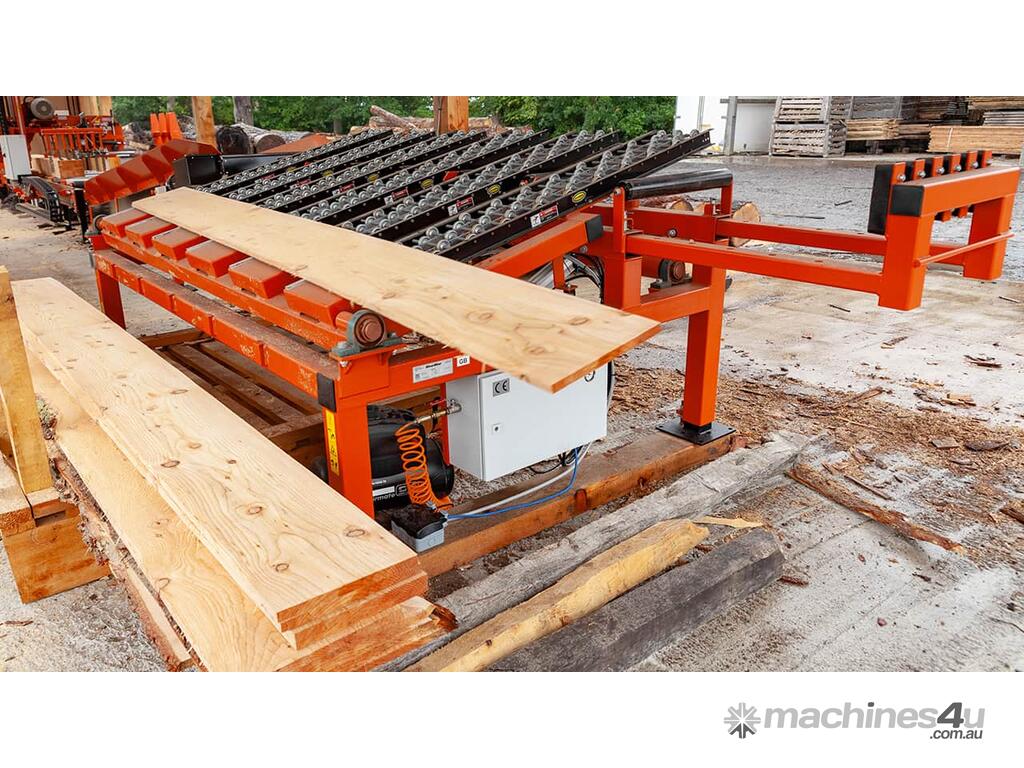

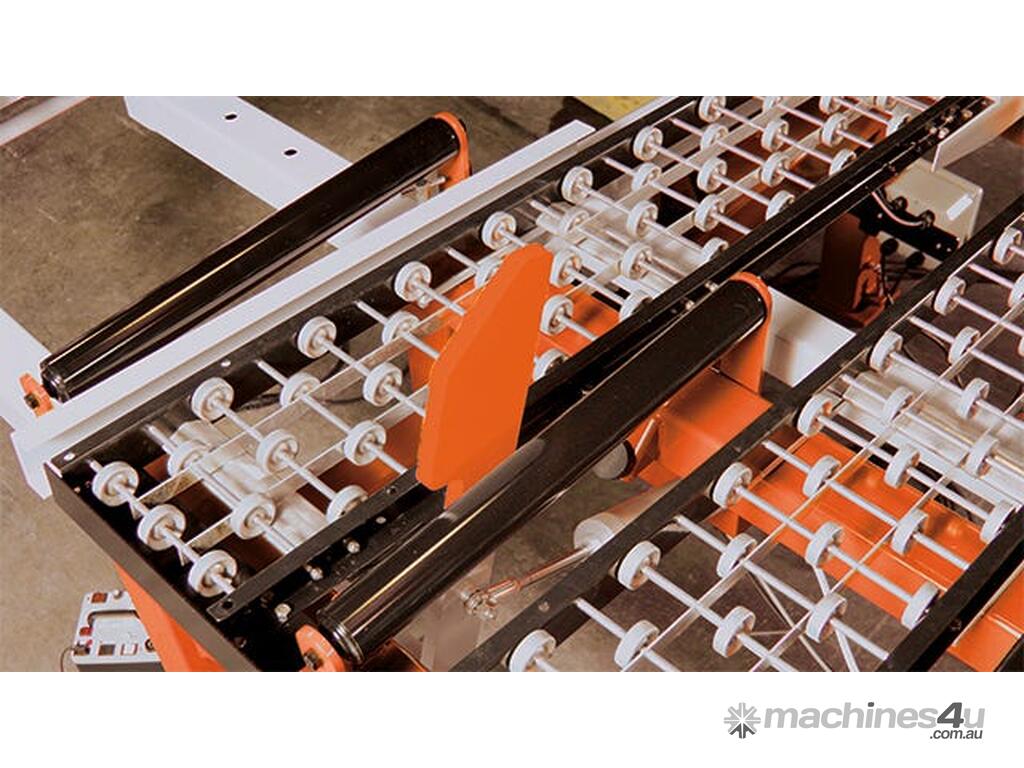

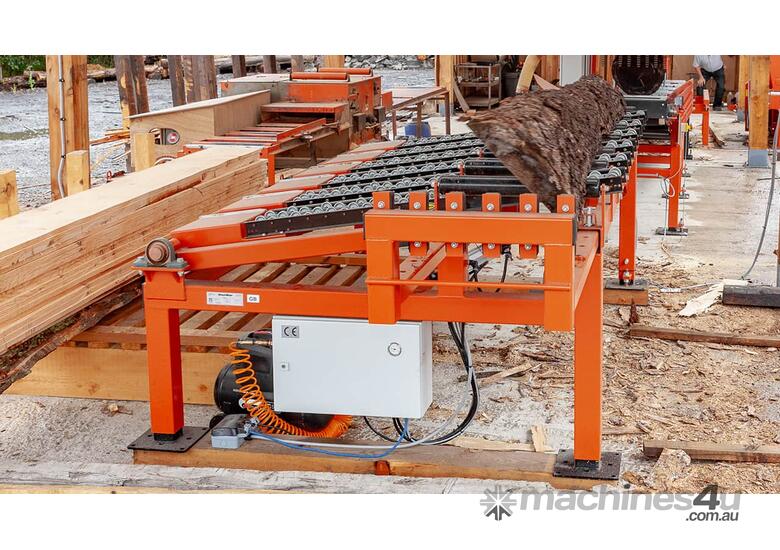

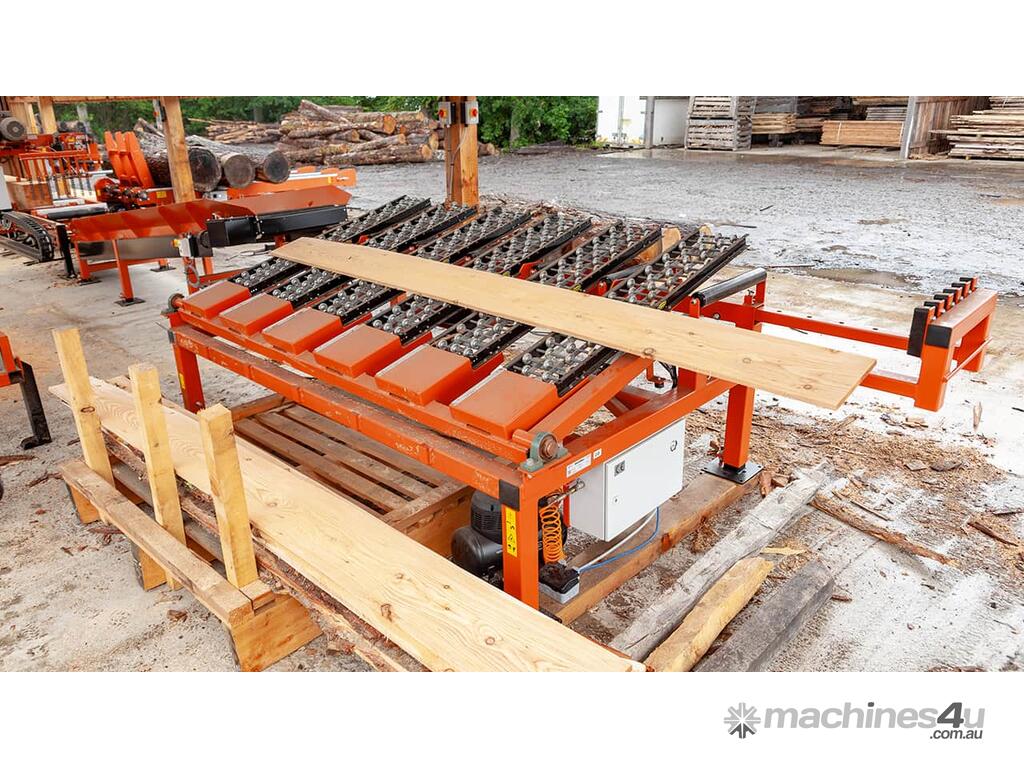

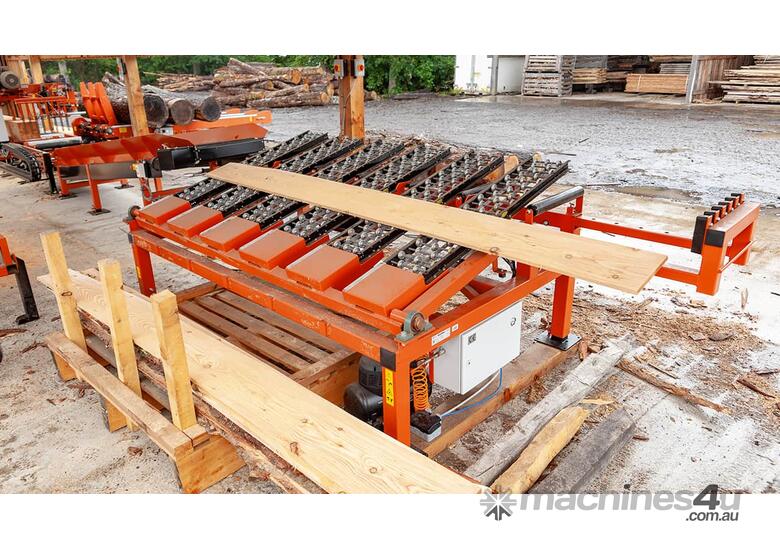

This unique piece is a brilliantly simple way to transfer material quickly and efficiently. After the material moves onto the rollers from the Incline Conveyor, a sensor activates an air bag which is connected to a set of inclined cross transfer rollers. The cut piece then rolls down the incline to a stop location, or onto another conveyor. Alternatively, the sawyer or other operator can activate pneumatic kickers to push the piece off the opposite side. There are no chains, gears, or motors, which makes operation simple with little maintenance. The Transfer Table can be set up for either right or left hand operation.


Features
Pneumatic Kickers
Pneumatic kickers can push slabs, cants or boards off the side of the roller deck for further handling.

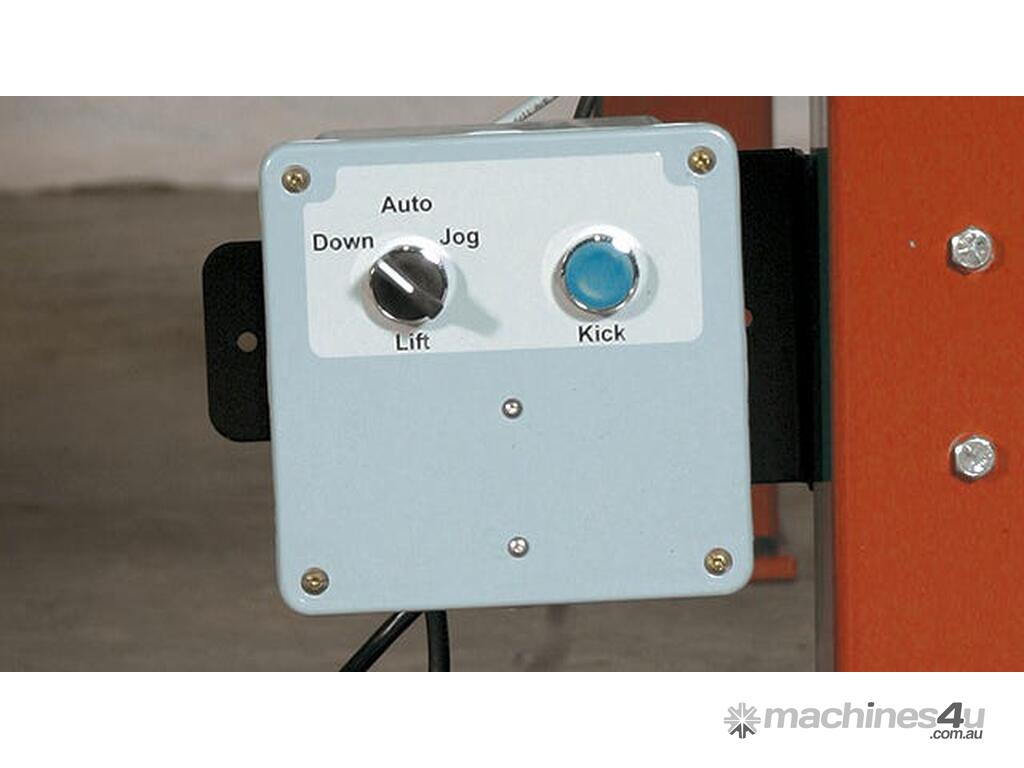

Control Panel
The simple control panel comes with extra cable for mounting wherever most convenient.
