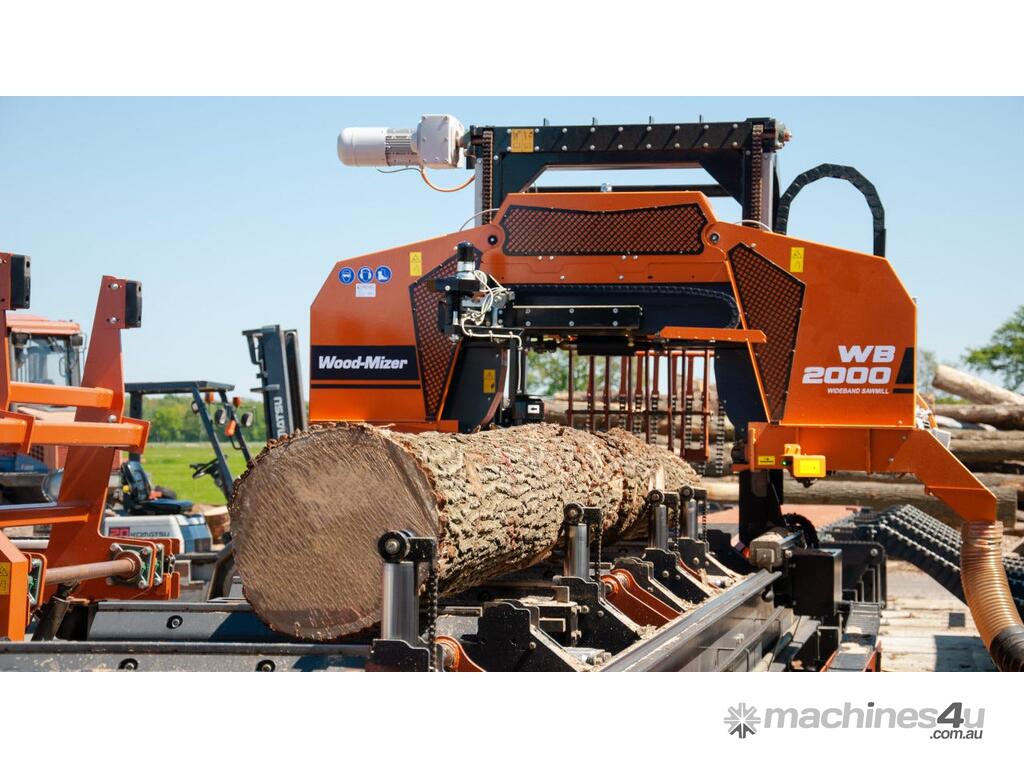

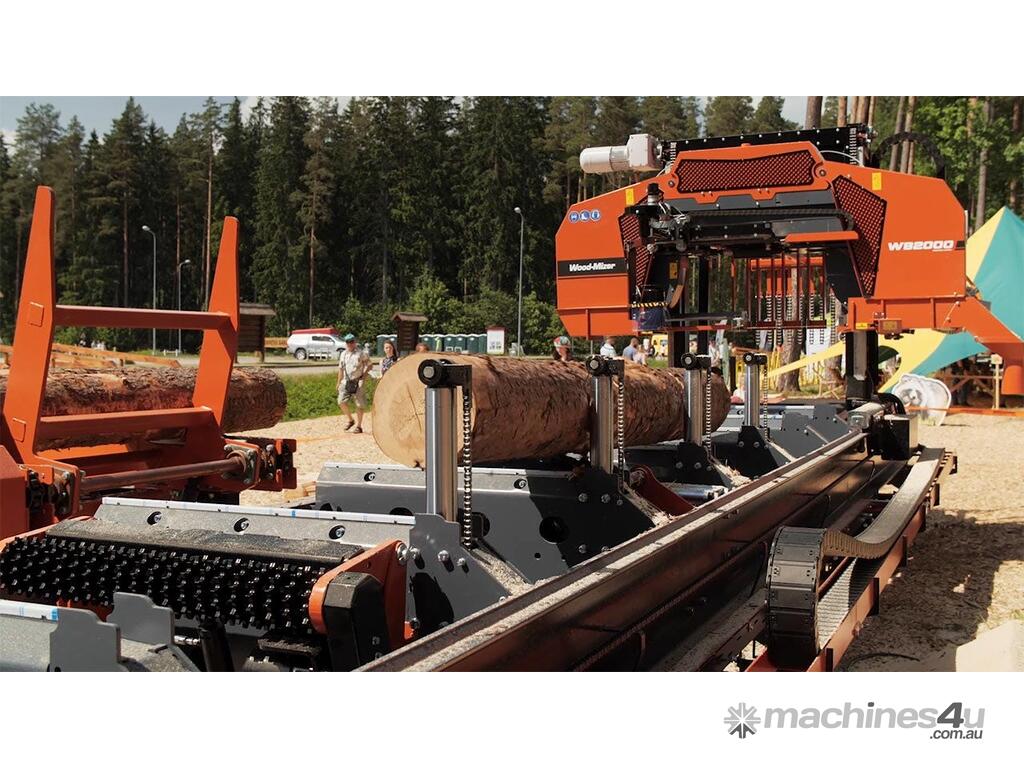

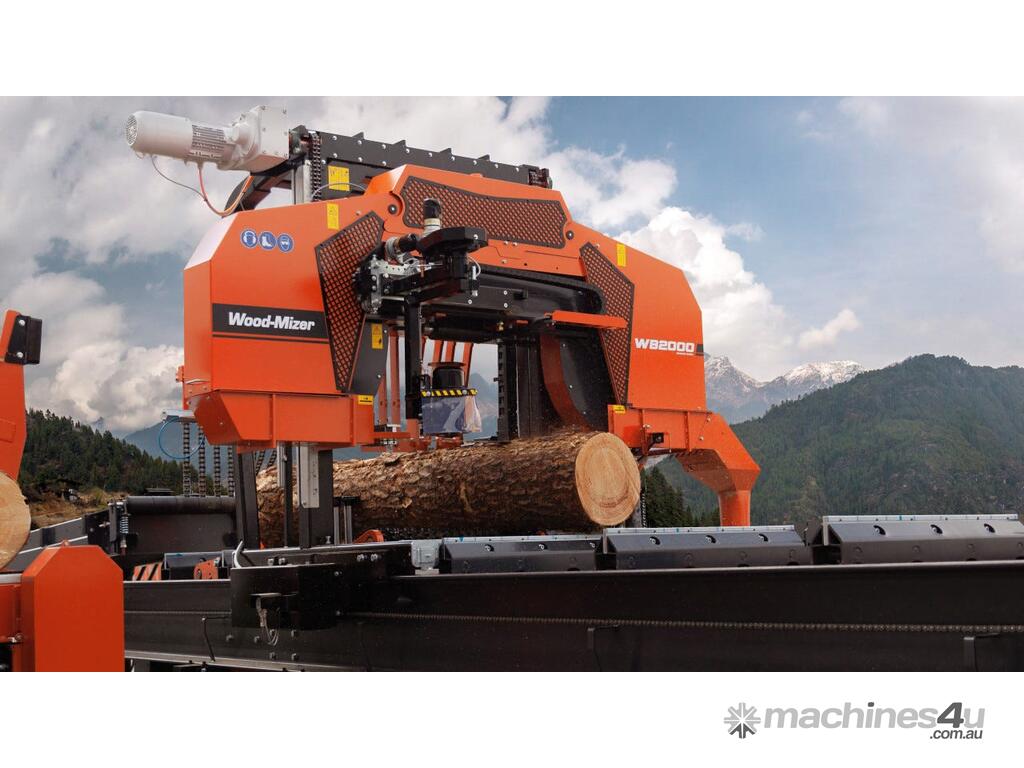

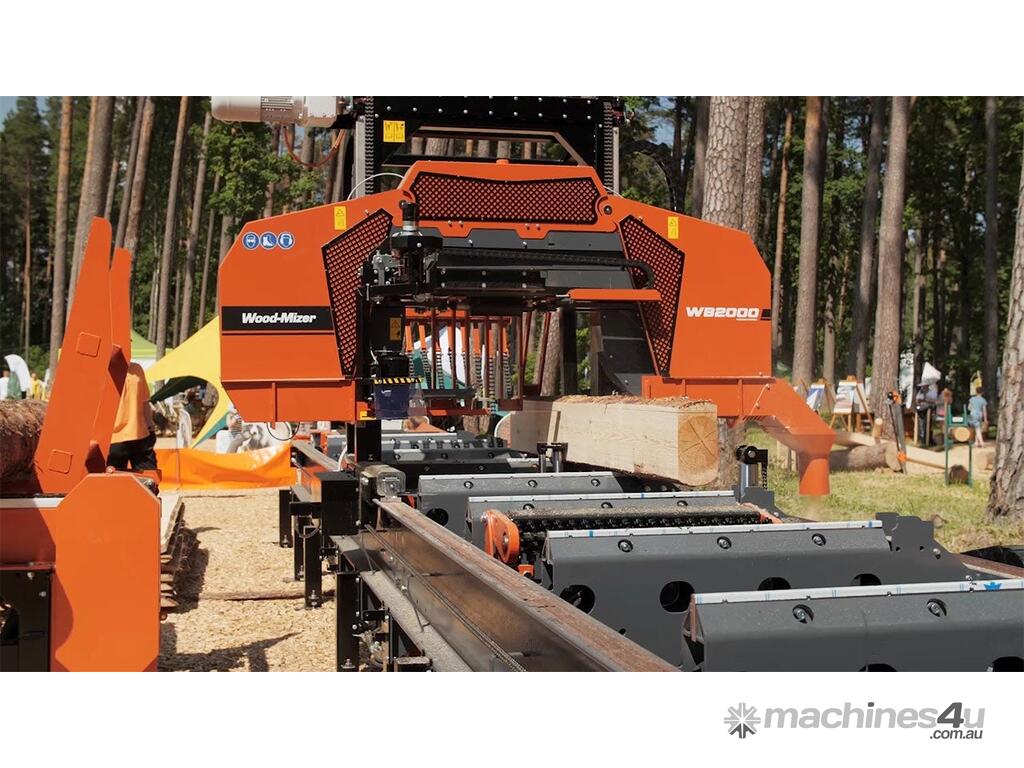

Wood-Mizer WB2000 Industrial Sawmill

High-performance industrial sawmill featuring a heavy-duty twin rail head construction with quad post support, 6-ton log capacity, and wideband performance with 2" or 3" wide sawmill blades.

The ALL NEW WB2000 High-Performance Industrial Sawmill combines the increased yield of thin-kerf blade technology, durability, and reliability that high-production operations demand. Packed with high-performance features, the WB2000 includes a powerful 50HP electric motor, heavy-duty construction, low maintenance, HMI cab operated feed controls, two camera video system, and an efficient operation with precision setworks for sawing large diameter softwood, hardwood, and tropical logs. The WB2000 can be used as a standalone sawmill to fully process a log, or in addition to an existing system to process irregular logs or produce custom orders.


Features

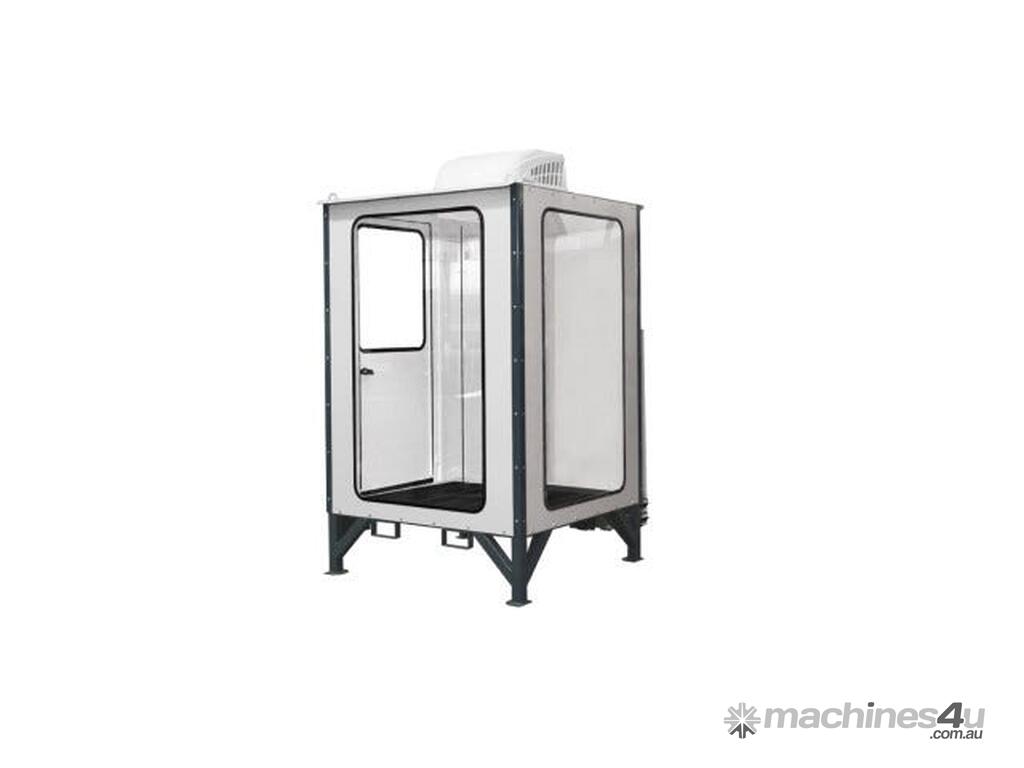

Spacious Operator Cab
Provides a comfortable working environment and clear visibility for the sawmill operator. Equipped with an integrated control panel with all head and hydraulic functions, and screen for the basic two camera system.

Cameras and Screen
Ensures complete oversight of the cutting process. Standard is equipped with 2 cameras and can have up to 4.

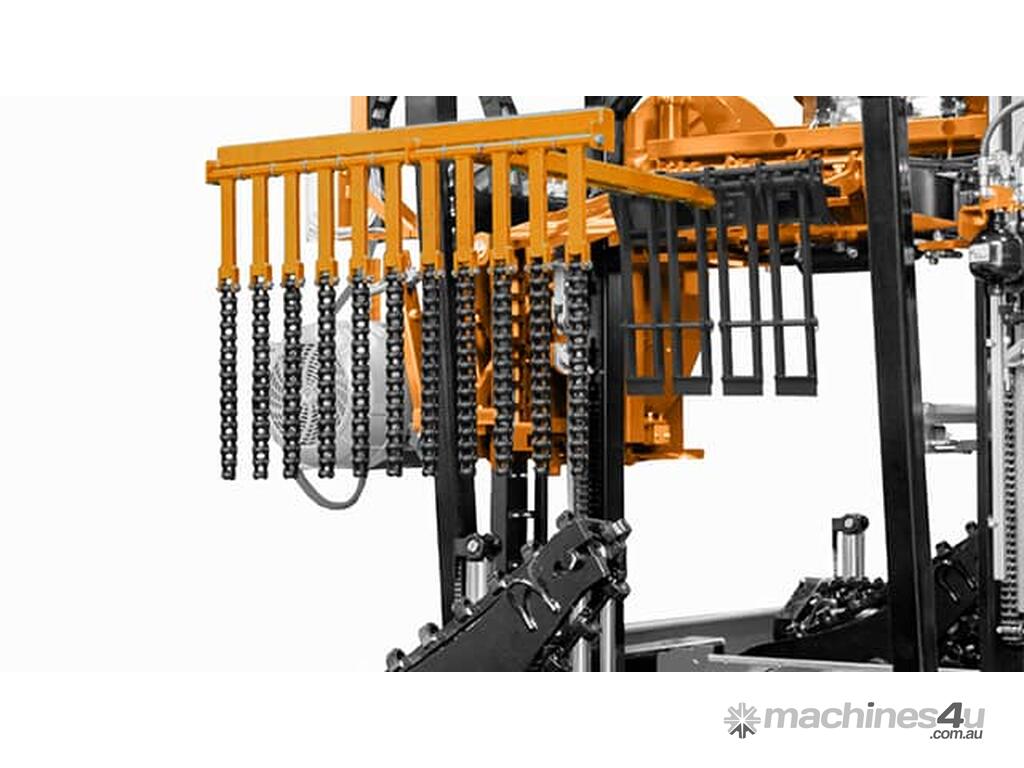

Board Removal System
Includes board removal fingers, chains and shock absorbing roller.

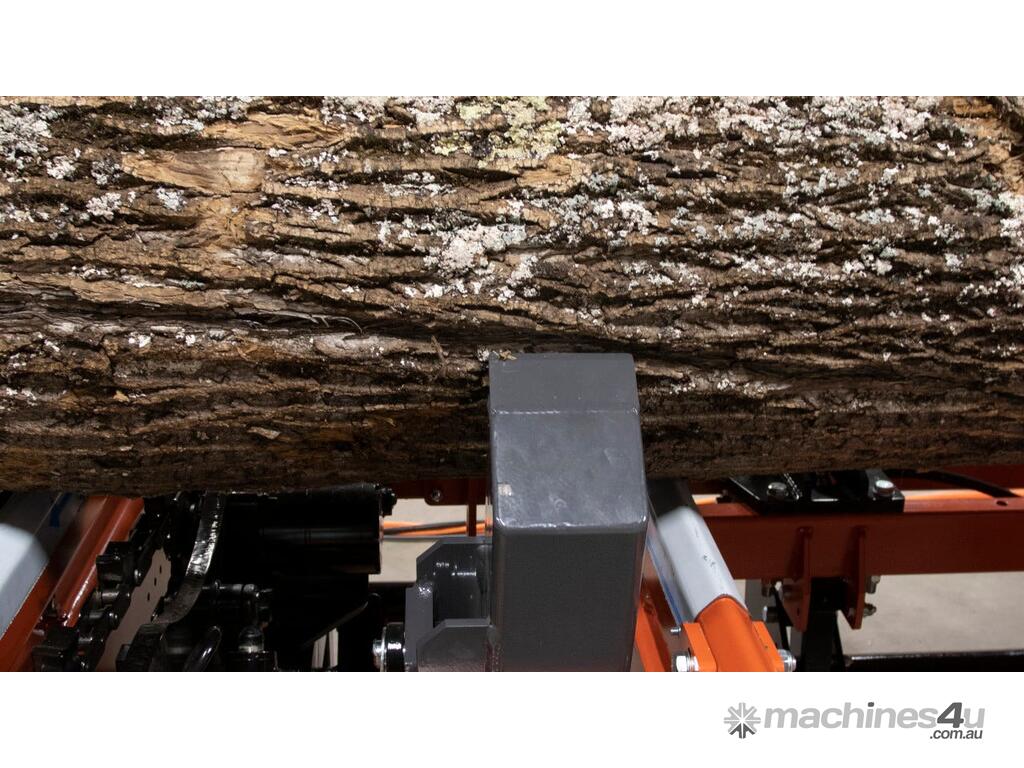

Floor Anchored Log Clamp
Mounts to floor to remove stress from the sawmill bed. Clamps and stabilizes the log during the sawing process and used to turn cants.

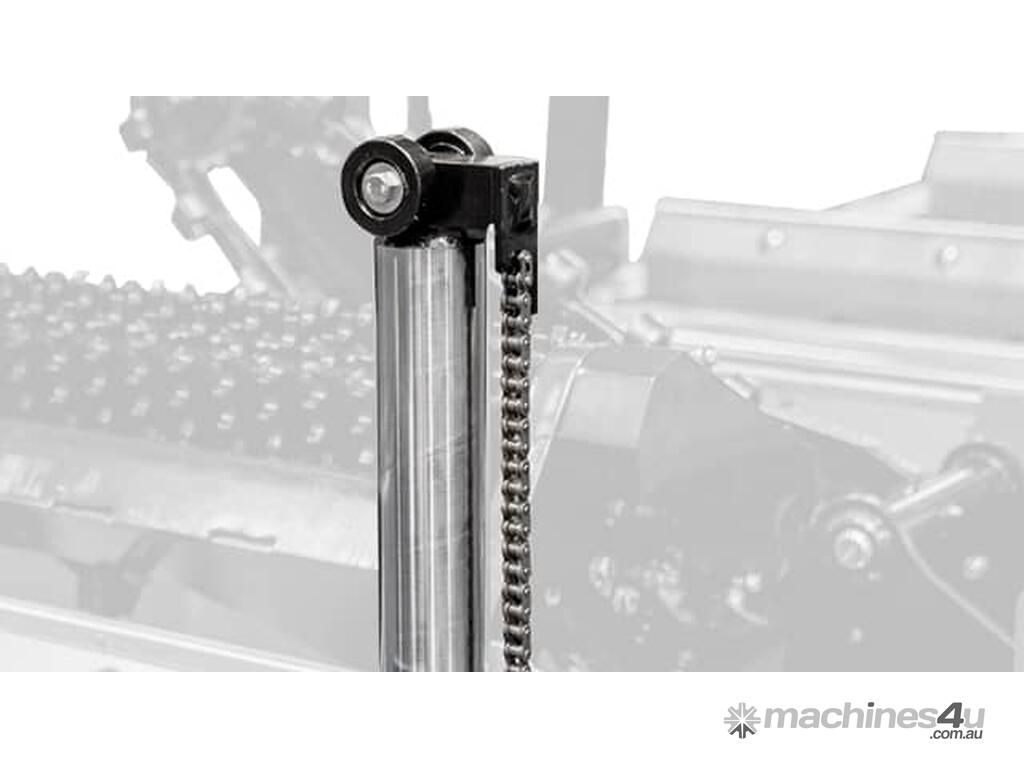

Vertical Side Support
Keeps the log on the bed during loading and turning. Ensures the timber remains stable during the cutting process.

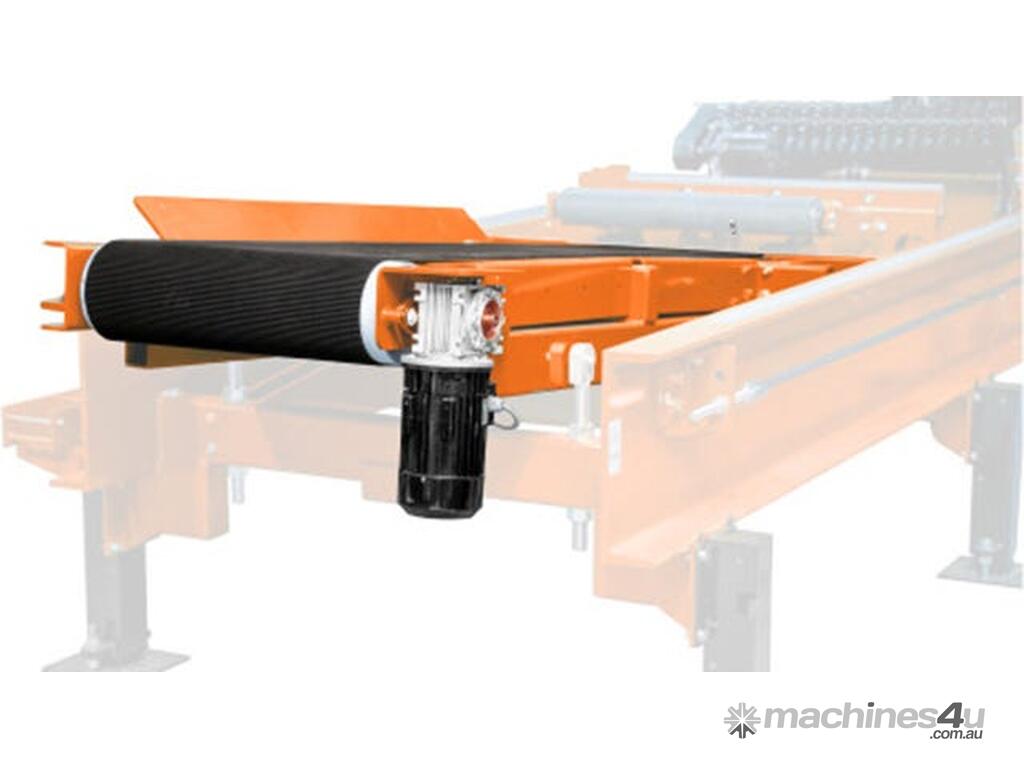

Belt Conveyor
Located at the rear of the bed. Activates automatically when the head returns. Tilt angle can be adjusted.

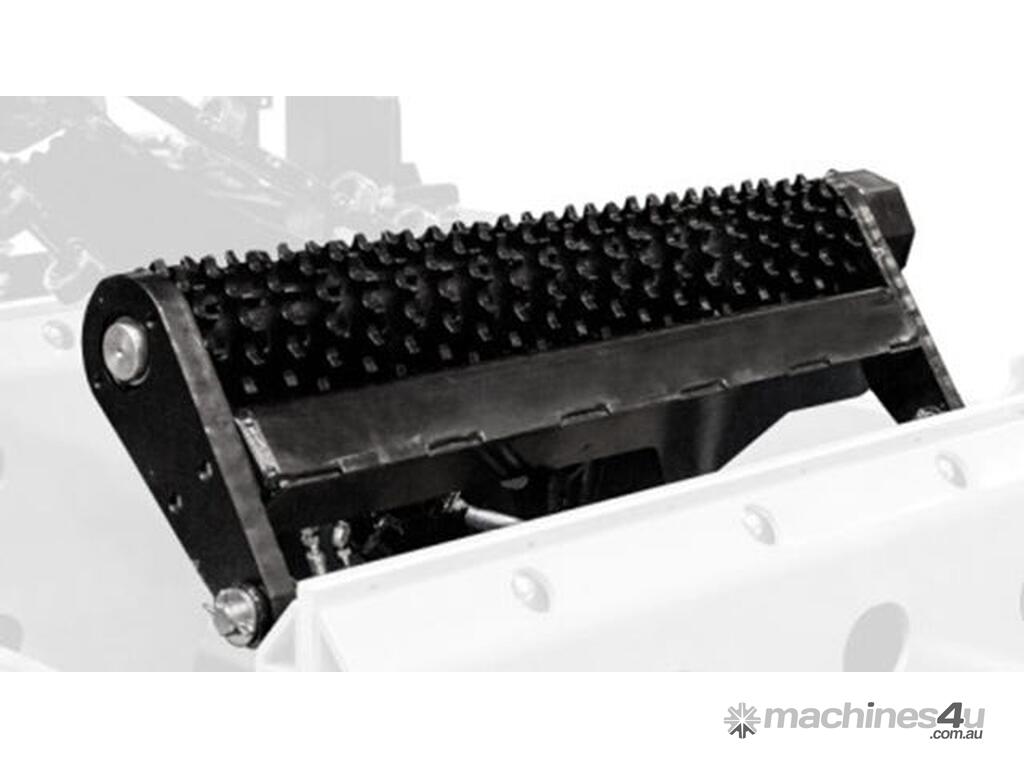

Power Roller
Used for positioning the log in the optimal place on the bed, and also for removing cants.

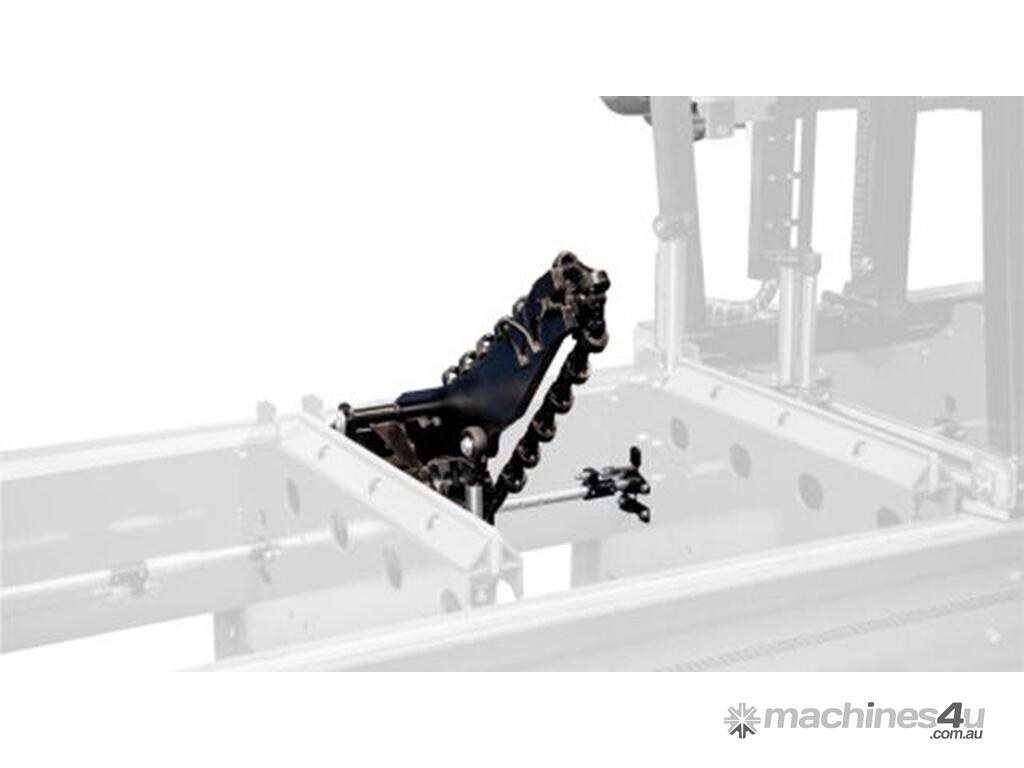

Bi-directional Chain Turner
The chain turner is used for quick log turning.


Specifications
POWER SELECTIONS
30kW electric
37kW electric

CUTTING CAPACITIES
Max Width of Cut 90cm (35 1/2")
Max Log Length 5.2m (S Bed)
8.2m (M Bed)
Min Log Length 1.2m (4.6')
Min Log Diameter 20cm (8")
Log Weight 6t (13,228lbs)

BLADE
Blade Length 6,000mm (236")
Blade Guides Style Double Block Guides
Blade Lubrication System Automatic Blade Oil Lubrication
Blade Tension System Hydraulic Tension System with a Pressure Accumulator
Blade Wheel Type Crowned Steel Wheels
Special Blade Wheels for 75 mm blades
Blade Width 75mm (3")
100mm (4")

HEAD FEATURES & OPTIONS
Laser Optional Laser
Board Removal Board Return System
Log Debarking Optional
Blade Guide Arm Adjusted with Control Switch
Blade Engagement On/Off Button (Electric Versions)
Head Forward/Reverse Variable Speed Power Feed
Setworks PLC Industrial Setworks
Operator Location Standing Platform with Operator Controls (EC)
Platform with operator’s seat and joysticks system (PRO)
Air-conditioned Cabin
Observation Cameras 2 Cameras Included (CE Markets only)
4 Cameras

BED FEATURES & LOG HANDLING
Side Supports 2 or 4 Vertical Side Supports
Hydraulic Speed Dual Speed Hydraulics activated with foot pedal
Board Removal Conveyor Board Removal Conveyor (Optional)
Hydraulic Output 18LPM (4.8GPM)
27LPM (7.1GPM)
55LPM (14.5GPM)
Cant hold-down clamps 2 Cant Hold-Down Clamps (Optional)
Log Leveling 2 Powered Leveling Rollers
Log Turning 1 or 2 Bi-directional Chain Turners
Log Loading Log Deck (LD2)
Log Clamping 1 Hydraulic Log Clamp
Hydraulic Pump 5.5kW (7HP)
7.5kW (10HP)
11kW (14HP)

MACHINE DIMENSIONS & REQUIREMENTS
Delivery Methods Container or truck
Bed Construction Twin Rail
