Highlights

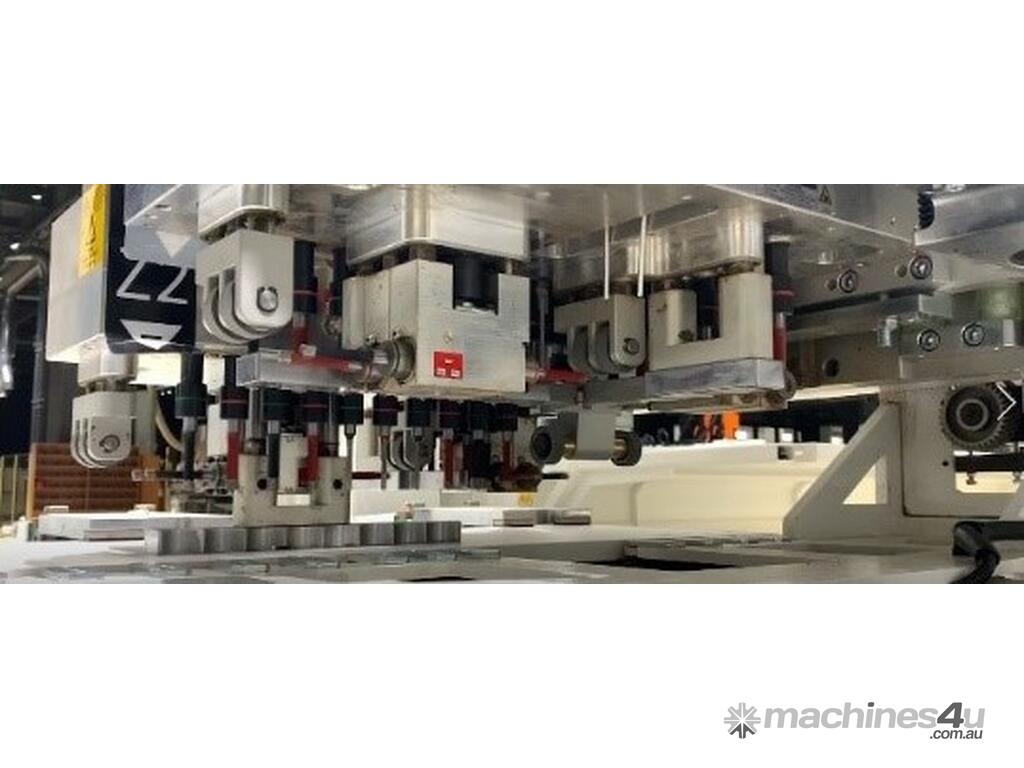

- 6-sided drilling with top/bottom grooving in one cycle

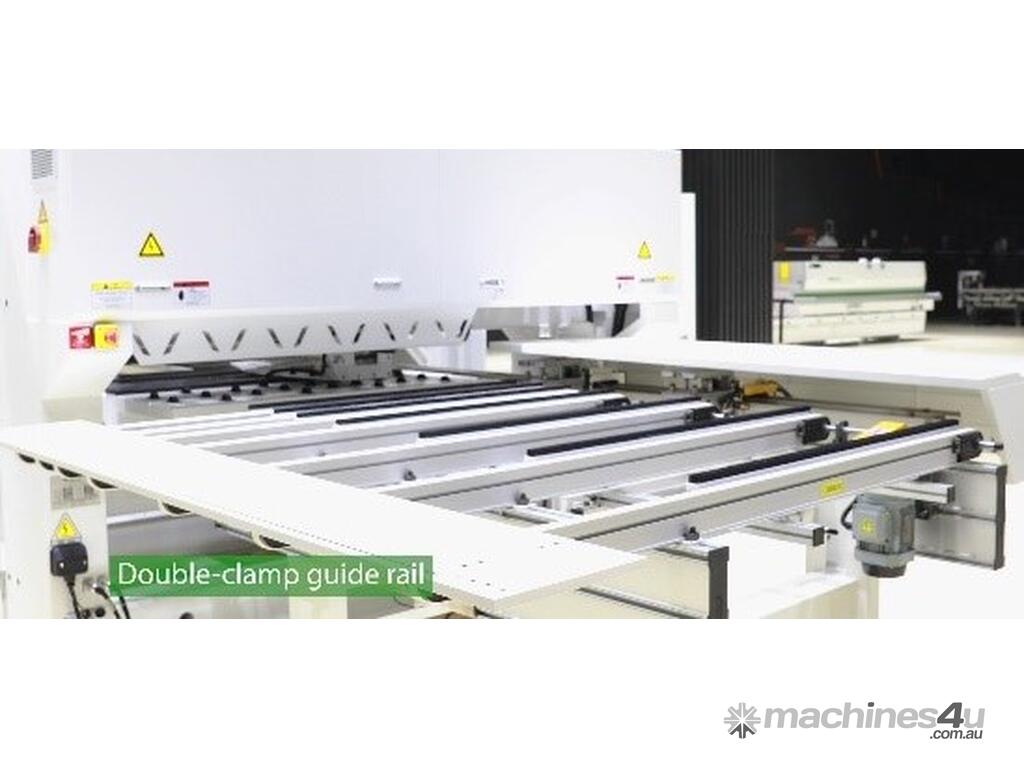

- Achieve a 30 mm wide rail with ease

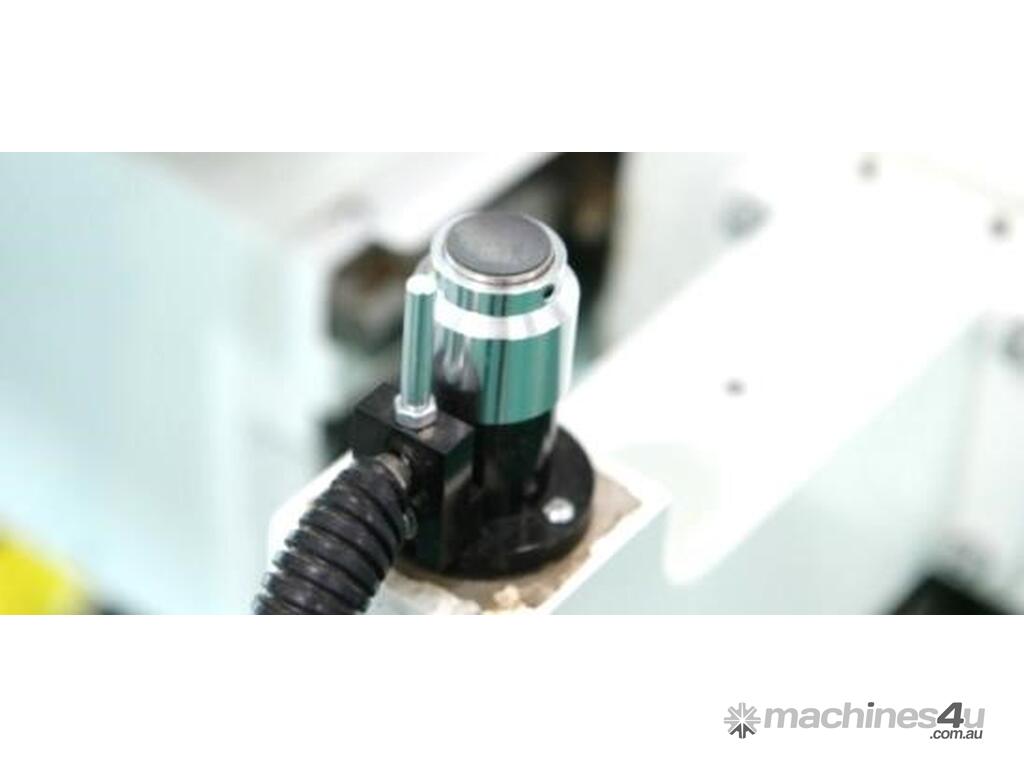

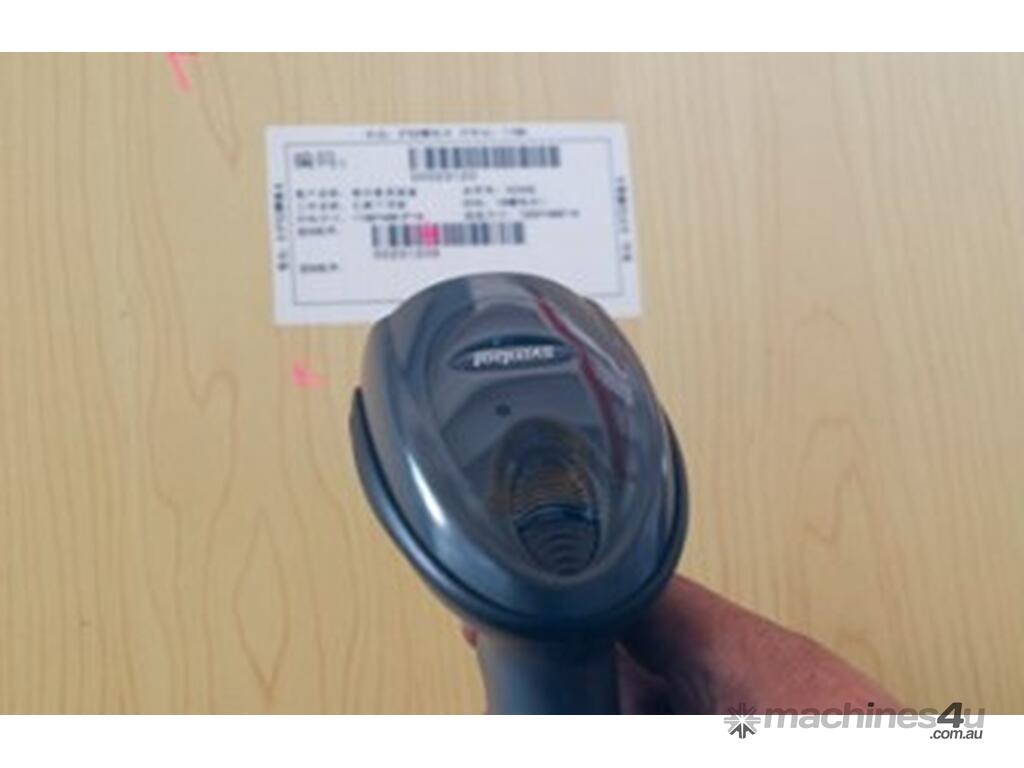

- 360 degree automatic scanning

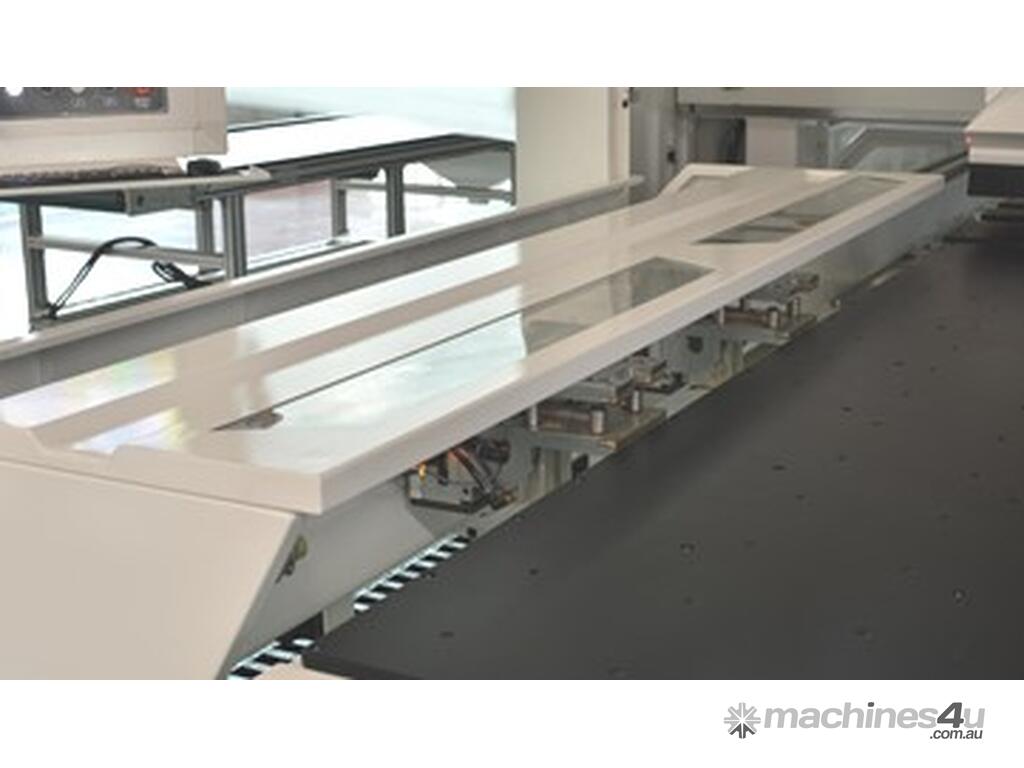

- Drilling from underneath with doors facing up to avoid scratching

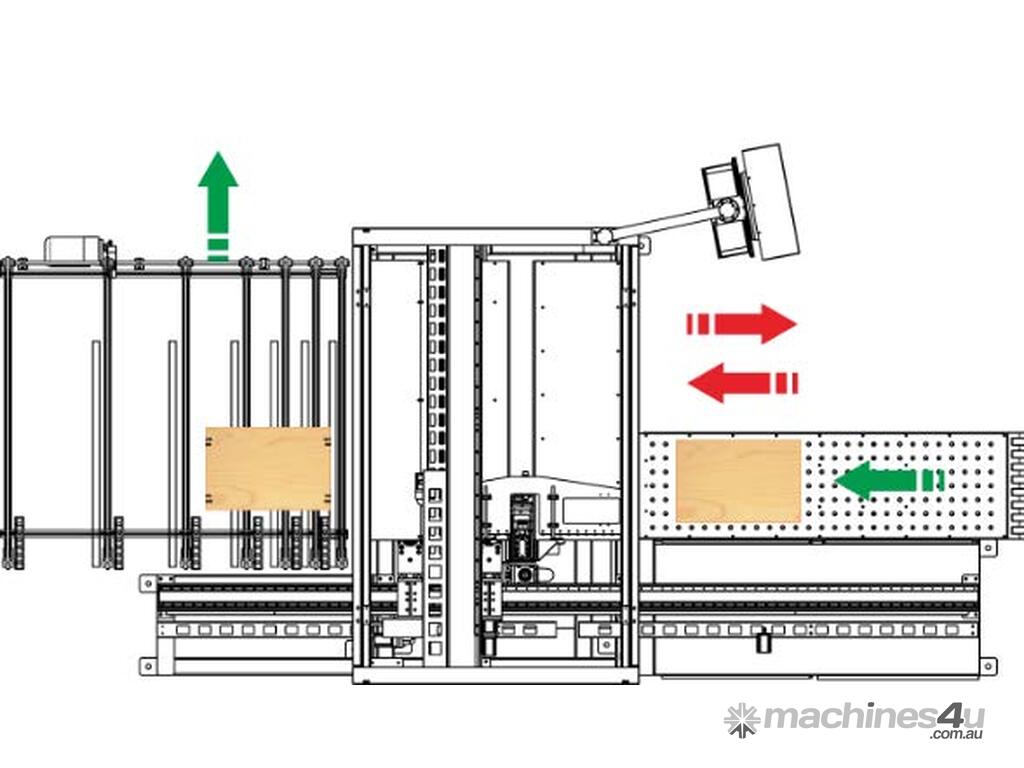

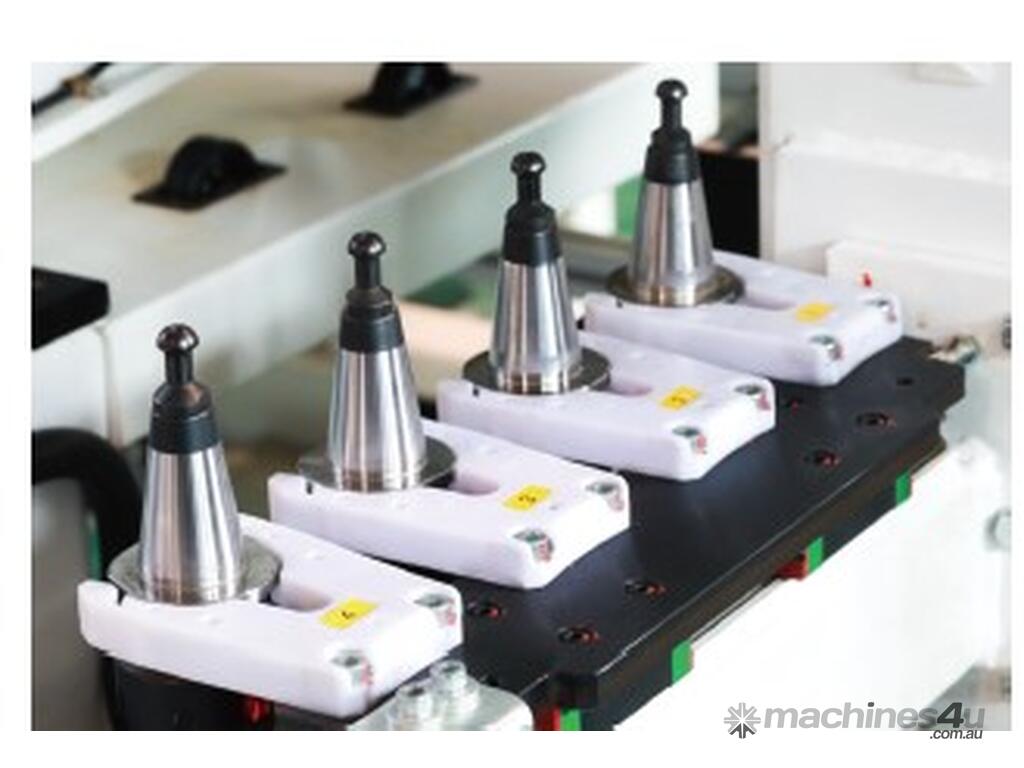

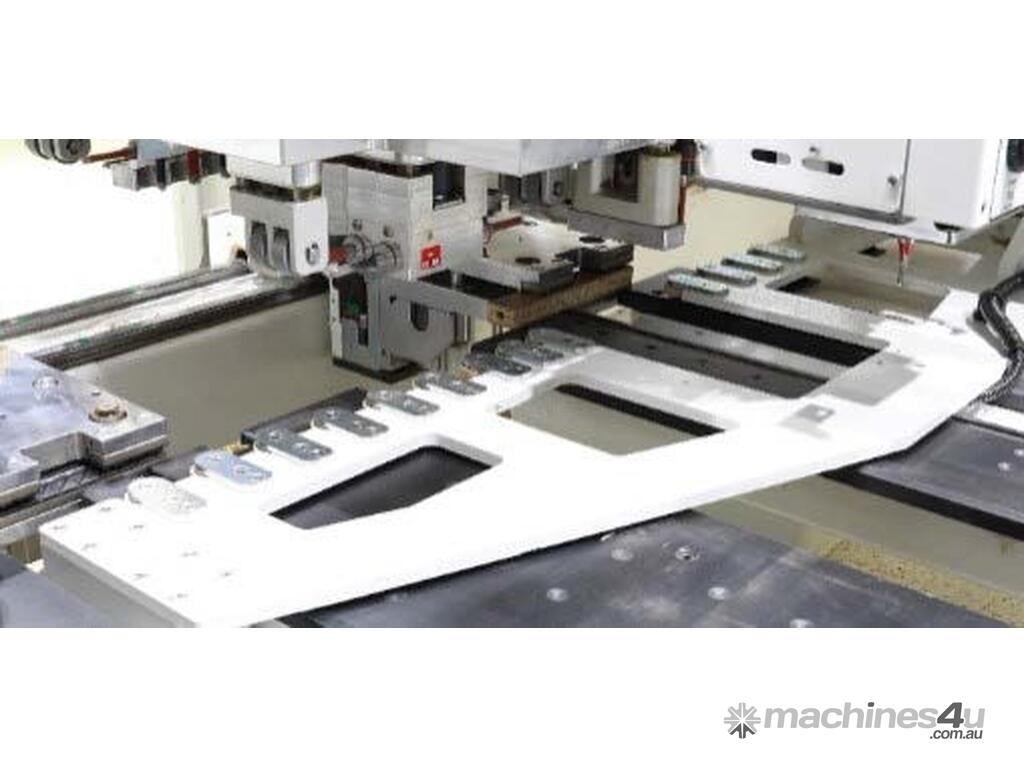

The NCB612DTL is a high-tech CNC machine to drill holes on 6 sides, groove top and bottom, and route shapes in one process, without turning the panel. This line suits complex production needs with continuous working of various batch sizes and patterns. Standard features include 4-slot automatic tool change, automatic scanning, off-cuts transfer device and conveyor system for a complete return CNC drilling line.
SPECIFICATIONS
Panel Length: 250 - 2400 mm
Panel Width: 80 – 1200 mm
Panel Thickness: 10 – 50 mm
Vertical Drills: 16 x 2
Horizontal Drills: X: 4x2 Y: 4x2
Bottom Drills: 10
Main Spindle: 3.5 kW x2 18000 RPM
Feeding Speed: 135/135/75/30 m/min
Transmission mode - X & Y axis: Rack and pinion
Transmission mode - Z axis: Ball screw
Transmission mode - Side alignment: Rack and pinion
Dimensions: 6805 x 2806 x 2260 mm
Weight: 4710 kg
