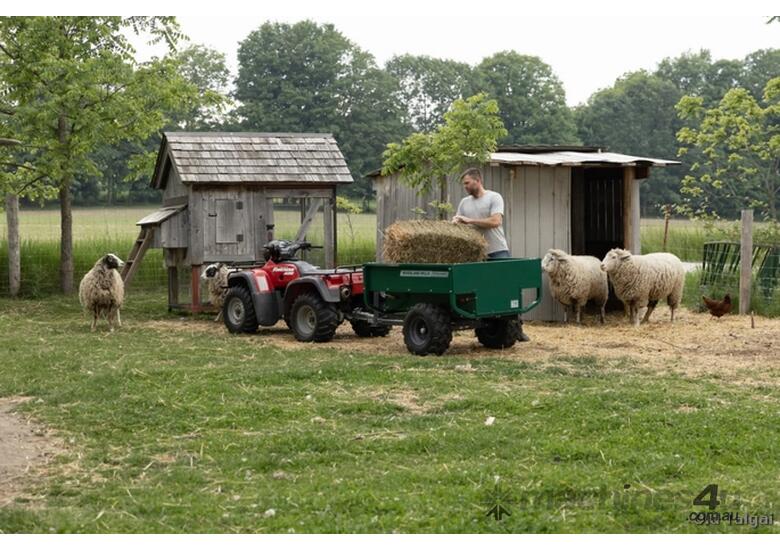

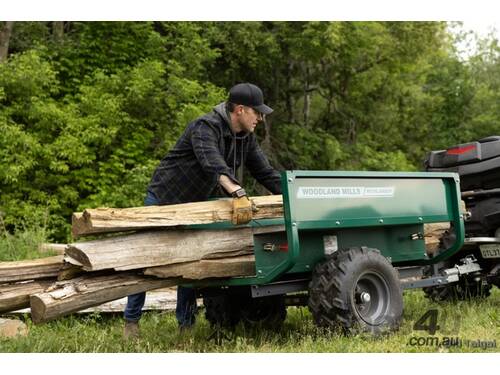

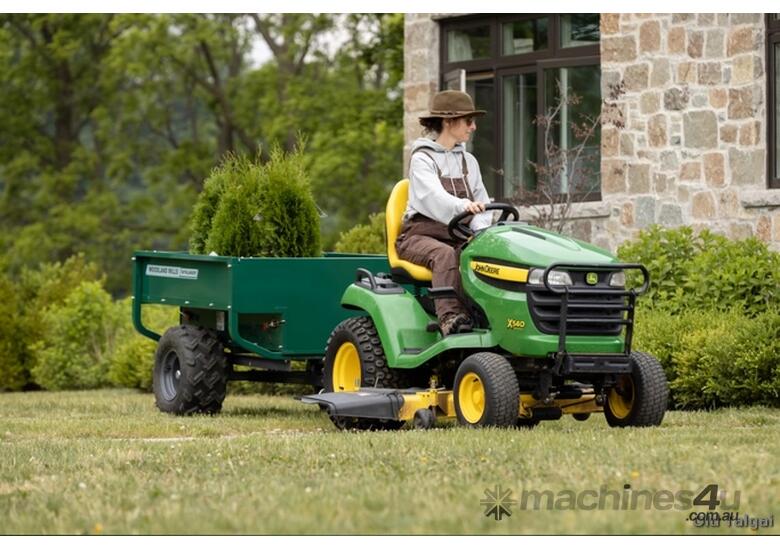

The Pathlander is a robust, all-purpose hauler designed to handle a wide array of tasks. Whether you’re clearing autumn leaves, prepping firewood, relocating topsoil, or embarking on trips to the hunt camp, this trailer is one you’ll never want to detach.
With a leading-edge 21 ct³ / 0.60 m³ dump box and a 1000 lb / 455 kg payload capacity, it stands out in its class. The removable tailgates afford you the flexibility to transport materials of varying lengths. For any property owner in Australia seeking a dependable and versatile utility trailer, the Pathlander is the ultimate choice. Opt for the optional 1000 lb capacity winch kit to transform the Pathlander into a specialized dump trailer. This addition is especially useful for unloading heavier loads from the utility box.
Technical Specifications:
Axle: Fixed Axle Design
Wheels & Tires: 4 Bolts 4” [101.6 mm] & 23 × 10.5-12 Tires
Tire Pressure: Refer to Tire
Trailer Ball Coupler: 2 in [50 mm] Pivot Hitch
Levelling Jacks: 1 Adjustable Jack Stand
Payload Capacity: 1000 lb [455 kg]
Overall Length: 91-5/16 in [2319 mm]
Overall Width: 48 in [1223 mm]
Overall Height: 37 in [940 mm]
Box Dimensions: 53” [1346 mm] x 48” [1219 mm] x 19” [483 mm]
Product Weight: 304 lb [138 kg]
Shipping Weight: 412 lb [187 kg]
Box Volume: 21 cu ft [0.60 m³]
Dump Angle: 45 degrees
Large-Capacity Utility Box
The utility box on the Pathlander is constructed from heavy-gauge steel, measuring 53? in / 135cm length, 48? in / 122cm width, and 19 in / 48cm depth, boasting an industry-leading 21 cubic foot / 0.60m³ capacity. To enhance durability, the box is coated with a protective layer of powder.
The underlying framework features robust full-length 2.75 X 1.5” solid steel L rails. These provide critical support to the front and rear CNC-bent structural steel ribs, extending the box’s resilience all the way to the top deck. When the box is in the lowered position, it’s further bolstered by a rubber bumper attached to the chassis, effectively dampening vibration and reducing noise during towing.
Full Box Underframe
The complete box underframe is meticulously designed to endure the demands of transporting and unloading loads of up to 1000 lbs / 455kg. The underframe, constructed with L-rails, guarantees the box possesses peak strength and stability. Furthermore, it establishes a robust and dependable linkage between the box and chassis.
Efficient Dump Box Design

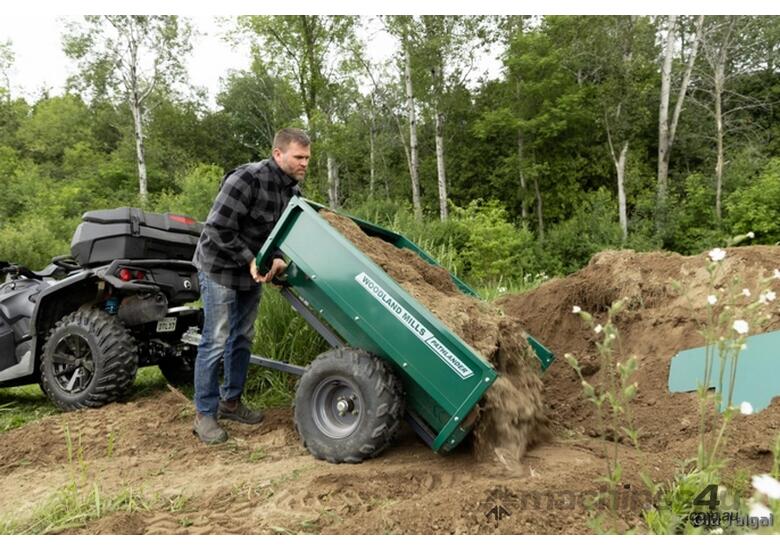

Additionally the optional winch assembly that facilitates raising the dump box, another notable feature of this is the hinge point configuration. It is divided with 75% of the load towards the front and 25% towards the rear, effectively counterbalancing the load. This straightforward design element proves its advantages each time you unload your trailer, ensuring a balanced load distribution and facilitating smoother dumping.
Reinforced Laminated Chassis Design
The chassis incorporates a sturdy 2 (51 mm) square tube with a substantial wall thickness, extending rearward to the axles. Here, it is firmly affixed to the axle crossbeam through a robust, laminated heavy-gauge plate arrangement. The axle crossbeam itself houses pivot brackets made from solid 1/4? steel, dedicated to supporting the utility box. This design guarantees the necessary fortitude to handle a substantial 1000 lb (455 kg) payload.
Removable and Top-Hinged Tailgates
The Pathlander boasts removable front and rear tailgates, simplifying the process of loading and balancing longer items. Thanks to the generously sized top hinge points, there’s no need to take off the tailgates when unloading loose materials such as gravel, topsoil, or yard waste. These tailgates are engineered to remain securely locked in place, utilizing stainless steel draw latches. Positioned high on the box, these latches ensure both robust protection and effortless operation.
Pivoting Hitch
The 2” (50 mm) ball coupler is designed to swivel a full 360 degrees. This feature separates the trailer’s movement from that of the towing vehicle, providing a worry-free experience when navigating off-road terrain. Additionally, the tongue can be inverted 180 degrees, allowing for an adjustment in height to match that of your tow vehicle. This ensures that the Pathlander aligns as closely as possible with the level of your towing equipment. Note: Picture not indicative of hitch available in the Oceania Region.
Adjustable Tongue Support Leg
The built-in tongue support leg is Adjustable and comes with a locking pin to securely hold it in place during trailer use and when in storage.
Multi-Ply Tire Assembly
The Pathlander is equipped with two robust 23 x 11 multi-ply tires mounted on 10” rims. These rims, coated with a protective layer of powder, feature valve stem protectors. Additionally, they are fitted with packed tapered roller bearings that come with a convenient Zerk fitting inside the rim, making maintenance a breeze.
