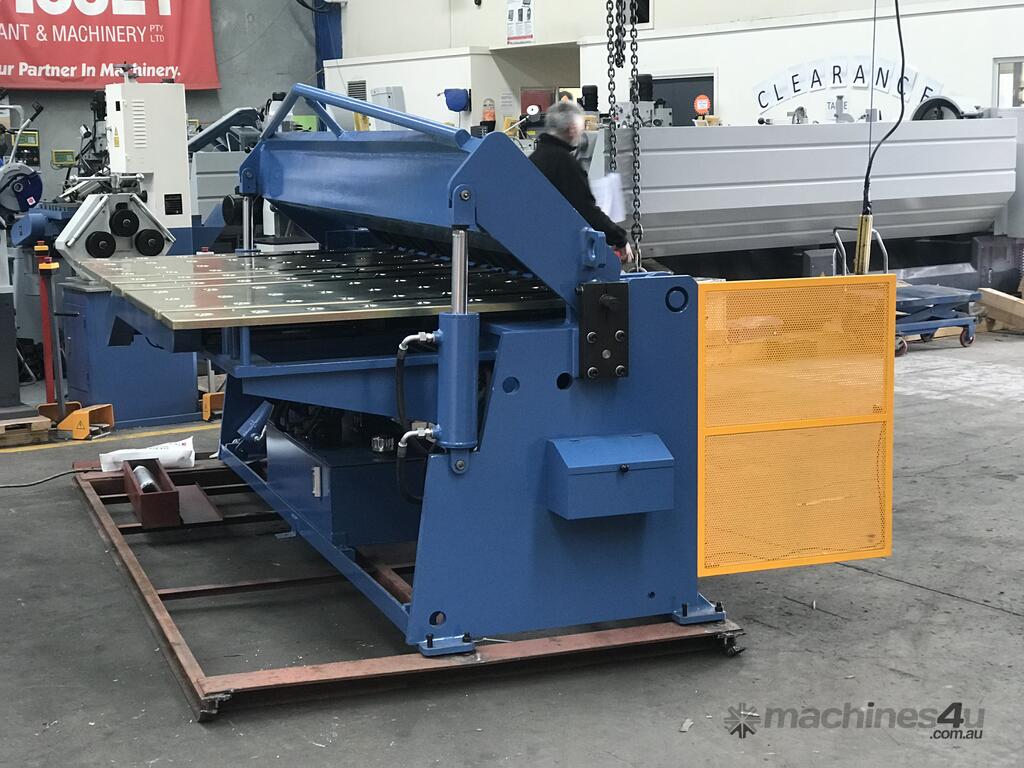

Work Smarter Not Harder with Our 2506NC2 Programmable NC2 Panbrake

SM-FHPB2506NC2. Panbrake Folder. Full Hydraulic. 2500mm x 5mm with NC2 Programmable Angle Controller New Roller Table Ballscrew Programmable Backguage, Hardened & Ground Fingers, Safety Guards. V
Description
Our Australian designed & engineered full hydraulic Panbrake will blow the competition away.
Working smarter, not harder with our NC2 machine. Offering a smart 99 station programmable angle setting for quick and accurate folding and also backgauge positioning.
This can be used both in the single "enter angle and fold" mode, or used in a multi sequence folding and backgauge operation - how easy is that?
Produced exclusively for Asset by Australian Engineers.

Structural & Operating Features
?hydraulically operated bending and clamping beam for efficient heavy duty operation
?high structural rigidity from heavy plate steel box construction with continuous welded seams

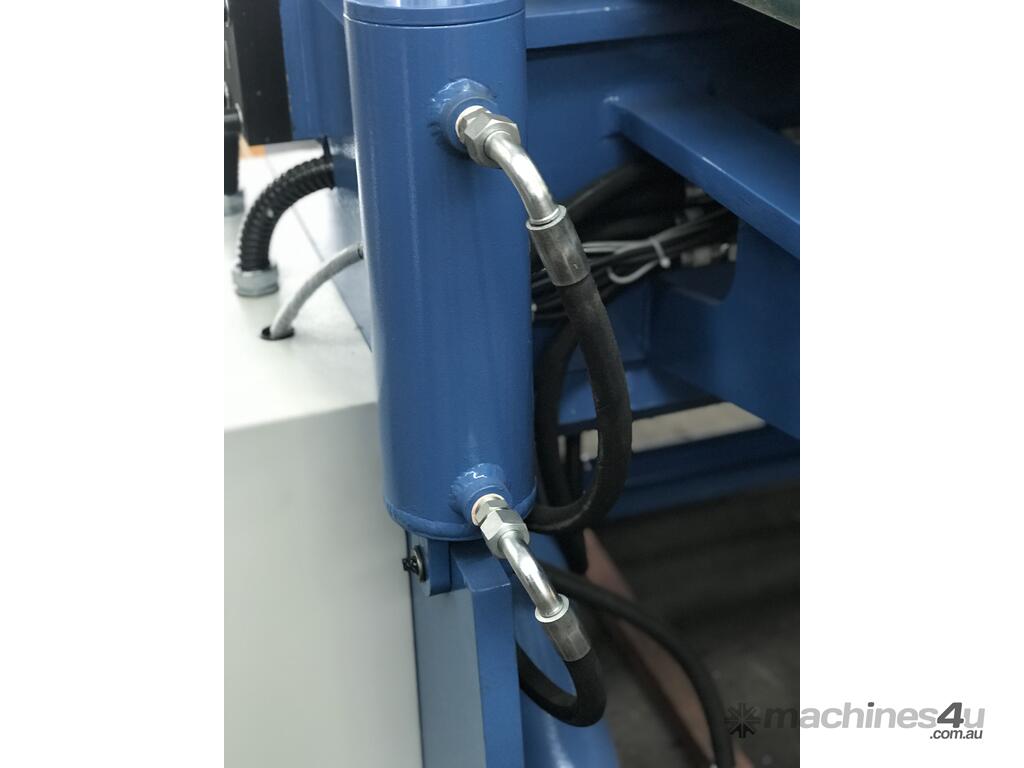

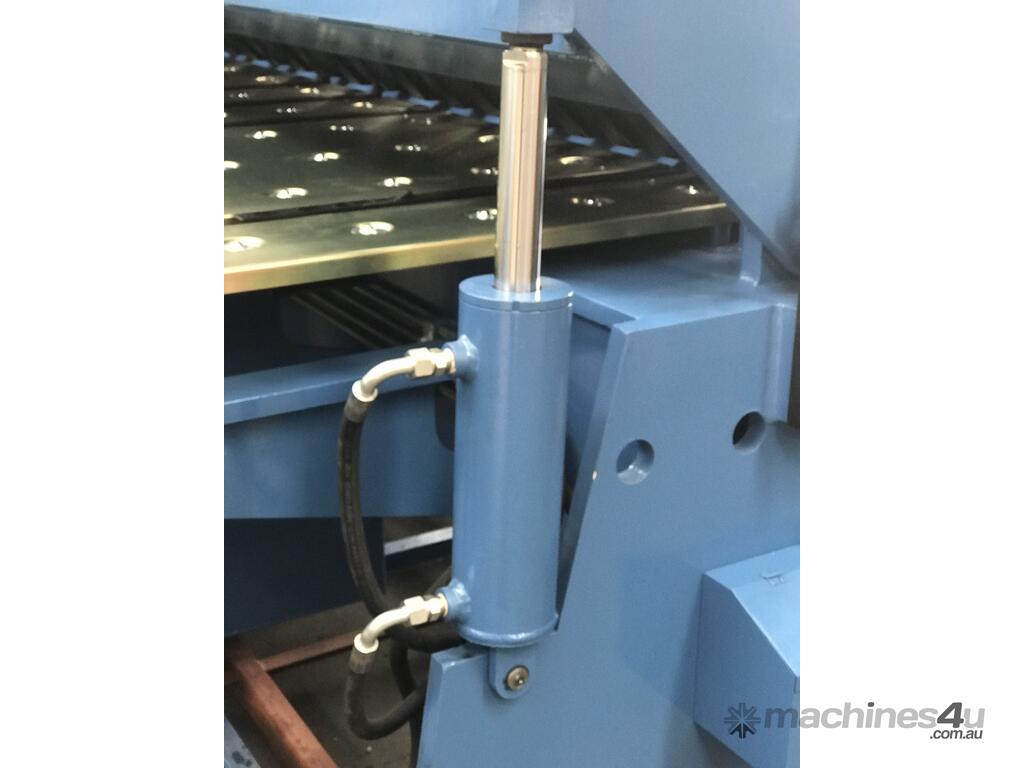

?bending beam powered by dual hydraulic cylinders

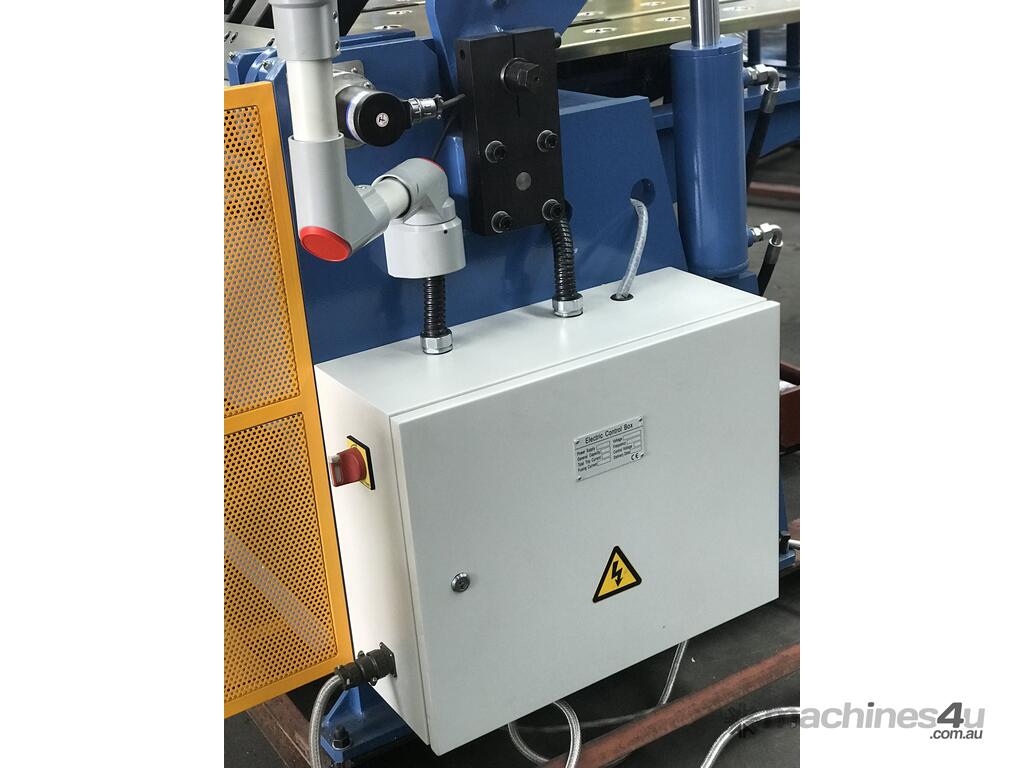

?fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature

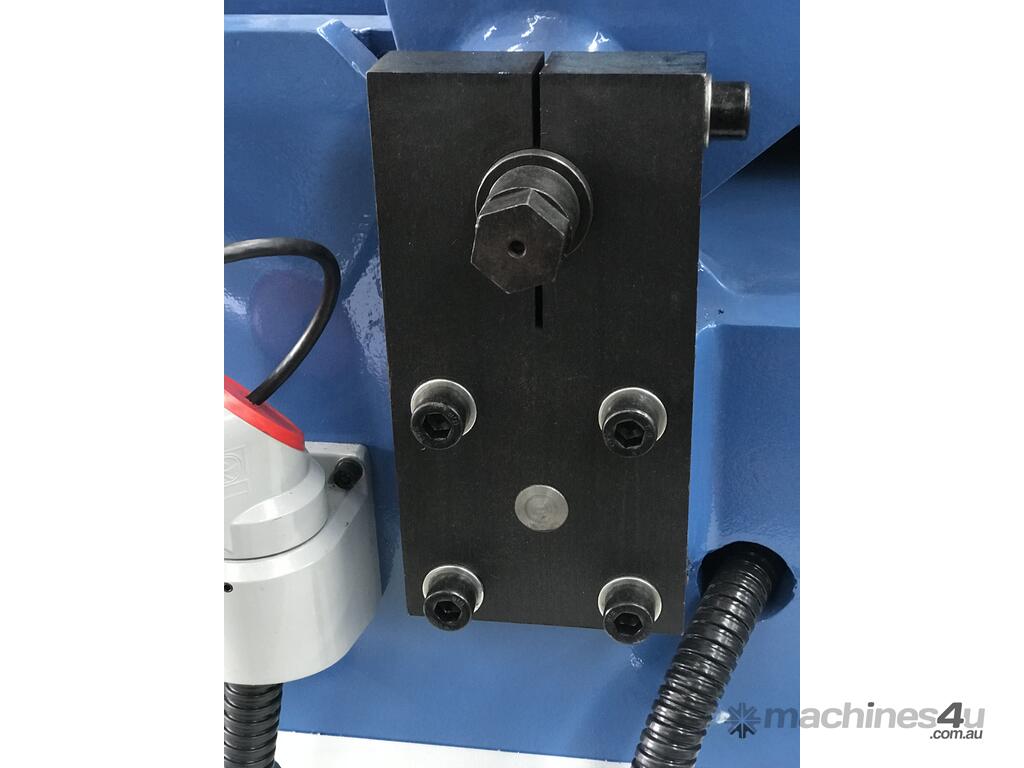

?high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
?precise electric / hydraulic controls with manual inching of bending beam
?utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
?comprehensive equipment protection from electric and hydraulic overload systems

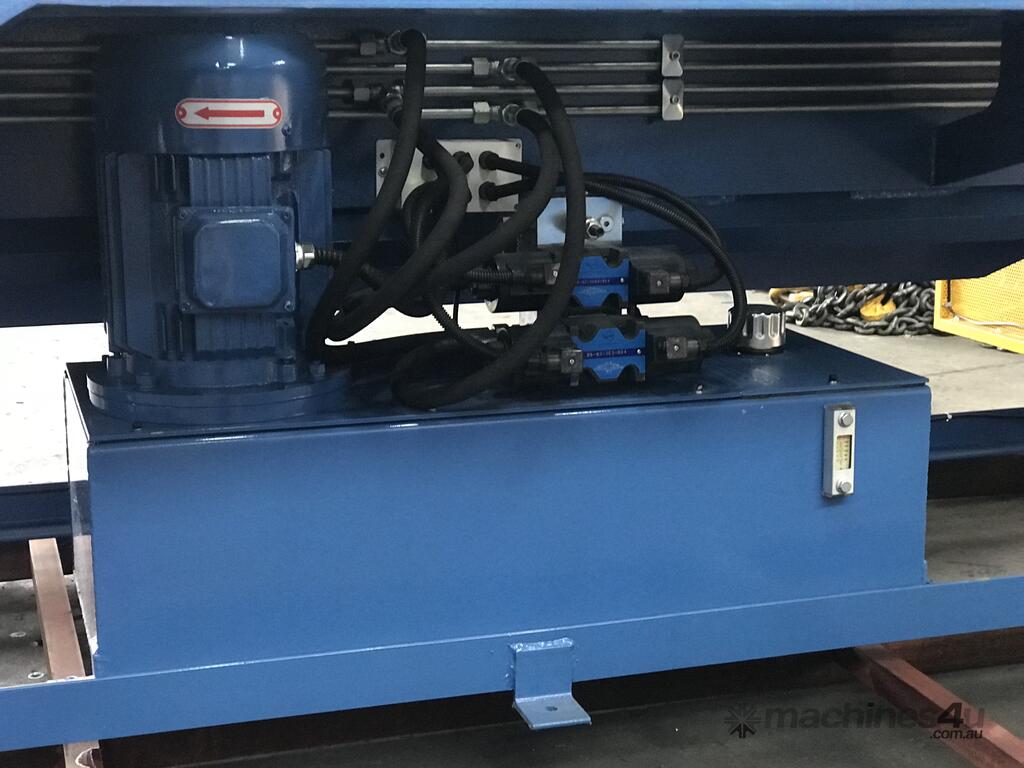

Hydraulic System
?high quality componentry ensures reliable performance for years of continuous operation
?powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
?unique electric / hydraulic control ensures safe and simple operation

Specifications
?high bending angle of 0-125°
?greatest depth of box bent 165 mm
?powerful motor
?200 mm of clamping beam
?hydraulically operated bending and clamping beam for efficient heavy duty operation
?24 volt control wiring

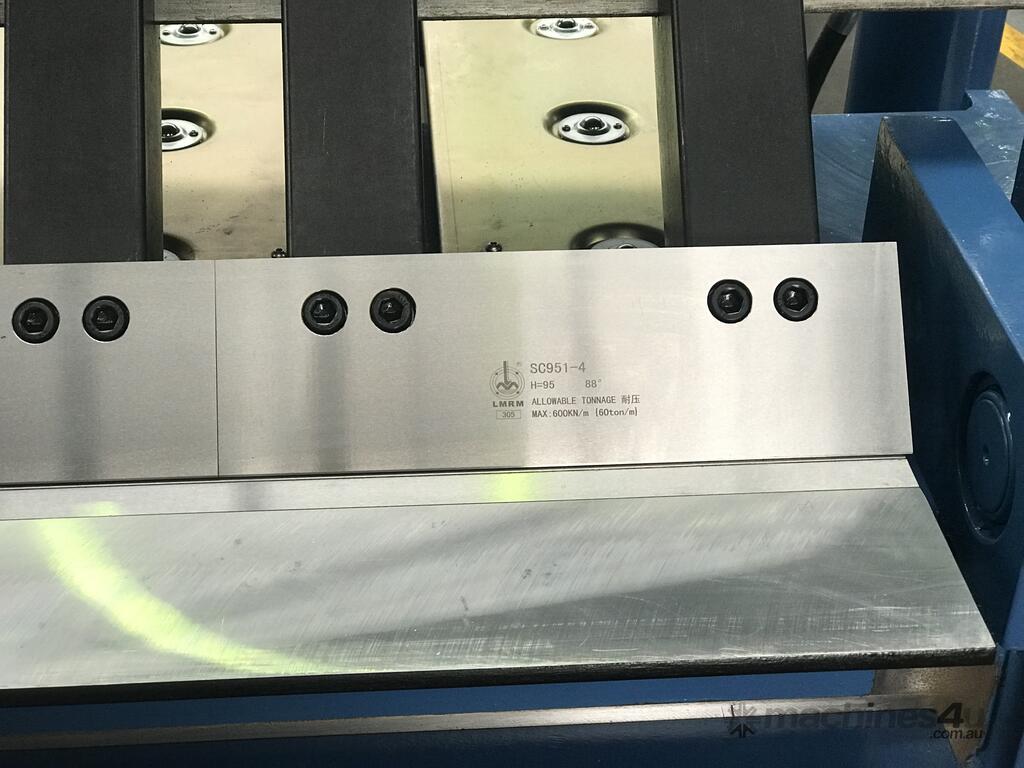

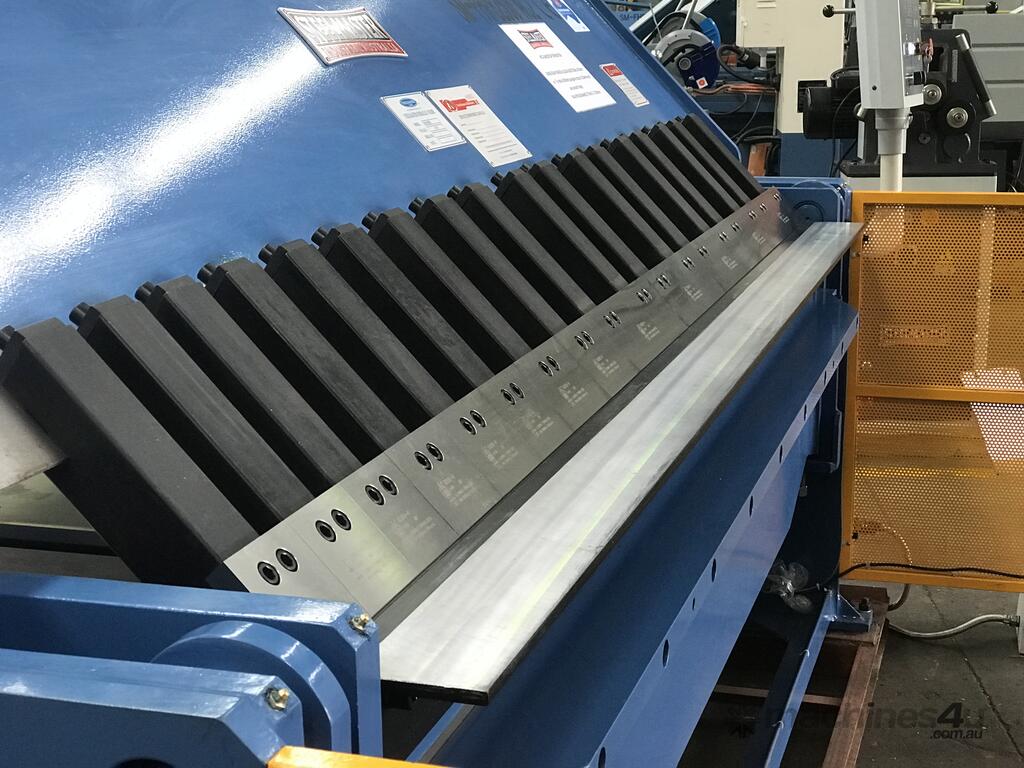

?bending fingers made from hardened material, maximizing life

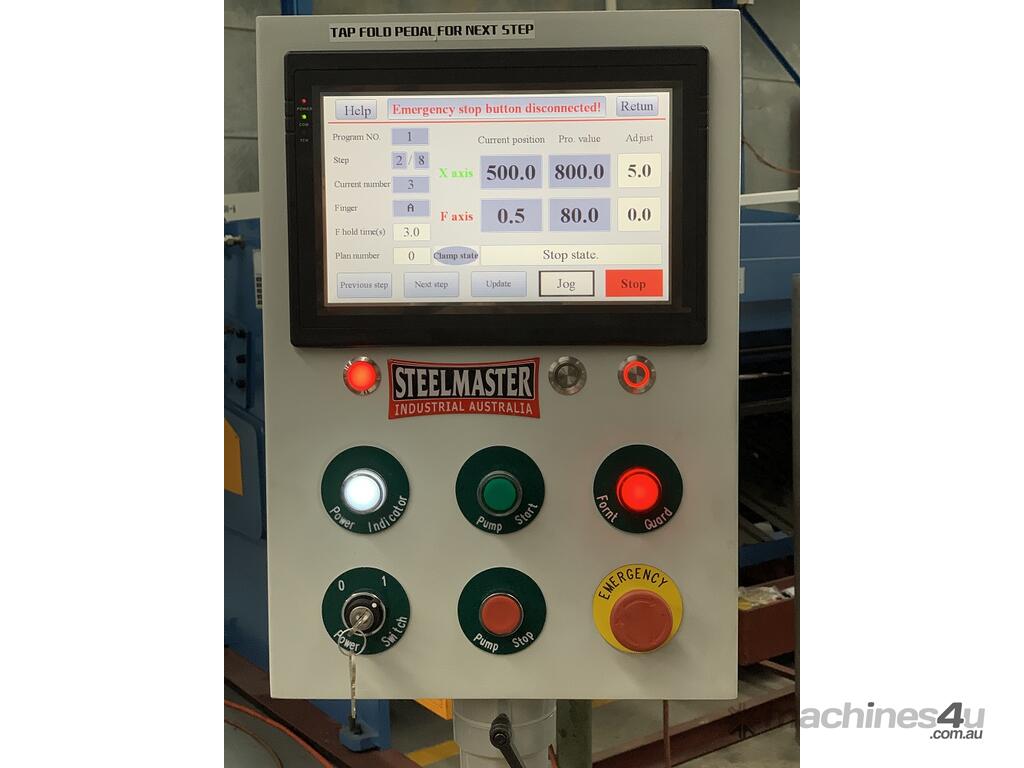

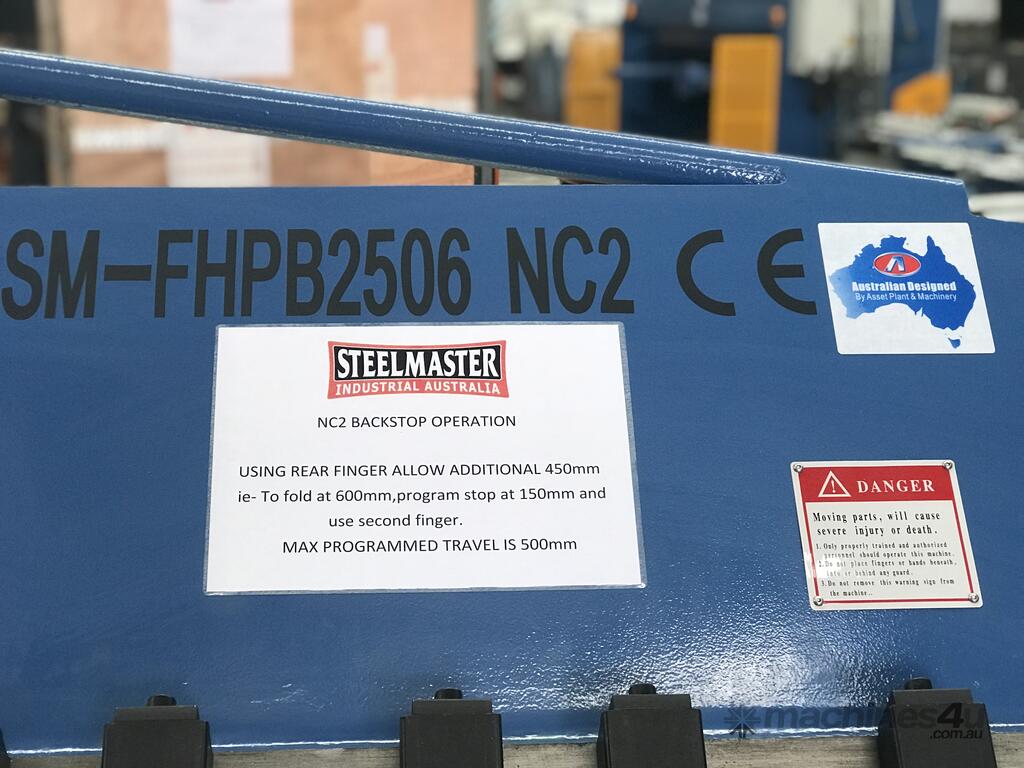

NC2 Programmable Controller
?offering programmable control controlling bending & backgauge sequence.

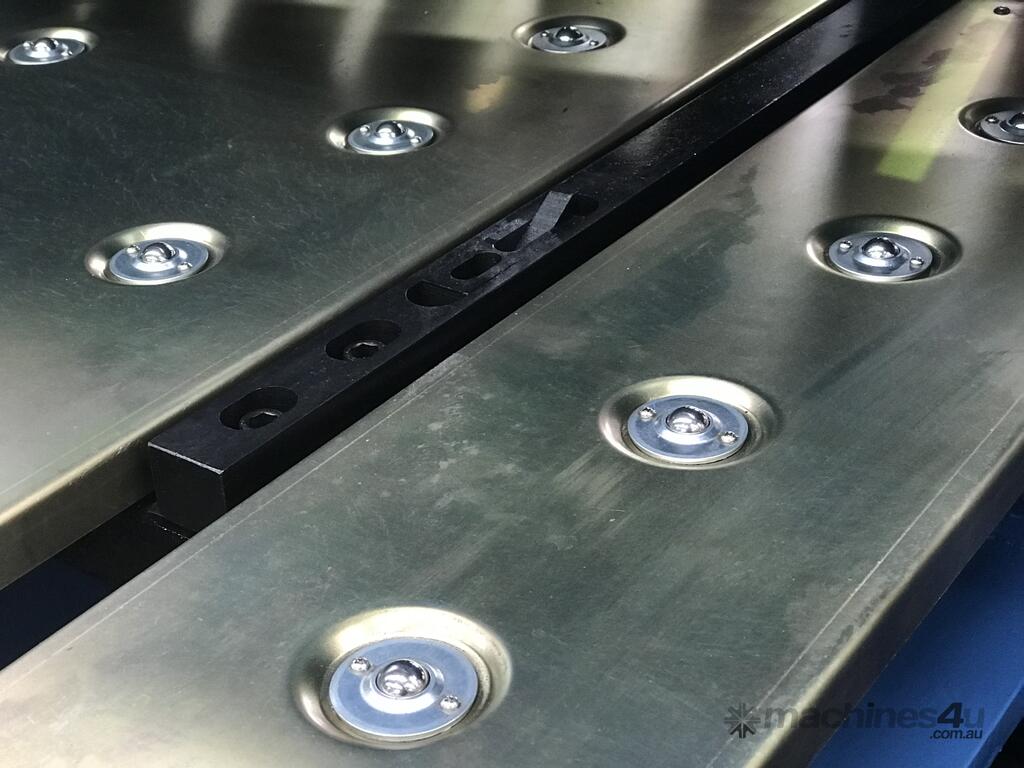

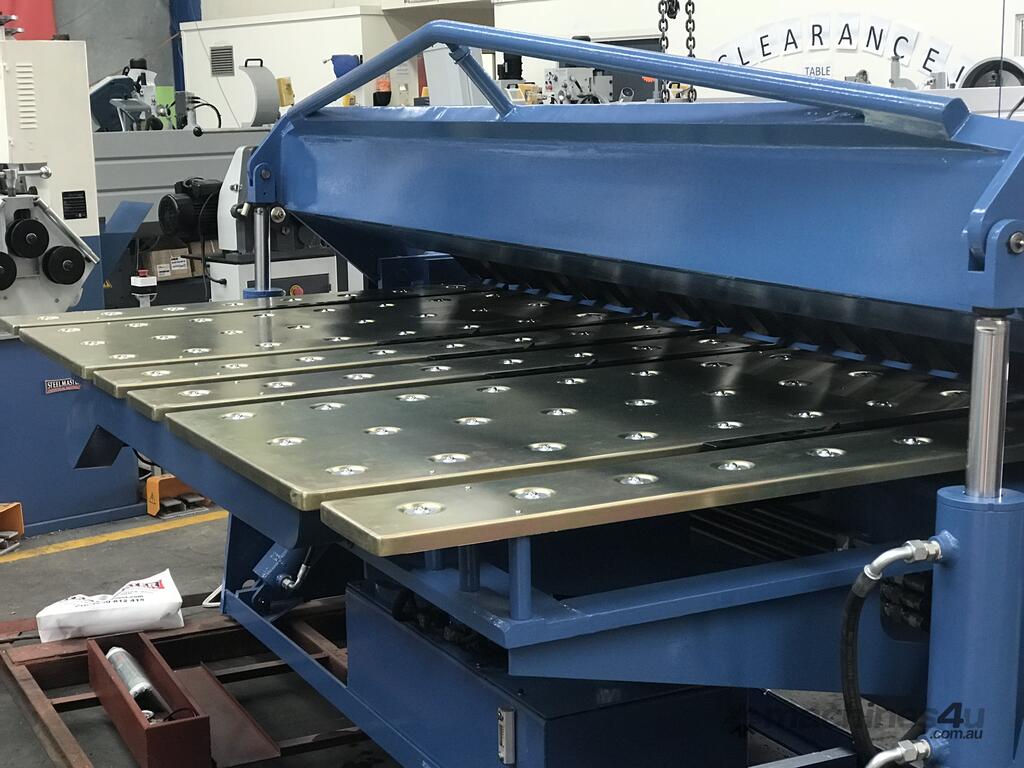

?new rear roller table with ballscrew operated backgauge positioning
?operation in manual, step program, automatic modes and repeat modes
?99 station memory setting operating in, manual, automatic and repeat modes
?designed to control a 4 ram folder with up, down, clamp and release functionality

Technical Data Snap-Shot
?2500mm x 5.0mm bending mild steel capacity
?2500mm x 3.0mm bending stainless capacity
?0 ~ 125 bending range
?backgauge travel length - 900mm. Position A & B
?optional backgauge travel length to 1200mm available on request. Position A, B & C
?shipping dimensions - 3050mm x 1500mm x 1650mm
?power - V 5.5Kw
?approx weight: 4750kg
