XA-5022(D) Auto Darken Welding Helmet with PAPR Respiratory System - 5-9, 9-13 Shade Suits Mig, Tig,

UNIMIG WELDERS XA-5022(D) Auto Darken Welding Helmet with PAPR Respiratory System - 5-9, 9-13 Shade Suits Mig, Tig, Arc Welding & Grinding Includes Built in Air Purifying Respirator System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W159

POWERED AIR PURIFYING RESPIRATOR
Clean Air Welding
Ultimate Protection from
Harmful Welding Fumes

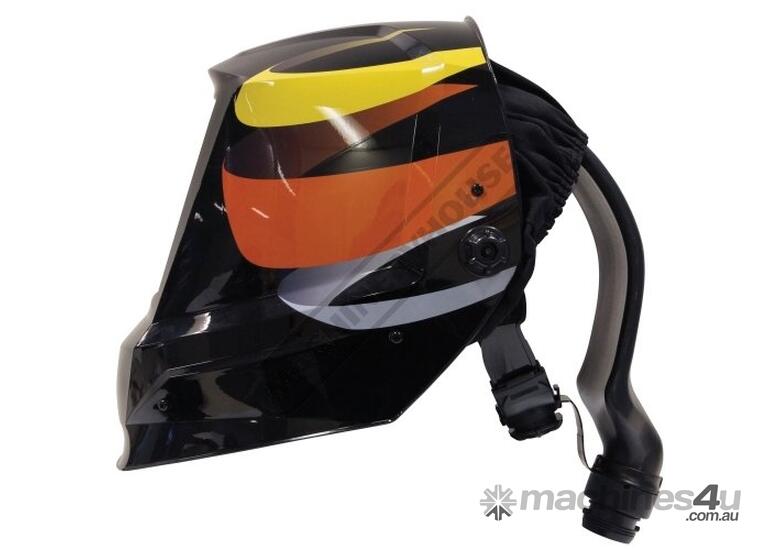

Auto-Darkening Helmet

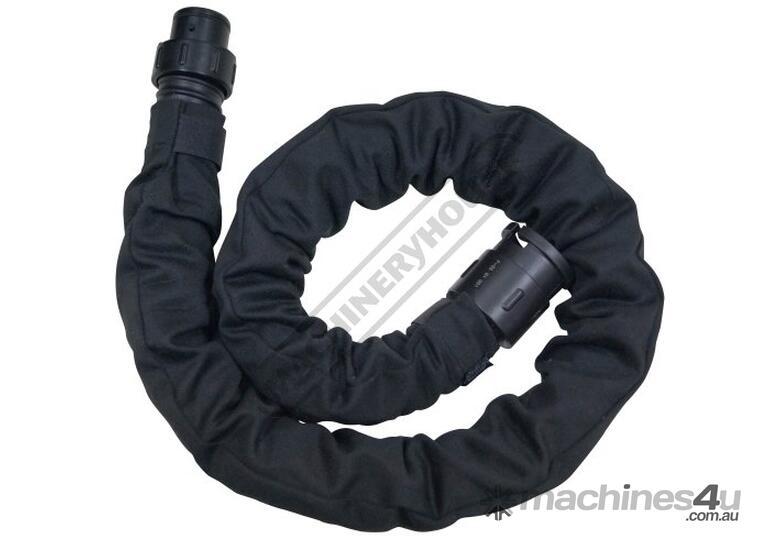

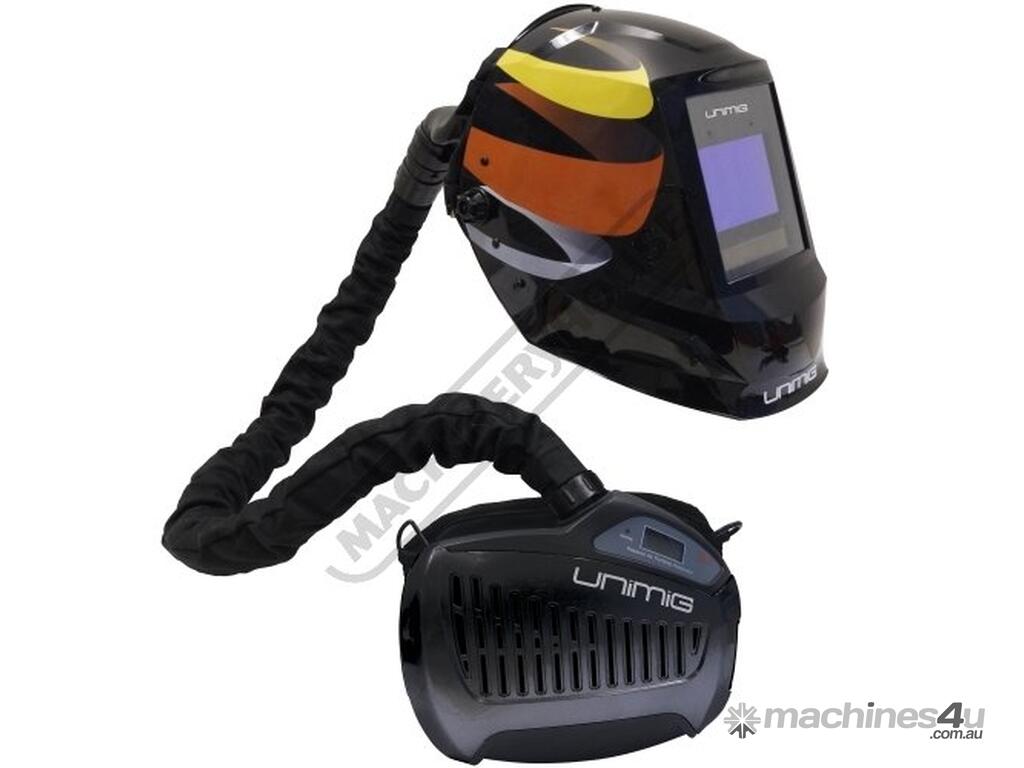

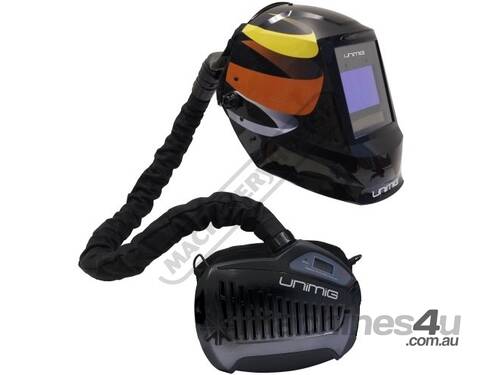

The UNIMIG PAPR system provides industrial level protection for the most extreme welding applications and environments where effective and reliable eye and respiratory protection is an absolute must. This is a Powered Air Purifying Respirator system built with a tough robust exterior yet is comfortable and lightweight. The ergonomic design, lightweight shell, fully adjustable head gear & back harness delivers maximum comfort during long welding periods. The quick-disconnect and swivel breathing tube provides easy adjust-ability to accommodate space restraints.

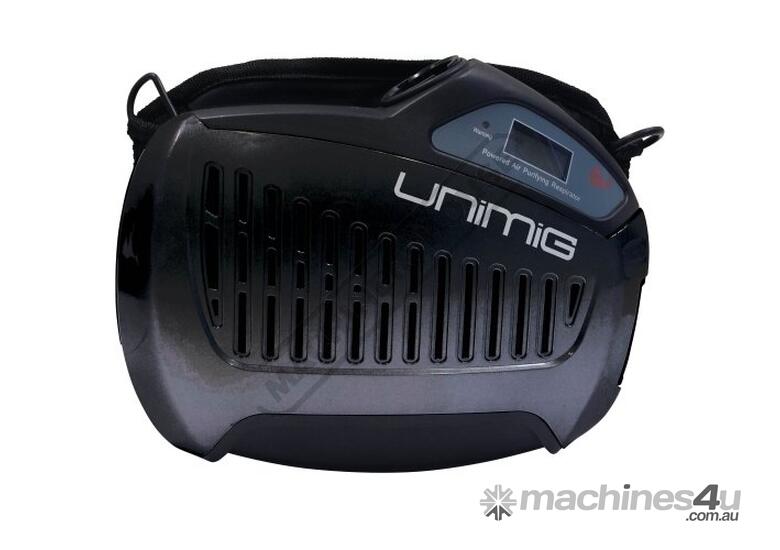

The automatic detecting control system provides constantly stable clean air. The LCD display clearly shows airflow level, battery charge level and filter status. 3 levels of airflow provide increased comfort for varied working conditions and a flashing and audible alarm indicates low battery, low airflow, filter blockage and high battery temperature. The respirator unit is fitted with a spark filter and replaceable pre-filter to protect and extend the life of the main filter. The 12-volt, 4400MAh lithium-ion battery provides for up to 8 hours use on level 1, 6 hours on level 2 and 4 hours on level 3 airflow setting. The battery requires a 3 hour charge at a maximum of 500 charge cycles. A handy, easy to use flow-check meter is provided to ensure the correct airflow is present for maximum protection. Fitted with the advanced UNIMIG XA-5022(D) series helmet featuring the latest digitally-controlled auto darkening filter, adjustable from shade 5-9 and shade 9-13 makes it ideal for MMA, TIG and MIG welding, as well as Plasma Cutting and even grinding applications.

The switching time from light to dark is approximately 0.0001 second. The delay time from dark to light may be adjusted between 0.1 and 0.9 seconds. The UNIMIG XA-5022(D) is a lightweight and comfortable design offering excellent neck coverage and protection. The combination of the UNIMIG PAPR unit and the UNIMIG XA-5022(D) helmet provides you with standards-approved and certified welding protection ensuring the highest levels of welding safety whilst at a highly competitive price.


Features:
Positive pressure system
Designed to work an 8 hour shift
Long lasting reliable P2 filter
Auto shutdown mode
3 airflow levels for varied working conditions
Blocked filter low airflow low battery alarms
Lightweight ergonomic design
Shoulder harness for extended wear
Side or rear mounting of respirator pack
Standards Compliant AS/NZS 1716:2012

Respirator Technical Data
Filter Type P APR-P2
High filter efficiency 99.996%0.3um
Airflow speed 165L/min 200L/min 230L/min
Standards AS/NZS 1716:2012
Battery Type Rechargeable Li-ION 12V 4400mAh
Battery operating time Level 1: >8h
Level 2: >6h
Level 3: >4h
Charge time 3~4h
Recharge quantity >500
Noise Level >500
System Automatic detecting and controlling system provides constantly stable clean air
Controls Airflow 3 levels
On/Off Switch
Automatic shut down after 30mins of no use
LCD display Airflow level data
Battery life
Filter loading status
Warning & self protection Low battery
Flash & Sound Blocked filter - low air flow
High battery temperature
Operating temperature -05°C - 55°C
Operating humidty level


Specifications:
ORDER CODE: W159
MODEL: XA-5022(D)
Viewing Area (mm): 100 x 83.4
Cartridge Size (mm): 114 x 133
Arc Sensors (No.): 4
Light State: DIN 4
Shade: Dual range 5 - 9, 9 - 13
Shade Control: Internal Digital Control
Power On/off: Button On/OFF
Sensitivity Control: Internal Digital Control
Sensitivity Control: ~
UV/IR Protection: ~
Helmet Power Supply: Solar Cell, Battery Chang
Helmet Power Supply: Required (1 x CR2450
Helmet Power Supply: lithium battery)
Respirator Power Supply: Rechargeable Battery
Respirator Power Supply: Li-ION 12V 4400mAh
Switching Time Light To Dark: 0.08ms / 0.00008 seconds
Delay Time Dark To Light (Seconds) (sec): 0.1 ~ 0.9
Delay Time Dark To Light (Seconds) (sec): ~
TIG Rated Minimum (amp): 5
Grinding Function (Yes / No): YES
Inactive Shade (Grind/Off): ~
Operating Temperature: -05°C - 55°C
Storing Temperature: -10°C - 55°C
Helmet Material: ~
Helmet Material: ~
Total Weight: ~
Application Range: Stick, Mig, Tig, Arc Welding
Application Range: & Grinding
Application Range: ~
Standard: AS/NZS 1337.1:2010
Standard: ~
Standard: ~
Standard: ~
Standard: ~
Standard: ~
