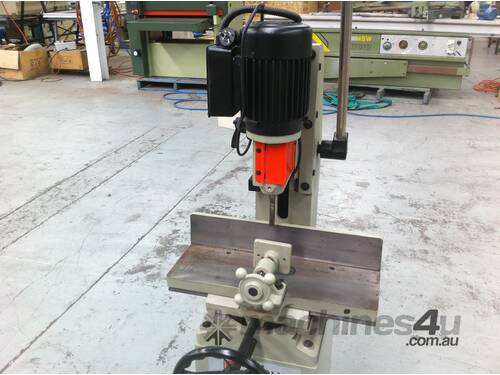

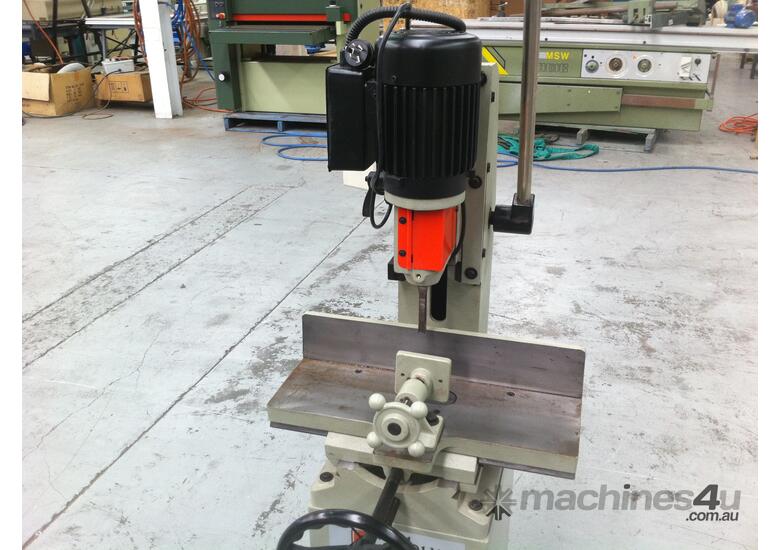

XCALIBUR 2303 SQUARE CHISEL MORTISER

XCALIBUR MODEL CT-2303 SQUARE CHISEL MORTISING MACHINE
Specifications

Cast iron machine on sheet steel cabinet stand.
Drill bit held by 16mm drill chuck on motor shaft.
Square chisel held by clamping bolt in cast iron head.
Complete work head strokes up and down by hand lever with gas strut to assist lifting.

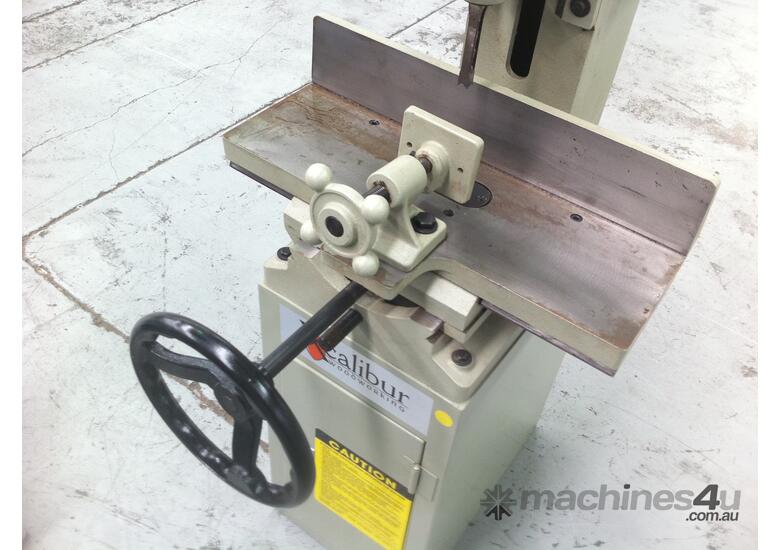

Convenient large handwheel for two operations –
Lateral movement of work table to centre the mortise.
Longitudinal movement of work table when mortising.
Cast iron work clamp locks timber onto work table.
A depth stop can be pre-set to correct mortise depth.
Magnetic switchgear with no-volt release & overload protection.
Technical Data

Capacity of square chisels 6 mm to 25 mm
Maximum stroke of head travel 125 mm
Maximum in & out table adjustment 90 mm
Maximum left to right table stroke 400 mm
Dimensions of cast iron table 513 mm x 167 mm
Single phase electric motor 1.5 hp/240 V
Weight of machine 165 kgs
