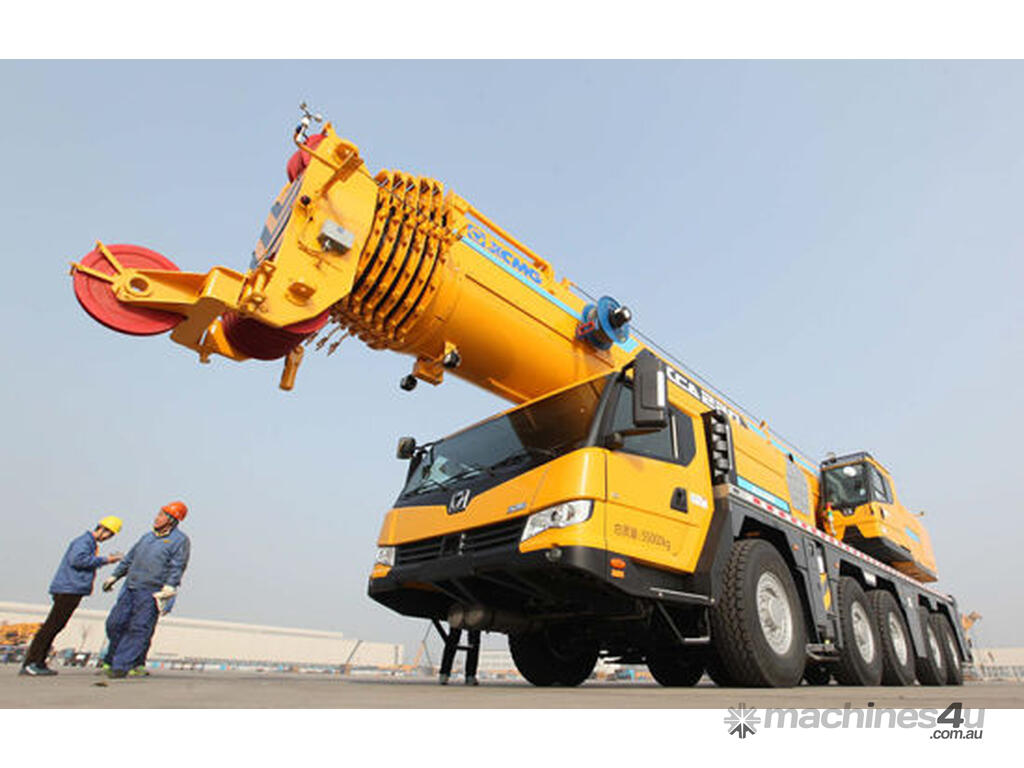

XCMG 220t All Terrain Crane XCA220_AU for sale

- Product Description:

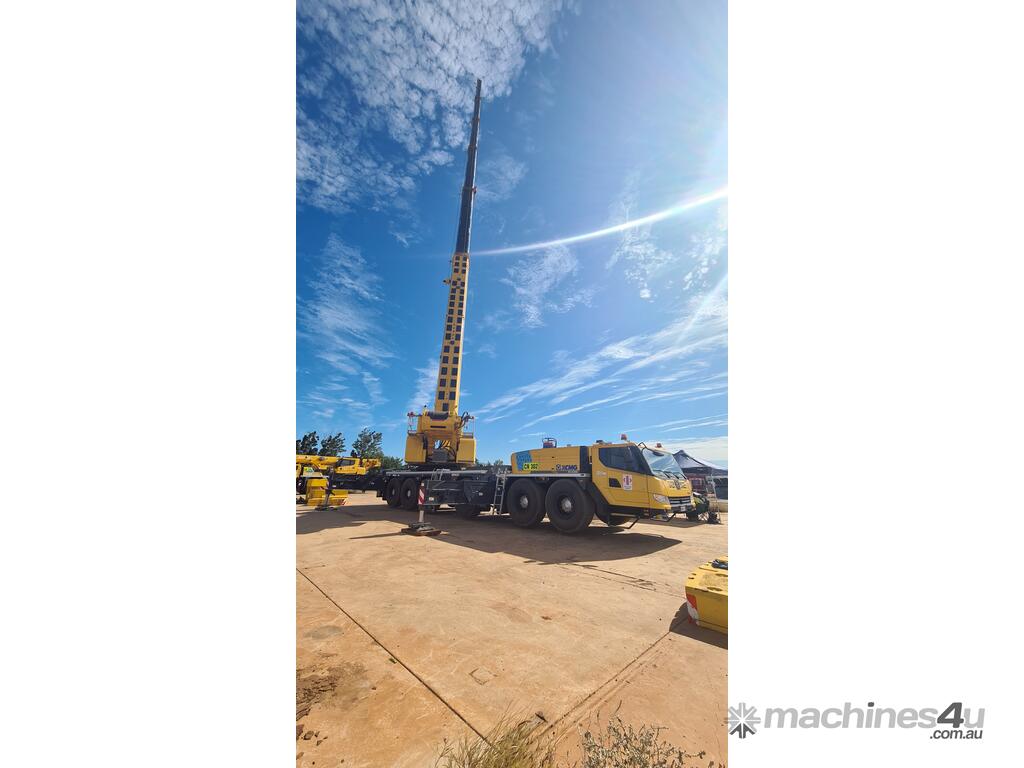

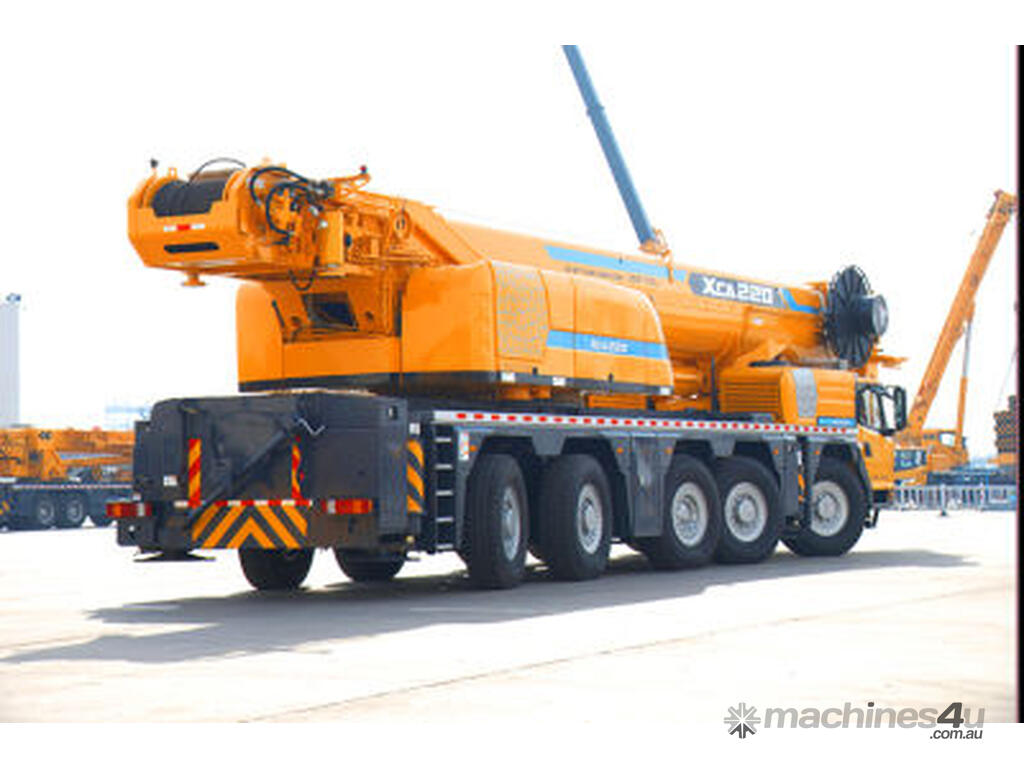

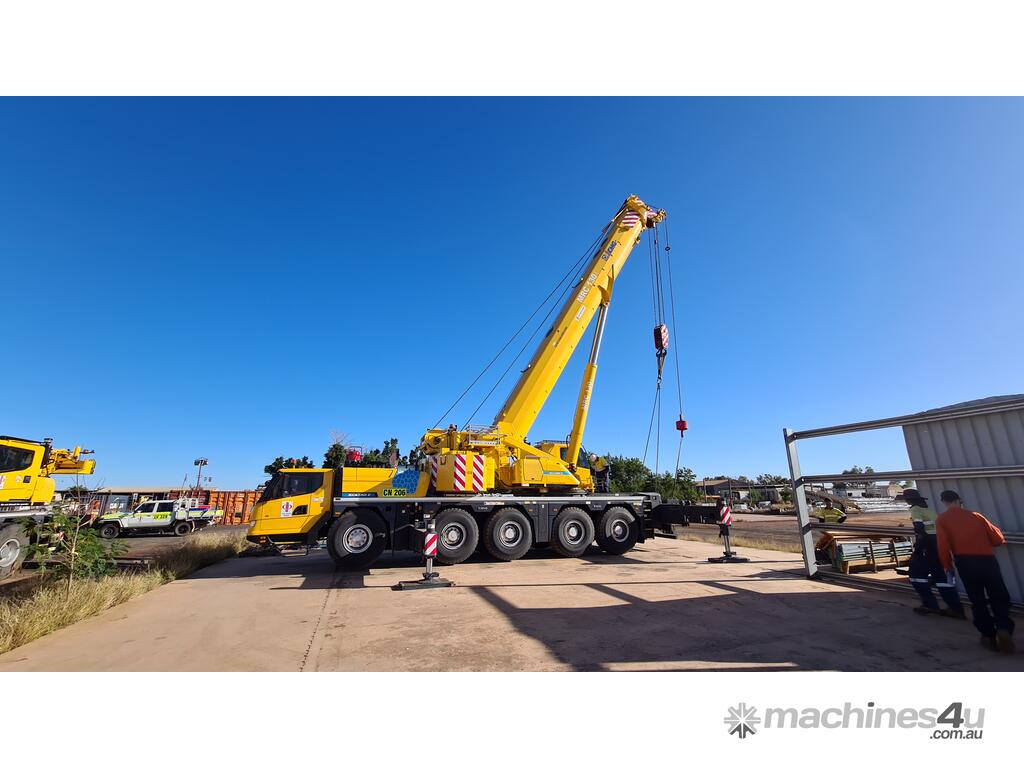

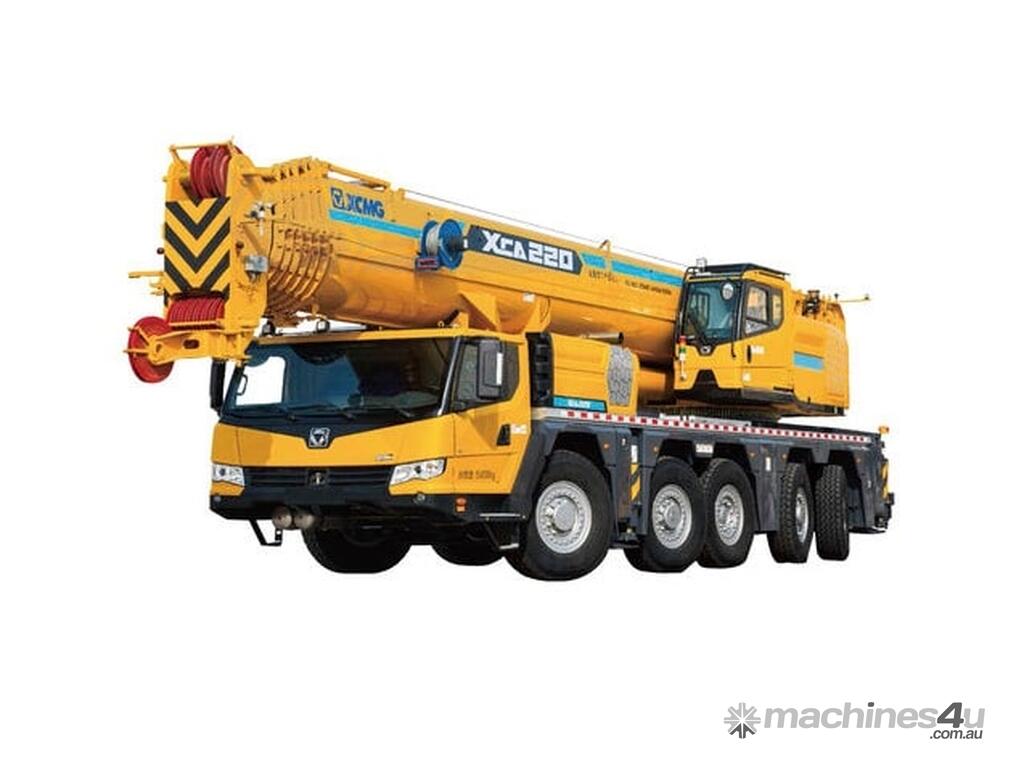

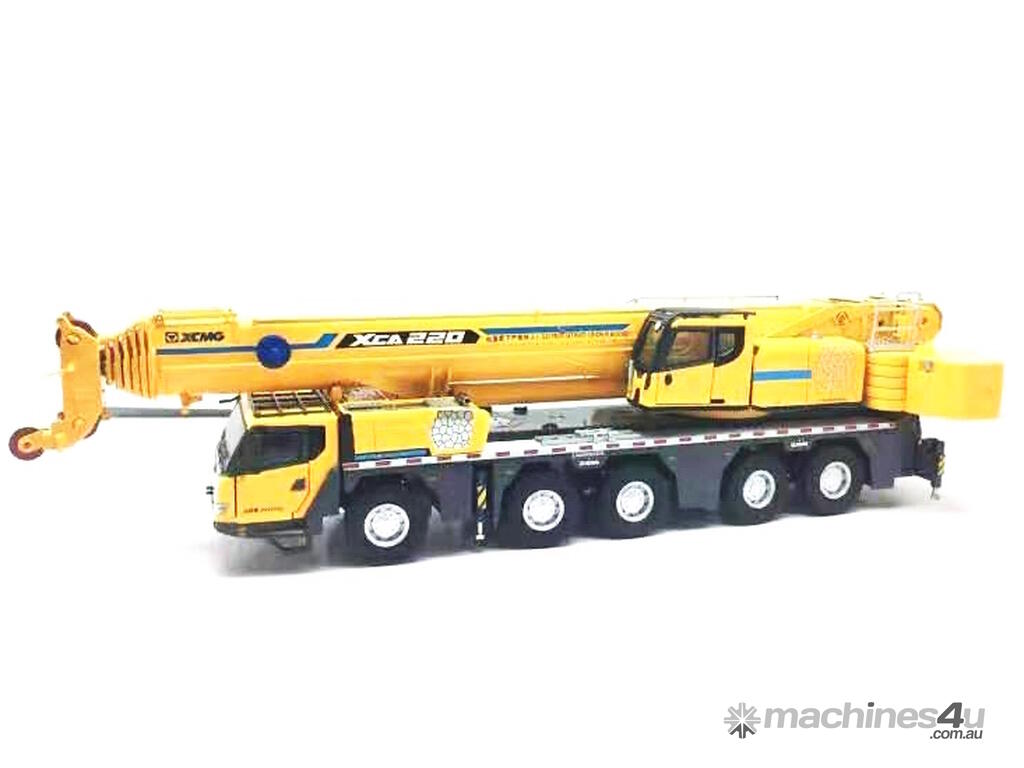

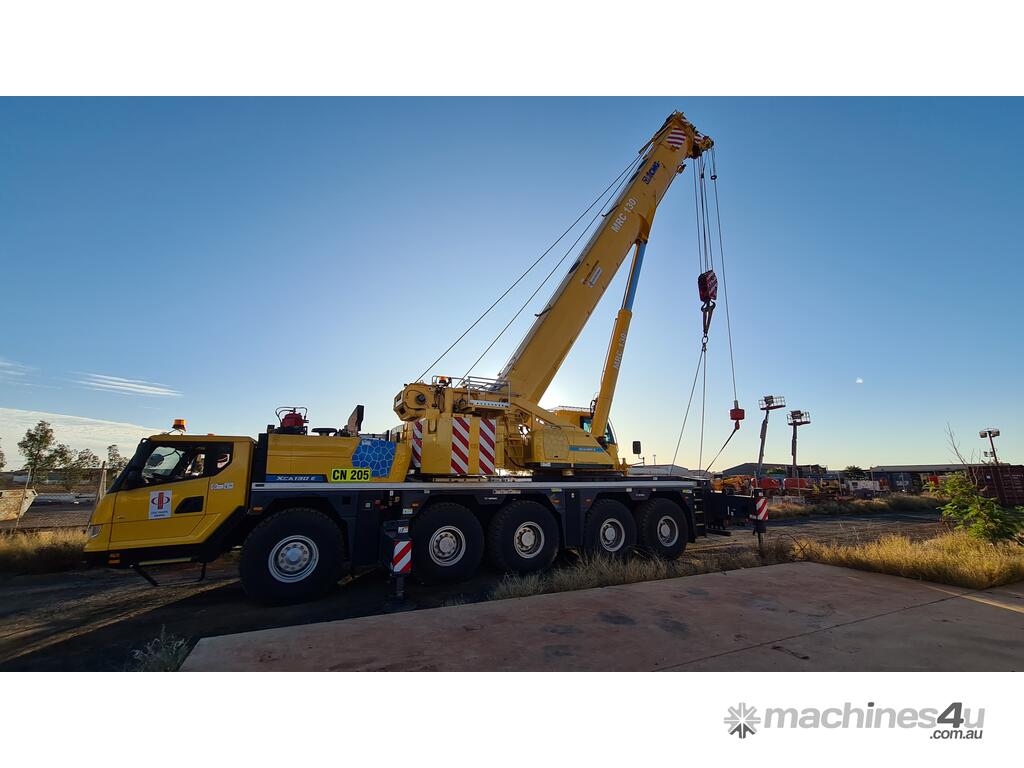

The crane is a five-axle 220 t All Terrain Crane with leading lifting performance.

- Advantages and Highlights:

1. Power and traveling performance
* Rated power 360kw, max. torque 1800N.m.
* Max. travel speed 80Km/h, Max. grade ability 60%.

2. Large tonnage crane's mono-engine system
* The whole vehicle shares the chassis engine. The power is transferred via the mechanic transmission to the upper body and supplies it with the power.
* Maintenance is to be carried out only on the mono-engine chassis system thus reducing the workload of maintenance. The annual maintenance cost of dynamic system is saved for more than 40%.

3. New highly efficient energy-saving hydraulic system
* Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly.
* Min. stable lifting speed (at drum) 2.5m/min, and min. stable slewing speed 0.1°/s.

4. Manoeuvrable All-axle steering, small turning radius and free changeover of 6WD/8WD are available. 6WD is used to drive on roads, which is economic. 8WD is suitable for off-road travel and jobsite transfer. Max. grade ability is 60%, taking the lead in the industry.

- Product Specifications:

Model Number: XCA220_AU
Brand Name: XCMG

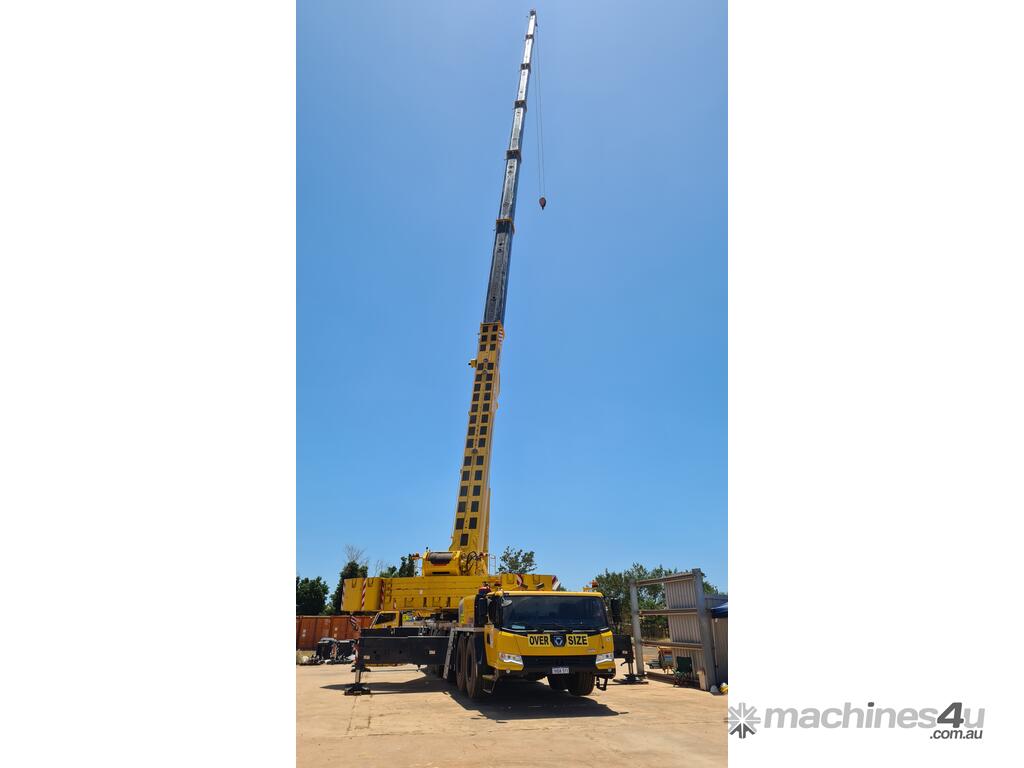

Max. Lifting Height: 102m
Max. total rated lifting capacity: 220t


Max. load moment:
a. Base boom: 6791 kN.m
b. Fully-extended boom: 3469 kN.m

Boom length:
a. Base boom: 13m
b. Fully-extended boom: 62.1m
c. Fully-extended boom + Jib: 102.2m

Engine rated power/rpm: 360/1800 kW/(r/min)
Max. output torque/rpm: 2200/1300 N.m/(r/min)
Max. travel speed: 80km/h
