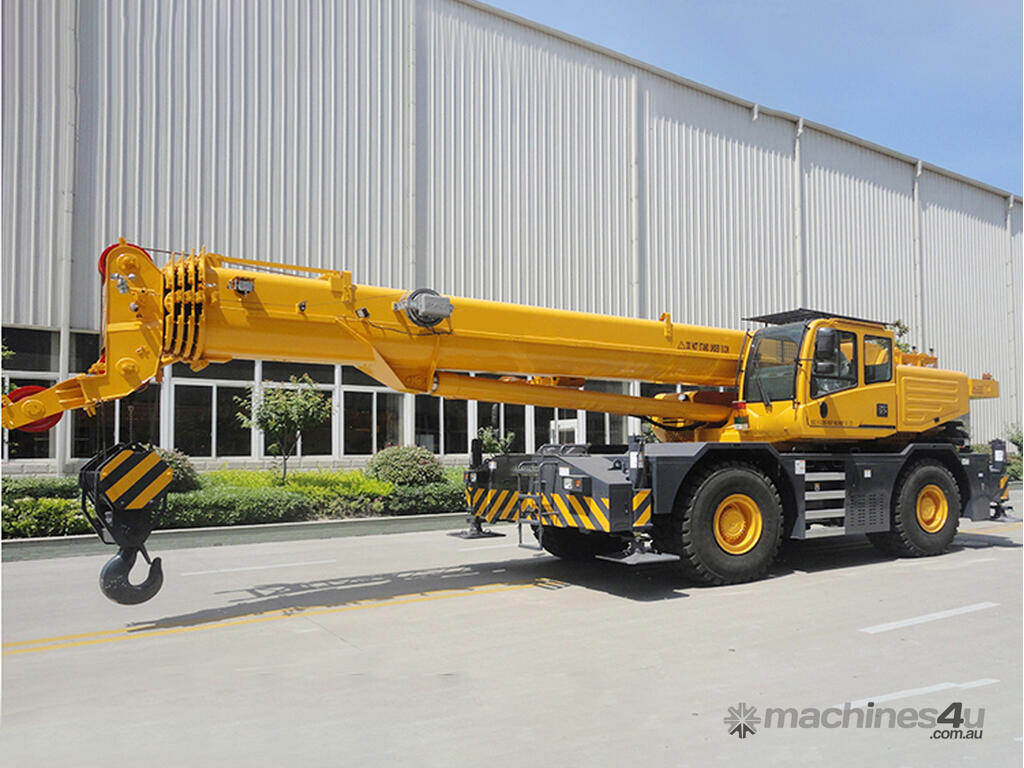

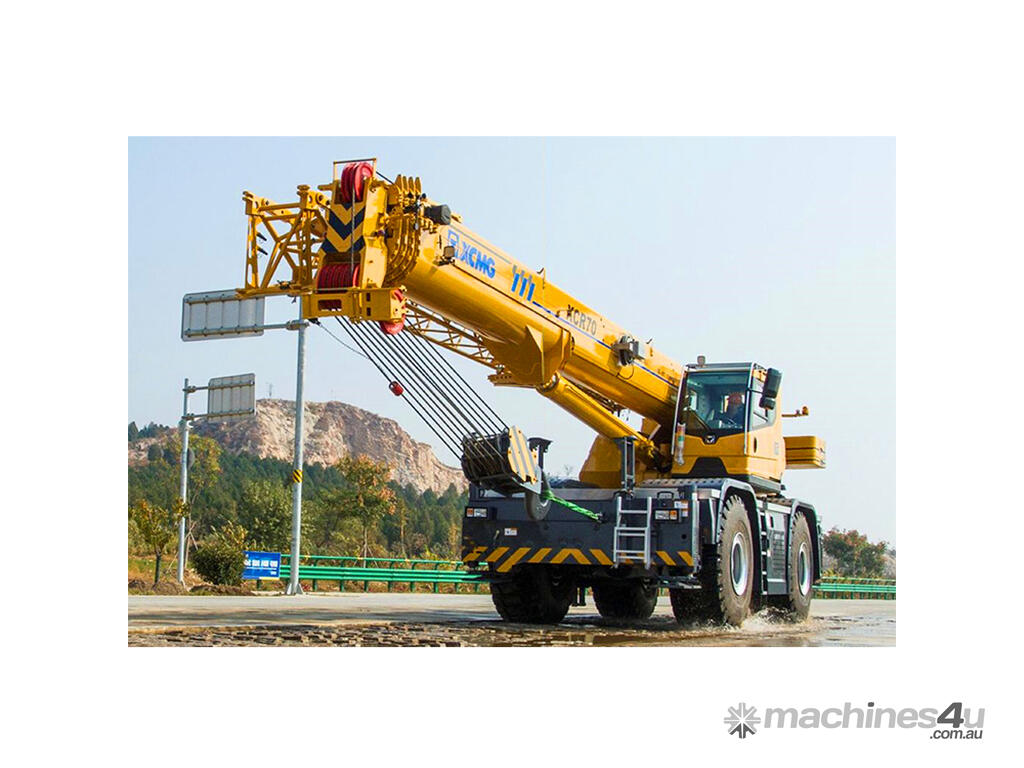

XCMG 70t Rough Terrain Crane XCR70 for sale

- Product Description:

70 ton rough terrain crane with best lifting capacity in its class. Five-section boom of 45 m, best-in-class working range; min. turning radius of 6.5 m, smallest in its class, better site adaptability; innovative self adjustment of turning angle, multi-mode steering technology, more precise control and more comfortable manipulation; integrated new energy-saving hydraulic system and ECO energy-saving control technology, lower energy consumption and more economical operation cost.

(1)Excellent lifting capacity, wide operating range

The 45 m boom is 2~3 m longer than the competitive products, and lifting performance leads by 5% ~ 20%; three telescoping modes contribute to wider operating range and stronger adaptability.

(2)Energy-saving, economical and efficient

Integrated three energy-saving measures such as new energy-saving hydraulic system, efficient power transmission system and engine ECO mode control, contribute to 15~24% reduction in fuel consumption during operations and 20% while driving at high speeds;

Large displacement dual-variable plunger pump with confluent main valve adopting XCMG patented technology integrated, leads to improvement by 13% in operation efficiency and 20% in fine-control and operation smoothness.

Low speed large torque optimal transmission chain, high power performance, max. travel speed of 40 km/h and max. grade ability of 70% contribute to manoeuver ability and quick job site transfer.

(3)People first, smart and convenient

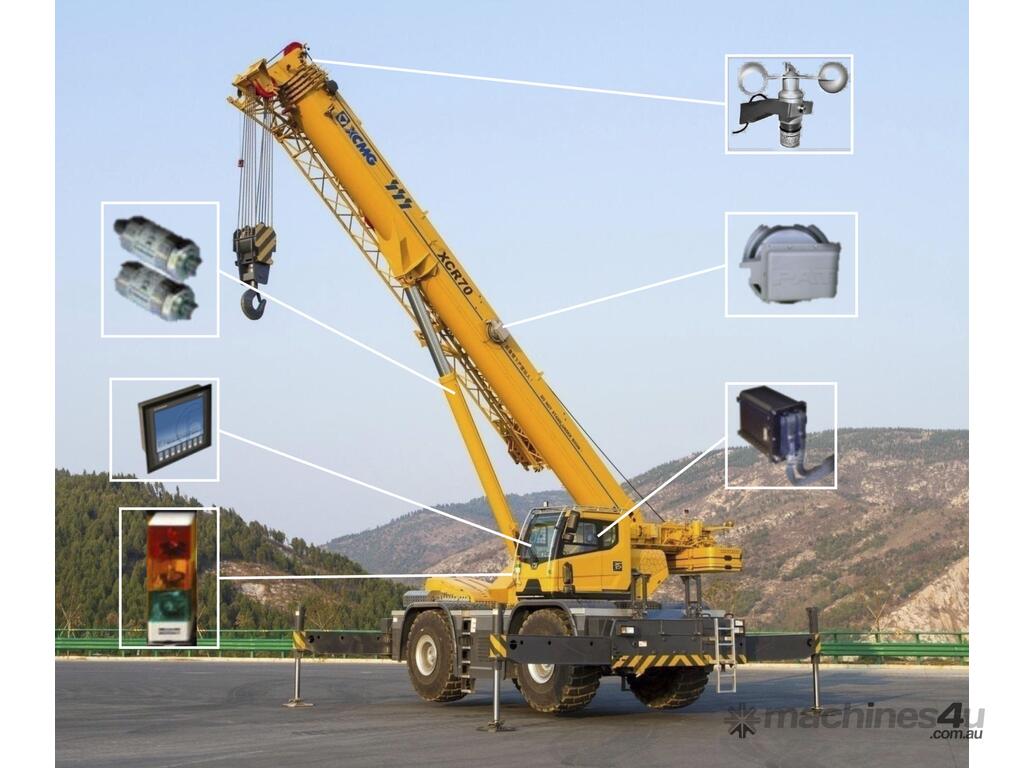

XCMG man-machine interactive system with functions such as automatic planning of working conditions,fault self-diagnosis, and so on integrated, provides abundant information, user-friendly interface and reasonable layout of function keys, as well as comfortable, intelligent and safe operating experience.

Unique self adjustment of turning angle, multi-mode steering technology, steering wheel-controlled wheels under all steering modes, easy to operate and more precise control; the turning angle of rear wheels may self-adjust while switching steering mode, leading to reduced manipulation difficulty.

- Product Specifications:

Model Number: XCR70
Brand Name: XCMG
Max. Lifting Height: 45m
Max. total rated lifting capacity: 70t


Max. load moment:
a. Base boom: 2028.6 kN.m
b. Fully-extended boom: 1223 kN.m

Boom length:
a. Base boom: 11.8m
b. Fully-extended boom: 45m
c. Fully-extended boom + Jib: 61m

Engine rated power/rpm: 192/2000 kW/(r/min) ; 194/2200kW/(r/min)
Max. output torque/rpm: 1110/(1200~1600) N.m/(r/min) ; 900/1500 N.m/ (r/min)
Max. travel speed: 40km/h
