2 TON OPERATING WEIGHT

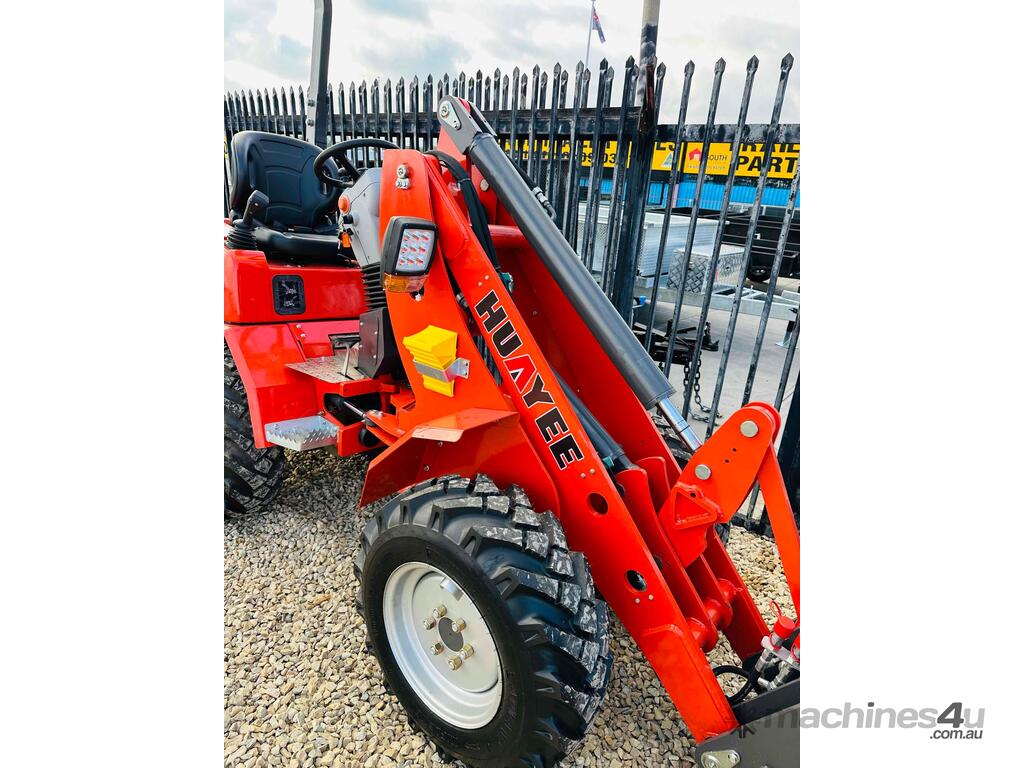

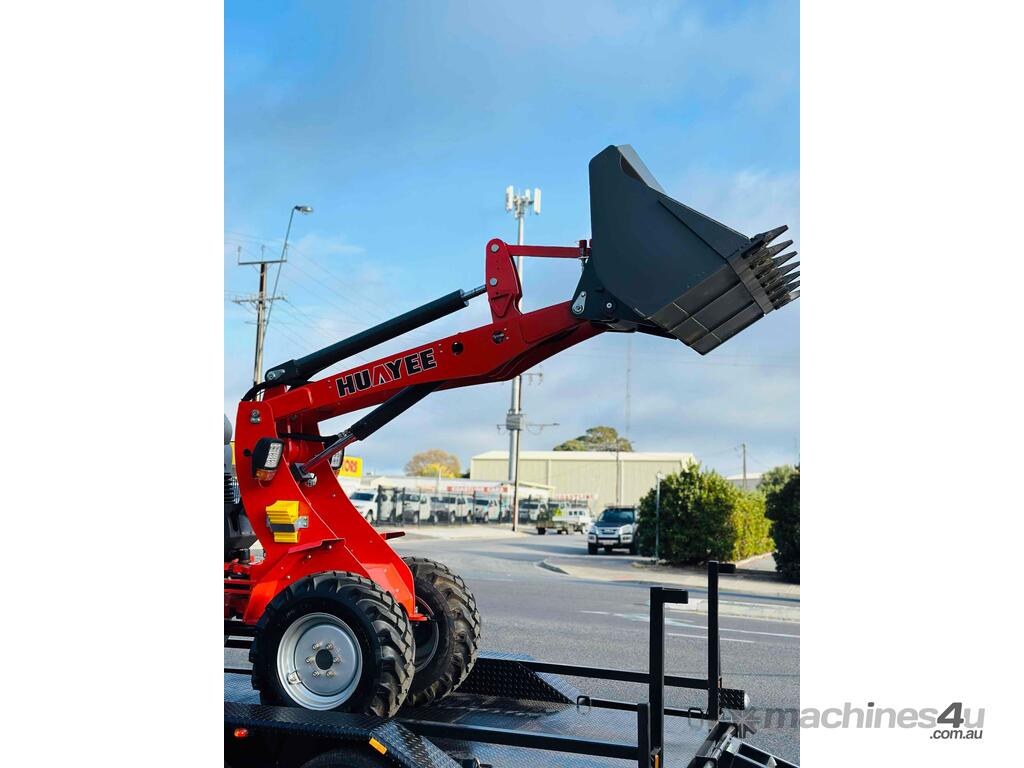

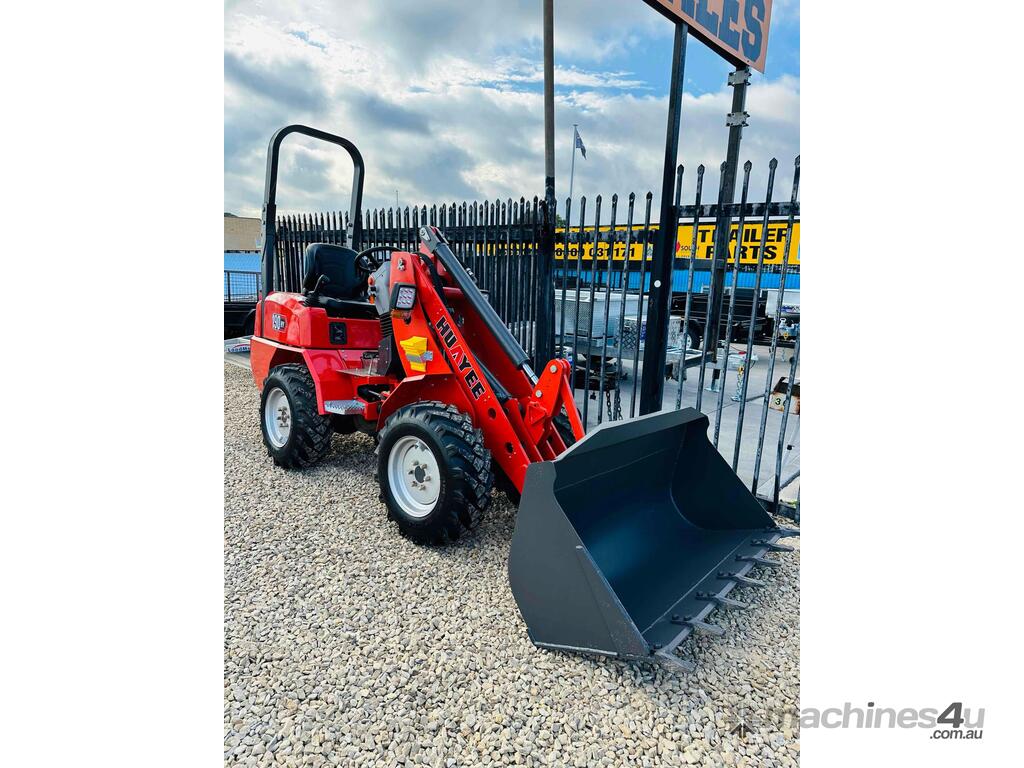

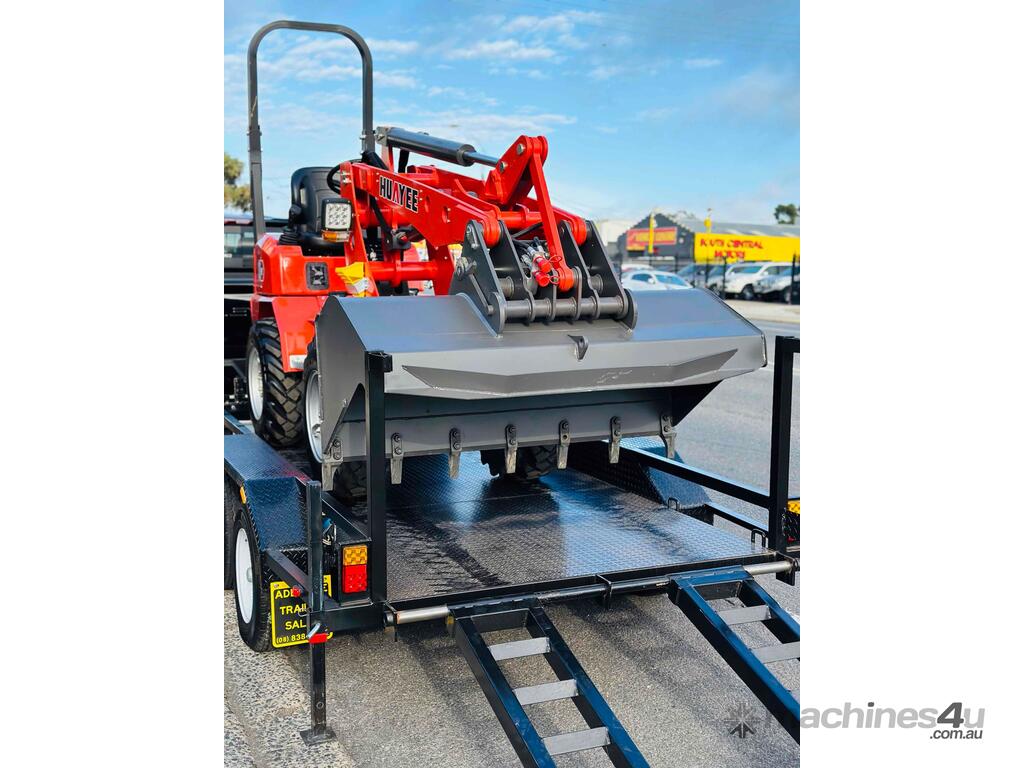

ARTICULATED
ENGINE MODEL. YANMAR 3TNV88
FUEL TYPE. DIESEL
CYLINDERS. 3
DISPLACEMENT CC. 1642
Max engine output kW 18.42000rpm
Max engine torque Nm. 107.11200rpm
Cooling system Water
Operating voltage V 12
Battery Ah 70
Operating weight kg 2000
Tipping load ,max kg 1300
Lifting capacity,max kg 1000
Operator's cab Canopy
Travel speed km/h 0~20
Steering angle ° 45
Turn radius inside/outside mm 1282/2790

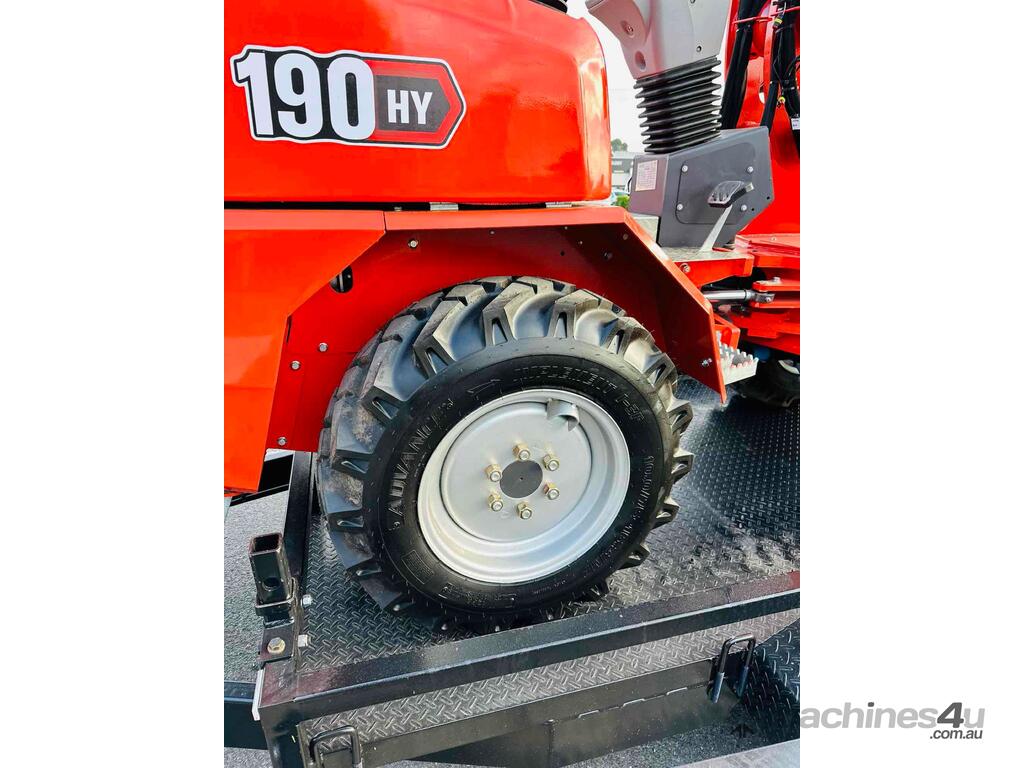

Standard tires 10.0/75-15.3
Fuel tank capacity l 30
Hydraulic oil tank capacity l 30
Working hydraulic flow l/min 60
Working hydraulic pressure bar 200
Transmission type.
