YLM – Articulated Robot – 160kg Robotic Palletizer

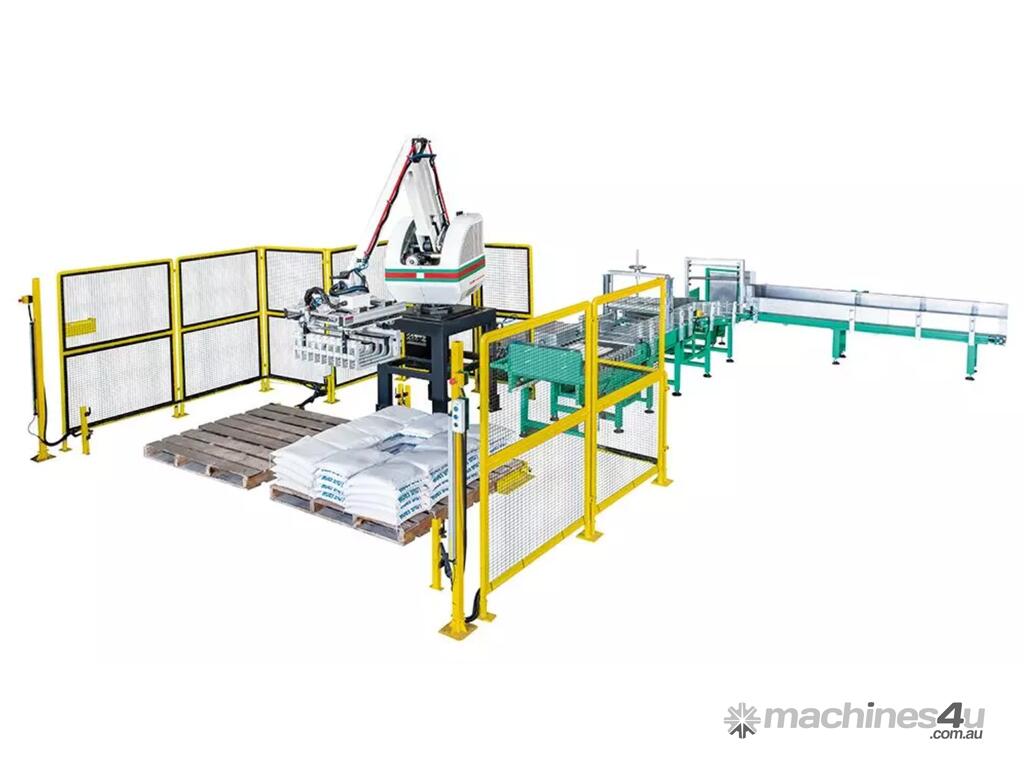

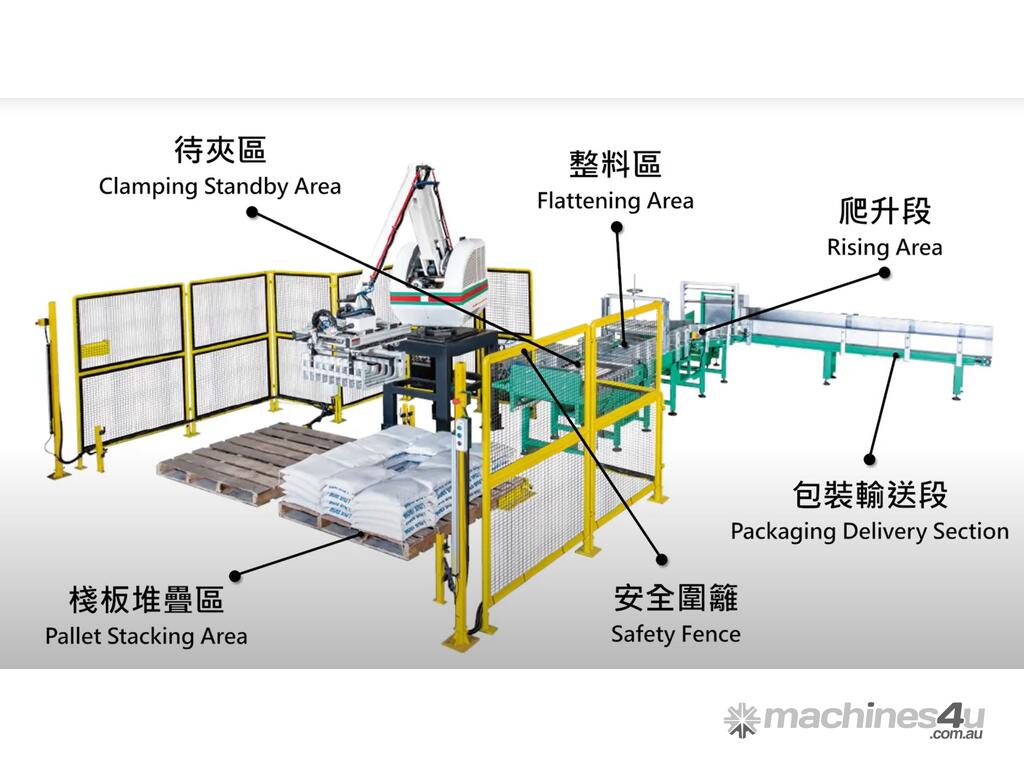

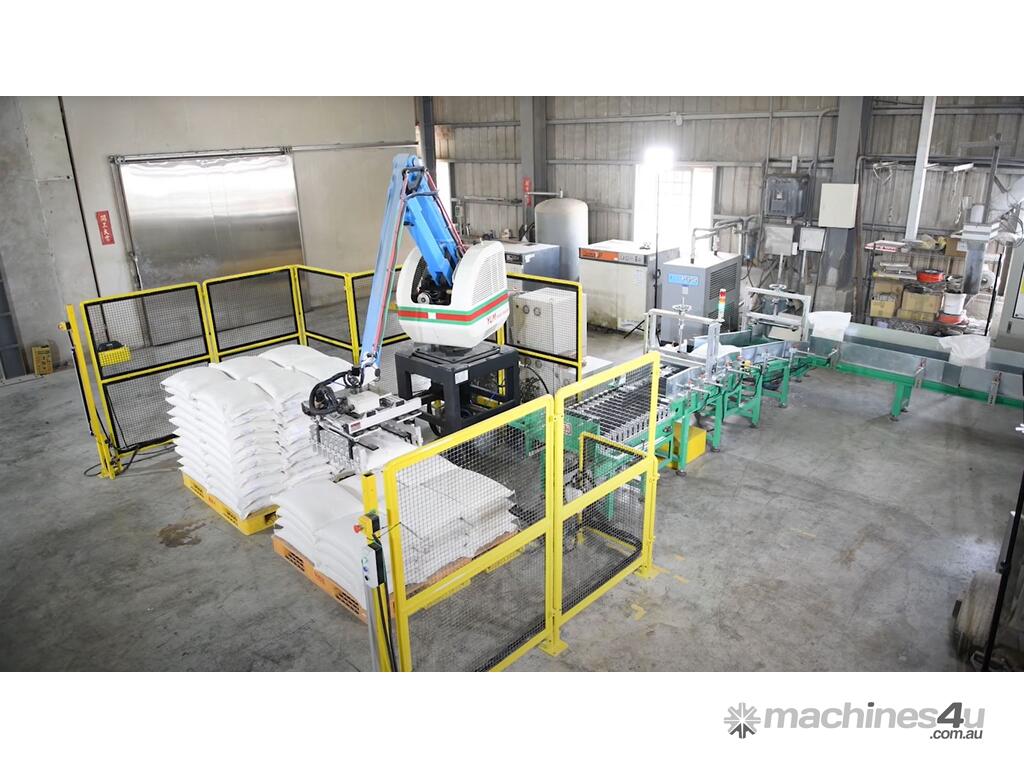

Articulated Robot, Robotic Palletizer, Bag stacking line

Stacking types and layers can be set as drsired.
Maximum weight of clamping : 9-50 kgs
Designed for automatic stacking operations for various bagged products.
Stable clamping motion, smooth and fast stacking, reducing manpower requirements.

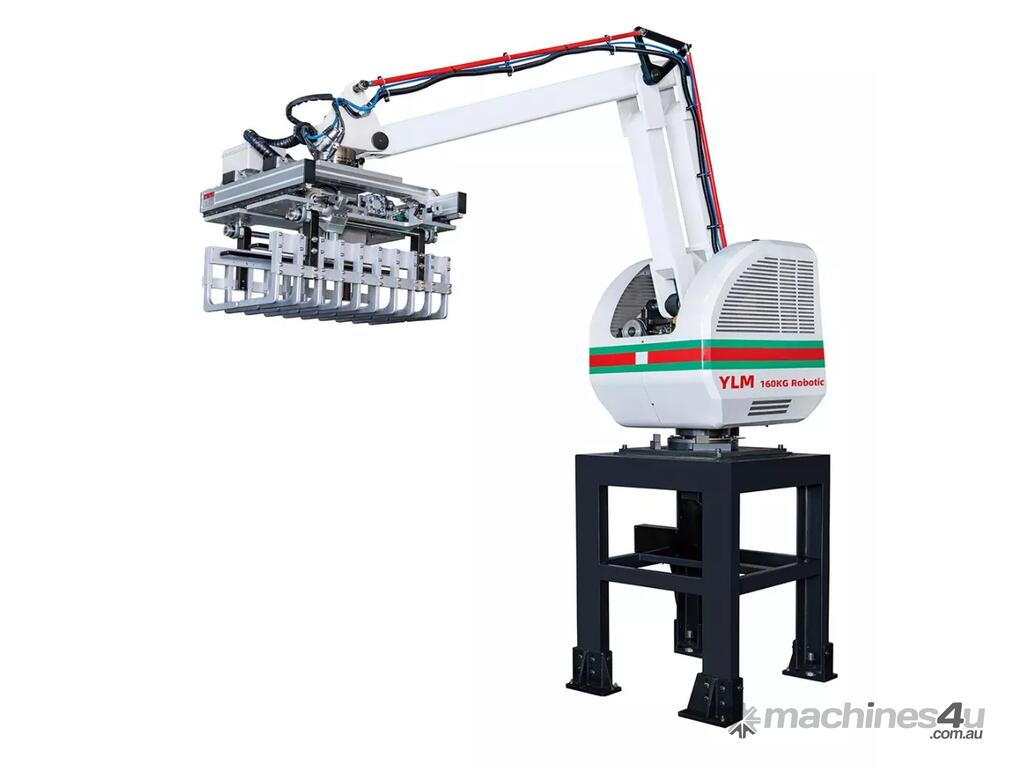

A robotic palletizer with 4-axis control
Robot arm rotating angle : 330 (°)
Equipped with automatic flattening device to ensure the stability of product stacking.

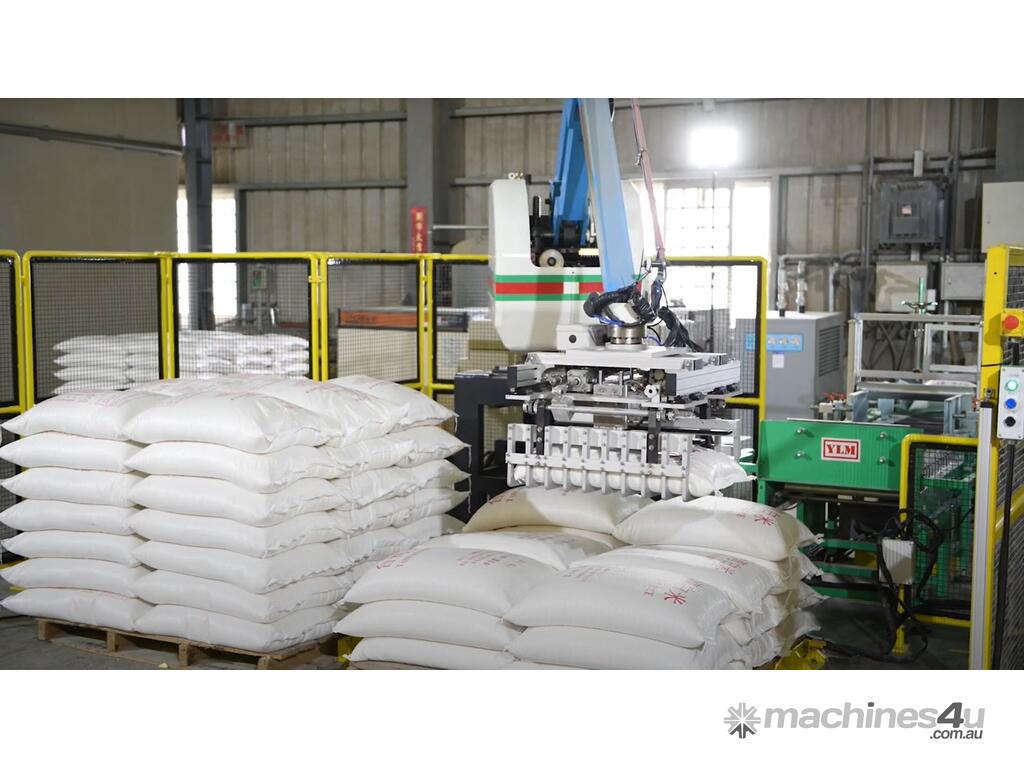

Designed for automatic handling ad stacking for various bagged products, such as rice, flour, cement, feed, fertilizer, and plastic pellets.


SPECIFICATION
Model RP-160
Loading capacity 160kg (350lbs)
Degree of freedom 4 axes
Motion range Z-axis (vertical) 2,400 mm (96”)
R-axis (longitudinal) 1,500 mm (59.00”)
?-axis (rotation) 330 (°)
?-axis (robot arm rotation) 330 (°)
Memory Programmable positions 120~400 MB
Power (without additional load from peripheral equipment) 3.5KVA
Weight of robot (clamping jaw not included) 700kg (1,544lbs)
