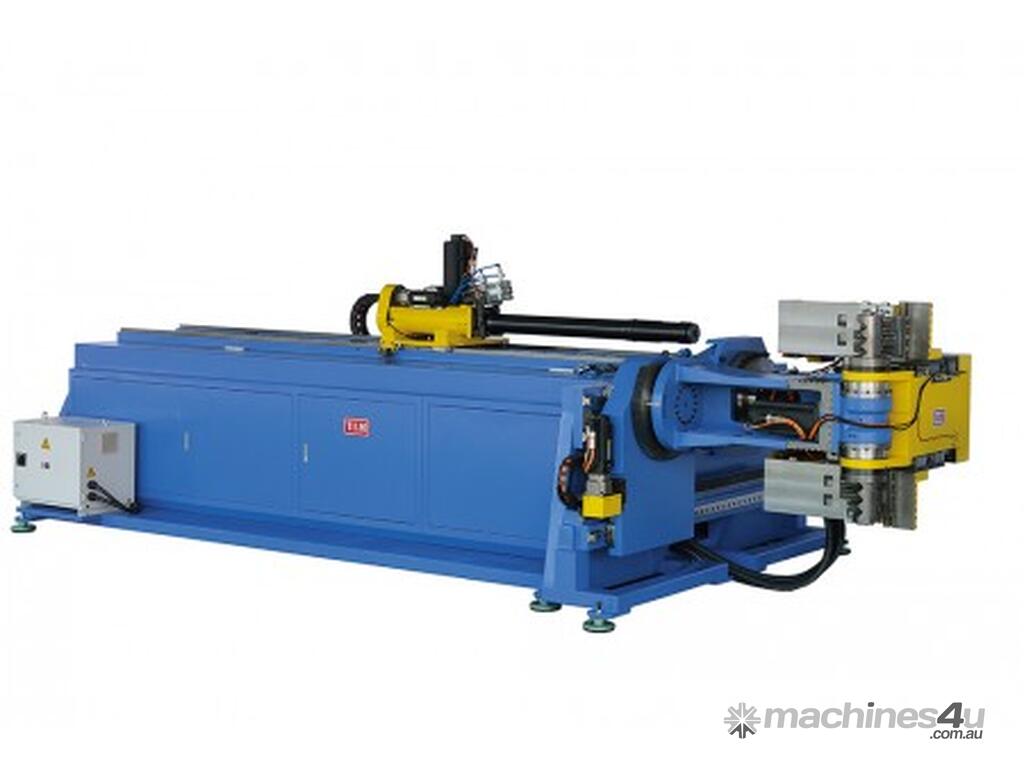

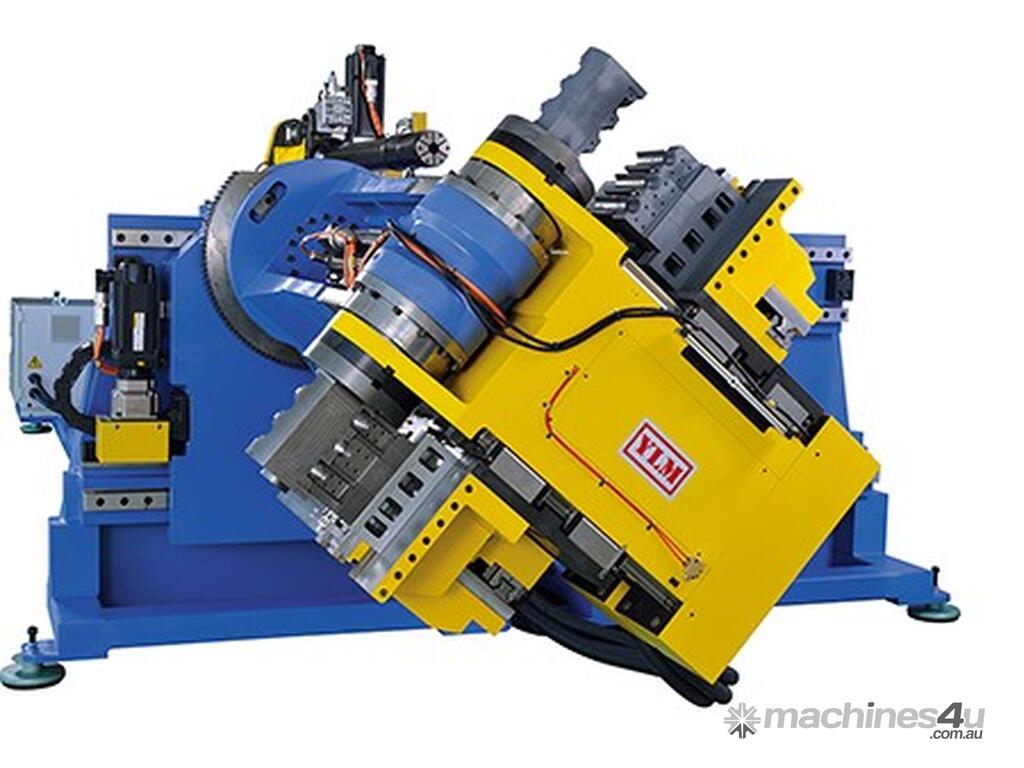

YLM - CNC Right & Left Tube Bender CNC-80MS-RLAE [made in Taiwan]

Fully electric CNC L&R tube bender is in both left-hand & right-hand bending function. A very practical model to meet various bending demands, suitable for symmetrical tube such as furniture production, hydraulic-oil tubing lines, and HVAC tubing & fluid system of automobiles.

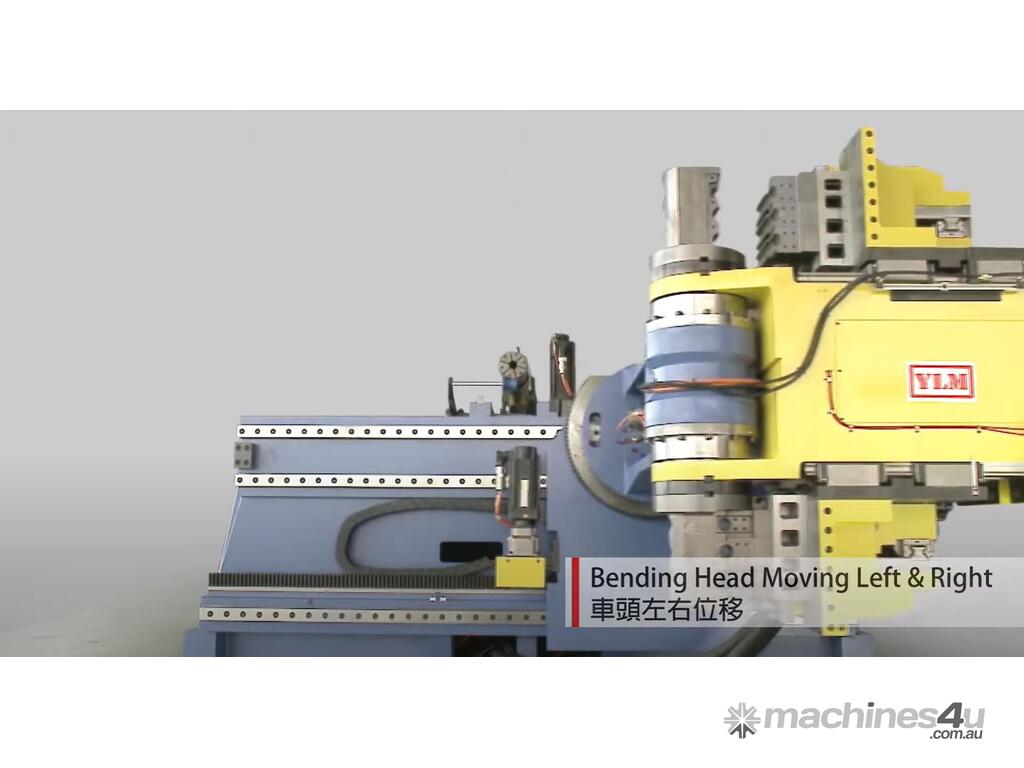

Fully electric CNC L&R tube bender is in both left-hand & right-hand bending function.

A very practical model to meet various bending demands, suitable for symmetrical tube such as furniture production, hydraulic-oil tubing lines, and HVAC tubing & fluid system of automobiles.

All electric L&R smart turn tube bender, Right and Left Fully Electric CNC Tube Bender, Fully Electric CNC pipe Bender rotative head

SPECIFICATION
Model CNC80-RLRAE
Max. Tube O.D. Bending Capacity (mm) 80
Max. Tube Wall Thickness (mm) 3
CLR 200
Bending Radius Difference (mm) S1-S2-S3 90
Max. Bending Angle (°) 190
Mandrel Working Distance (mm) 2500
Processing Speed Max. Tube Feeding Speed (mm/sec) 1142
Tube Rotation Speed (°/sec) 321
Max. Tube Bending Speed (°/sec) 105
Repeatability Tube Feeding Precision (mm) ± 0.1
Tube Rotation Precision (°) ± 0.1
Tube Bending Precision (°) ± 0.1
Overall Weight (kg) 14150
Operating Height (mm) 1164
Machine Length (mm) 6384
Machine Width (mm) 2266
Machine Height (mm) 1877
