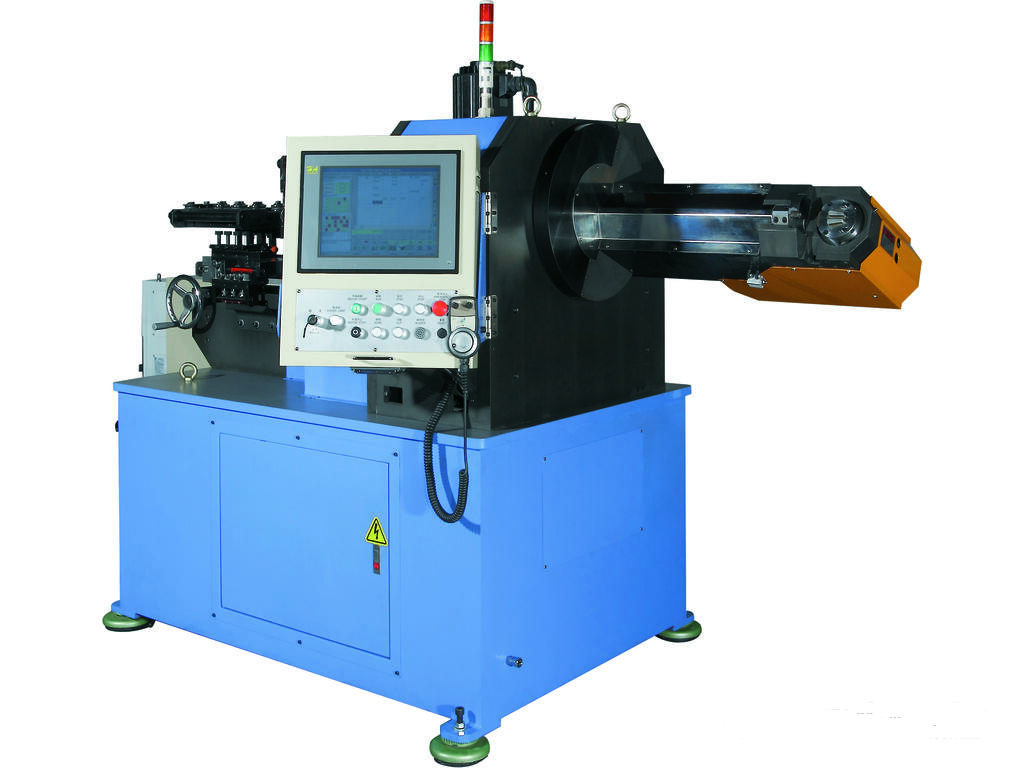

YLM - CNC Wire Bender

We offer a full range of YLM CNC wire bending machines that feature

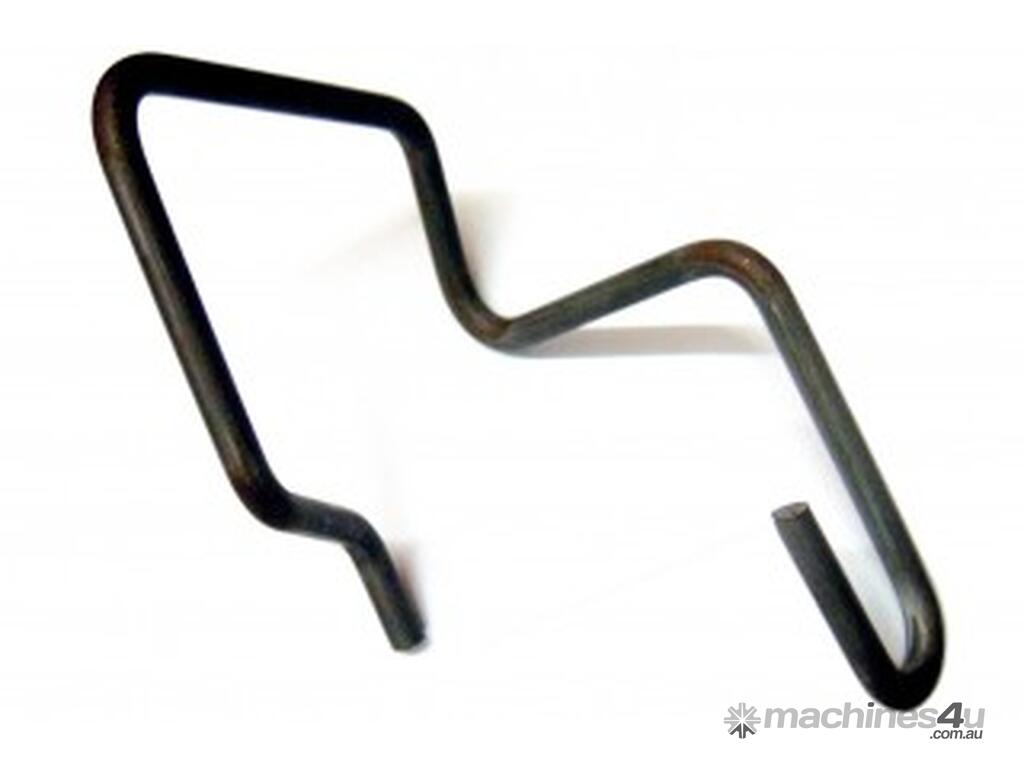

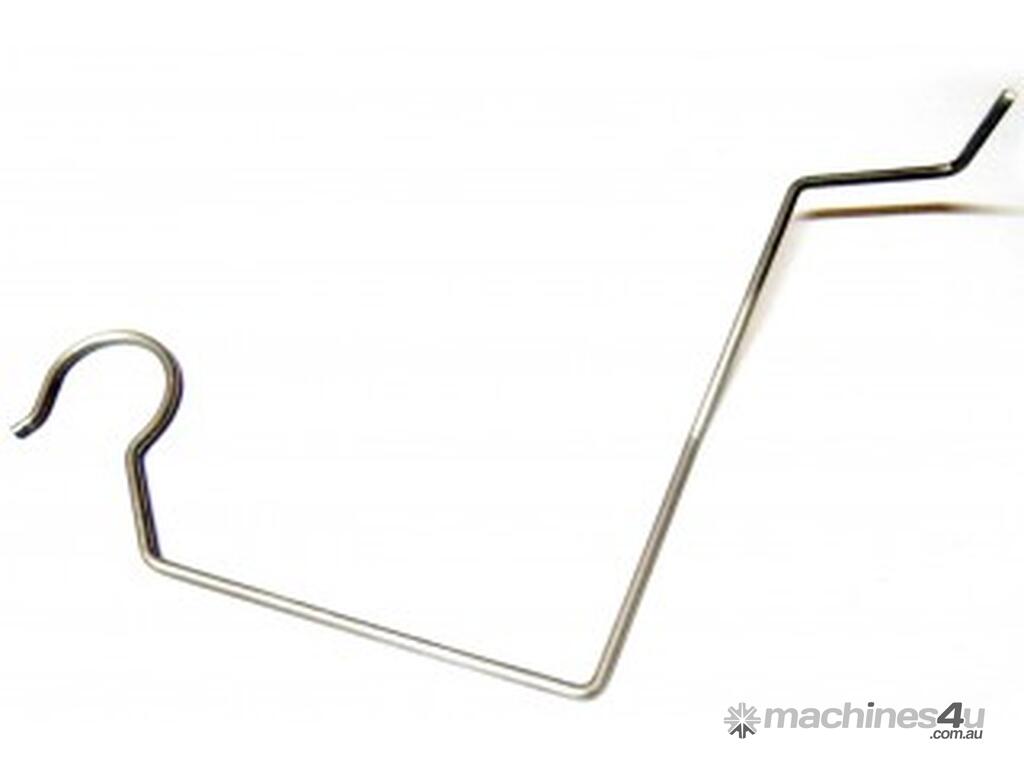

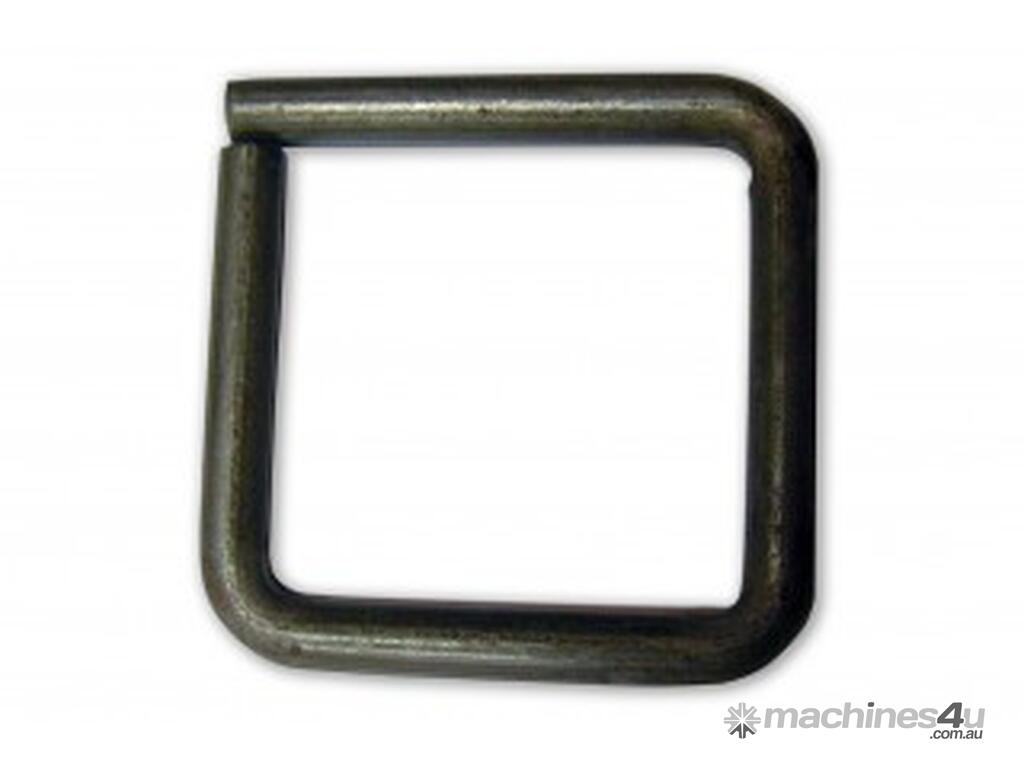

3D form bending
Electro servo motor control
Variable radius bending
Models up to 13mm wire diameter
Off-coil straightening, bending and cutting
Windows based touch screen control
Software designed by YLM specifically for 3D wire bending

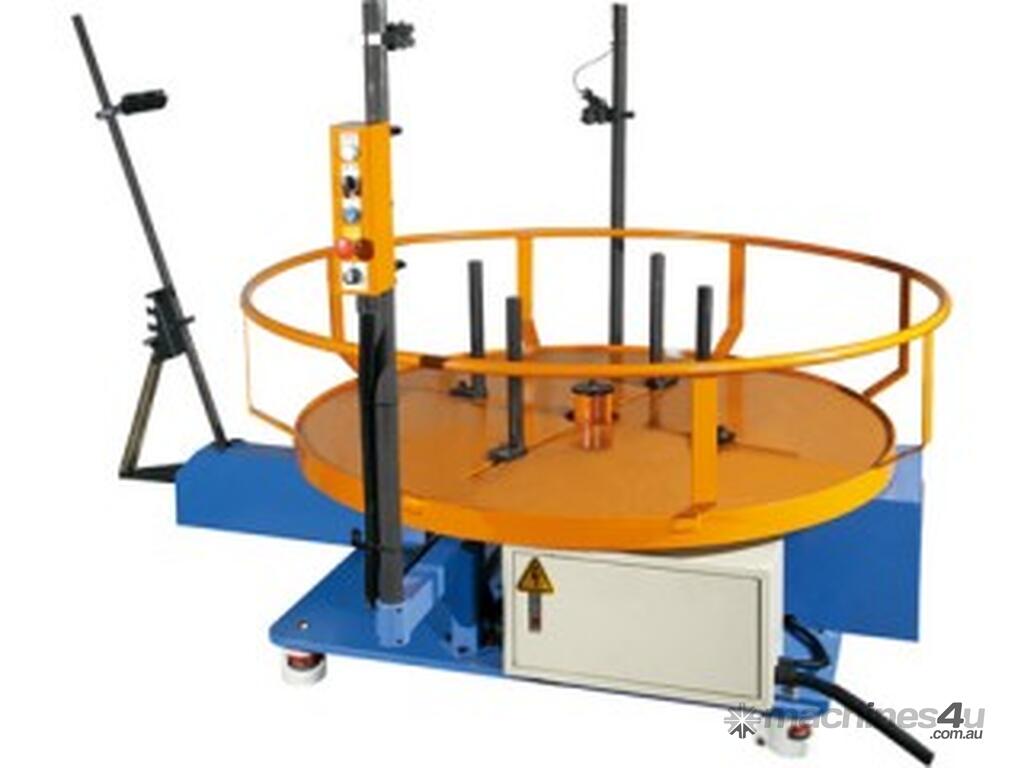

Automatic load / off load systems
Off-coil tube versions available
Cell and robot integration
Wire bender, CNC wire bending machine

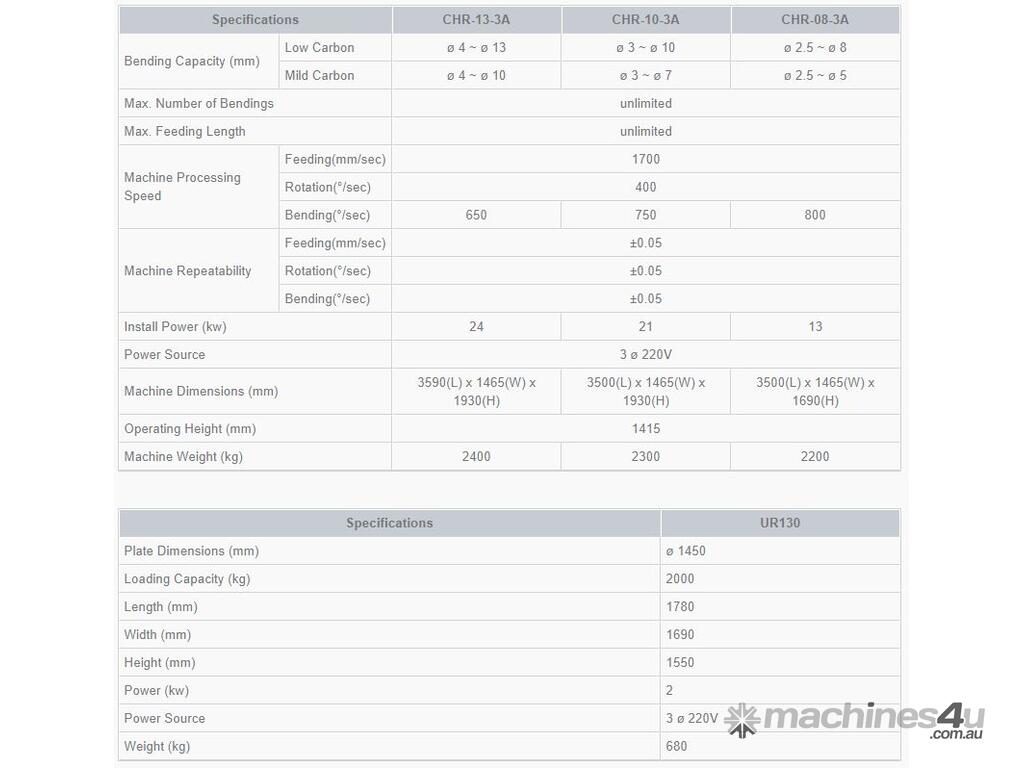

Specifications CHR-13-3A
Bending Capacity (mm)
Low Carbon ø 4 ~ ø 13
Mild Carbon ø 4 ~ ø 10

Max. Number of Bendings =unlimited
Max. Feeding Length =unlimited

Machine Processing Speed
Feeding(mm/sec) 1700
Rotation(°/sec) 400
Bending(°/sec) 650

Machine Repeatability
Feeding(mm/sec) ±0.05
Rotation(°/sec) ±0.05
Bending(°/sec) ±0.05

Install Power (kw) 24
Power Source 3 ø 220V
Machine Dimensions (mm) 3590(L) x 1465(W) x 1930(H)

Operating Height (mm) 1415
Machine Weight (kg) 2400
