The machine is equipped with a powerful functioning CNC controller. The controller employs a windows operation system in combination with the use of Ying Han self-developed CNC control software. Outstanding features include easy generation of bending parameters, 3D workpiece simulation function and single step operational simulation function, etc. These provide users with safe, easy and humanized control features.

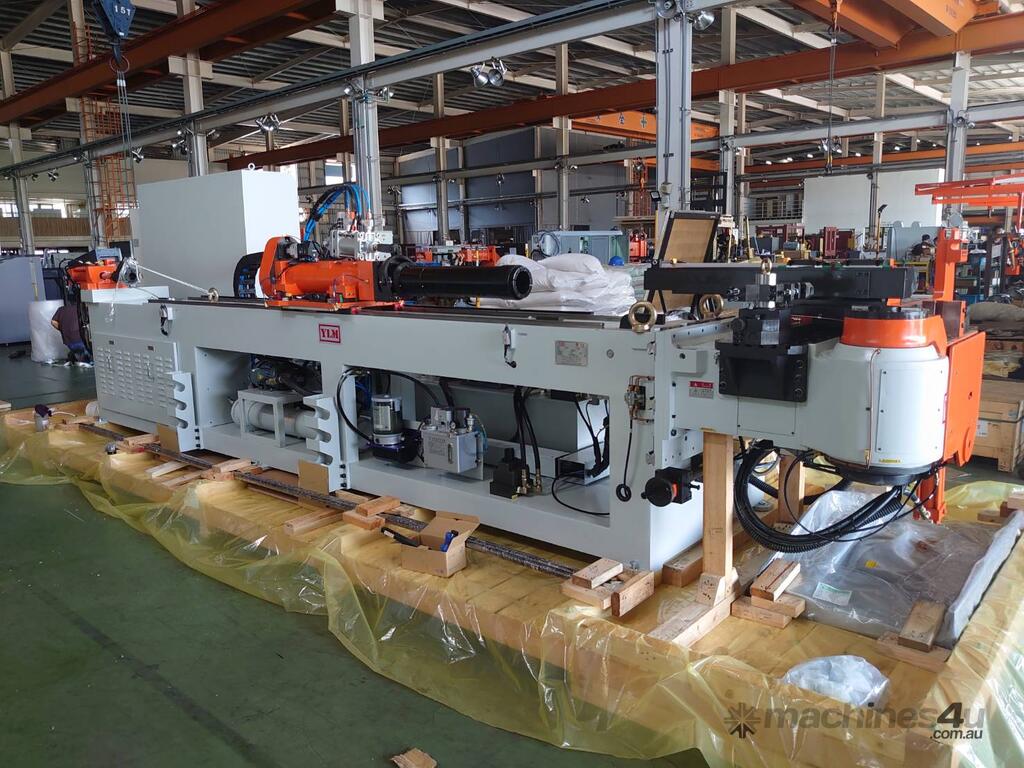

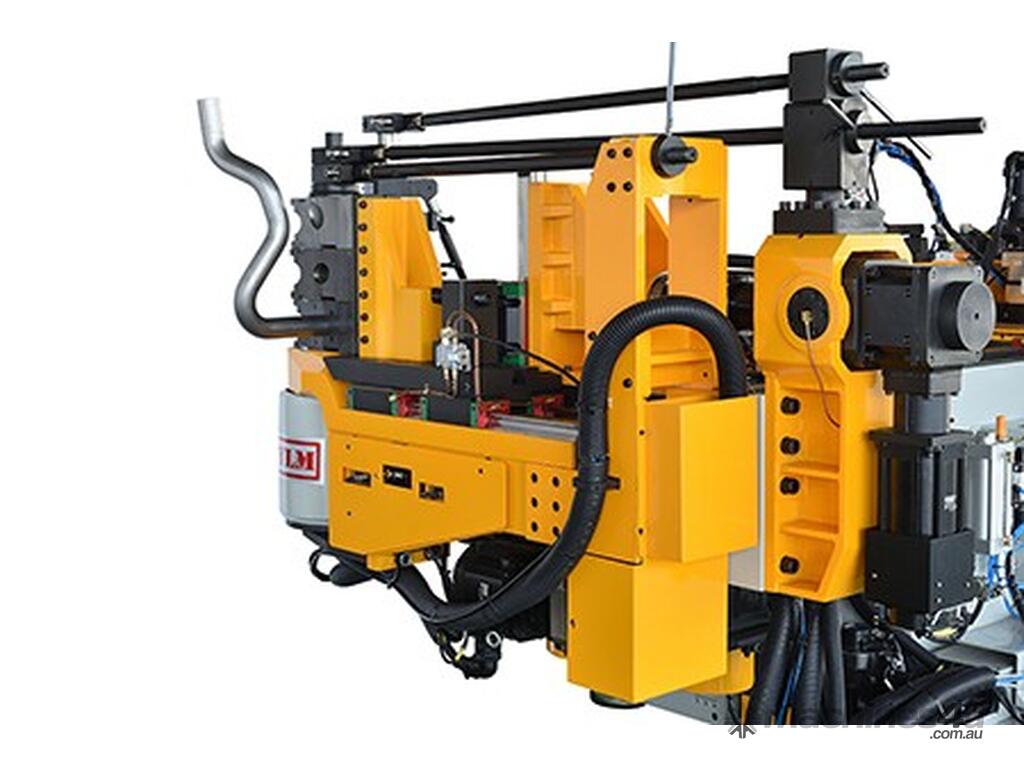

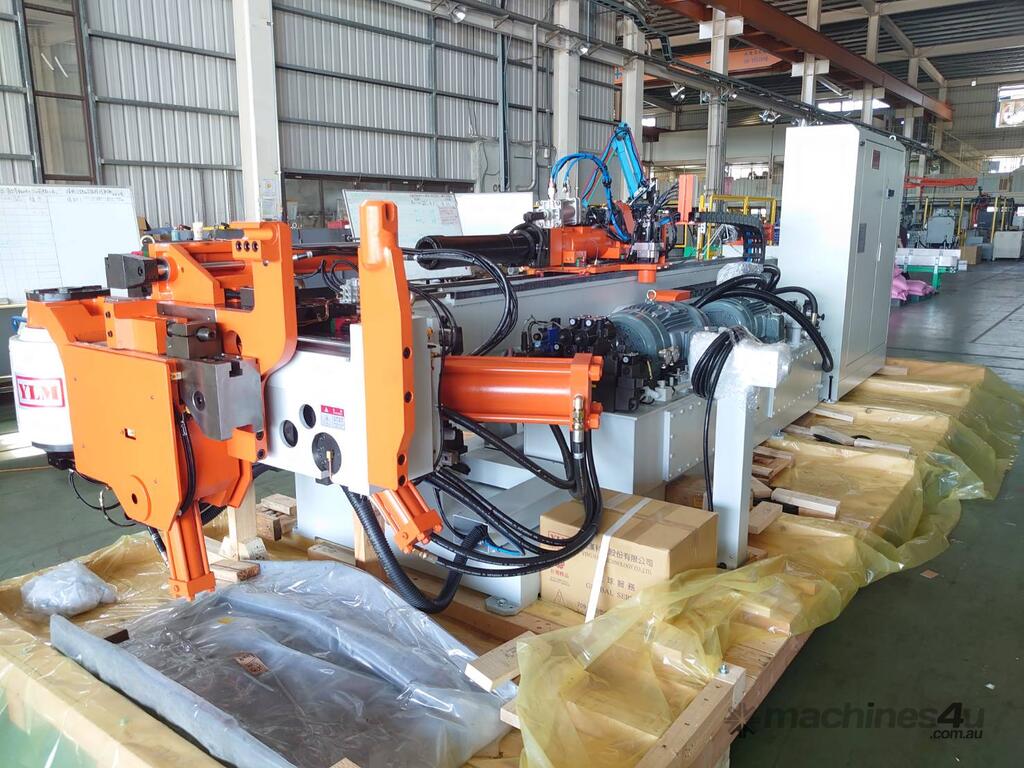

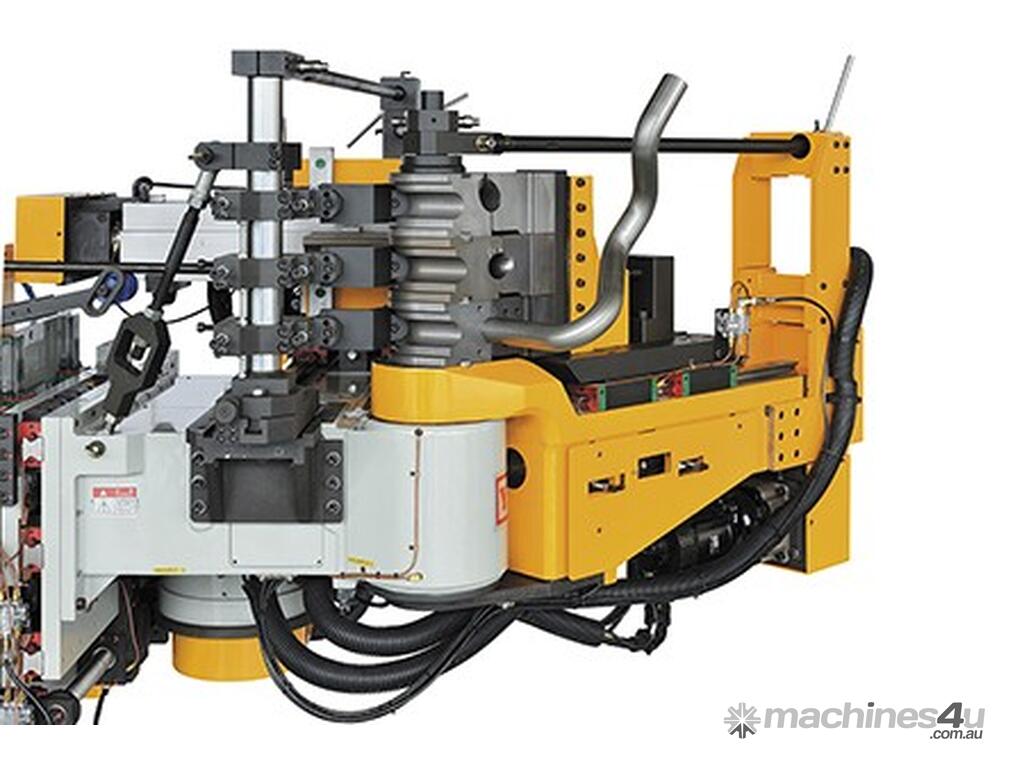

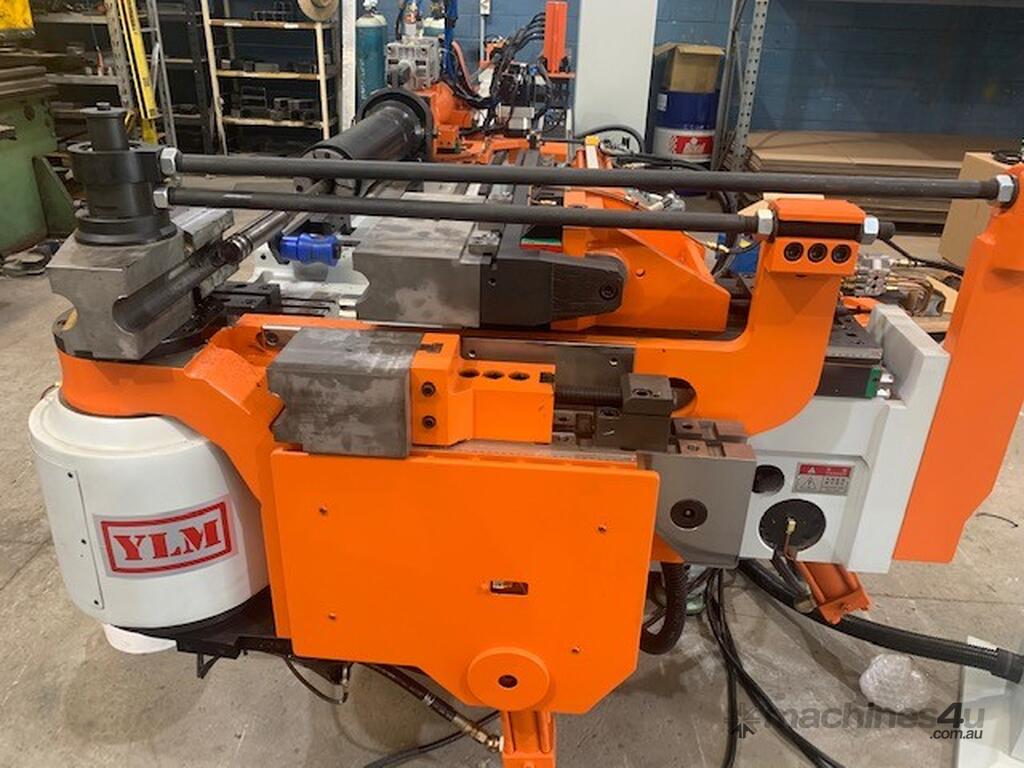

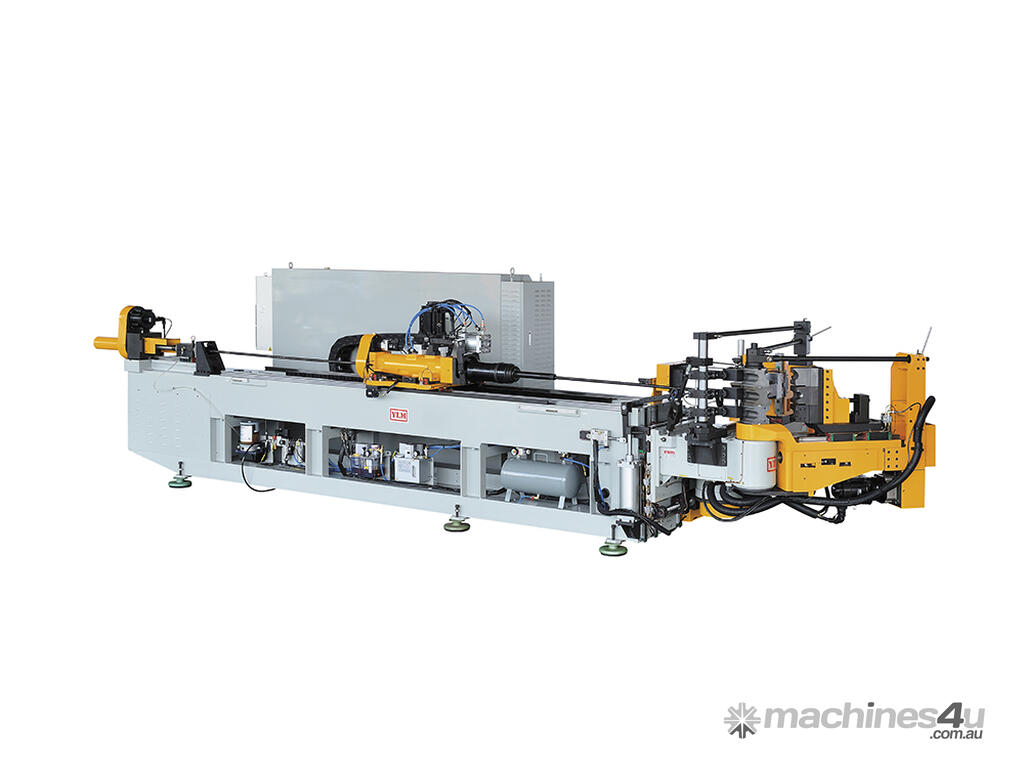

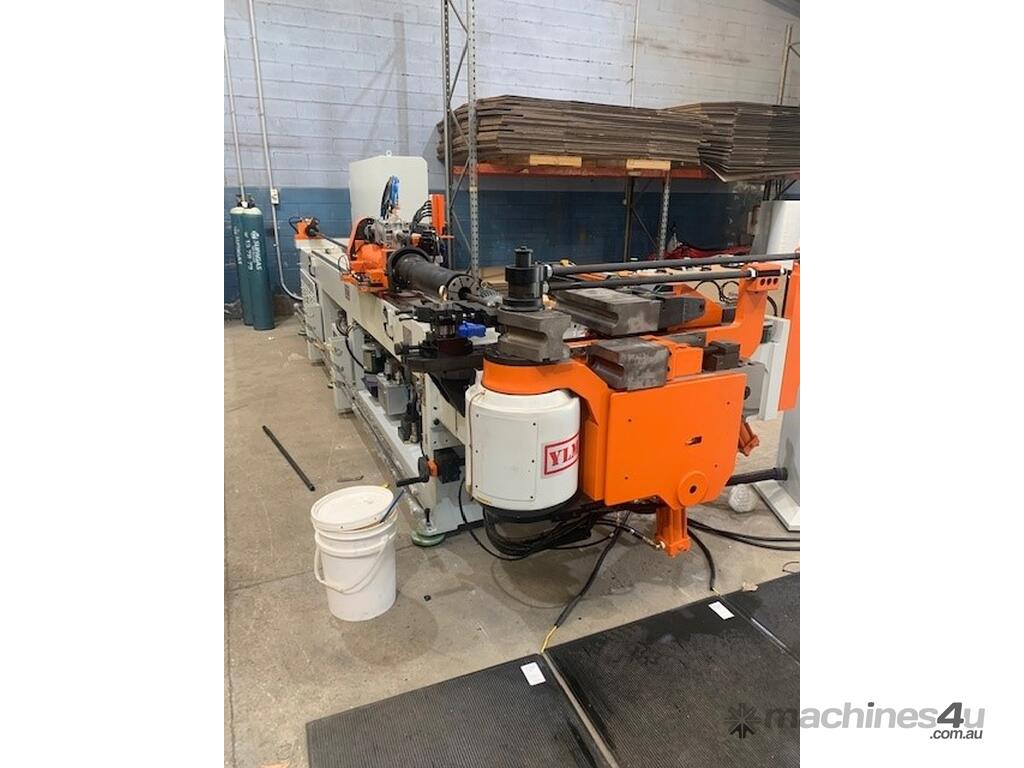

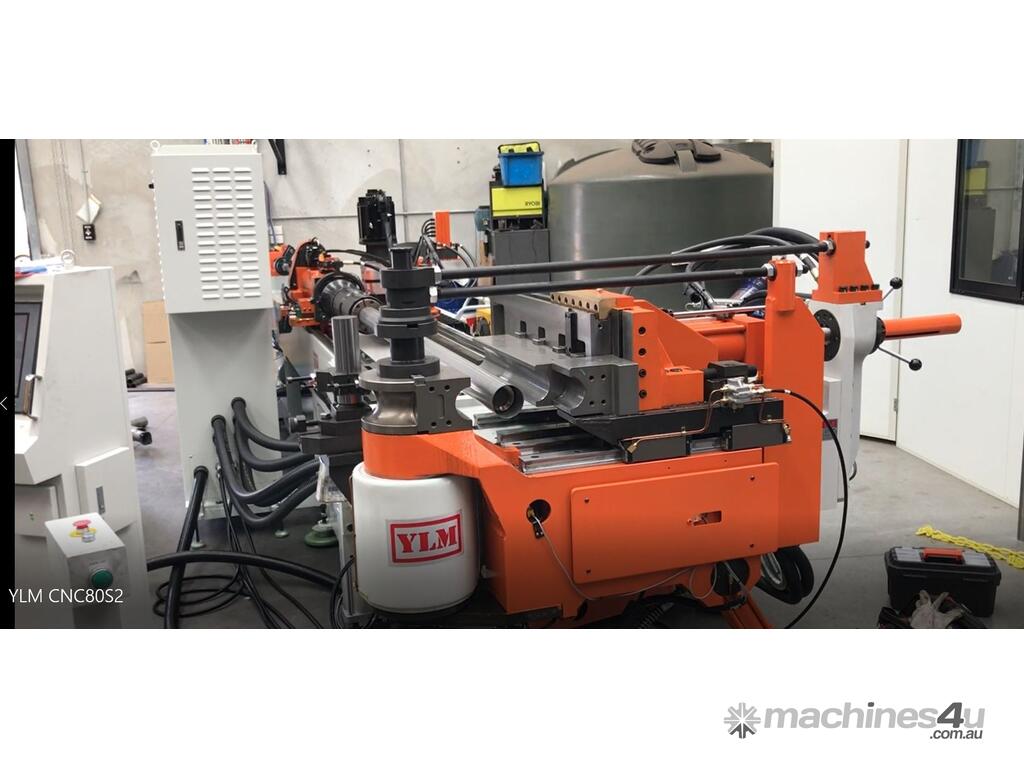

Fully electric CNC pipe bender, All Electric Multi Stack CNC tube Bending machine
SPECIFICATION
Model CNC80MS-AE
Specification 80
Max. Tube O.D. Bending Capacity (mm) 80
Max. Tube Wall Thickness (mm) 3
Material MILD STEEL
Max CLR (mm) 250
Max. Bending Radius Difference (mm) 90
Max. Bending Angle (°) 190
Mandrel Working Distance (mm) 3000
Manufacture Speed
Tube Feeding Speed (mm/sec) 754
Tube Rotation Speed (°/sec) 180
Tube Bending Speed (°/sec) 62.5
Repeatability
Tube Feeding Precision (mm) ± 0.1
Tube Rotation Precision (°) ± 0.1
Tube Bending Precision (°) ± 0.1
Overall Weight (kg) 7000
Operating Height (mm) 1170
Machine Length (mm) 6807
Machine Width (mm) 1804
Machine Height (mm) 1900
