The machine is equipped with a powerful functioning CNC controller. The controller employs a windows operation system in combination with the use of Ying Han self-developed CNC control software. Outstanding features include easy generation of bending parameters, 3D workpiece simulation function and single step operational simulation function, etc. These provide users with safe, easy and humanized control features.

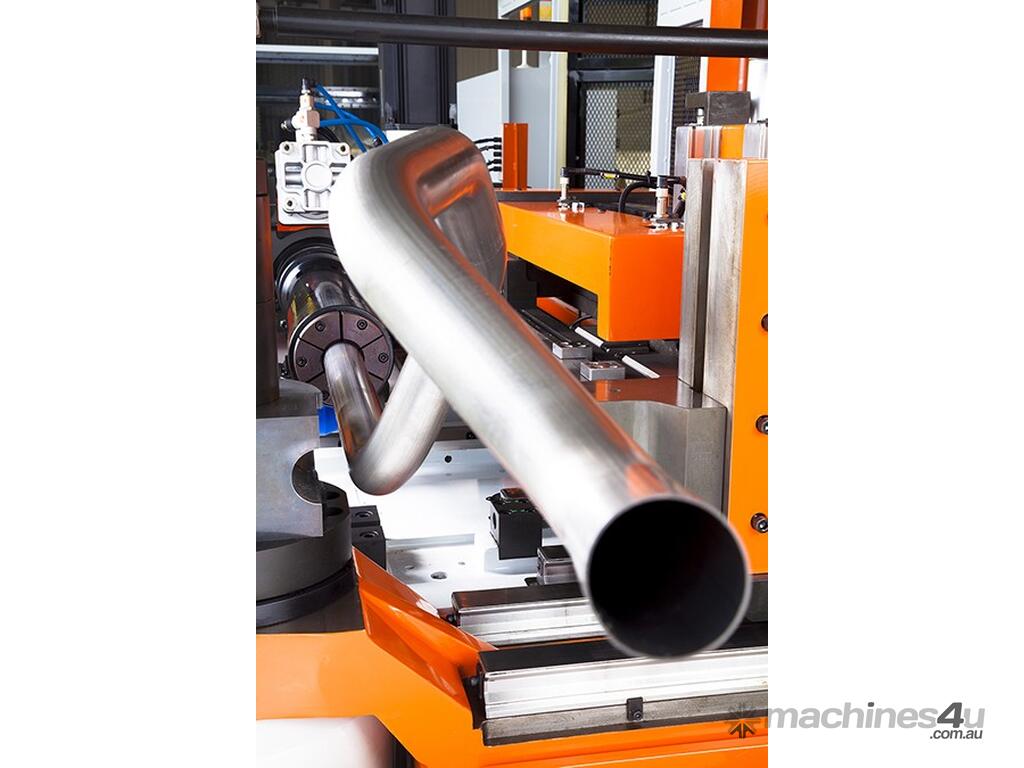

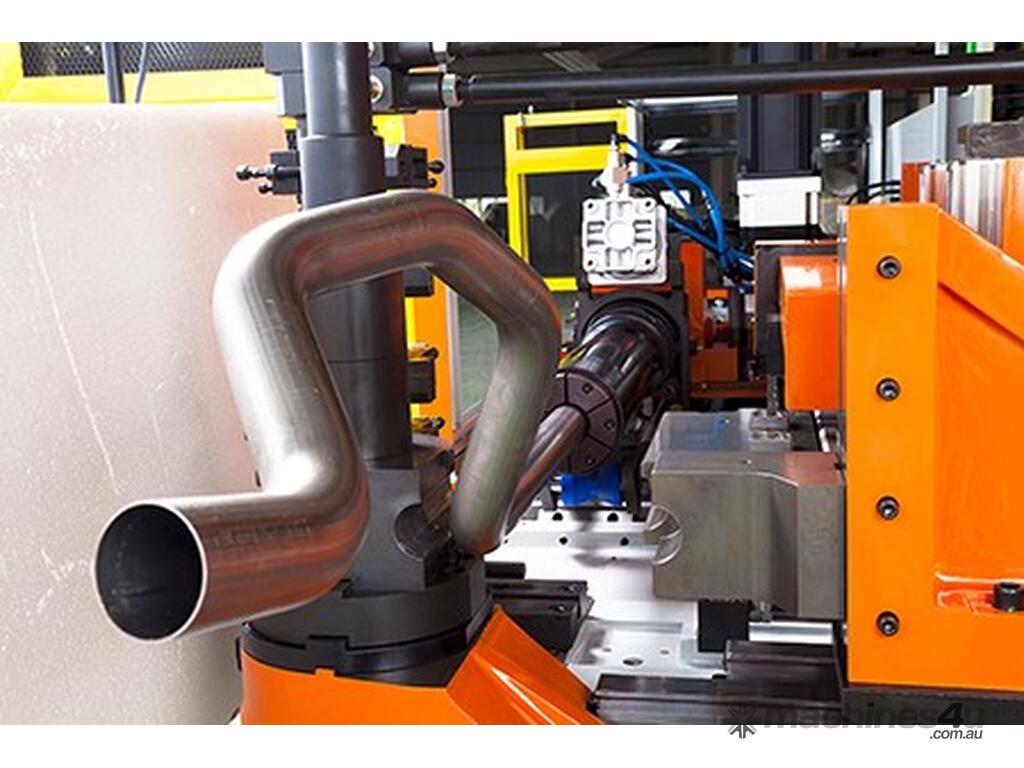

Fully electric CNC pipe bender, All Electric Multi Stack CNC tube Bending machine.
SPECIFICATION
Model CNC90MS-AE
Specification 90
Max. Tube O.D. Bending Capacity (mm) ? 90
Max. Tube Wall Thickness (mm) 3
Material MILD STEEL
CLR 250
Max. Bending Radius Difference (mm) 90
Max. Bending Angle (°) 190
Mandrel Working Distance (mm) 2500
Manufacture Speed
Tube Feeding Speed (mm/sec) 1143
Tube Rotation Speed (°/sec) 759
Tube Bending Speed (°/sec) 80
Repeatability
Tube Feeding Precision (mm) ± 0.1
Tube Rotation Precision (°) ± 0.1
Tube Bending Precision (°) ± 0.1
Overall Weight (kg) 8200
Operating Height (mm) 1275
Machine Length (mm) 6114
Machine Width (mm) 1977
Machine Height (mm) 1925
