YLM - CNC hybrid tube bending machine CNC-130 [made in Taiwan]

Features of Hybrid Tube Bender
1. The series of machine employs hydraulic valves and integrated circuits ti control bending motion individually, which will extend the service life of he hydraulic parts.
2. Large bending machine is equipped with a manually adjusted digital flow regulation valve to control the speed of bending motion.
3. Servo drive provides high accuracy in bending positioning, that ensures high quality bending.

Suitable industries: Exercise equipment, Boiler, Shipbuilding, Heavy transportation vehicle, Chemical engineering, Power plant, Diesel engine

CNC pipe bender, Hydraulic Pipe Bending Machine, tube bender with hydraulic tube bending machine, CNC Automatic Tube Bending Machine

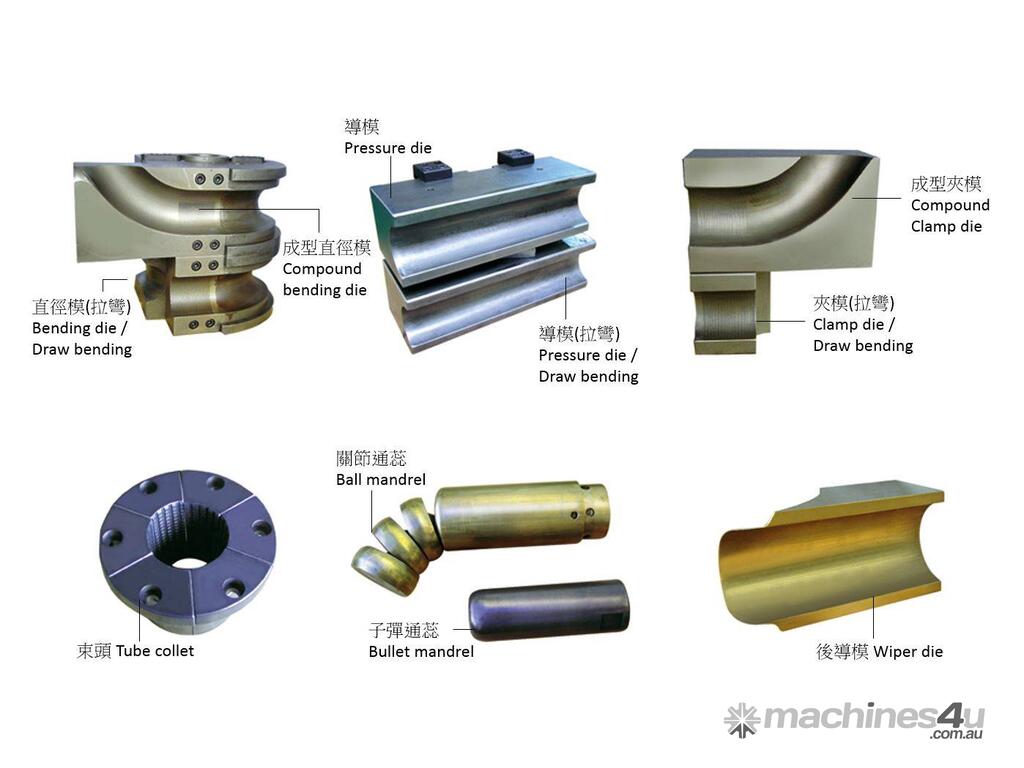

Draw+Rollers-Bending
3D Simulation of Bending Process and application

SPECIFICATION
Machine Name CNC-130S2-6A
Max. tube o.d. bending capacity(Mild steel CLR1.5D)(mm) 127x3.2
Range of CLR (°) 500
Max. bending radius difference (mm) 150
Max. bending angle (°) 190
Mandrel working distance (mm) 4500
Manufacture speed Max. Tube feeding speed (mm/sec) 466
Tube rotation speed (mm/sec) 99
Max. Tube bending speed (mm/sec) 25
Repeatability Tube feeding Precision (mm) ± 0.1
Tube rotation Precision (mm) ± 0.1
Tube bending Precision (mm) ± 0.1
Overall weight (Kgs) 14300
Machine length (mm) 8977
Machine width (mm) 2280
Machine height (mm) 1735
Operating height (mm) 1182
