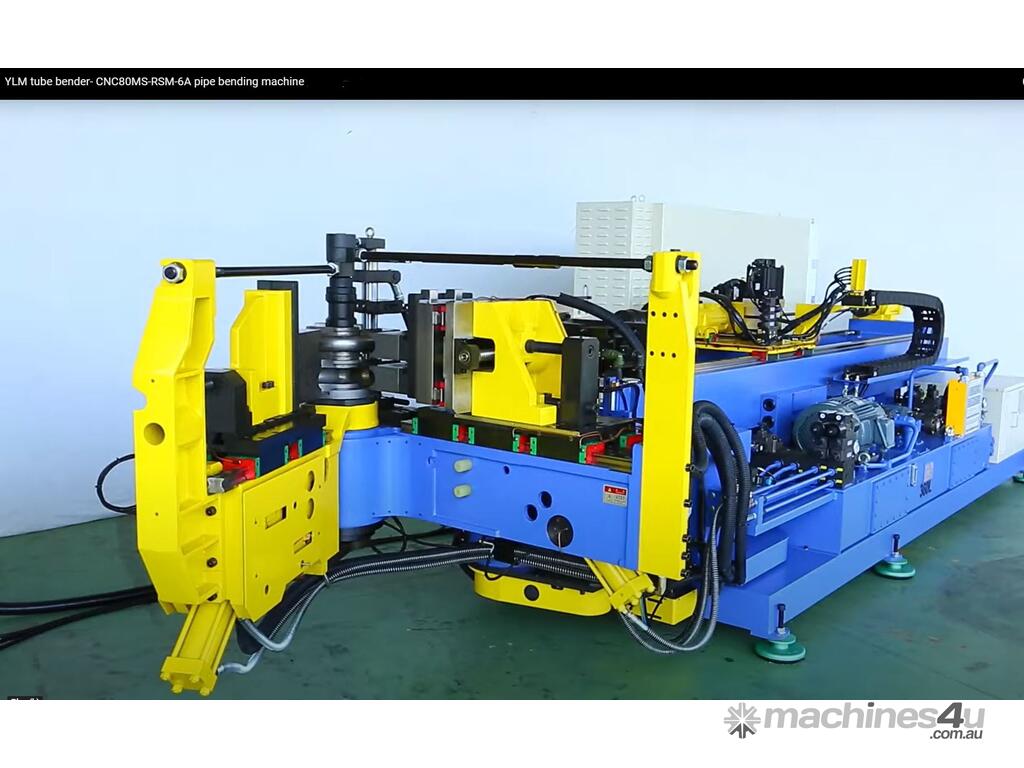

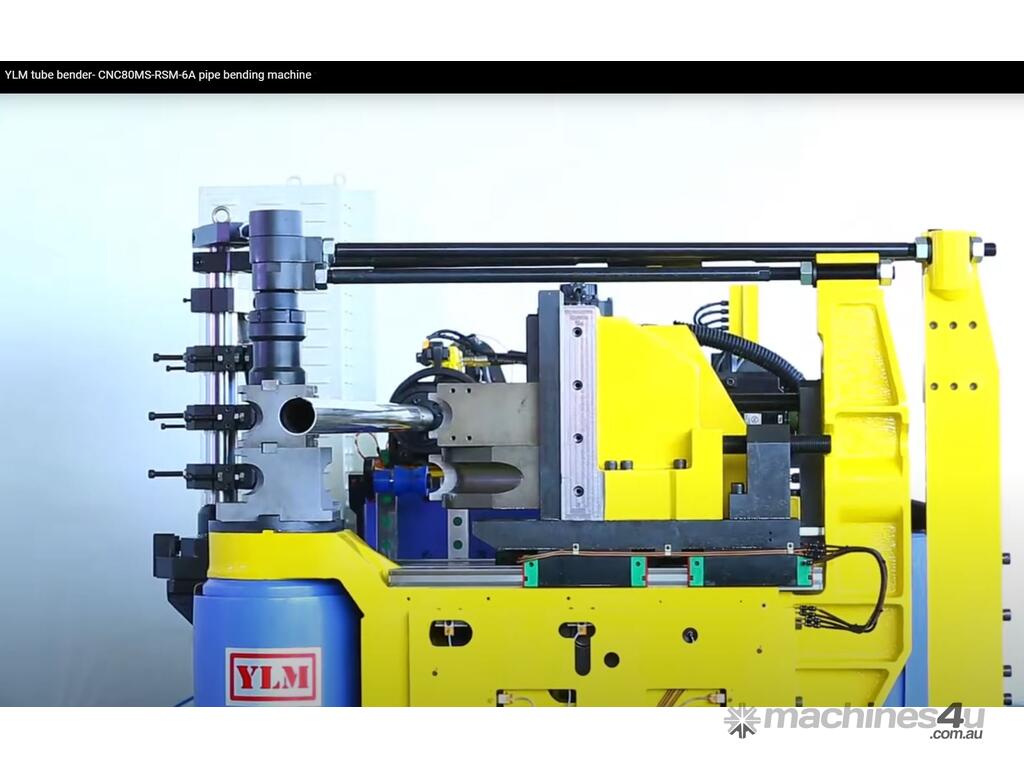

YLM - CNC hybrid tube bending machine - CNC-80 [made in Taiwan]

YLM produces a line of CNC hydraulic tube benders designed for the companies looking for an economical way to enter into CNC benders.

The machines are available in capacity sizes from 1-1/2” to 5”. Utilizing the proven software technology these heavy duty benders will meet the needs of furniture manufacturers, automotive production, ship builders, or job shop applications.

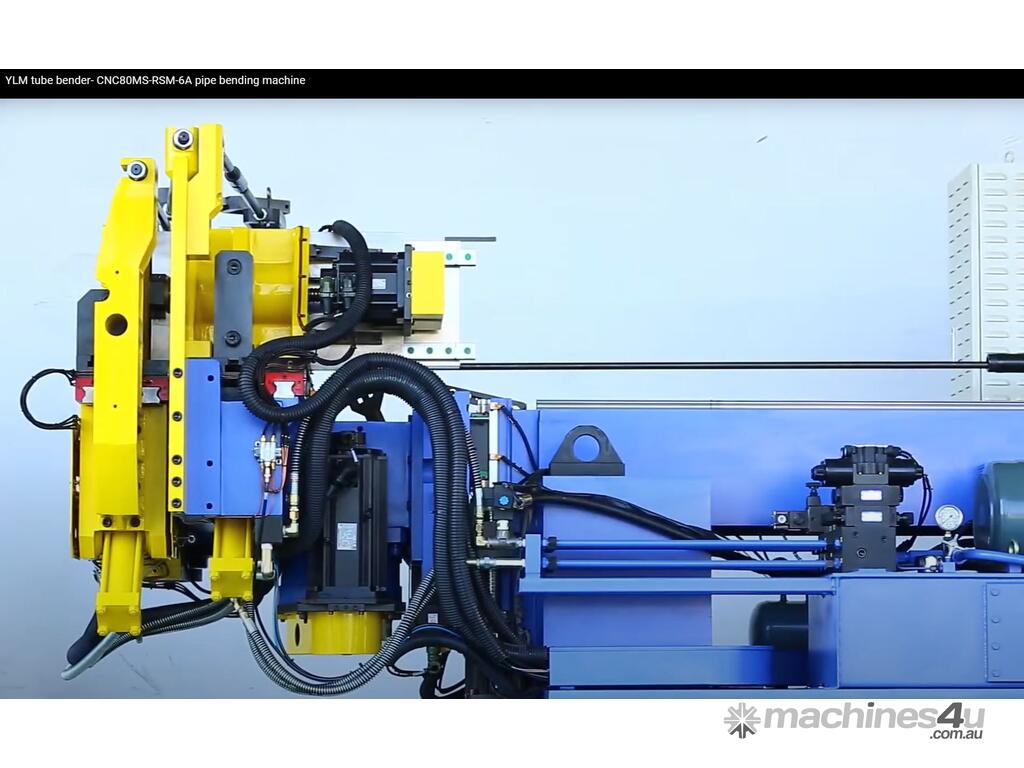

Features of Hybrid Tube Bender
1. The series of machine employs hydraulic valves and integrated circuits ti control bending motion individually, which will extend the service life of he hydraulic parts.
2. Large bending machine is equipped with a manually adjusted digital flow regulation valve to control the speed of bending motion.
3. Servo drive provides high accuracy in bending positioning, that ensures high quality bending.

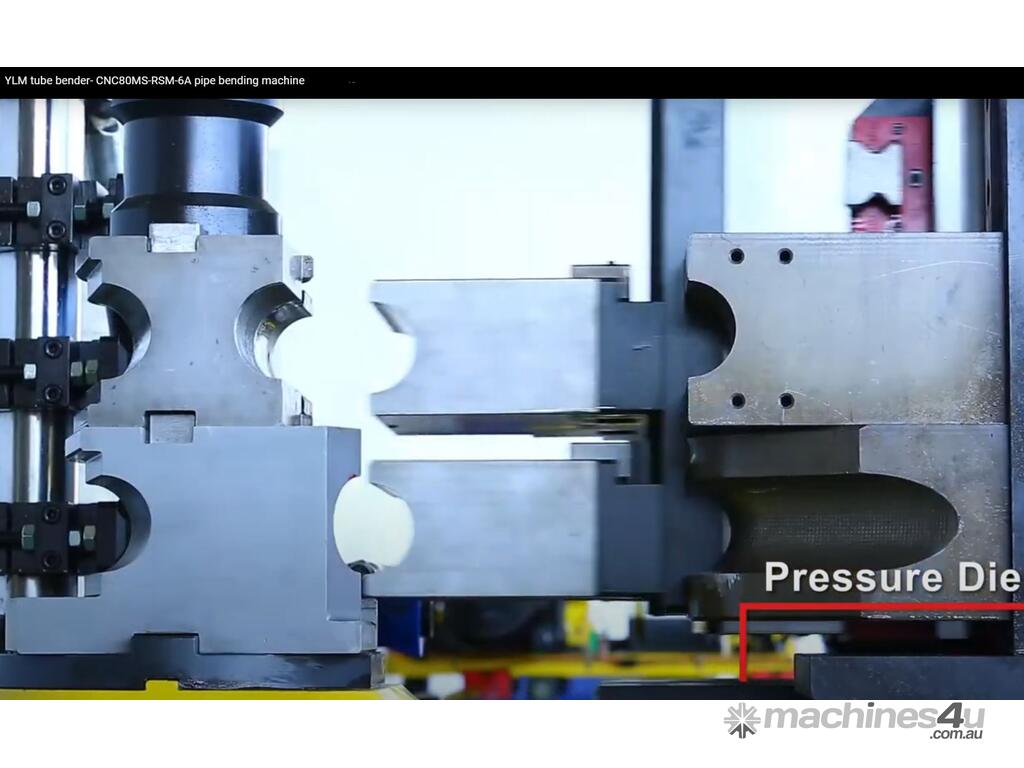

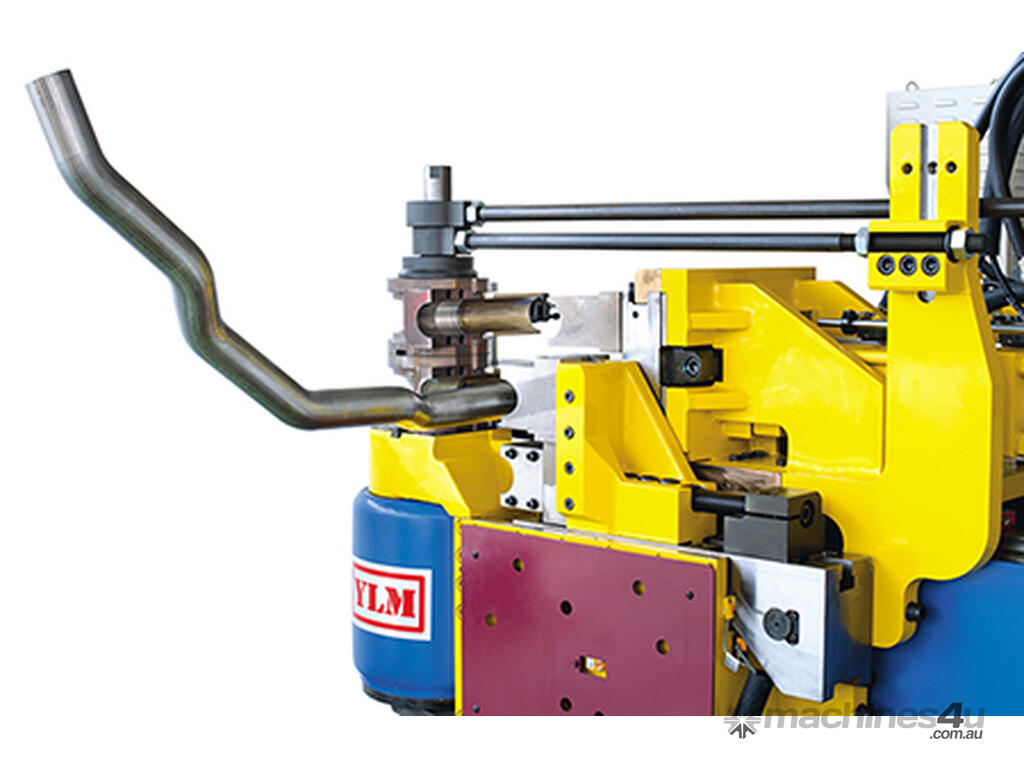

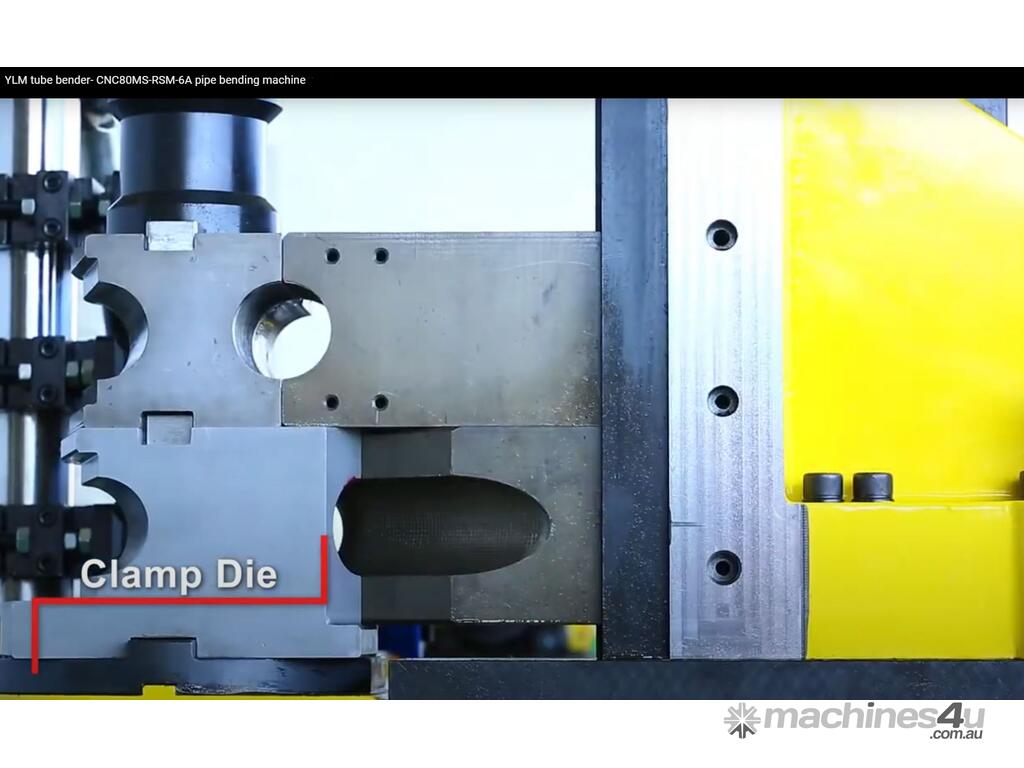

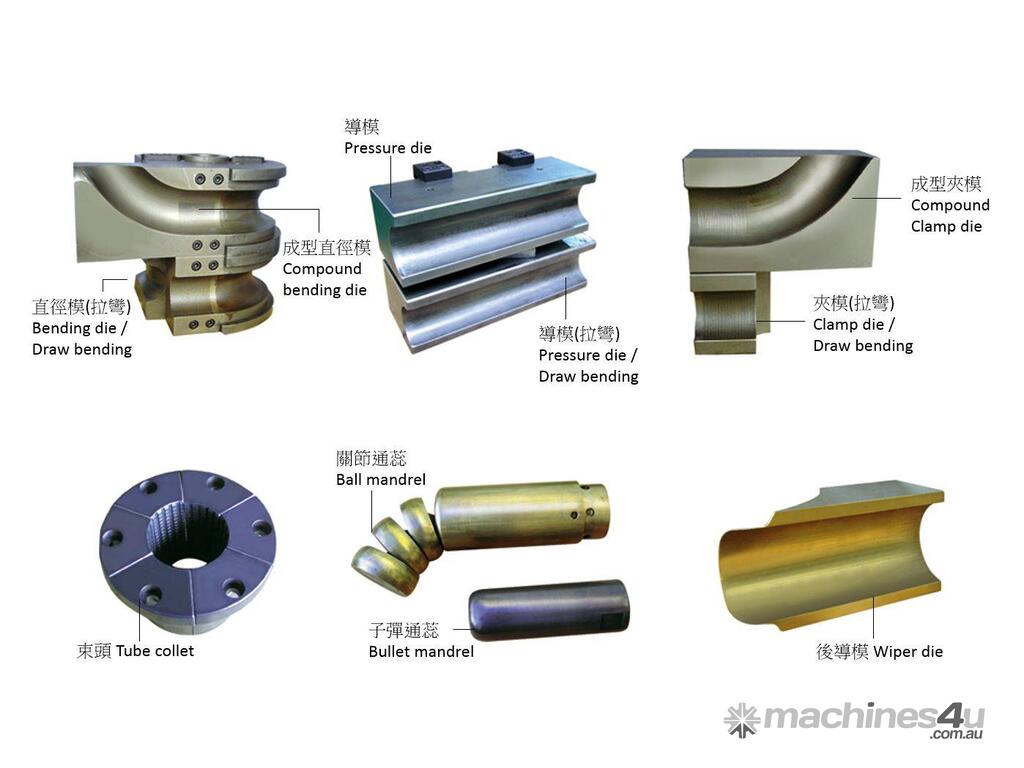

- Draw+Rollers-Bending

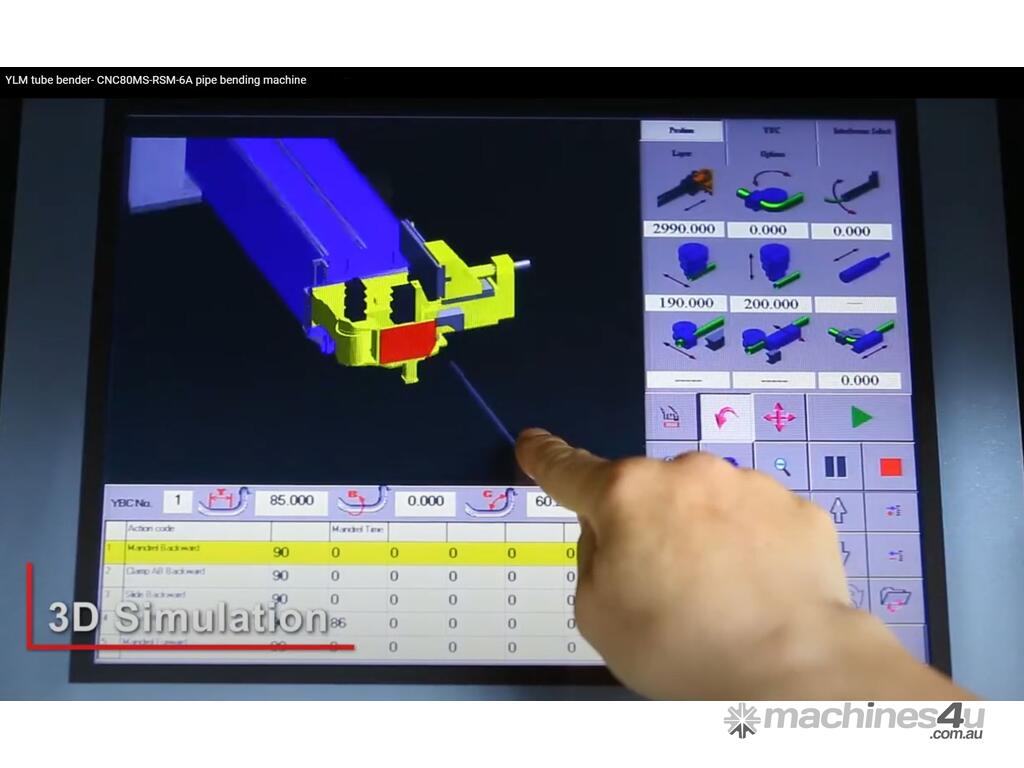

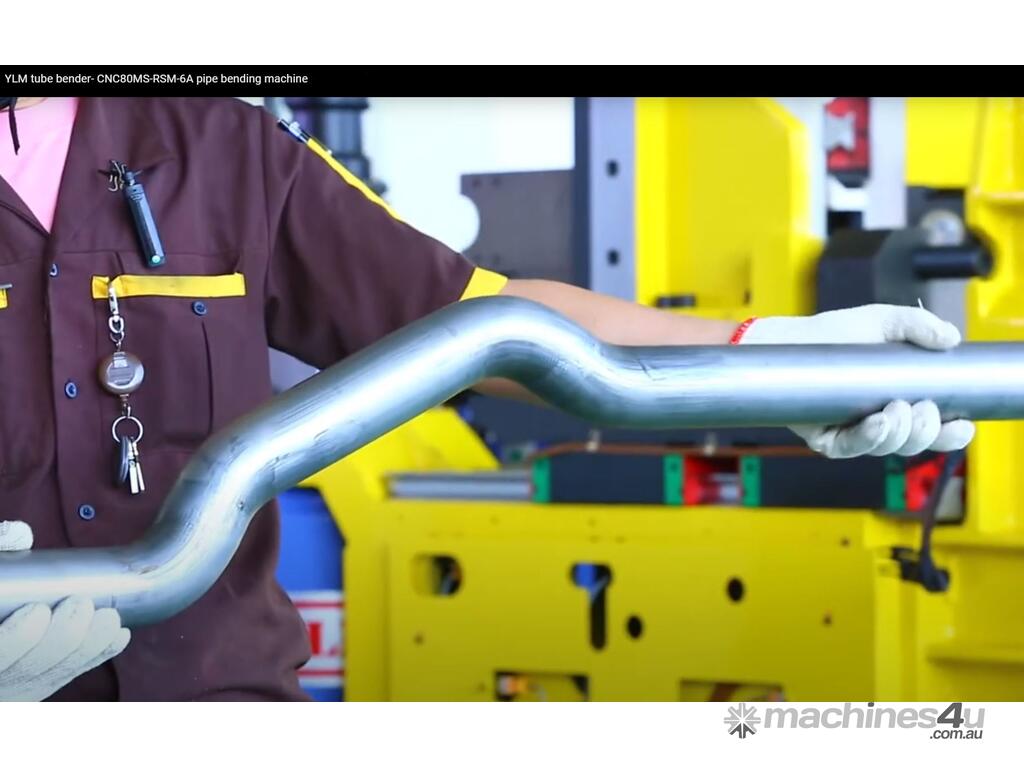

- 3D Simulation of Bending Process and application

Standard machine design features on CNC benders include:

- Air conditioned electrical enclosure to maintain temperature and prolong system components
- Electrical power filtering to stabilize incoming power supplies for an efficient consistent operation
- Control electrical cabinet isolation to minimize vibration transfer to electronics
- Oil filtering system with condition indicator to protect oil supply
- Radiator type oil cooler standard on most models, available on others to maintain oil temperature
- Vibration control machine mounting pads to reduce machine movement during operation
- Spacious well labeled / layout of electrical system for ease of maintenance and efficient operation
- Remote control console for placement in operational location based on application to reduce operator interface time to increase production
- Foot pedal cycle start operation for quick safe loading increasing production
- Safety mat and safety plates with multiple emergency stop placement for operational safety
- Integrated gearbox reducer with multi layer drive chain assembly for smooth controlled operational start / stop movement of bend arm extending the chain life many years beyond traditional hydraulic benders.

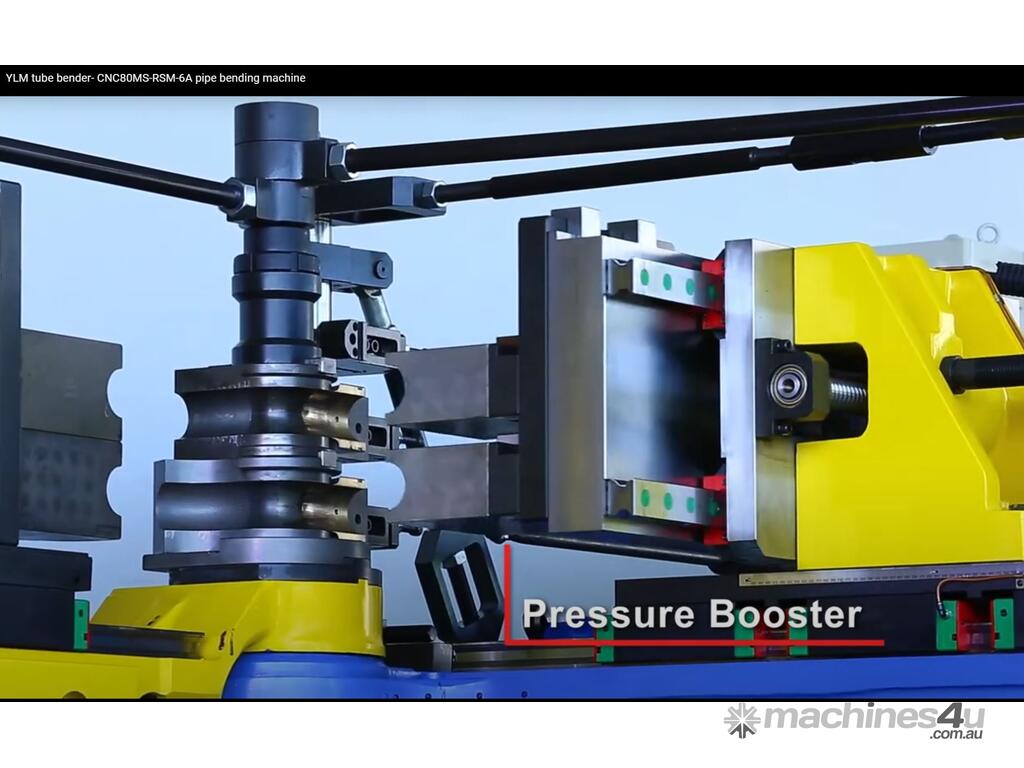

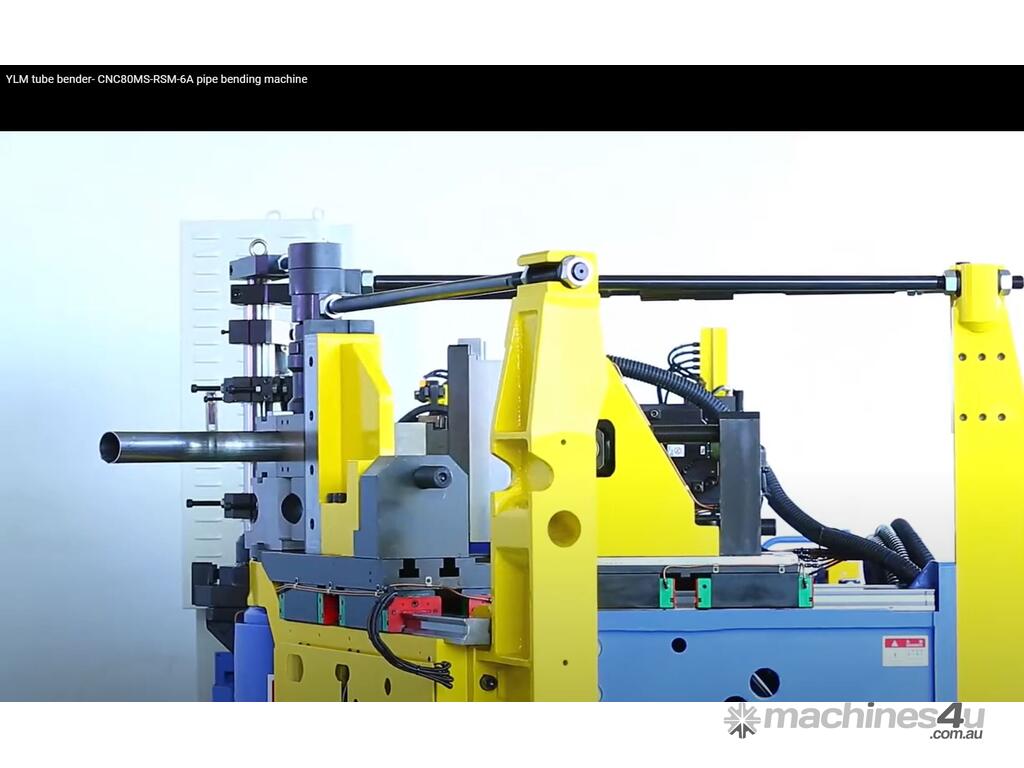

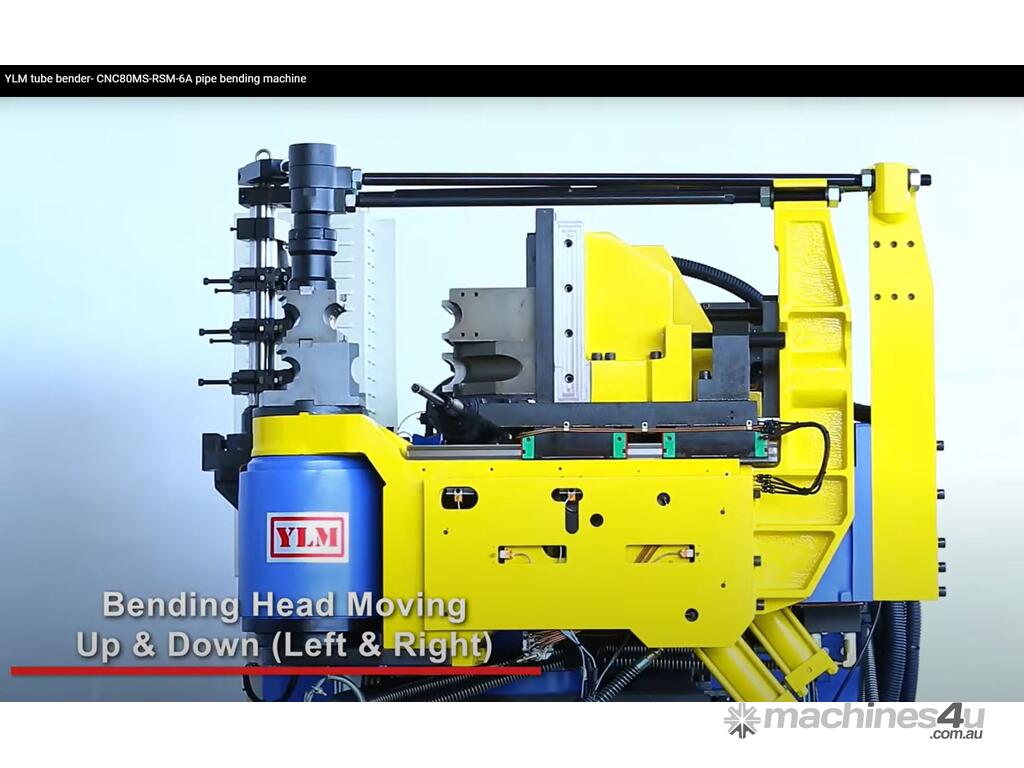

- Low profile bend head design uniquely offset from center of machine frame providing clearance for complicated parts that can not be obtained on other brands of equipment.

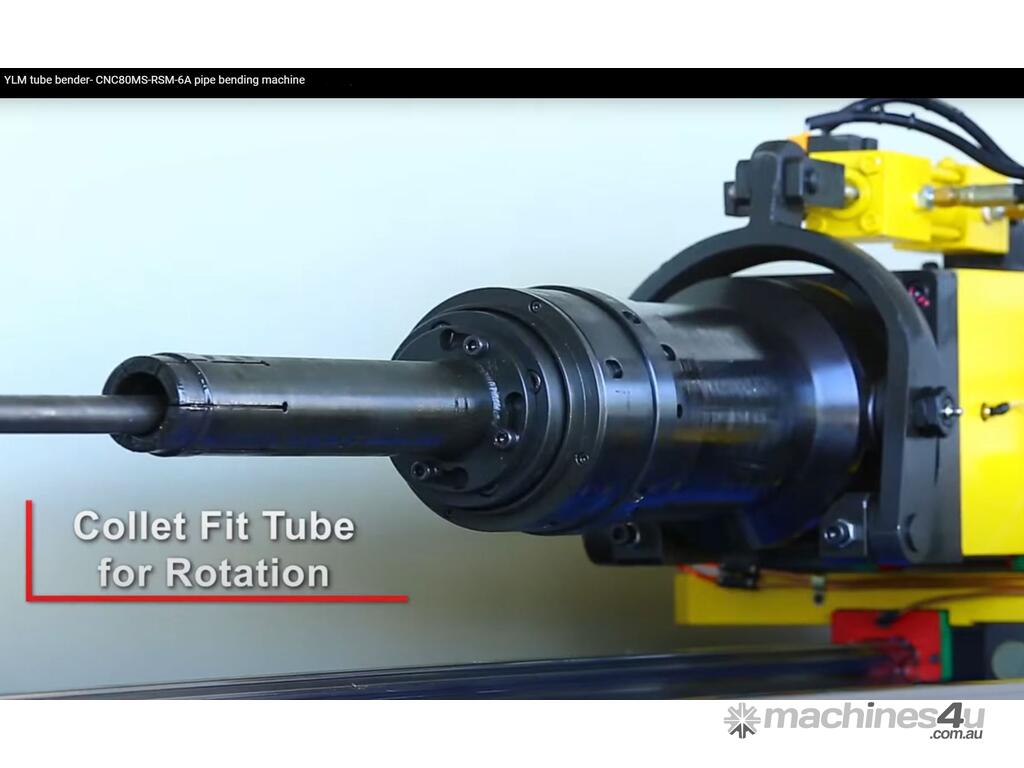

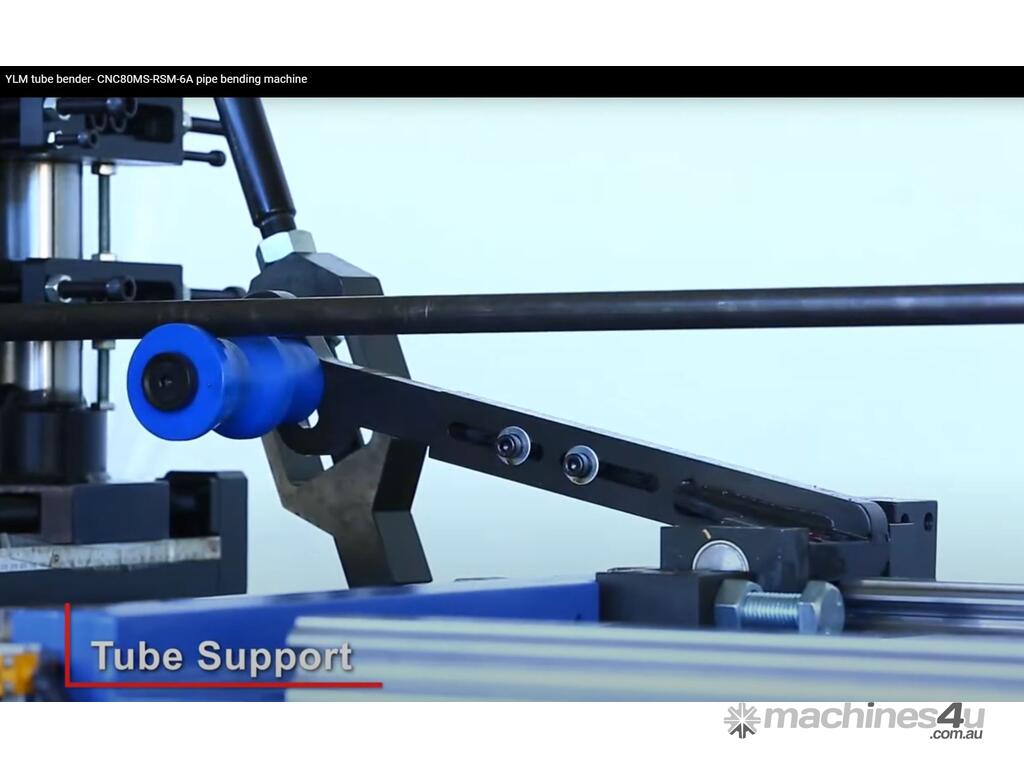

- Full capacity feed through collect for working with long material that requires additional length beyond the front collect stop system reducing the need for extended models in most applications.
- Low decibel level production noise to reduce operator fatigue and general improvement of shop conditions
- Low working heights for ease of operation increasing production and improved safety of material handling

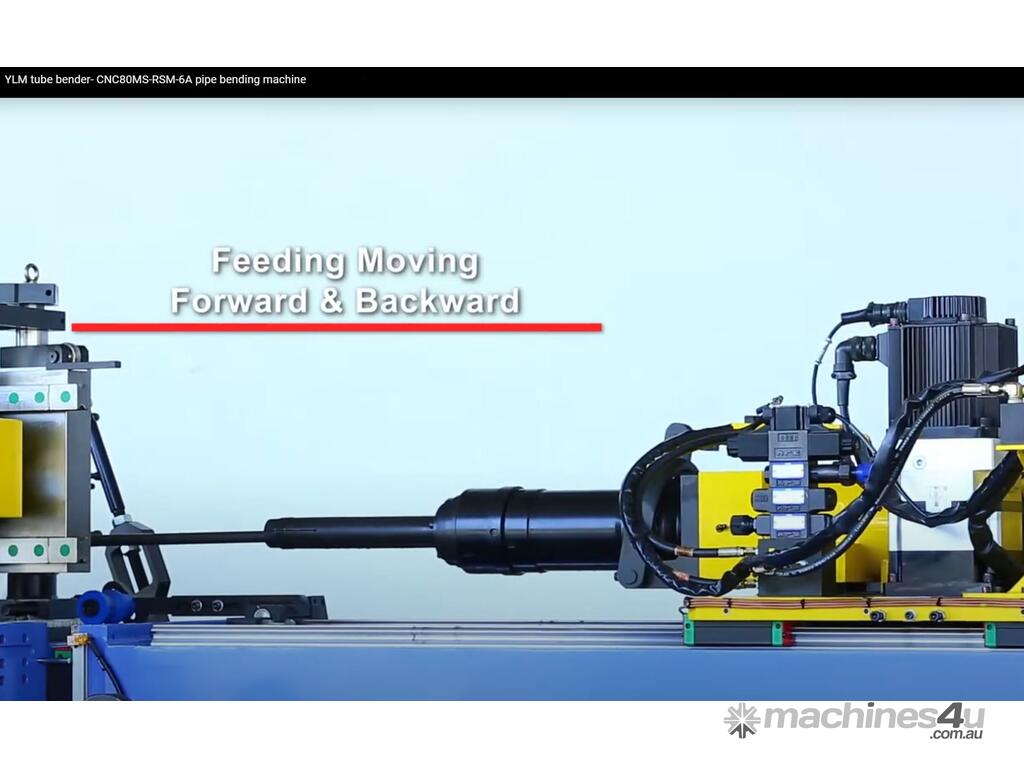

- Multiple axis operation reducing cycle time and interference for optimum production

SPECIFICATION
Machine Name CNC-80MS-5A
tube o.d. bending capacity(Mild steel CLR1.5D)(mm) 76.2x2.8
Range of CLR (mm) 250
bending radius difference (mm) 90
bending angle (°) 190

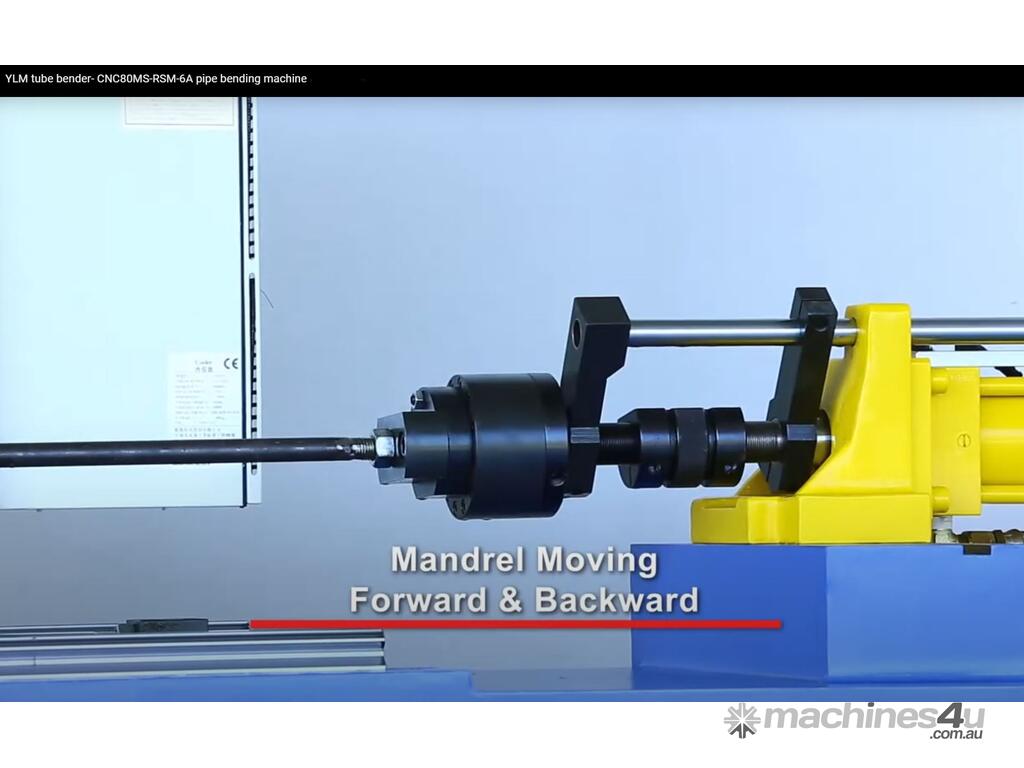

Mandrel working distance (mm) 3000
Manufacture speed Tube feeding speed (mm/sec)         753
Tube rotation speed (mm/sec) 180
Tube bending speed (mm/sec) 83
Repeatability Tube feeding Precision (mm)      ± 0.1
Tube rotation Precision (mm) ± 0.1
Tube bending Precision (mm) ± 0.1
Overall weight (Kgs) 6560
Machine length (mm) 6440
Machine width (mm) 2195
Machine height (mm) 1877
Operating height (mm) 1164
