YLM LASERSHEET APC - Laser sheet Cutting machine [made in Taiwan]

Great power output. Precise. Fast. Intelligent control. A competitive edge in steel sheet cutting

Laser sheet Cutting machine, automatic loading fiber laser sheet cutting machine

Features of Machine:
-The specially designed software allows the operator to design the graphs on characters with ease, then machining can be conducted immediately.
-Fast machining, power saving, outstanding safety protection, low trouble and easy maintenance.
-Maximum cutting thickness of metal sheet varies with the laser power.
-Suitable for cutting varies metal sheets.
-Upon customer request, the machine can be designed with a workpiece platform as mechanism (optional). It helps to reduce workpiece loading/unloading time, which in turn upgrades operation efficiency.
-Large laser power, high efficiency and high productivity.
-Equipped with an intelligent digital controller featuring humanized control, which is easy to learn and operate.
-Enclosed splash guard.

Standard Equipment:
-Water Chiller
-Laser generator
-Laser cutting head
-Blower

Option Equipment:
-Machine guard
-Auto pallet change
-Air dryer(tropical climate required)
-Dust collector

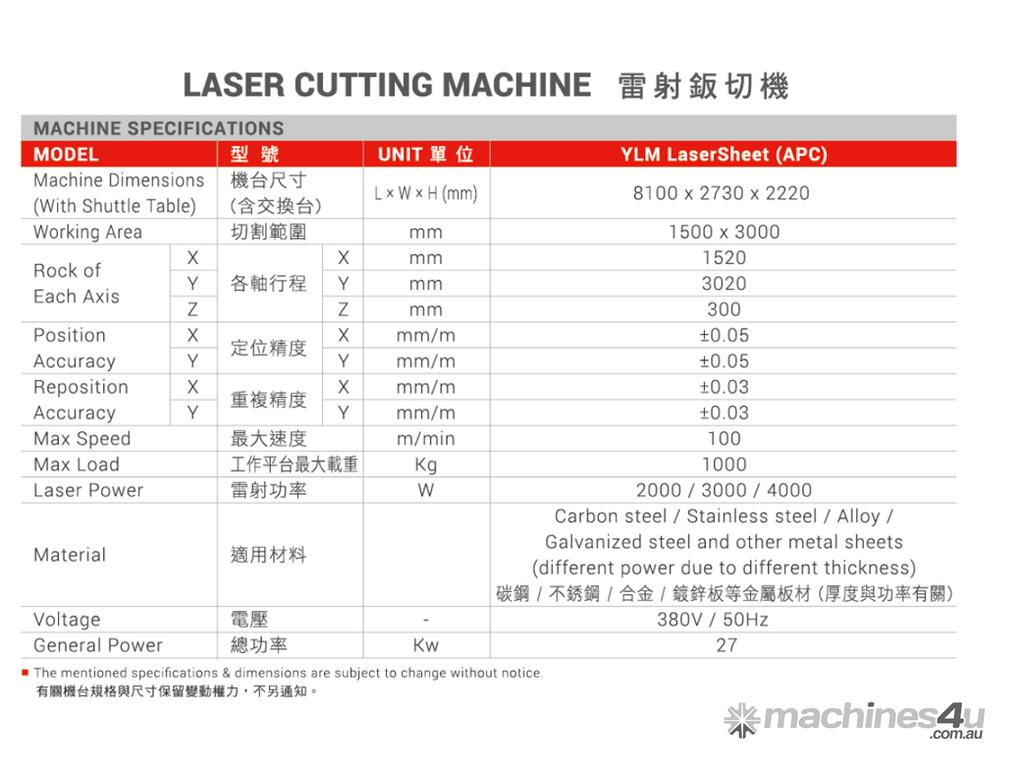

SPECIFICATION
Model YLM LASERSHEET
Machine Dimensions with Shuttle table (LxWxH mm) 8100x2730x2220
Working Area (mm) 1500x3000
Applicable Materials Carbon steel / Stainless steel / Alloy / Galvanized steel and other metal sheets (different power due to different thickness)
Axes Travels X (mm) 1520
Y (mm) 3020
Z (mm) 300
Positioning Accuracy X (mm/m) ± 0.05
Y (mm/m) ± 0.05
Repeatability Accuracy X (mm/m) ± 0.03
Y (mm/m) ± 0.03
Laser Power(W) 2000/3000/4000
Total Power(Kw) 27
The mentioned specifications & dimensions are subject to change without notice.

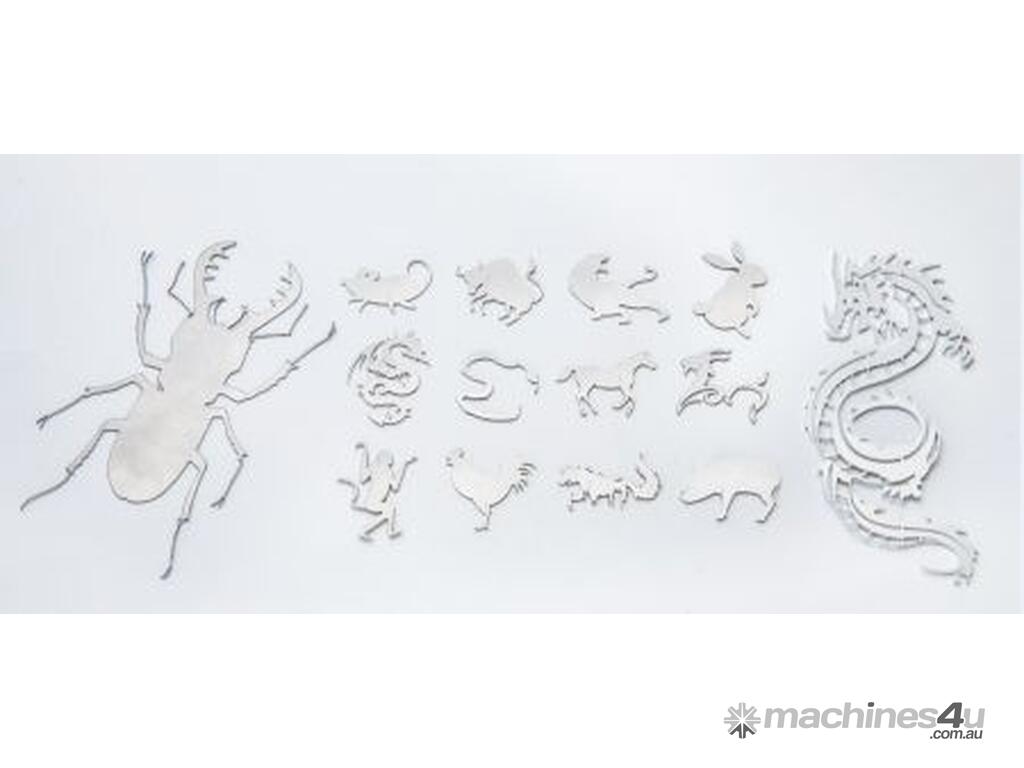

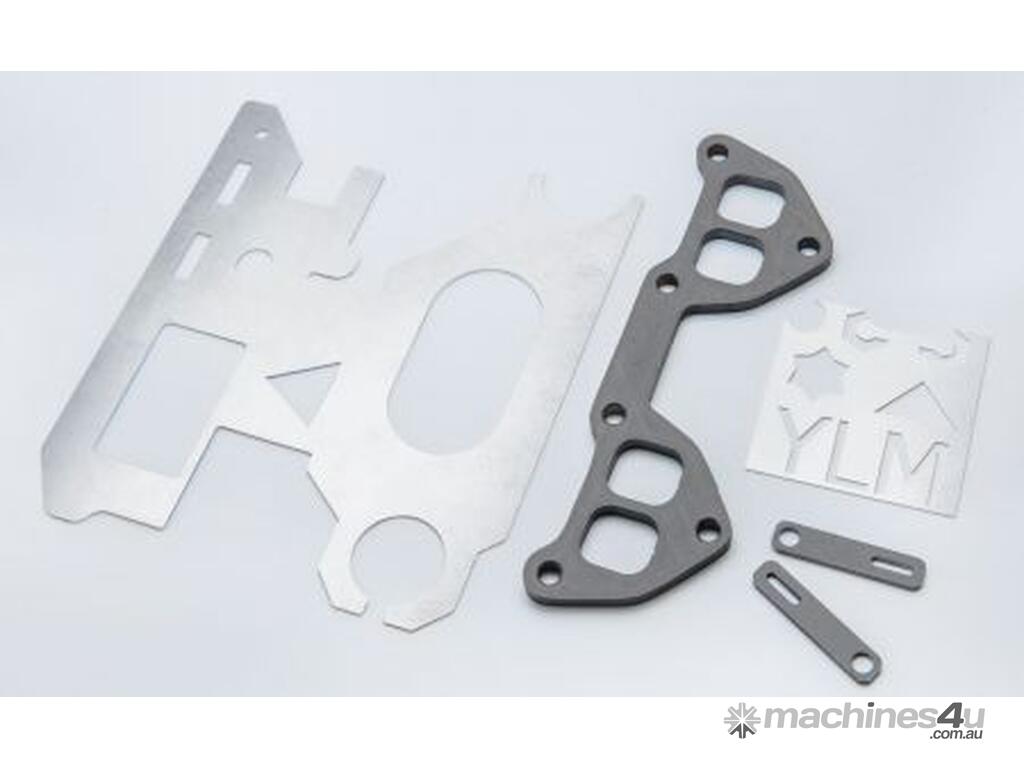

APPLICATIONS
Applicable Industries:
-Sheet metal making
-Laser machining
-Machine manufacturing
-automotive/motorcycle
-aerospace
-steel structure manufacturing
-furniture industry
