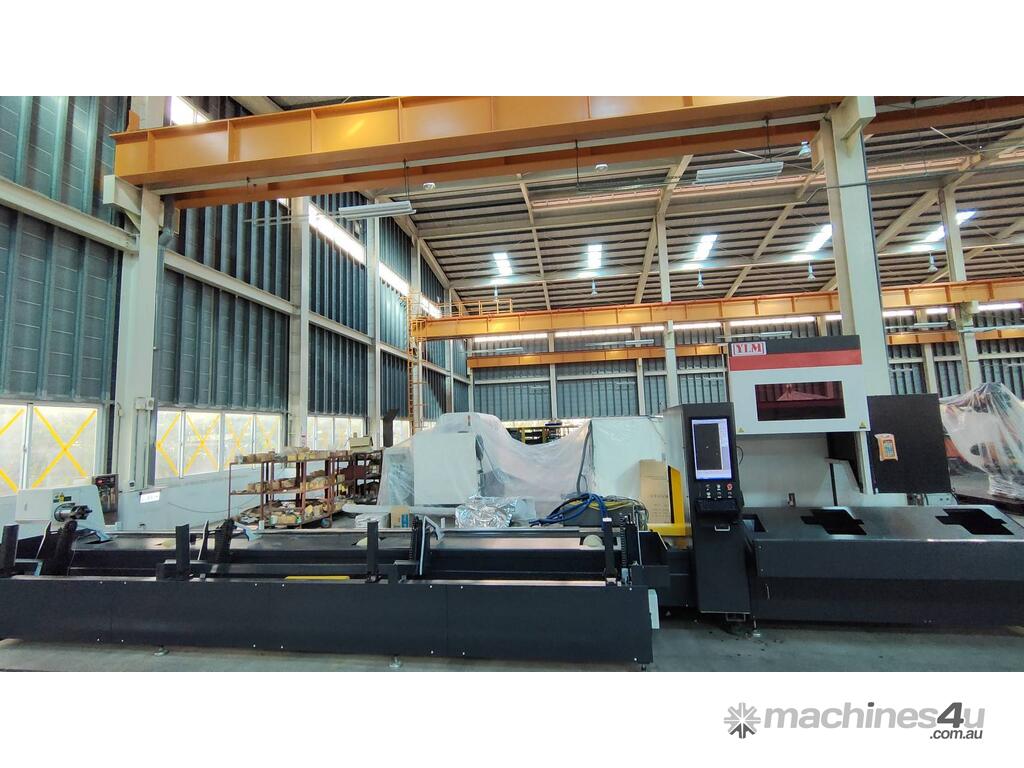

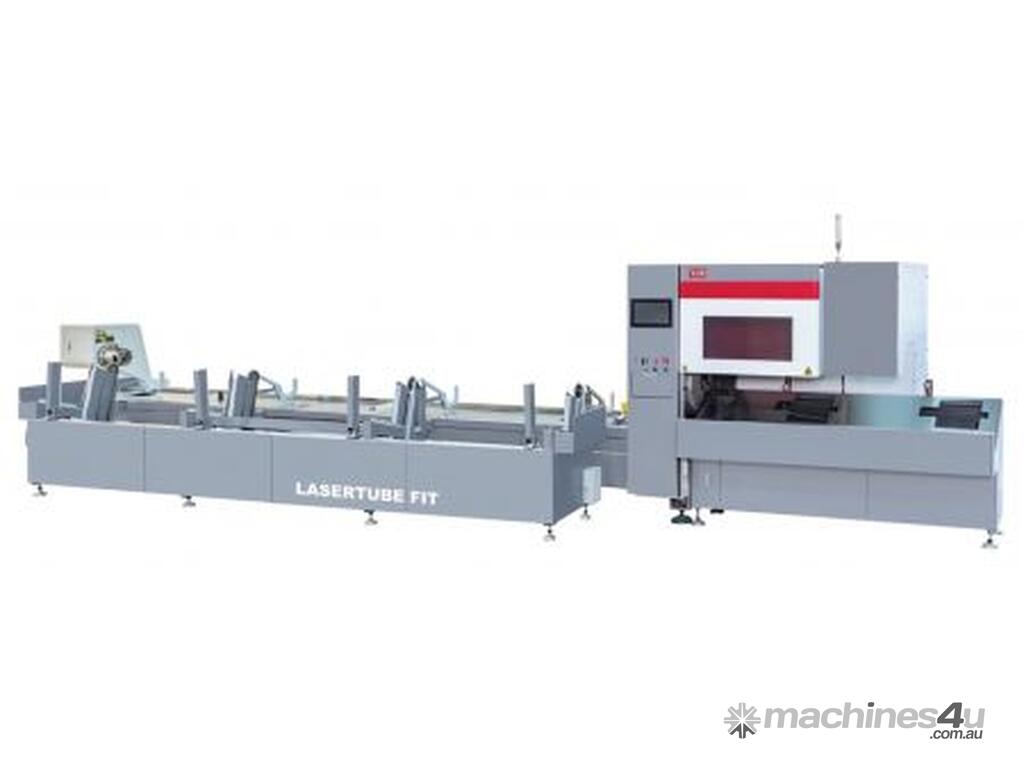

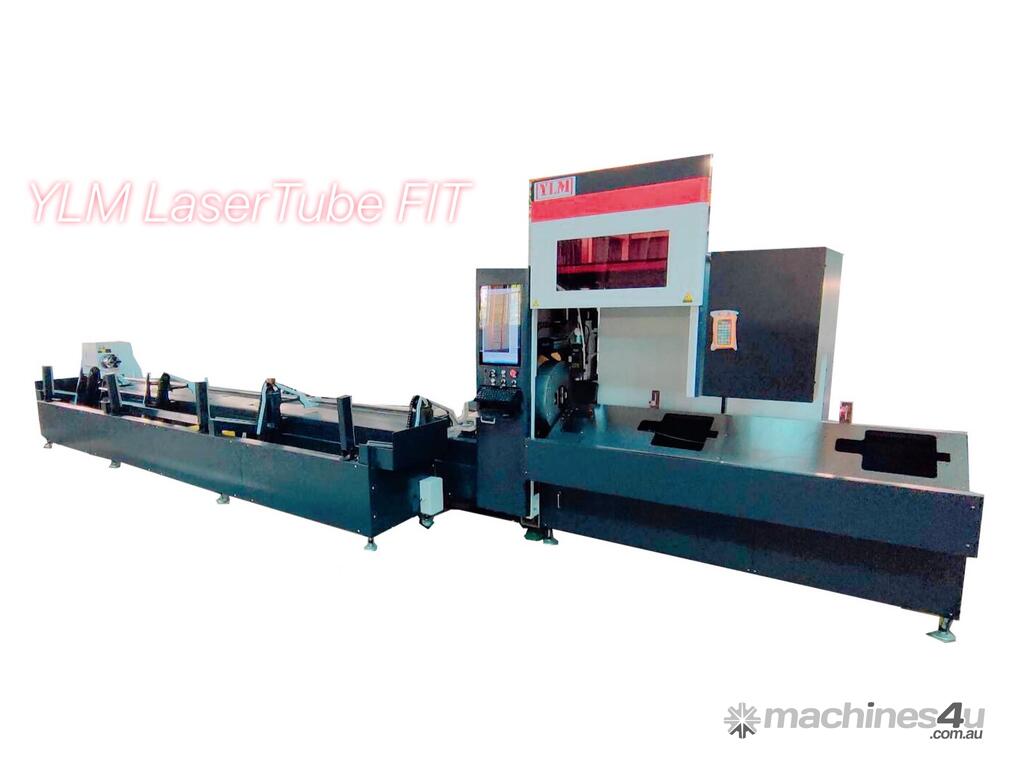

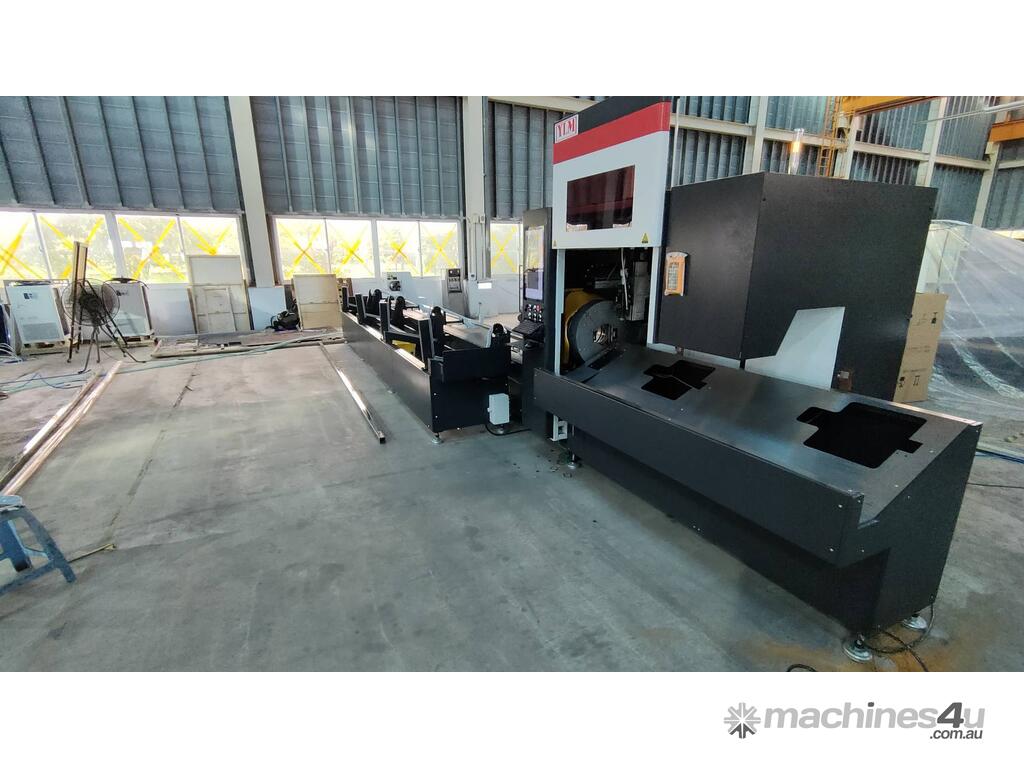

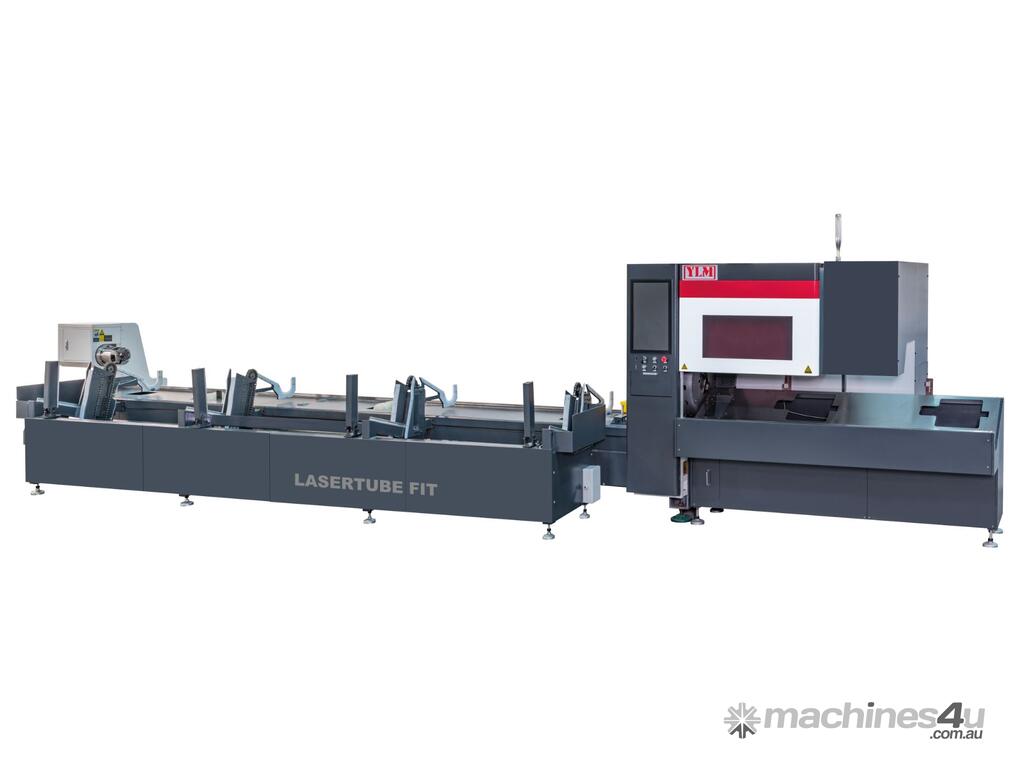

YLM LASERTUBE FIT - Fiber Laser Tube Cutting Machine [made in Taiwan]

YLM Laser cutting machine answering to diversified cutting demands, is helpful and practical to users in field of automotive, furniture, medical and sport, etc.

Fiber Laser Tube Cutting machine, automatic loading fiber laser tube cutting machine

Features of Machine:
-Range of tube wall thickness varies with the laser power.
-Designed for high speed cutting of various tube shapes.
-Equipped with an intelligent digital controller featuring humanized control, which is easy to learn and operate.
-The specially designed software allows the operator to design the desired graphs on characters with ease, then machining can be conducted immediately.
-The machine is driven by servomotors, providing fast and smooth motions and high positioning accuracy.
-The entire machine structure is highly rigid to achieve maximum stability during machining.

Applicable Materials:
-Carbon steel/ Stainless steel/ Aluminum/ Brass/ Copper and other material (different power due to different thickness)

Standard Equipment:
-Water Chiller
-Laser generator
-Laser cutting head
-Blower

Option Equipment:
-Air dryer(tropical climate required)
-Dust collector

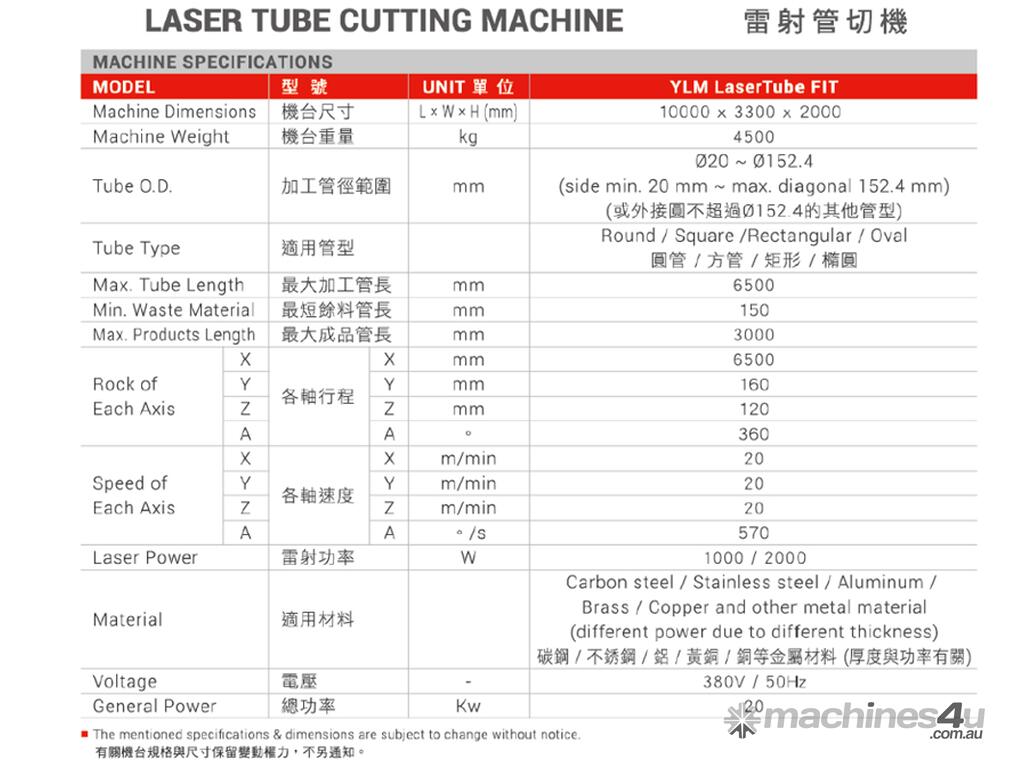

SPECIFICATION
Model YLM LASERTUBE FIT

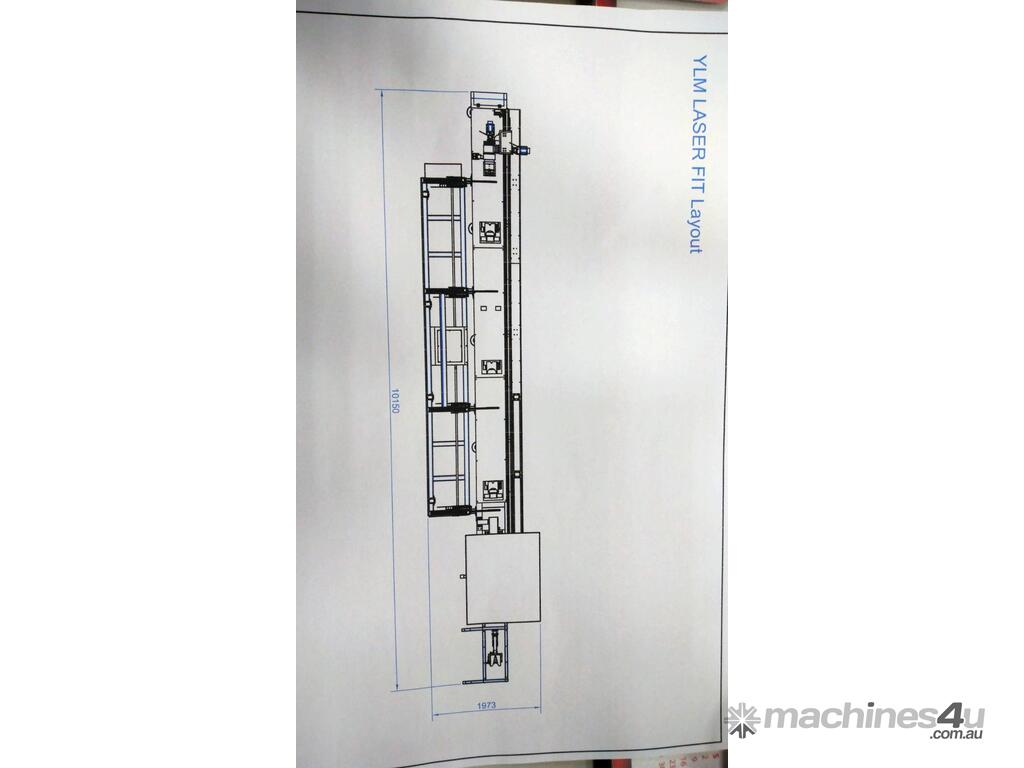

Machine Dimensions (LxWxH mm) 10000x3300x2000
Machine Weight (Kg) 4500
Tube O.D. (mm) ? 20 ~ ? 152.4 (side min. ? 20 mm~ max. diagonal ? 152.4 mm)
Applicable Tube Types Round/ Square/ Rectangular/ Oval
Max. Tube Length (mm) 6500
Min. Residual Material (mm) 150
Max. Products Length (mm) 3000
Axes Travels X (mm) 6500
Y (mm) 160
Z (mm) 120
A (°) 360
Axes Feed Rate X (m/min) 20
Y (m/min) 20
Z (m/min) 20
A (°/s) 570
Laser Power(W) 1000/2000
Total Power(Kw) 20

The mentioned specifications & dimensions are subject to change without notice.

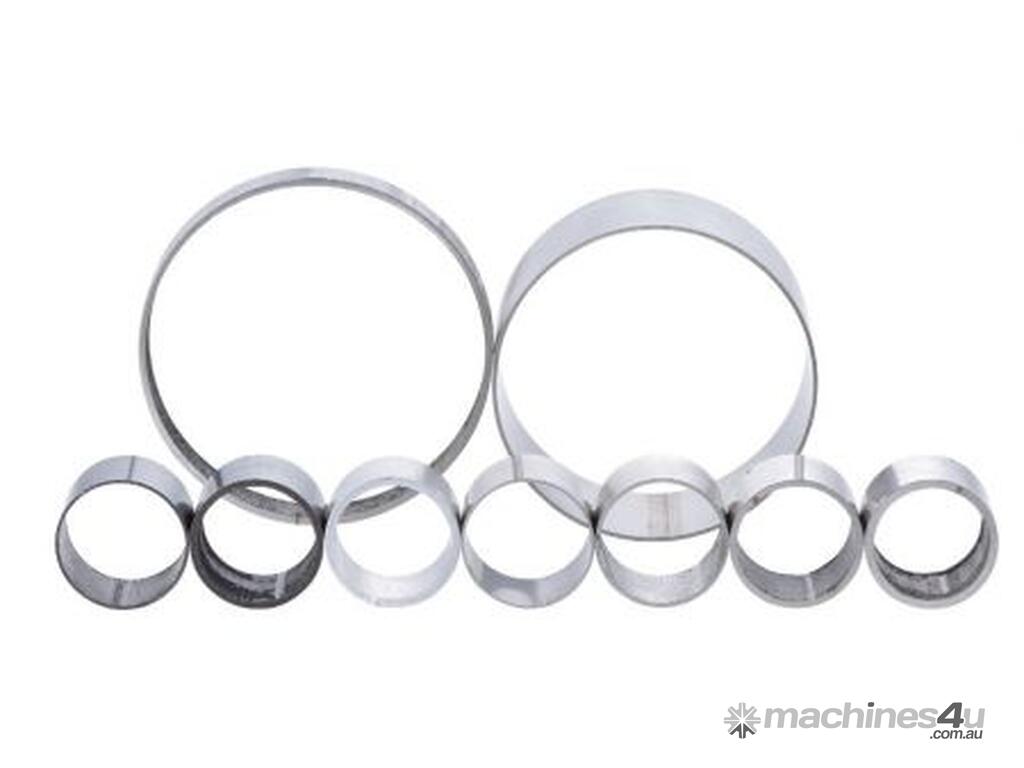

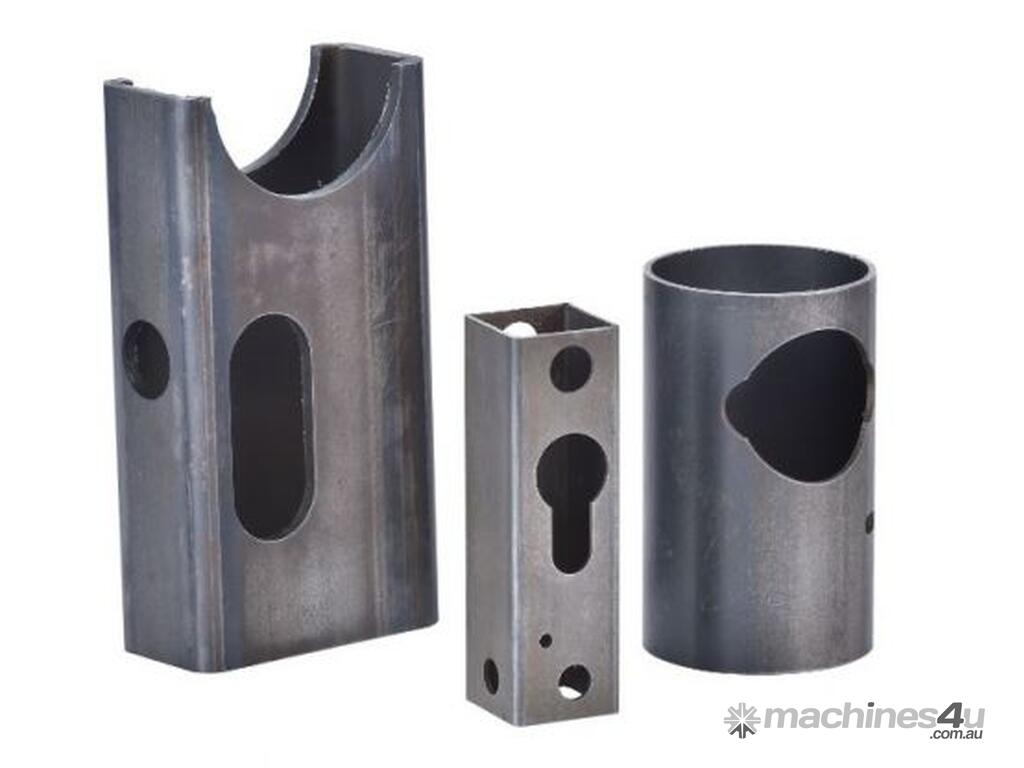

APPLICATIONS
Applicable Industries:
-Automotive/motorcycle
-Bicycle
-Leisure products
-Machine manufacturing
-Aerospace
-Steel structure manufacturing
-Furniture industry
