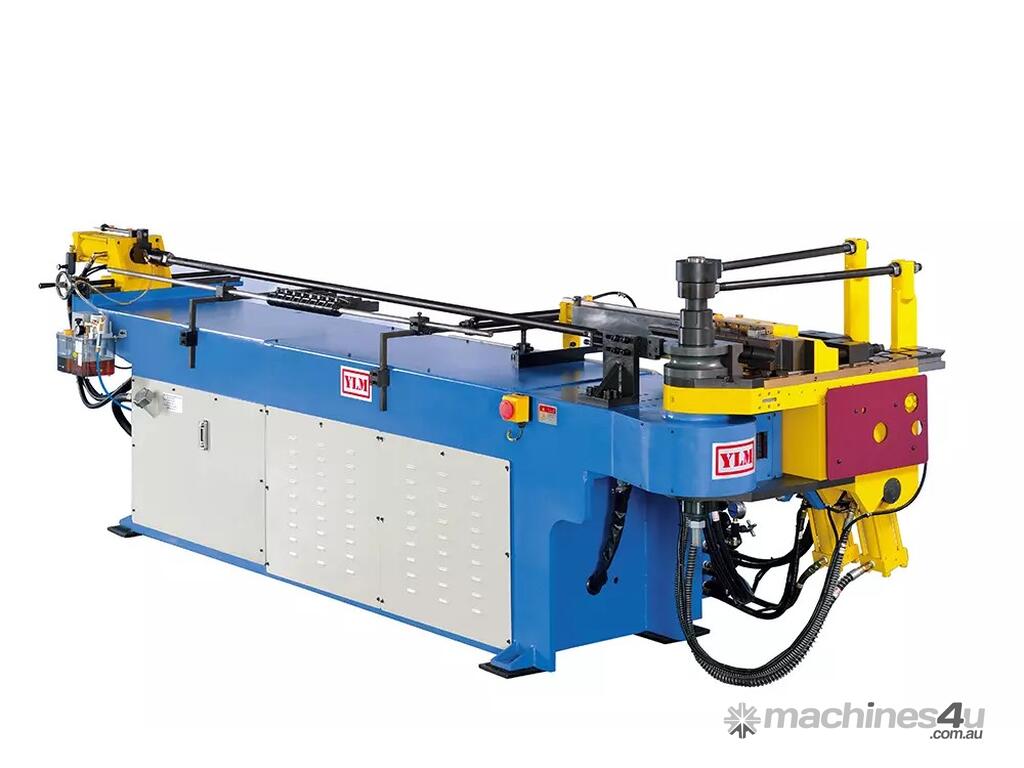

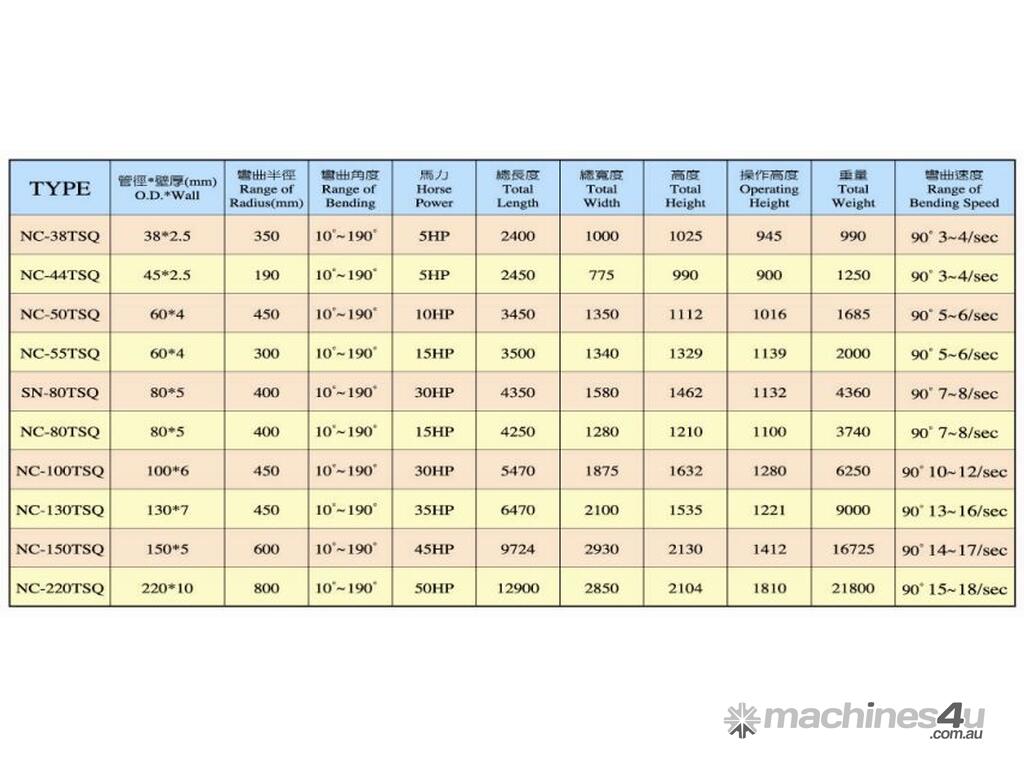

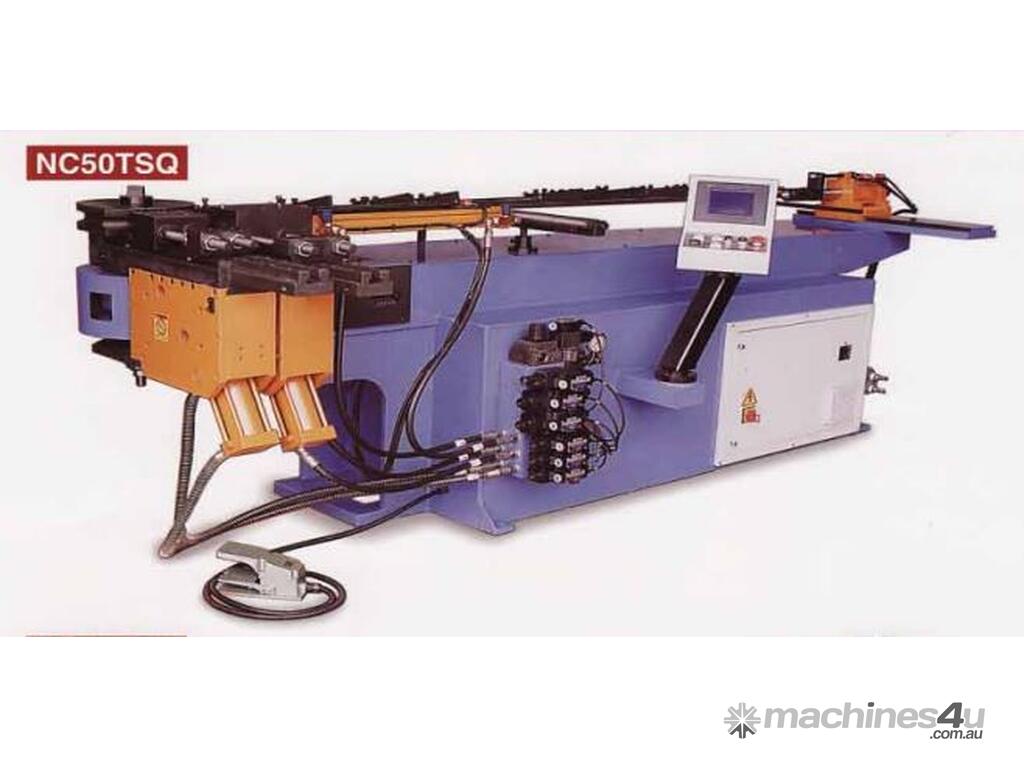

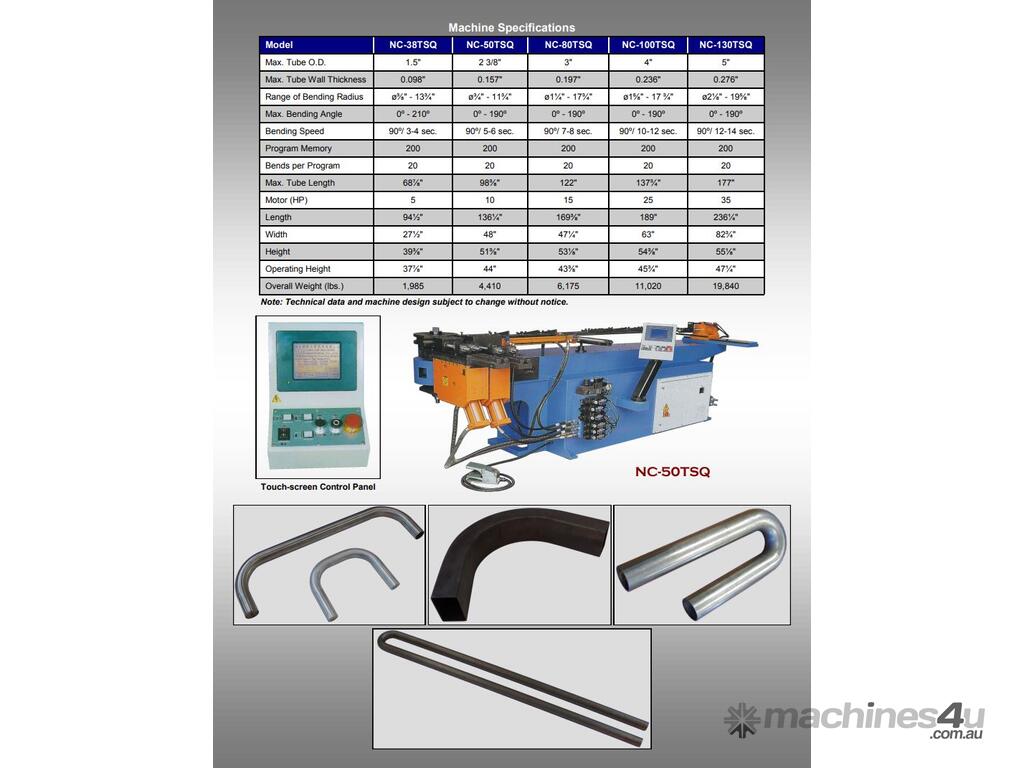

NC 50TSQ Specifications
– Capacity – Carbon Steel 60 mm X 4mm Wall
– Maximum CLR – 450mm
– Total Length – 6100mm.
– Bending speed for 90 degrees – 5 to 6 Secs
– Motor Power – 10hp
– Weight – 3000 Kg.

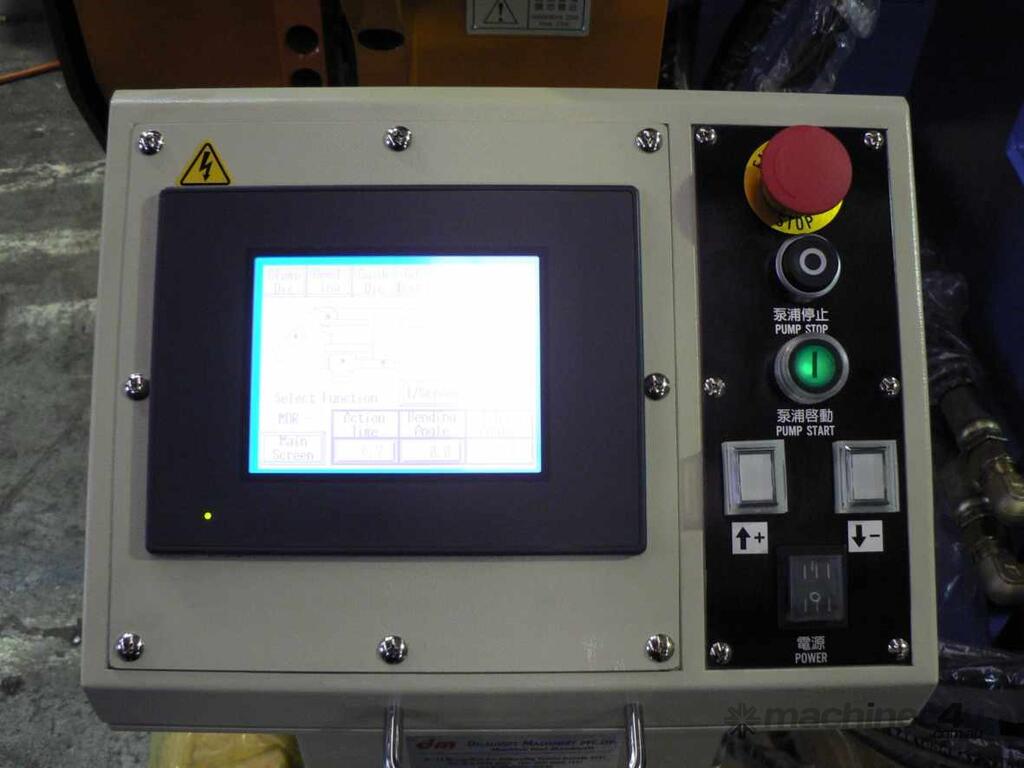

NC Touch Screen Features
• 6? display touch screen simplifies the machine operation and function selection.
• Controlled by high efficient PLC base, can store up to 10 length stop and bend angle settings
• Bending motion is sensed and calculated by Japanese made micro encoder, the angle tolerance is ±0.1.
• The pressure die is used to support the bending motion and has the repeat forwarding and retraction function to minimize the die length.
• The computer system can automatically detect and pinpoint malfunctioning sources and allow an operator to inspect or correct problems.
• Utilising the ssr control system, the bending machine is more stable and efficient.
• 2 step mandrel retraction to produce and perfect finished product.
• Based on the dimension and thickness of the working tube, the operator can set delayed timing after each motion.
• All programmed data and bending sequence can be saved and stored for over 3 years. Installing an additional battery may prolong the data storage time
