YLM – NC tube pipe bender - NC-80 [made in Taiwan]

The machine adopting solenoid valve and integrated circuit to control separately, which can be extend the life of the hydraulic parts.
The computer system can automatically detect shortly malfunctioning point to allow operator to solve problems.
We can supply wide range of bending machines capable of bending tube O.D. up to 203 mm (8” diameter). Tube wall thickness up to 10 m/m.

Features:
• One axis numerical controlled of bending-axis by encoder / hydraulic valves
• Bending angle controlled by micro encoder, provides ± 0.1 tolerance
• Mitsubishi PLC ( Programmable Logic Control ) system
• Provides 200 programs memory, each program with 20 angles (bends)
• Provides anticipated two steps mandrel retraction
• Provides pressure die booster
• Provides pressure die micro adjustment of backward to protect the ball mandrel.
• Provides pressure die repetition
• Bending movement time can be programmable to meet different demands.
• 6” display touch screen to operate the machine easily
• Emergency stop of two safety plates with bending arm for working safety

Bending tooling & Accessories:
• Bending die
• Clamping die
• Pressure die / guide die
• Mandrel (bullet shape)
• 6 pieces of stoppers for tube length control
• A working table for tube rotation fixtures (standard size)
• Wiper die rack
• Ball mandrel / multiple-direction ball mandrel (optional)
• Wiper die (optional)
• Split bending die (optional)

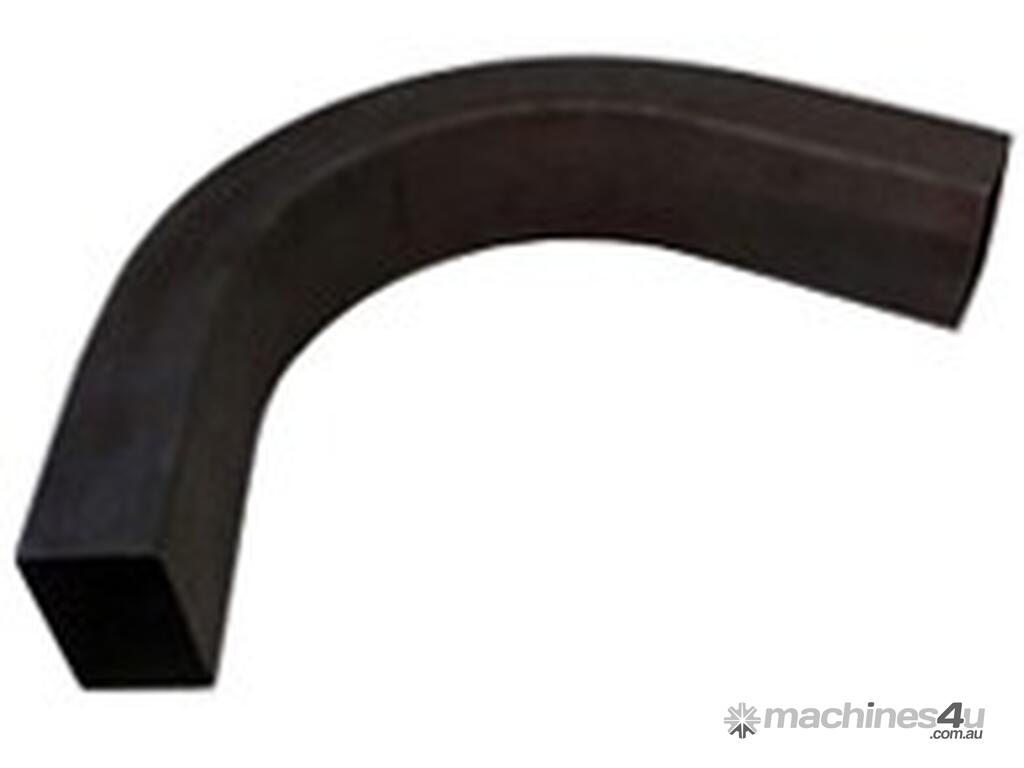

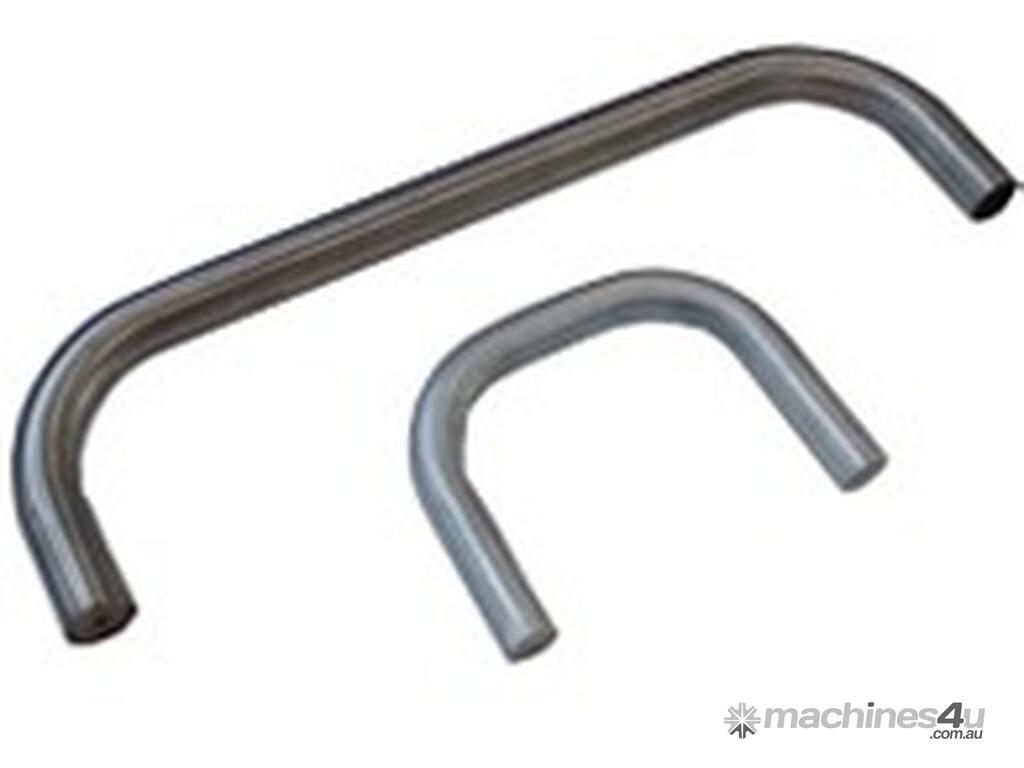

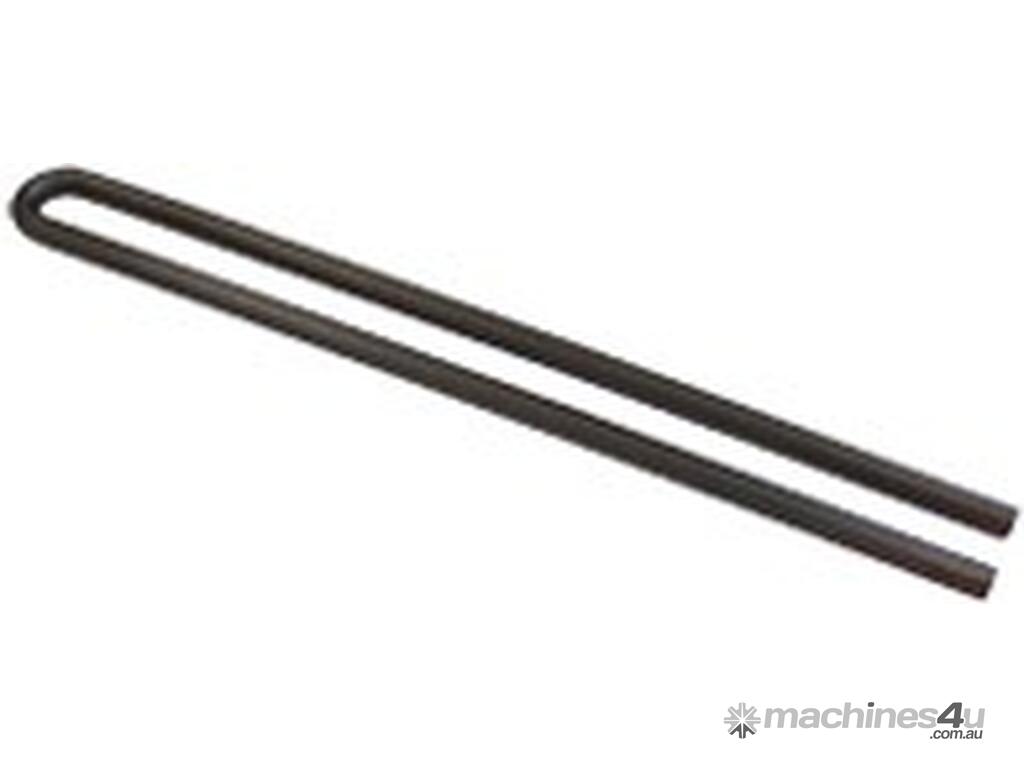

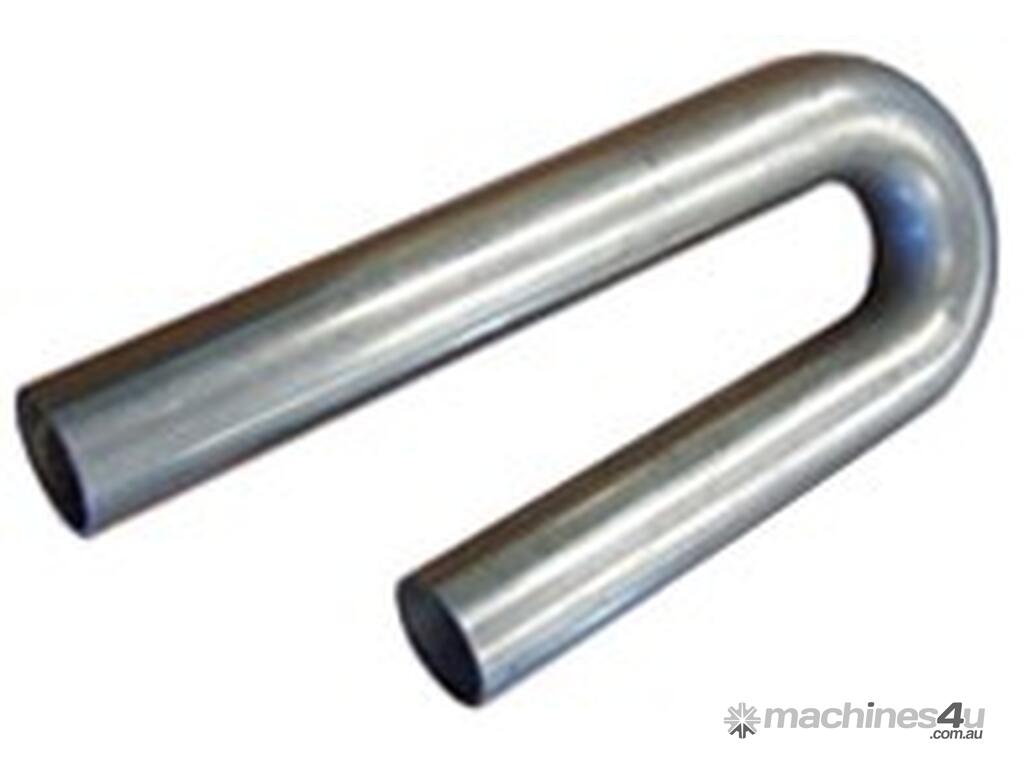

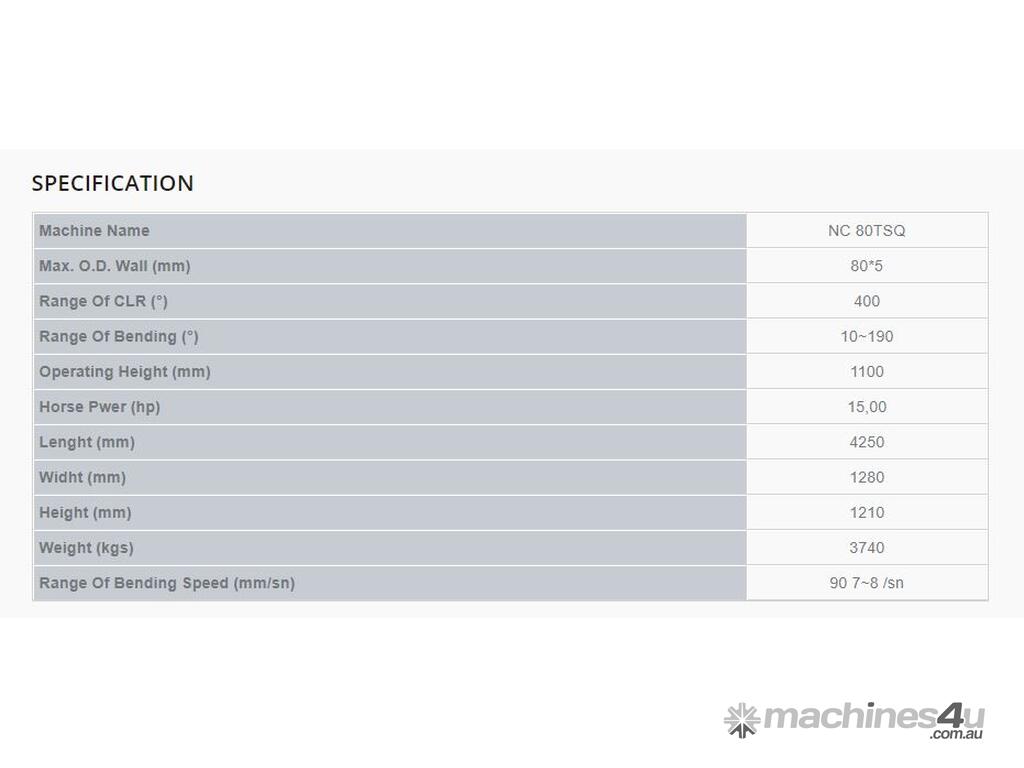

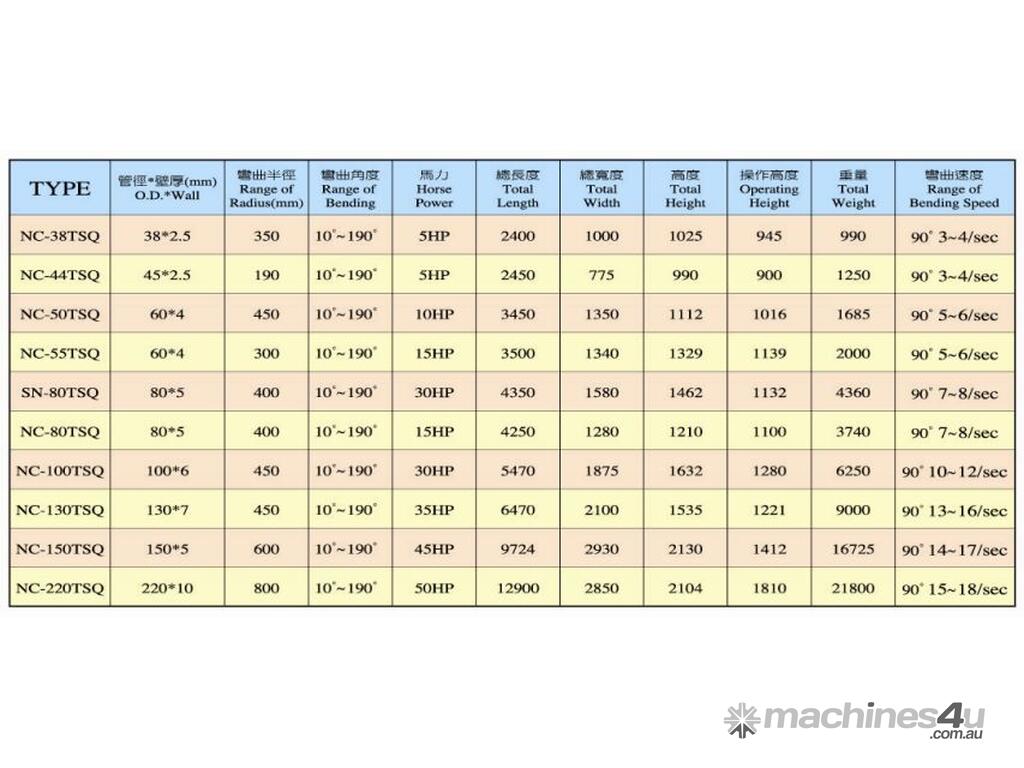

SPECIFICATION
Machine Name NC 80TSQ
Max. O.D. Wall (mm) 80*5
Range Of CLR (°) 400
Range Of Bending (°) 10~190
Operating Height (mm) 1100
Horse Pwer (hp) 15,00
Lenght (mm) 4250
Widht (mm) 1280
Height (mm) 1210
Weight (kgs) 3740
Range Of Bending Speed (mm/sn) 90 7~8 /sn
