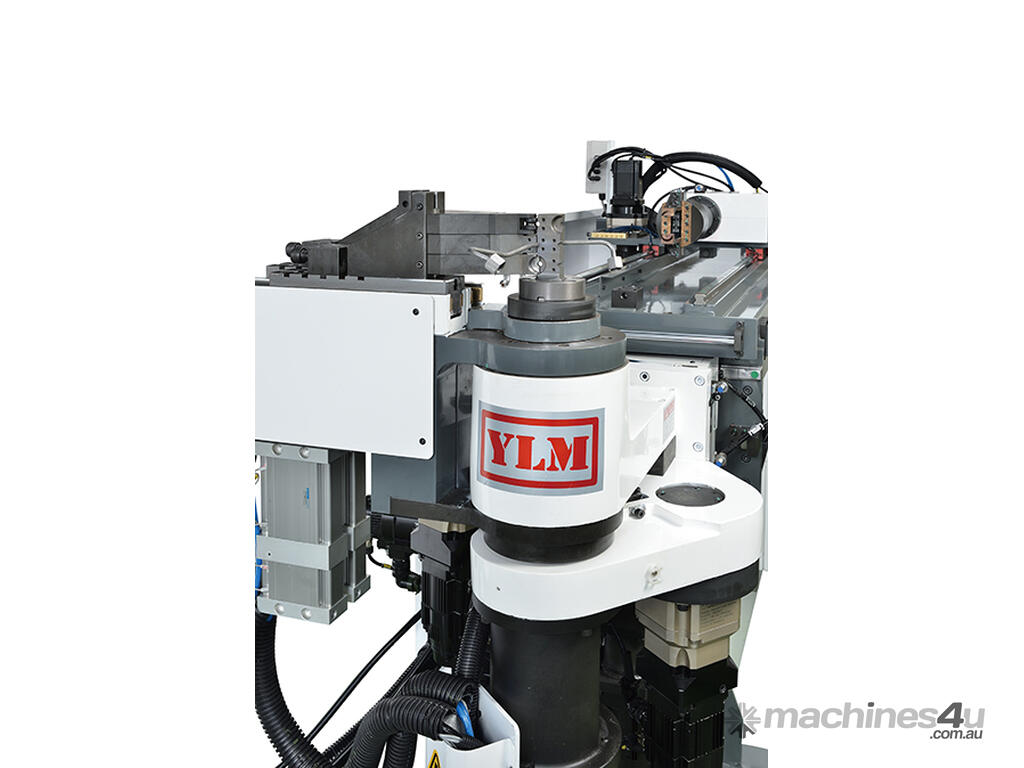

YLM - Right & Left Tube Bender CNC-16 [made in Taiwan]

Fully electric CNC L&R tube bender is in both left-hand & right-hand bending function. A very practical model to meet various bending demands, suitable for symmetrical tube such as furniture production, hydraulic-oil tubing lines, and HVAC tubing & fluid system of automobiles.

Fully electric CNC L&R tube bender is in both left-hand & right-hand bending function.

A very practical model to meet various bending demands, suitable for symmetrical tube such as furniture production, hydraulic-oil tubing lines, and HVAC tubing & fluid system of automobiles.

All electric L&R smart turn tube bender, Right and Left Fully Electric CNC Tube Bender

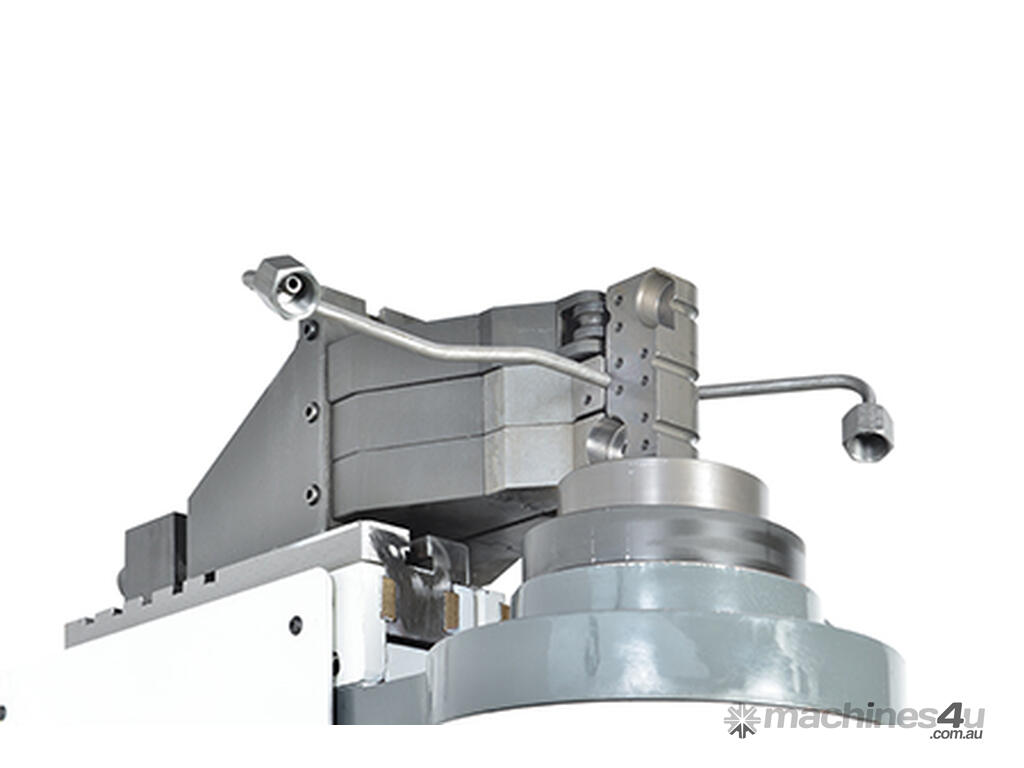

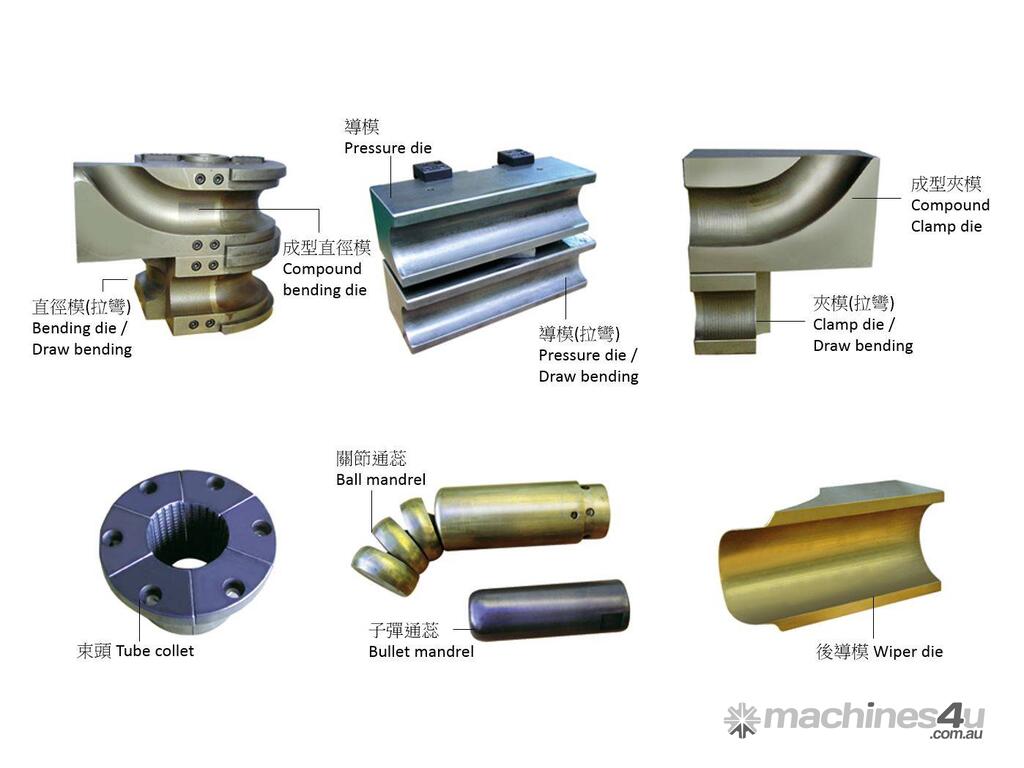

The clamping die and pressure die are an integrated structure, allowing for fast changing bending direction.

SPECIFICATION
Model CNC16-RLDAE
Max. Tube O.D. Bending Capacity (mm) ? 16
Max. Tube Wall Thickness (mm) 1.2
CLR 70
Bending Radius Difference (mm) S1-S2-S3 35
Max. Bending Angle (°) 190
Mandrel Working Distance (mm) 1400
Processing Speed Max. Tube Feeding Speed (mm/sec) 3278
Tube Rotation Speed (°/sec) 450
Max. Tube Bending Speed (°/sec) 600
Repeatability Tube Feeding Precision (mm) ± 0.1
Tube Rotation Precision (°) ± 0.1
Tube Bending Precision (°) ± 0.1
Overall Weight (kg) 1400
Operating Height (mm) 1280
Machine Length (mm) 2885
Machine Width (mm) 1350
Machine Height (mm) 1500
