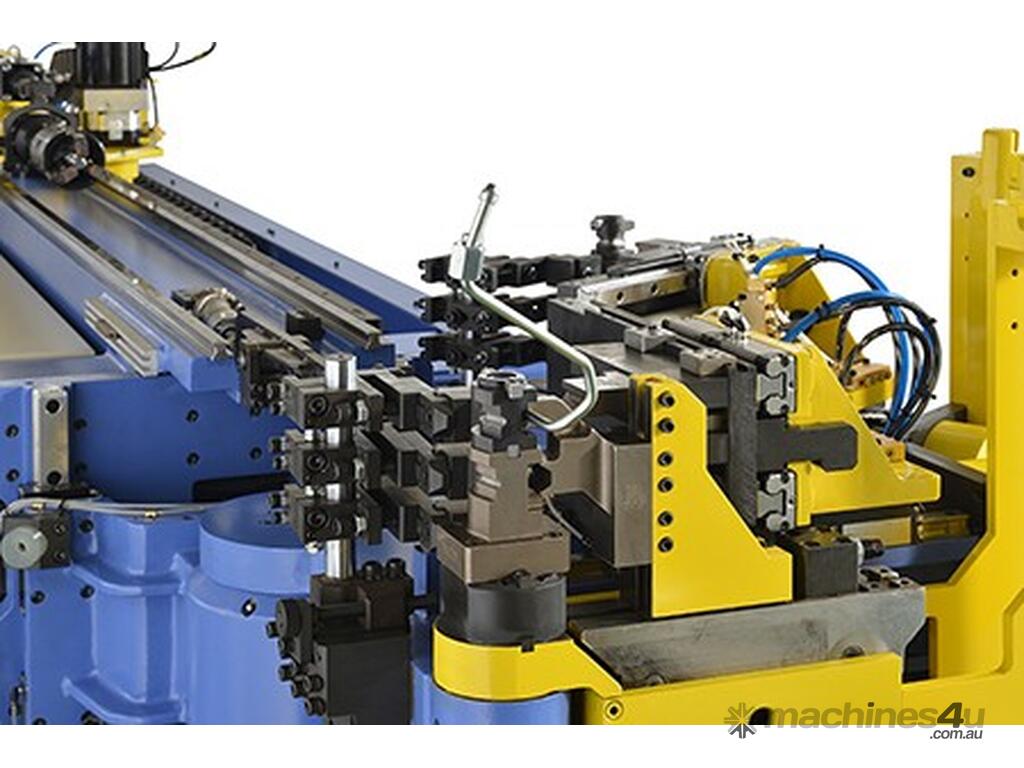

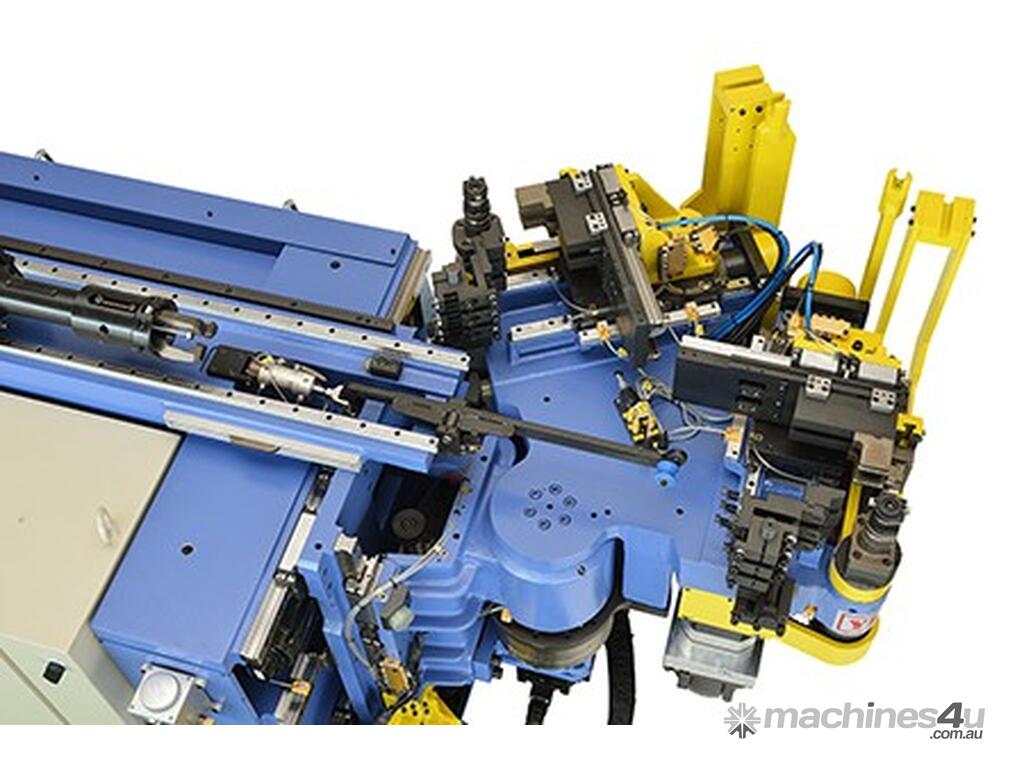

YLM - Right & Left Tube Bender CNC-25 [made in Taiwan]

Fully electric CNC L&R tube bender is in both left-hand & right-hand bending function. A very practical model to meet various bending demands, suitable for symmetrical tube such as furniture production, hydraulic-oil tubing lines, and HVAC tubing & fluid system of automobiles.

Fully electric CNC L&R tube bender is in both left-hand & right-hand bending function.

A very practical model to meet various bending demands, suitable for symmetrical tube such as furniture production, hydraulic-oil tubing lines, and HVAC tubing & fluid system of automobiles.

All electric L&R smart turn tube bender, Right and Left Fully Electric CNC Tube Bender

SPECIFICATION
Model CNC25-RLTAE
Max. Tube O.D. Bending Capacity (mm) ? 25
Max. Tube Wall Thickness (mm) 1.5
CLR 100
Bending Radius Difference (mm) S1-S2-S3 40
Max. Bending Angle (°) 185
Mandrel Working Distance (mm) 1800
Processing Speed Max. Tube Feeding Speed (mm/sec) 1682
Tube Rotation Speed (°/sec) 562
Max. Tube Bending Speed (°/sec) 300
Repeatability Tube Feeding Precision (mm) ± 0.1
Tube Rotation Precision (°) ± 0.1
Tube Bending Precision (°) ± 0.1
Overall Weight (kg) 3200
Operating Height (mm) 1200
Machine Length (mm) 3700
Machine Width (mm) 1350
Machine Height (mm) 1510
