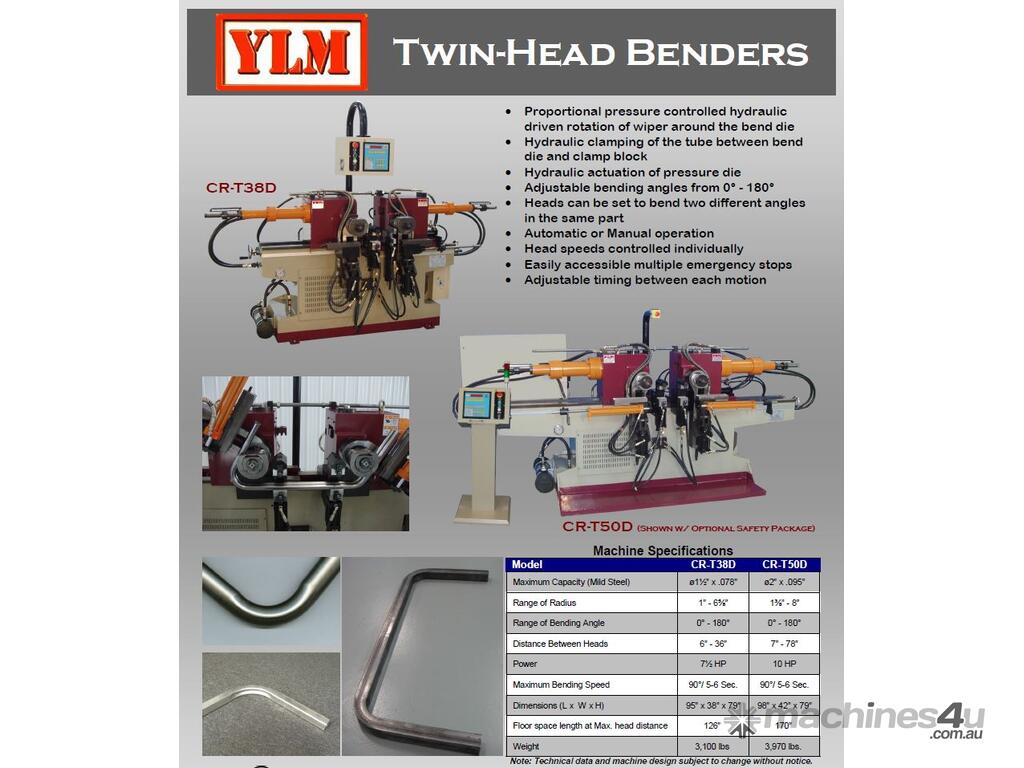

YLM - Twin-head Double-bend tube bender - CR-T50D [made in Taiwan]

• • High production capacity: Max.720 pcs of two-end bending pipes in one hour.
• Bending angles are adjustable from 0°~180°.
• With the proportional pressure control, you can handle 2 pipes synchronously & rapidly and get the final production with precise angles & perfect surface without wrinkles.
• The 2 angles can be different & adjustable. So this machine is the most proper machine for general two-end bending.
• Both manual and automatic operation are available.
• The machine is equipped with emergency stop device.
• Bending angles are adjustable from 0° ~ 180°.
• High production capacity: Max.720 pcs of two-end bending pipes in one hour.
• The distance between the center line of 2 main shafts are 180 m/m (Min.) & 930 m/m (Max.) for CR-T38 type.

Production capacity for CR-T50:
• produce 1 pipe each time for O.D. 51 ~ O.D. 38 m/m .
• Produce 3 pipes (Max.) at the same time for O.D. 22 m/m & smaller pipes. (Tube w.t ? 1.5 m/m)

The CR-T38D and CR-T50D are NC controlled with the ability to bend multiple tubes at one-time. The Bend angles can be adjusted to bend at the same angle or two separate angles.

The YLM Double Head Benders are the best choice for high production two end bending.
YLM Double-Head Benders are suitable for these industries Automotive, Furniture, Hardware, or parts requiring symmetrical bending.

The YLM CR-F38D has the same features as the CR-T38D but is also capable of bending parts with bends on more than one plane. To do this the bend heads are mounted on two rotary tables that can be adjusted to perform multi-plane bends.

Double-Head Bender Features:
• Proportional pressure controlled hydraulic driven rotation of wiper around the bend die
• Hydraulic clamping of tube between bend die and clamp block
• Hydraulic actuation of pressure die
• Adjustable bending angles from 0 to 180 degrees
• Each side can be set to different degree of bends
• Automatic or manual operation
• Each side speed controlled individually
• Easily accessible multiple Emergency Stops
• Possibility to adjust timing between each motion
• Safety scanners and light curtains (optional)
• Material profiles that can be bent on a Double-Head Bender:

Round Tube or Pipe
• Square or Rectangular Tube
• Angle Iron
• Solid Bar
• Aluminum Profile
• Metal section
