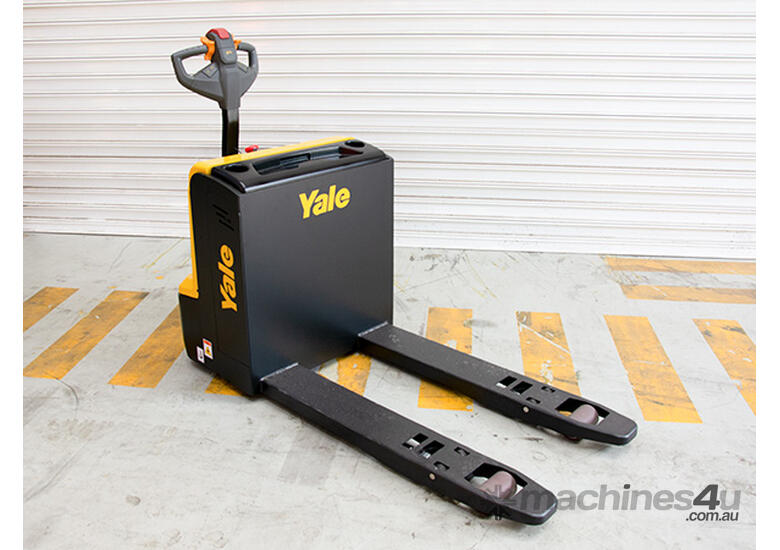

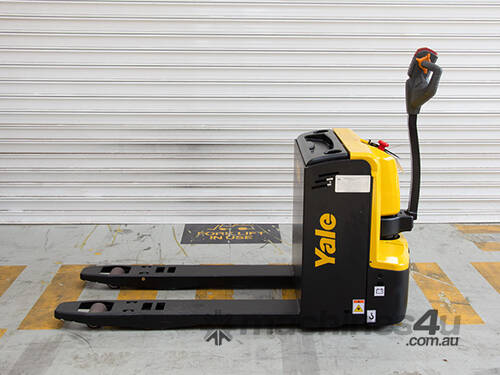

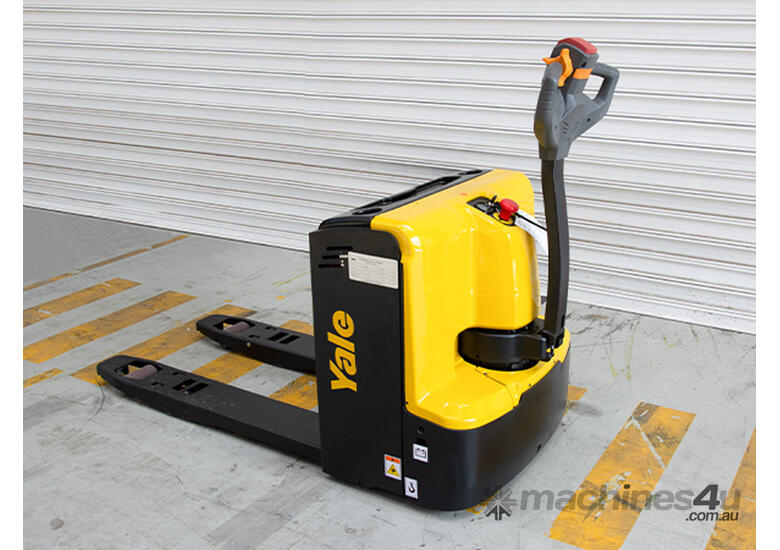

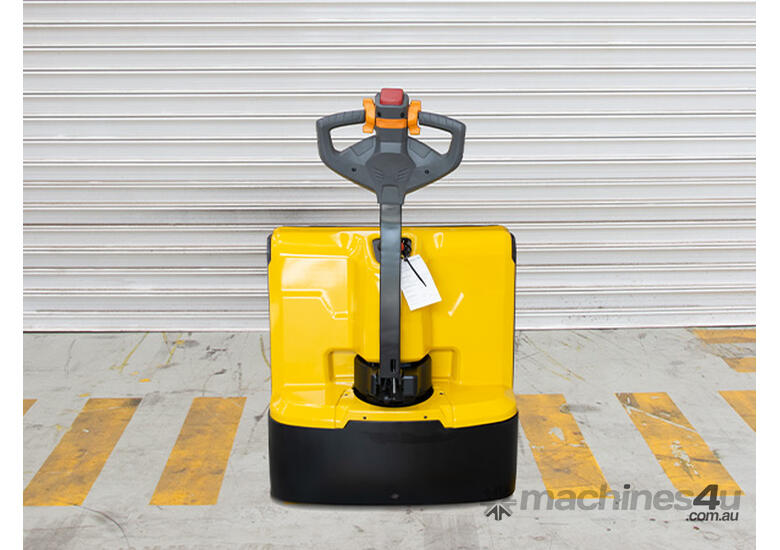

Yale MP20KUX Electric Walkie Pallet Truck

The Yale® electric walkie pallet truck MP20KUX combines both features and reliable performance. This low-maintenance truck can help increase productivity and reduce operational costs for the operator.

Unit Specifications:
- Maximum lift capacity: 2,000kg’s
- Load centre: 600mm
- Lift height: 82 – 202mm
- Maximum lift height: 202mm
- Lowered fork height: 82mm
- Height of tiller arm in drive position: 1,230mm
- Fork size: 685 x 1,150mm
- Max travel speed (laden): 5.5km/h

Battery Specifications:
- 24V battery voltage
- 210Ah battery capacity/type
- Battery dimensions 750 x 170 x 534mm

Productivity
- Advanced AC control system eliminates the motor brushes, which limits maintenance requirements
- Low skirting on main chassis
- Side battery roll-out system is very convenient to replace batteries
- Built-in pressure relief valve protects the trucks from overloading
- Emergency power disconnect switch• Long handle reduces steering effort
- Emergency reversing system in handle
- Low speed switch in the handle
- Variable speed control
- Cold store configuration (optional)

Optimum Structural Design
- Spring-loaded casters improve lateral stability on uneven floors and enhance truck performance and service life
- Formed heavy gauge steel provides maximum fork strength and longevity
- Pull rod design protects against bending
- Durable plastic cover

Serviceability
- CANbus technology reduces wiring complexity
- Low battery protection setting extends the battery life
- All pivot points have grease fittings and serviceable bushing, reducing component wear
