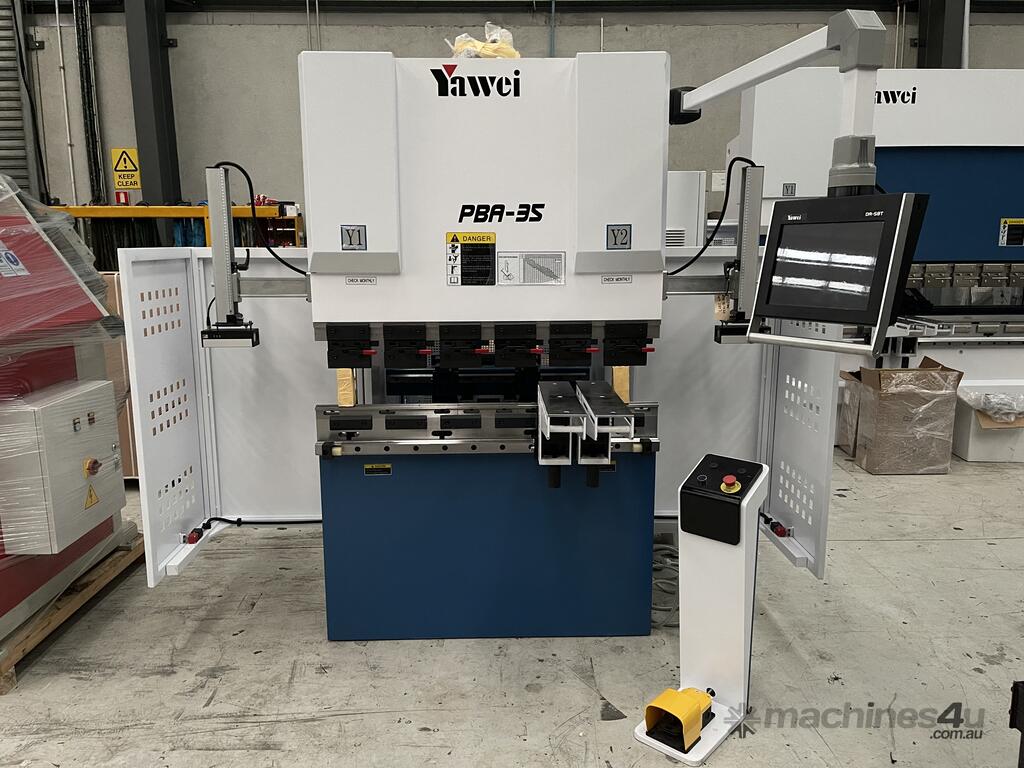

Yawei PBA 35-1250 CNC4 Pressbrake with Delem DA-58T graphical touch screen control. *IN STOCK*

Just arrived into stock and ready for sale, this compact Yawei CNC pressbrake is an extremely accurate, reliable machine suited for the most demanding of bending work.

CNC Y1, Y2, X & R with a power Delem DA-58T graphical control, this machine is everything you need for efficient bending - whether that be on a contract basis, or for in-house work.

Give us a call, or send an enquiry and see why our customers across Australia and New Zealand are choosing Applied and Yawei over the competition.

------------------------------------

NEW Yawei Synchro PBA 35-1250 CNC4 Pressbrake.

Features include:

- 35 ton bending force
- 1250mm maximum bending length
- 950mm between frames
- 300mm throat
- 120mm ram stroke
- 450mm open height
- 3 axis CNC: Y1, Y2, R & X

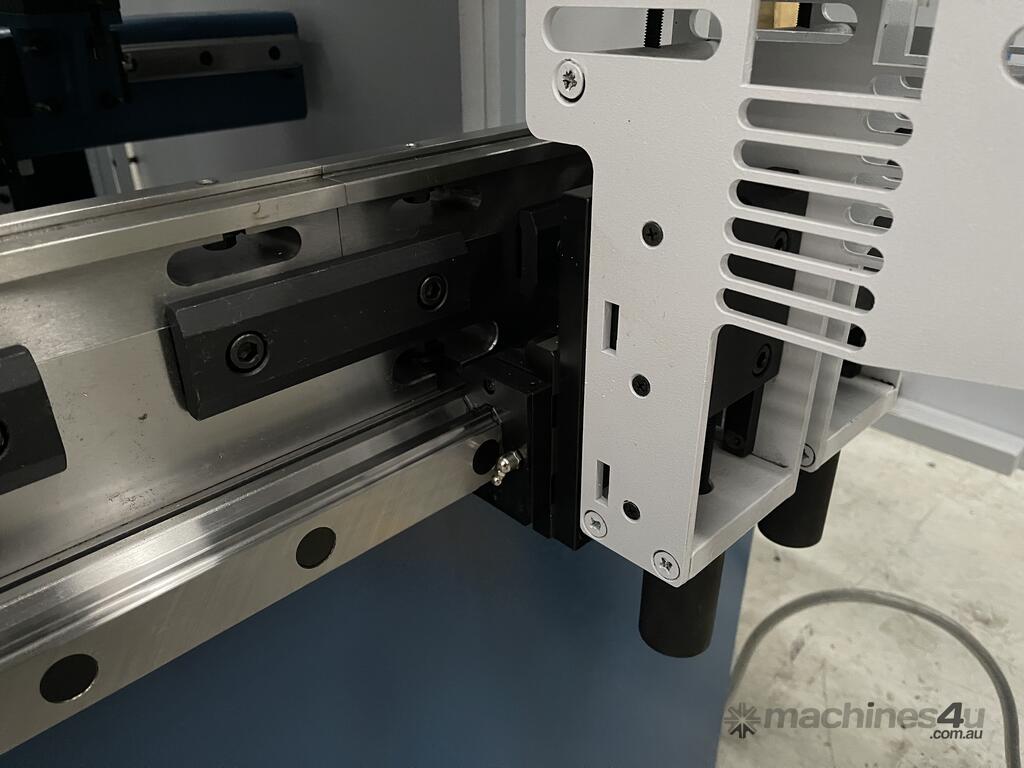

- 2 backgauge fingers
- 2 front sheet supports free running on a linear rail

Tooling:

- Rolleri (Italy) top and bottom tooling

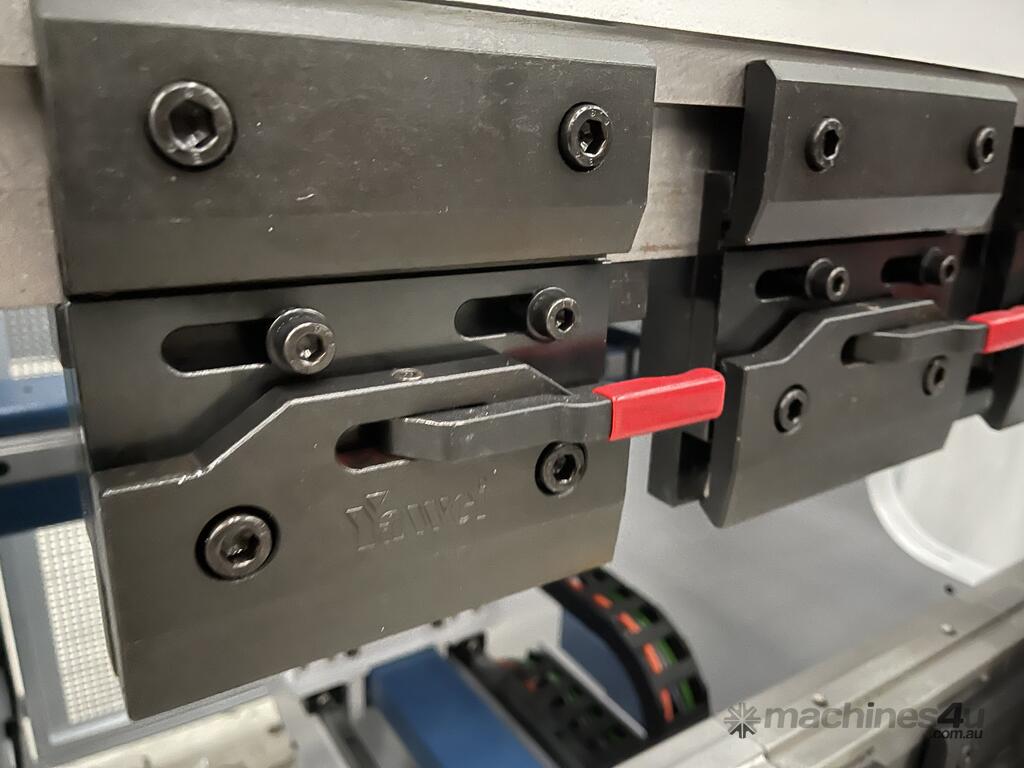

- quick clamps

Controller:

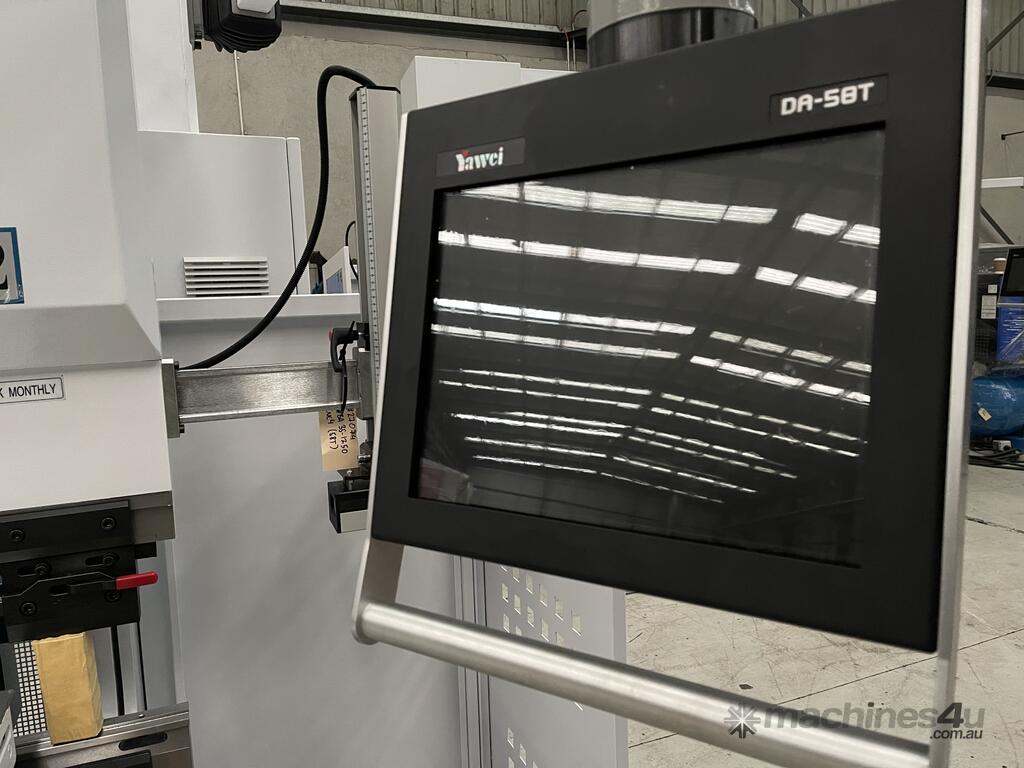

- Delem DA-58T Graphical CNC Touch Screen
- 2D graphical touch screen programming
- 15" high resolution colour TFT
- Bend sequence calculation
- Crowning control
- Servo and frequency inverter control
- Advanced Y-axis control algorithms
- USB, peripheral interfacing

Guards:

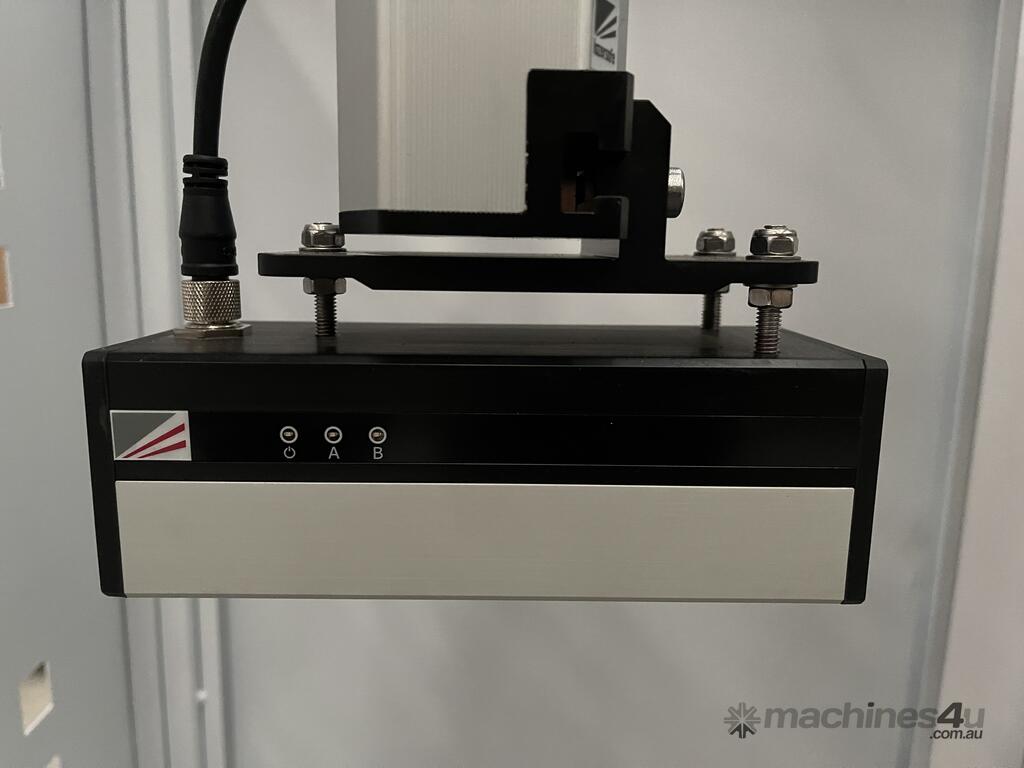

- Lazersafe light guarding system for maximum protection whilst maintained maximum speed (Australia)
- rear and side physical guards with safety interlock

General:

- Heidenhain linear scales
- Hoerbiger hydraulic system (Germany)
- motor power: 4kW
- machine size: 1720 x 1390 x 2340mm
- machine weight: 2700kg
