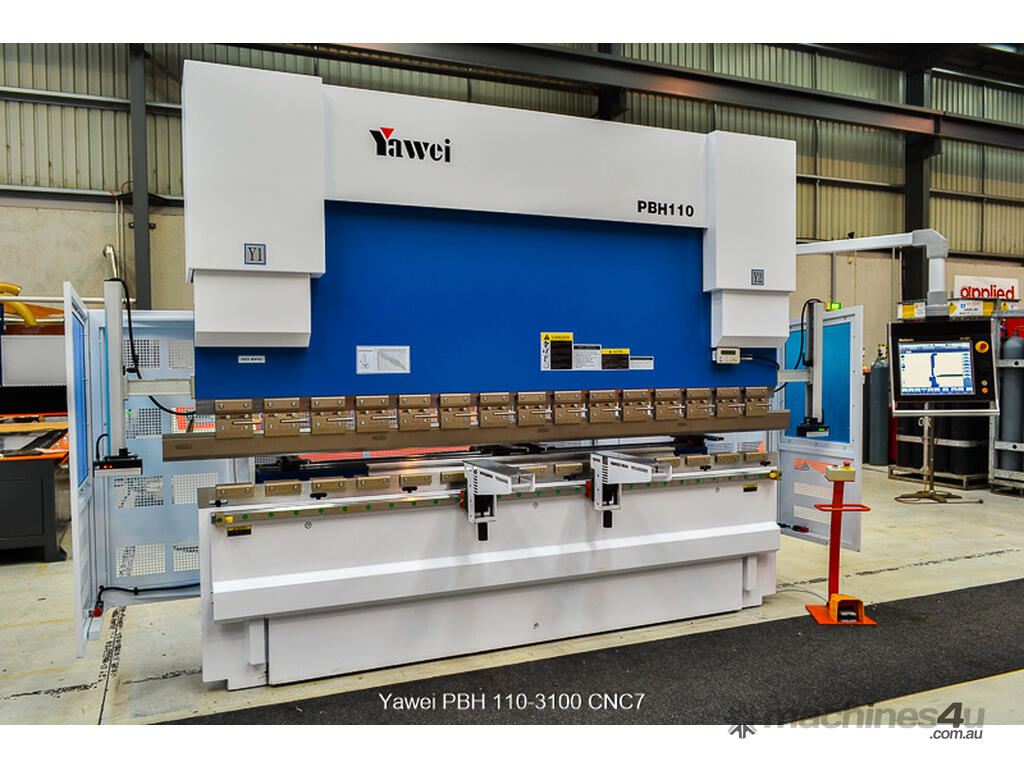

Yawei PBH 110-3100 CNC7 Precision CNC Synchronised Pressbrake

We have sold over 250 Yawei CNC Pressbrakes across Australia. Over the course of our 12 year partnership with Yawei, these machines have become one of Australia's favourite CNC pressbrakes. It's not hard to see why.

- FEATURES
- QUALITY
- RELIABILITY
- PRICE

Give us a call for the full rundown on these precision CNC machines. Don't just take our word for it though, we'll happily give you a reference list to speak to users of these machines.

-----

Features include:

- 110 ton bending force
- 3100mm bending length
- 2600mm between frames
- 410mm throat depth
- 215mm ram stroke
- 520mm open height
- 7 axis CNC (Y1, Y2, X, R, Z1, Z2 & CNC hydraulic crowning compensation)

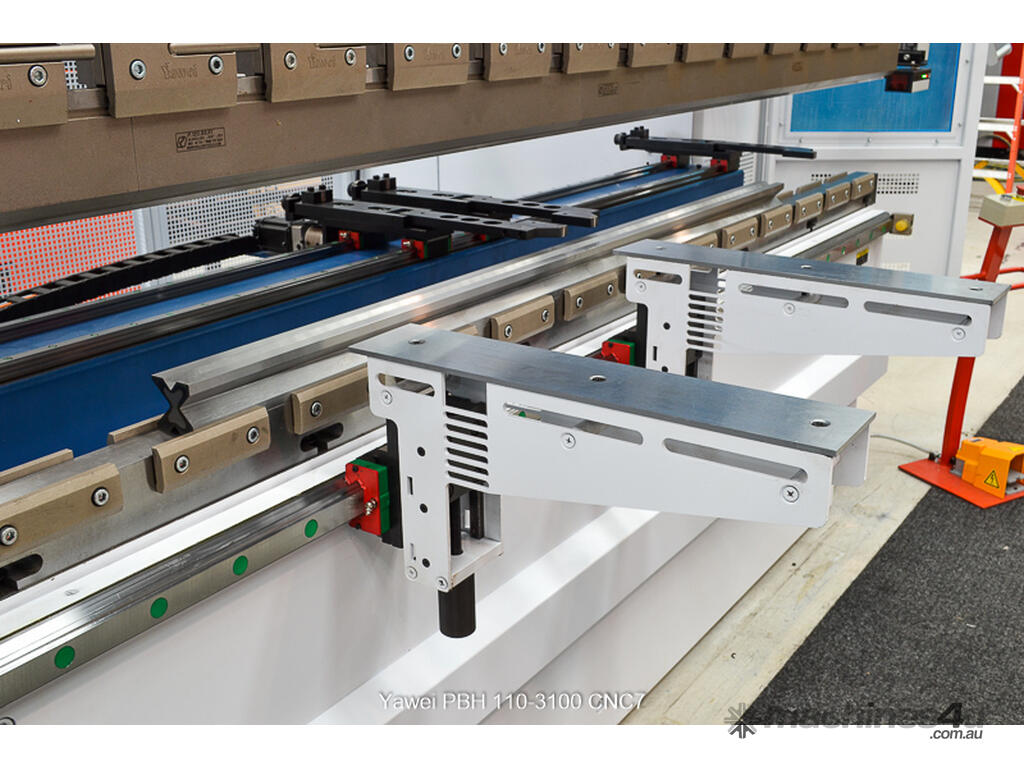

- 2 front sheet supports moving freely on linear guide

Controller:

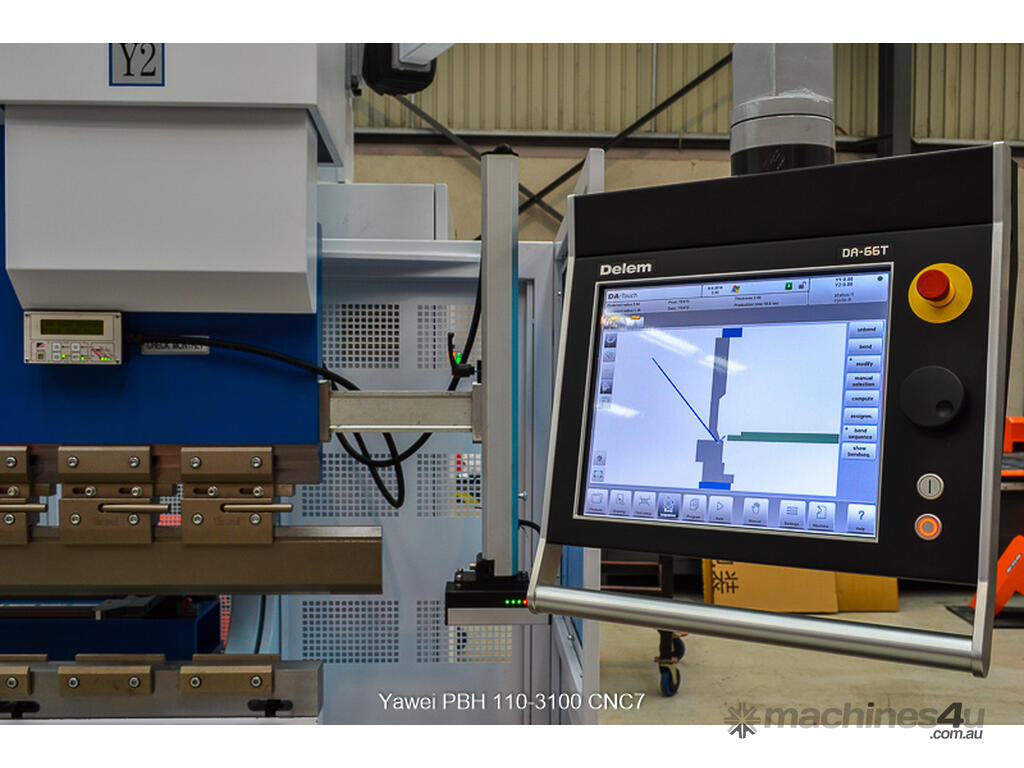

- Delem DA-66T touch screen graphical CNC control
- 2D graphical touch screen programming mode
- 3D visualisation in simulation and production
- 17 inch high resolution colour TFT
- Full Windows application suite
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the controllers multitasking environment
- Sensor bending & correction interface
Tooling:

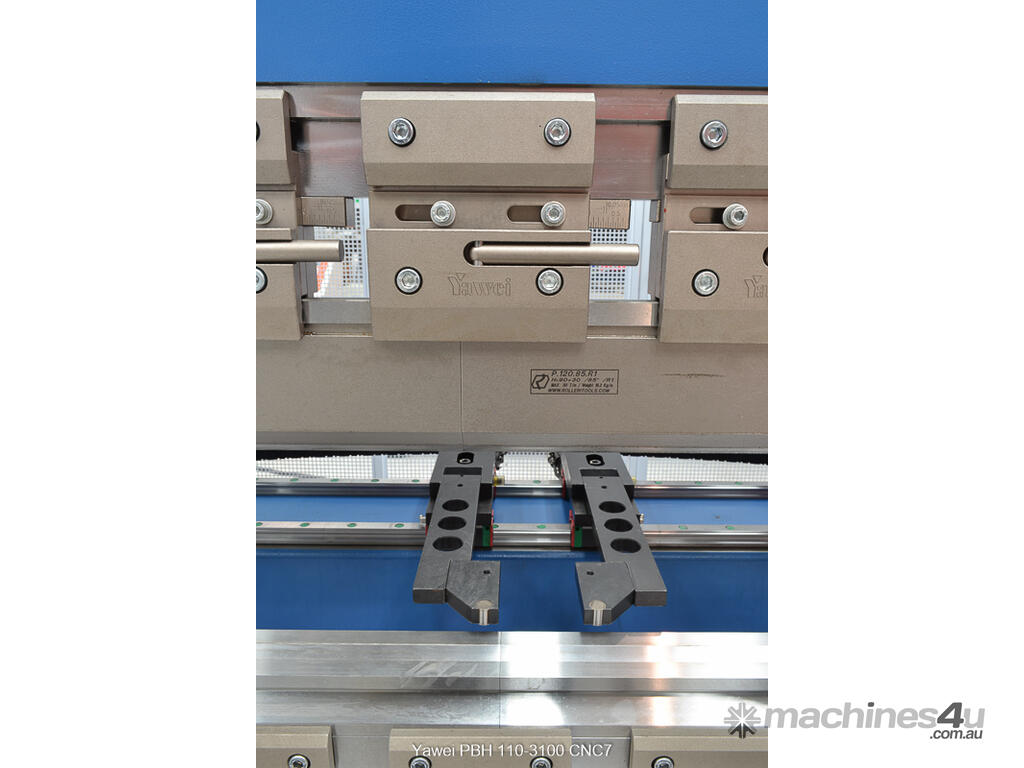

- Full set of Rolleri (Italian) top tooling in 835mm lengths
- Full set of Rolleri (Italian) bottom tooling in 835mm lengths
- Quick release clamps for fast, efficient tool changes

Guards:

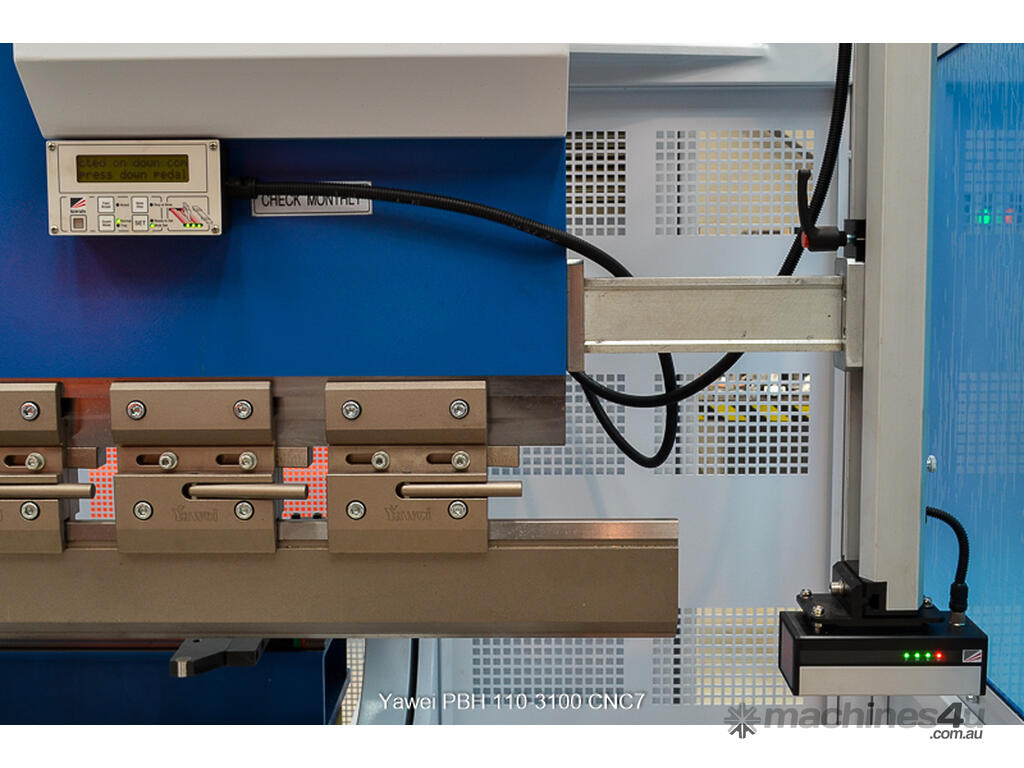

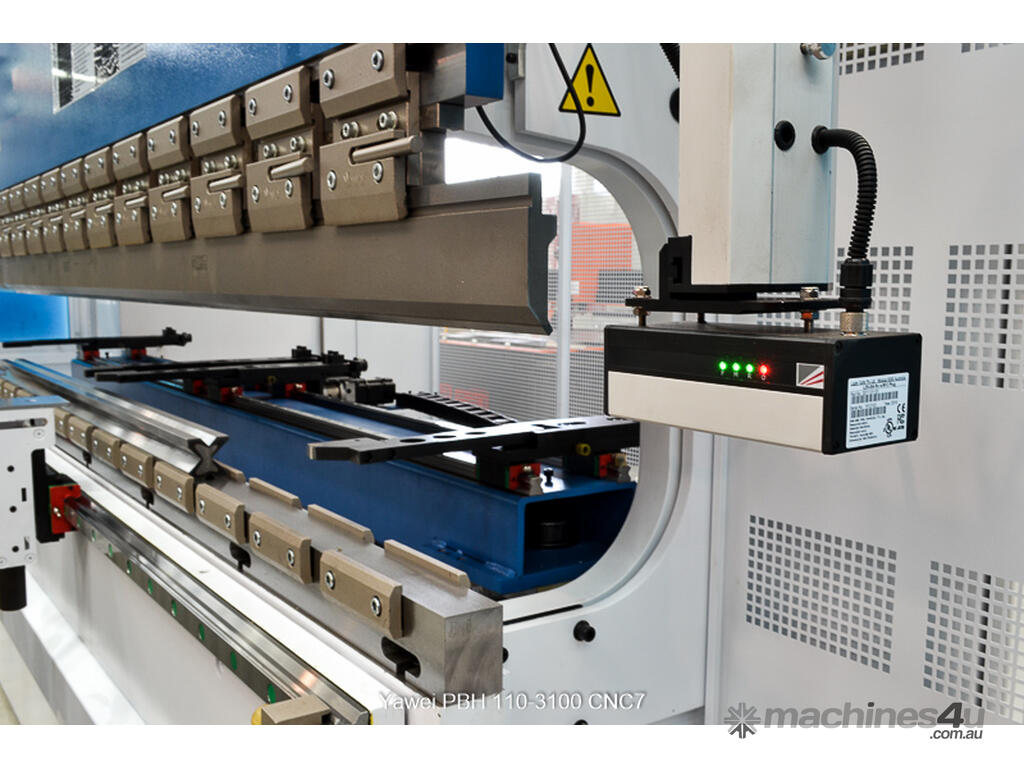

- Lazersafe Light Guard System (Australia)
- Physical rear and side guards with interlock

General:

- Hoerbiger hydraulic system (Germany)
- Heidenhain linear scales
- Sumitomo oil pump
- Deformation compensation on throat

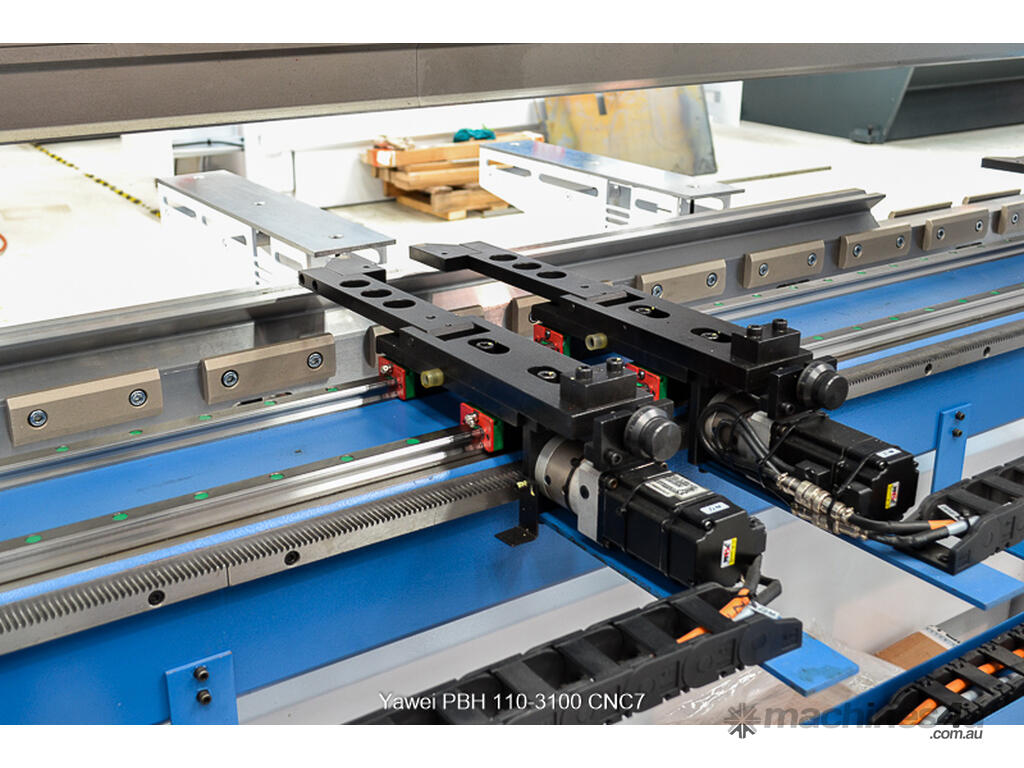

- precision ballscrew backgauge, AC servo motor driven and running on a linear guide.
- 11kW main motor power
- 300L oil tank
- Weight: 9,800kg
- Size: 3590 x 1540 x 2530mm

All Yawei Synchro PBH series pressbrakes maintain perfect control of the beam positioning at all times. This is achieved by fully closed loop electro-hydraulic servo control of Y1 & Y2. The beam position is measured by independent linear scales, attached to decoupled measuring frames.

These pressbrakes are of the highest quality and are perfectly suited to high production, high accuracy work environments.

** Delem DA-52S controllers are also available
