Yawei PBH 250-4100 CNC7 Pressbrake with Delem DA-66T & Rolleri Tooling |-- IN STOCK--|

This NEW Yawei PBH series CNC pressbrake is here in stock in Melbourne and ready for immediate sale and delivery.

250 ton bending force with a maximum bending length of 4100, this machine has 7-axis CNC controlled, Delem DA-66T graphical touch screen controller with 3D visualisations, Lazersafe guarding and is full tooled with Rolleri profiles - top and bottom.

See why Yawei CNC pressbrakes have become one of Australia's most popular CNC pressbrake. The impressive list of features, coupled with the extremely competitive price point stacks up next to anything in the market.

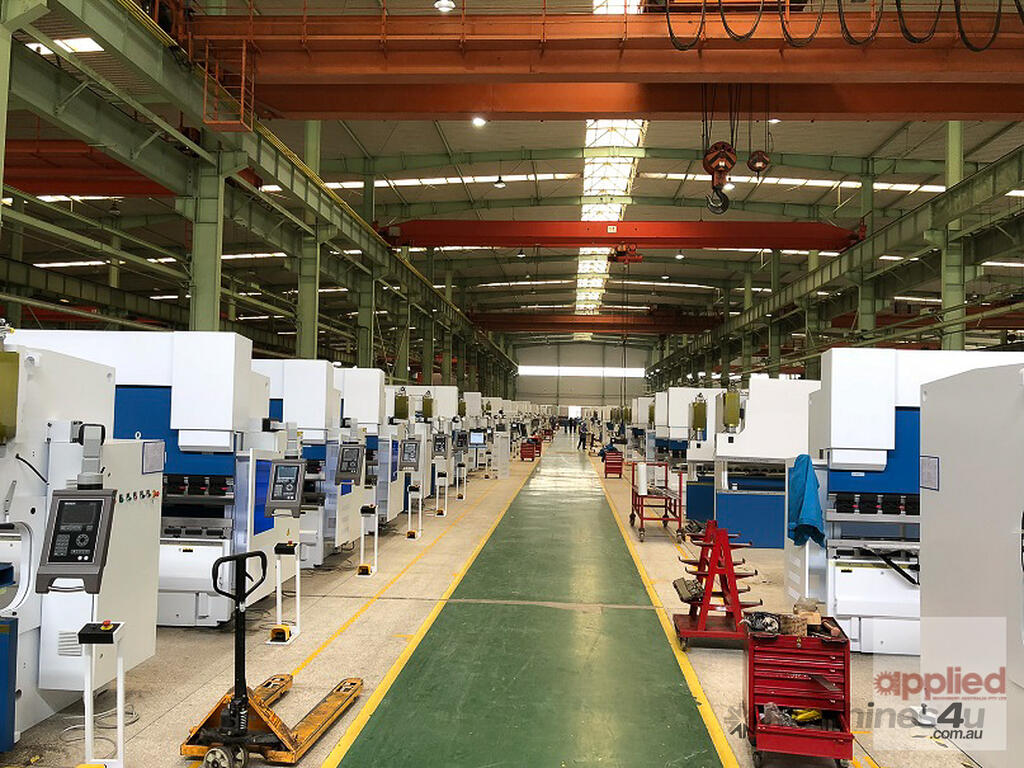

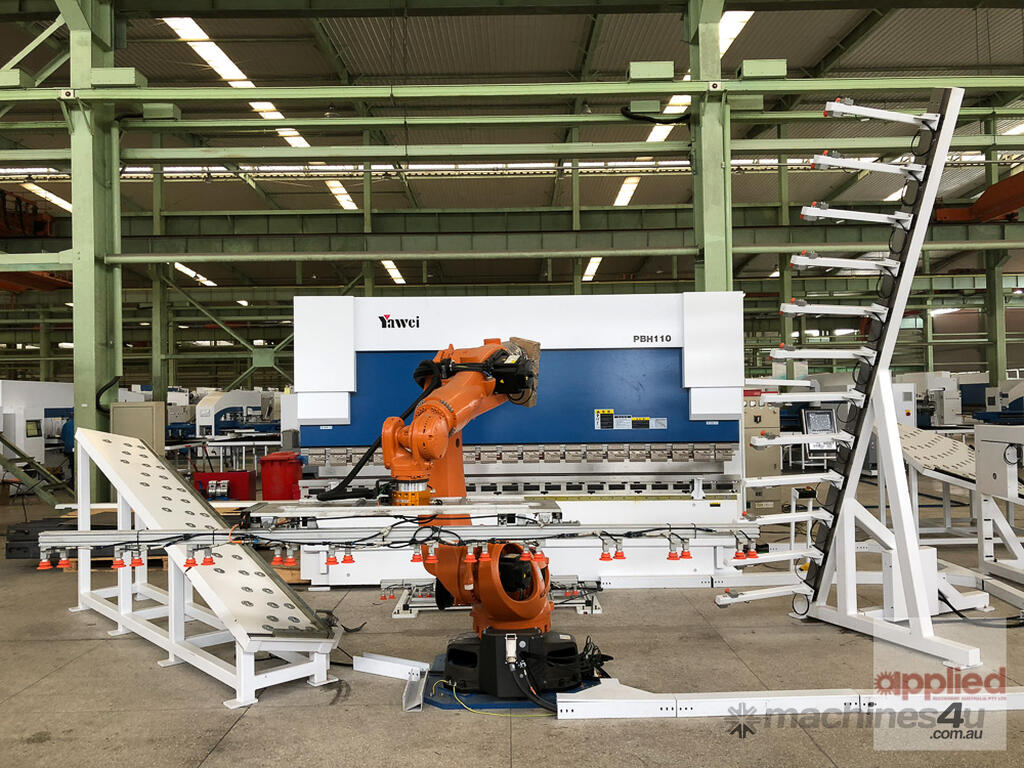

Over our 12 year partnership with Yawei, Applied Machinery has supplier over 250 CNC pressbrakes to happy customers across Australia and New Zealand. I've attached a few photos from the Yawei pressbrake factory (they have more for lasers, turrets and automation) so you can appreciate the scale of the company we are talking about.

---------------
Arrange a demonstration at your convenience. We have a machine set up for demonstration purposes at all times.
---------------

Whether you are new to CNC bending, or having been running similar pressbrakes for many years, we are confident that we will be able to present a compelling case as to why a new Yawei machine will be a good choice for your company

Take a look at the features ….

- 250 ton bending force
- 4100mm bending length
- 3600mm between frames
- 410mm throat depth
- 215mm ram stroke
- 530mm open height
- 7 axis CNC (Y1, Y2, X, R, Z1, Z2 & CNC hydraulic crowning compensation)

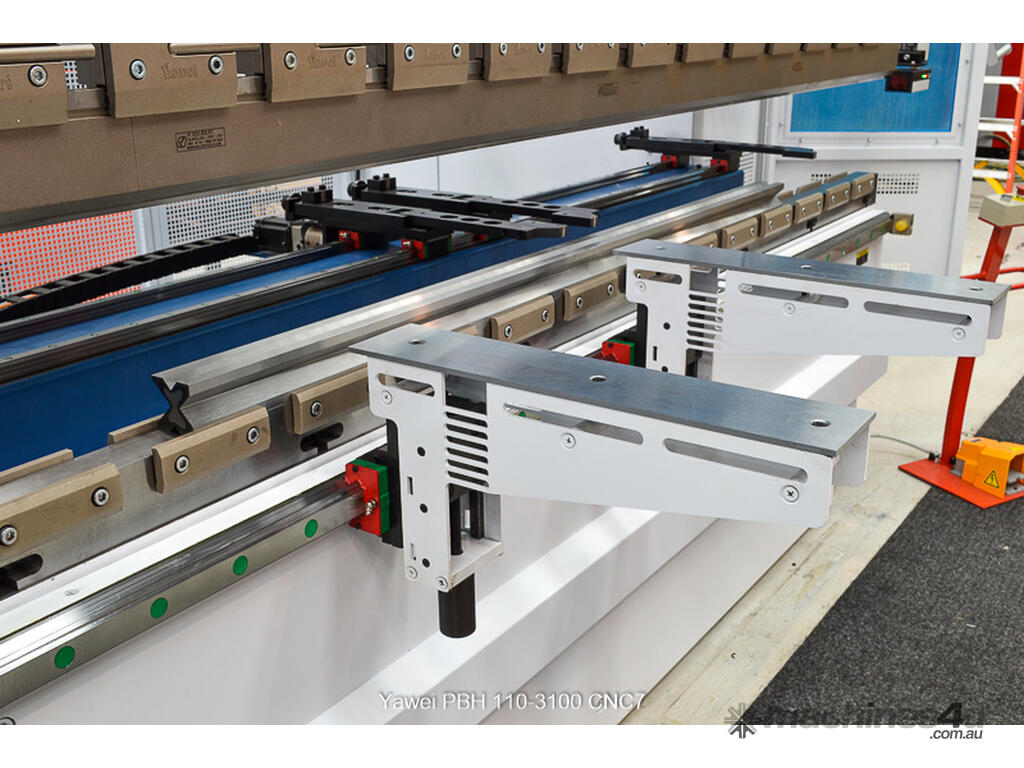

- 2 front sheet supports moving freely on linear guide

Controller:

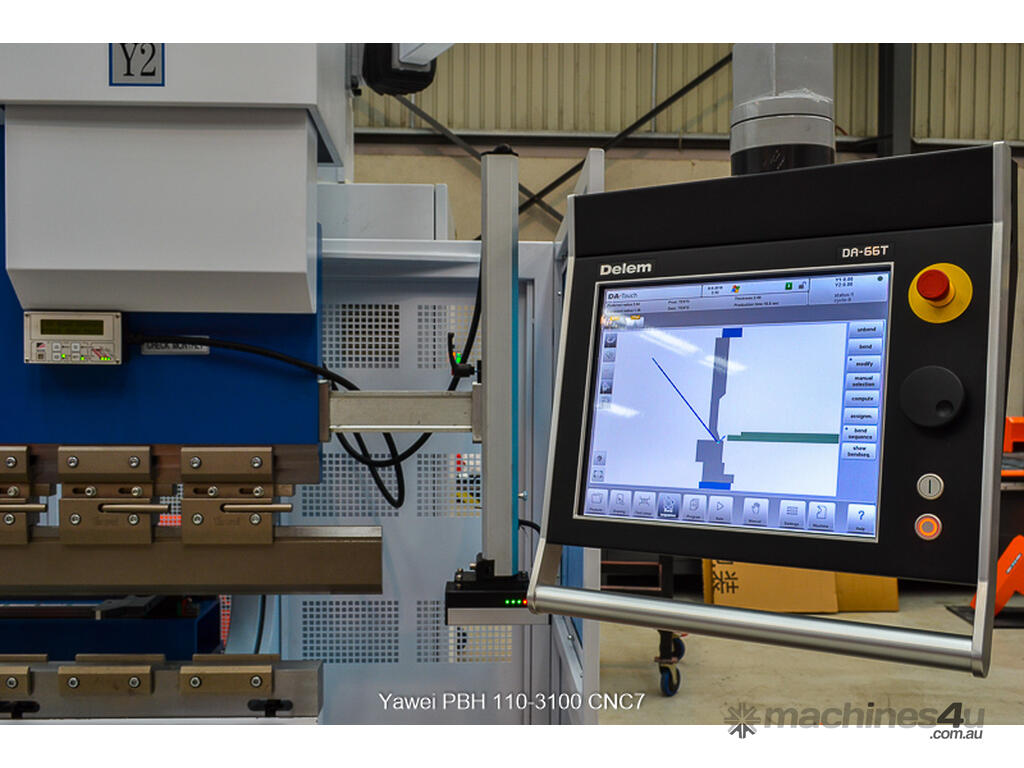

- Delem DA-66T touch screen graphical CNC control
- 2D graphical touch screen programming mode
- 3D visualisation in simulation and production
- 17 inch high resolution colour TFT
- Full Windows application suite
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the controllers multitasking environment
- Sensor bending & correction interface

Tooling:

- Full set of Rolleri (Italian) top tooling in 835mm lengths
- Full set of Rolleri (Italian) bottom tooling in 835mm lengths

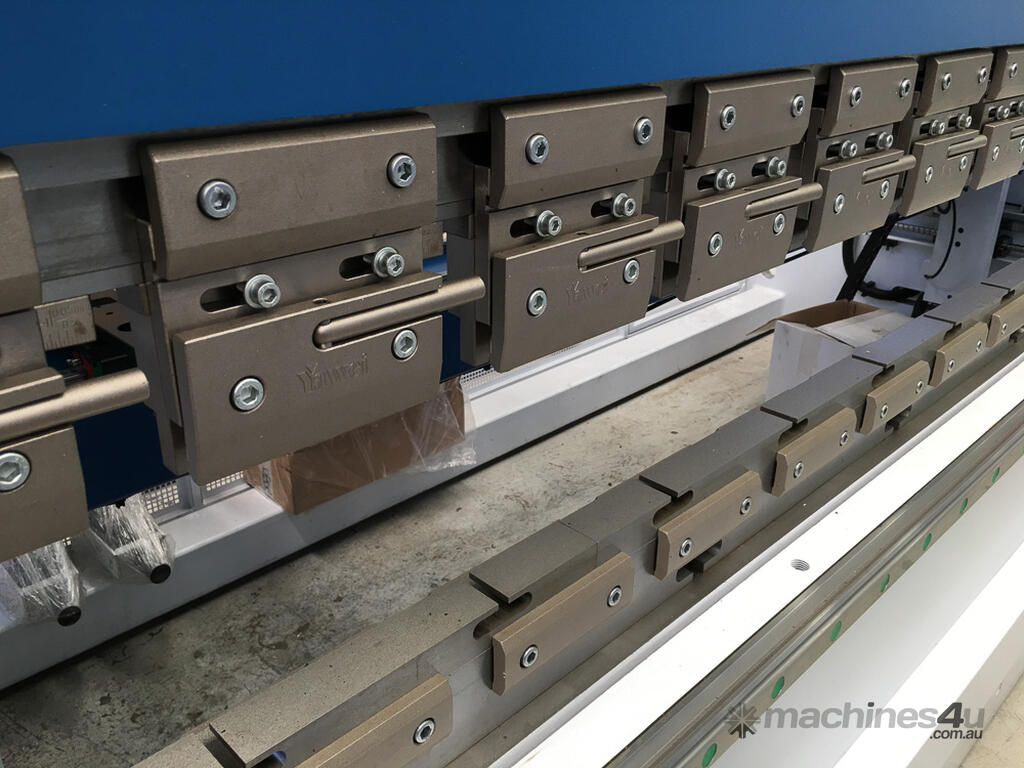

- Quick release clamps for fast, efficient tool changes

Guards:

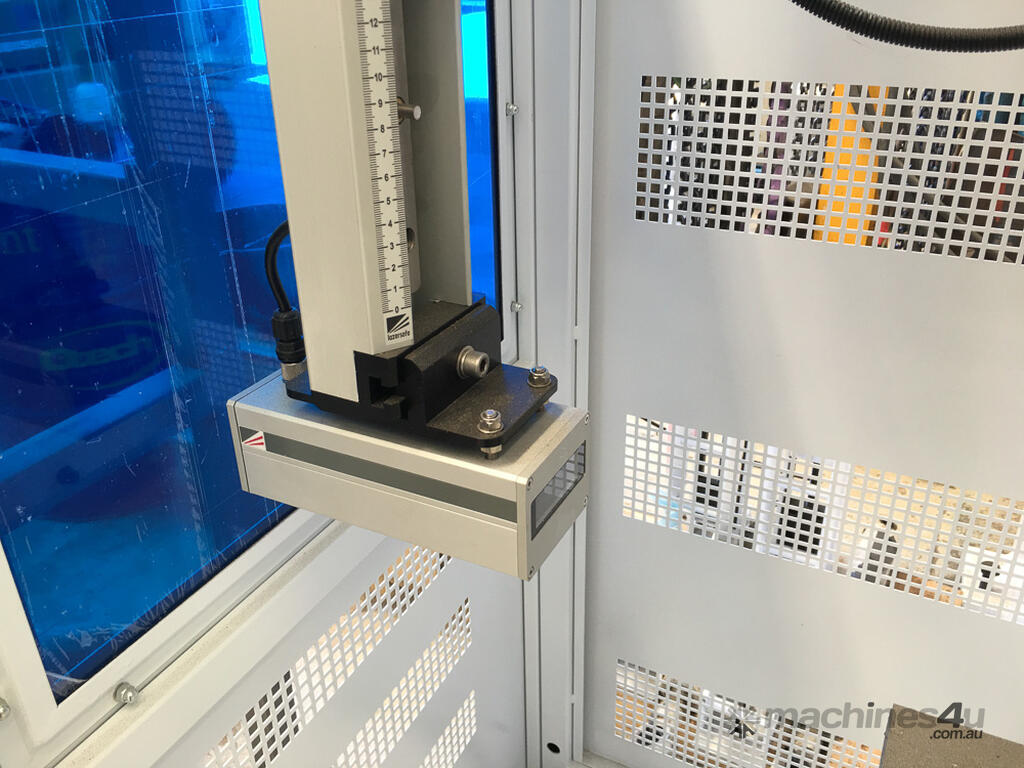

- Lazersafe Light Guard System (Australia)
- Physical rear and side guards with interlock

General:

- Hoerbiger hydraulic system (Germany)
- Heidenhain linear scales
- Sumitomo oil pump
- Deformation compensation on throat
- precision ballscrew backgauge, AC servo motor driven and running on a linear guide.
- 18.5kW main motor power
- 500L oil tank
- Weight: 18,200kg
- Size: 4630 x 1830 x 2730mm

All Yawei CNC synchronised PBH series pressbrakes maintain perfect control of the beam positioning at all times. This is achieved by fully closed loop electro-hydraulic servo control of Y1 & Y2. The beam position is measured by independent linear scales, attached to decoupled measuring frames.

These pressbrakes are of the highest quality and are perfectly suited to high production, high accuracy work environments.
