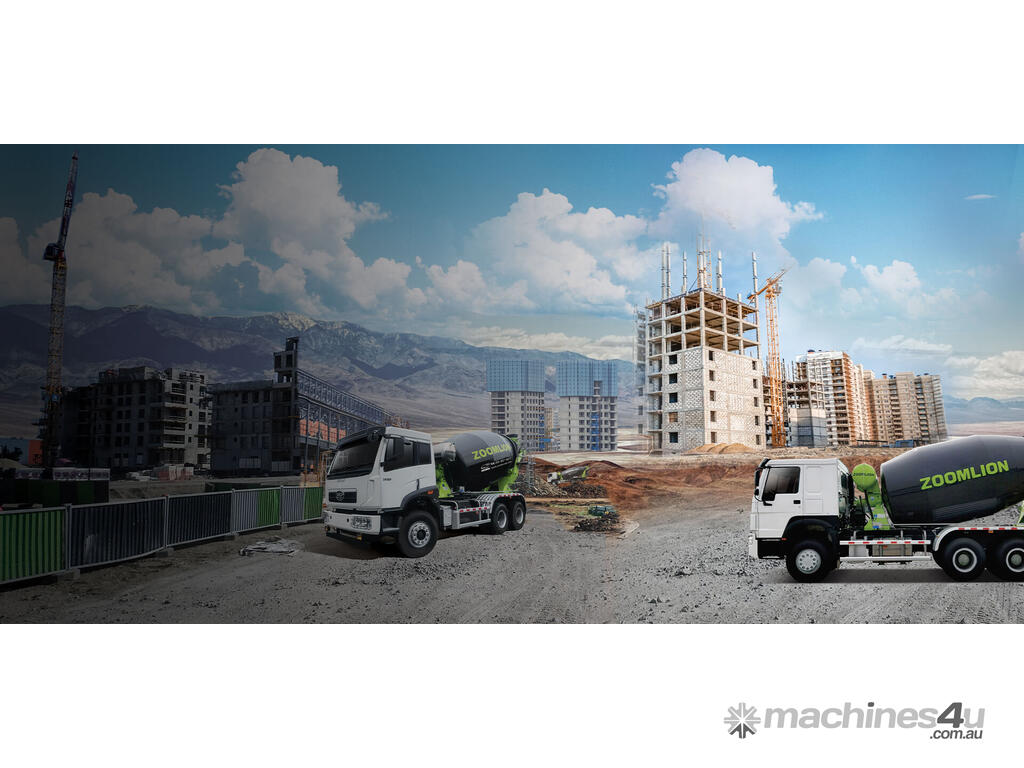

ZOOMLION 10JBH Truck Mixer

ZOOMLION 10JBH Truck Mixer.

ADVANTAGE INTRODUCTION
- CIFA mixing drum Technology : The design of double logarithmic variable pitch mixing blade fully ensures the mixing uniformity and discharging speed.
- "T-shaped" wear protection technology : improve the mixing performance and discharge capacity, and effectively prevent the occurrence of radial cracks. The service life is increased by 20%.
- Easy maintenance : Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.
- Energy Saving : The fuel consumption is 6-8% lower than that of the industry.
- The "abrasive" technology : the average life of feeding and discharging device is more than 30000 cubic meters.

Agitator Capacity: 10 m³
Max. Rotation Speed: 12-16 rpm
Filling Speed: greater than or equal to 4 m³/min
Discharging Speed: greater than or equal to 3 m³/min
Water Tank: 450 L
Water Supply Type: Air Pressure
Range of Slump: 50-210 mm
Driven by: Flywheel P.T.O
Power Rating: 247/1900 kW/r/min
