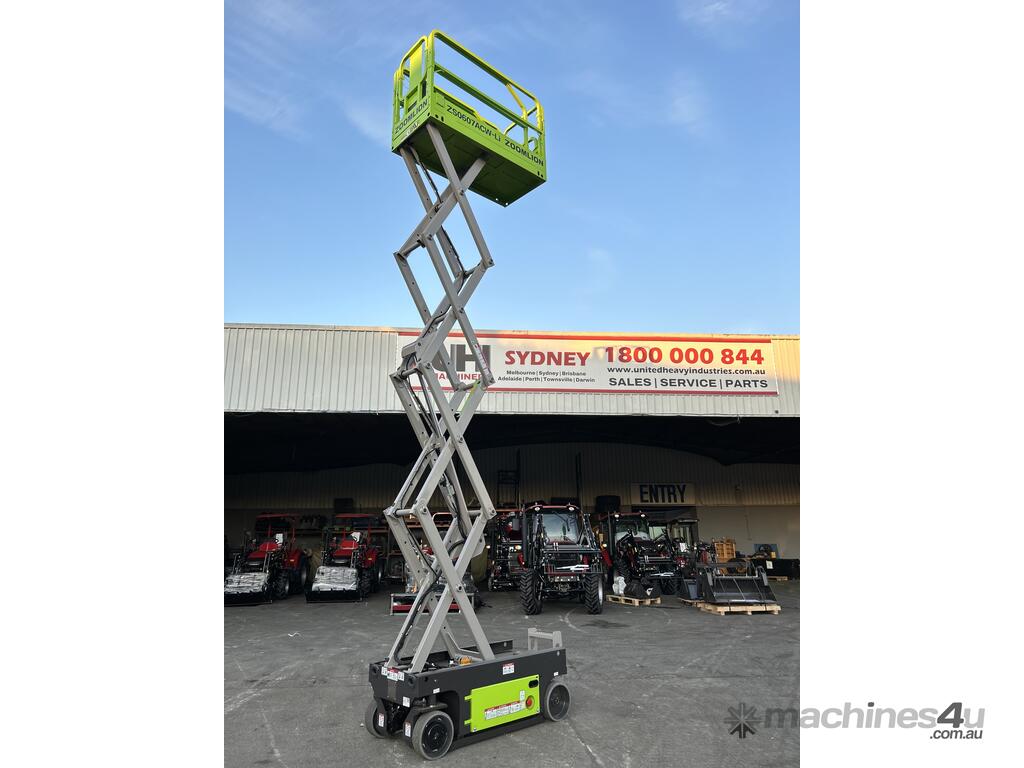

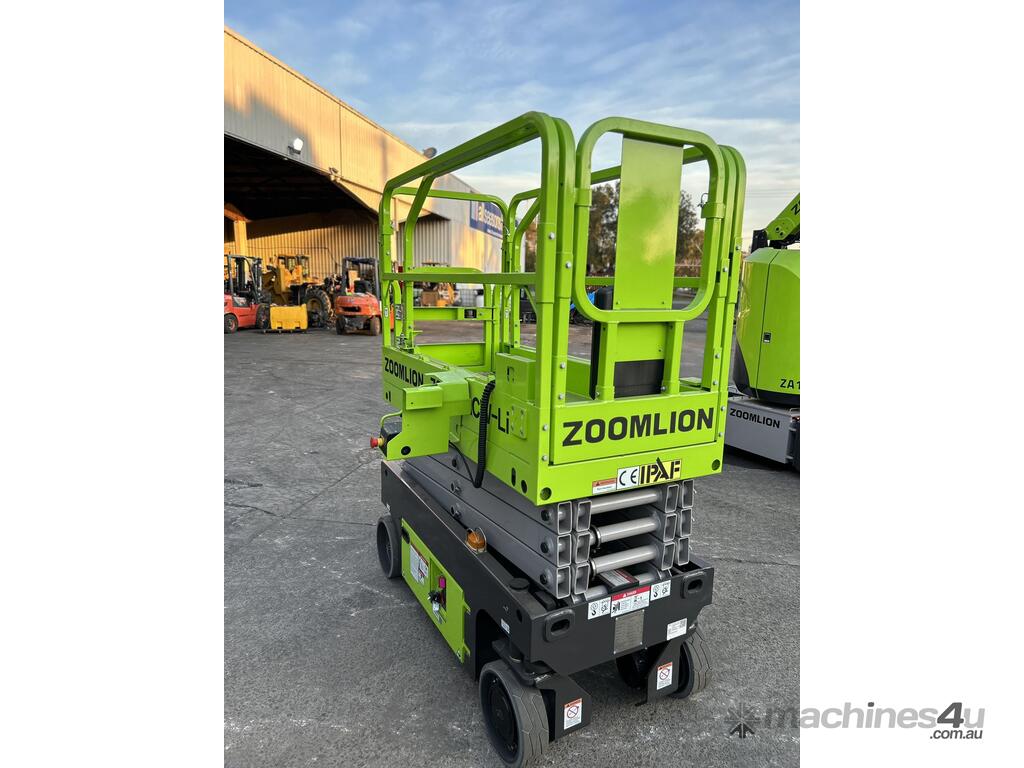

ZOOMLION 20FT Lithium Battery Scissor Lift

High Performance

AC system offers higher working efficiency

IP67 rated waterproof protection on AC wheel motors for longer lifespan

Lithium-ion batteries features long service life that the running time increases by 30%, andcould apply to -20 C cold working conditions

Cost Effectiveness

Knuckles lubrication-free and maintenance-free

AC motor full lifecycle maintenance-free

Swing-out tray easy to service

Intelligent Connectivity

Battery Management System (BMS)+ Machine control system provide dual protection

Platform Capacity 230kg
Capacity on Deck Extension 113kg
Max. Number of Workers 2/1
Drive Speed (Stowed) 4km/h
Drive Speed (Raised) 0.8km/h
Turning Radius (Inside) 0.1m
Turning Radius (Outside) 1.6m
Lifting Motor 24V/3.3KW
Drive Motor 2x0.65KW
Up/Down Time 20s/24s
Gradeability 25%(14°)
Max. Working Slope (Lateral/Vertical) 1.5°/3°
Control Proportional Control
Drive Front Wheels
Brake Front Wheels
