High Performance
AC system offers higher working efficiency
IP67 rated waterproof protection on AC wheel motors for longer lifespan
Lithium-ion batteries features long service life that the running time increases by 30%, andcould apply to -20 C cold working conditions
Cost Effectiveness
Knuckles lubrication-free and maintenance-free
AC motor full lifecycle maintenance-free

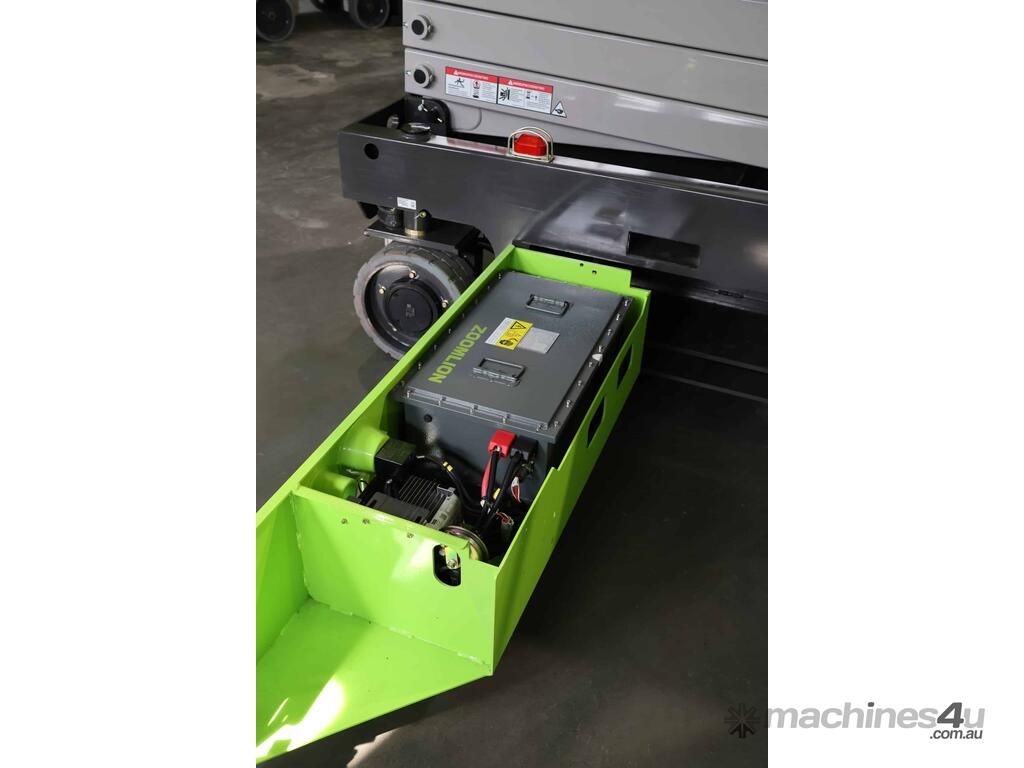

Swing-out tray easy to service
Intelligent Connectivity
Battery Management System (BMS)+ Machine control system provide dual protection
Platform Capacity 230kg
Capacity on Deck Extension 113kg
Max. Number of Workers 2/1
Drive Speed (Stowed) 4km/h
Drive Speed (Raised) 0.8km/h
Turning Radius (Inside) 0.1m
Turning Radius (Outside) 2.1m
Lifting Motor 24V/3.3KW
Drive Motor 2x0.75KW
Up/Down Time 31s/40s
Gradeability 25%(14°)
Max. Working Slope (Lateral/Vertical) 1.5°/3°
Control Proportional Control
Drive Front Wheels
Brake Front Wheels
