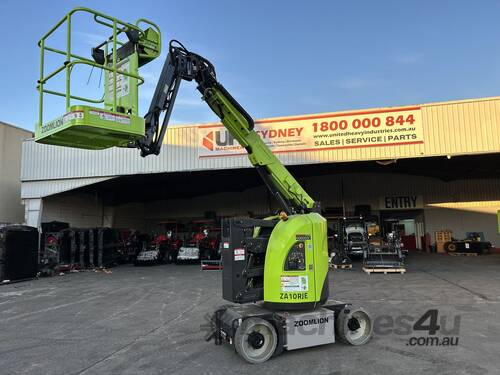

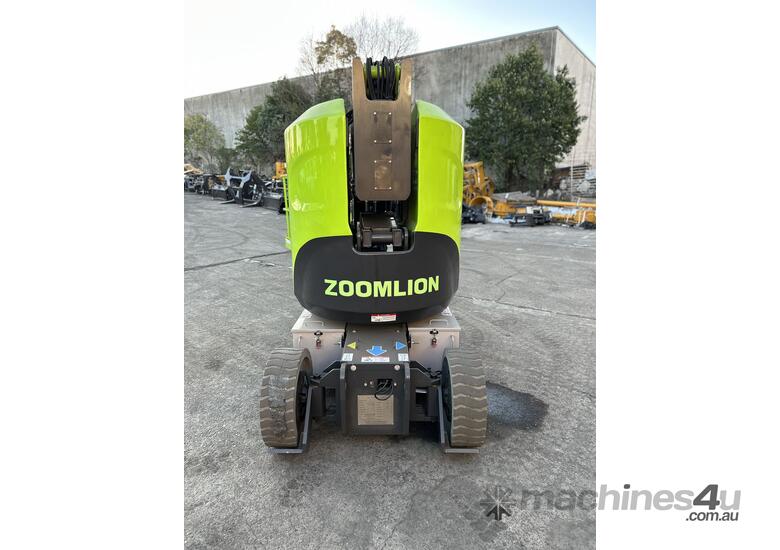

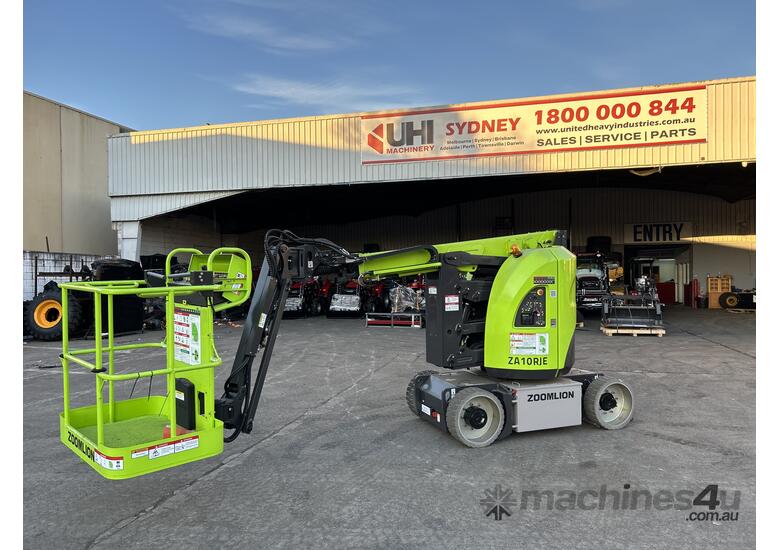

ZOOMLION 33FT Electric Articulating Boom Lift with AC Motor

Center layout, great structural rigidity, and small boom deflection

Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control

±90° Jib rotation offers great up and over height

Compact dimension of 1.19m (3ft 11in) stowed width, ideal for narrow working conditions

Tubular batteries feature long working time and lifespan, and easy for maintenance

Work Height 11.55m
Platform Height 9.55m
Horizontal Outreach 6.85m
Up and Over Height 4.6m
A - Stowed Length 5.5m
B - Stowed Width 1.19m
C - Stowed Height 1.98m
D - Platform Length 1.17m
E - Platform Width 0.76m
F - Wheelbase 1.65m
G - Ground Clearance 0.1m
Jib length 1.24m
Transport Length (jib tucked under) 3.95m
Transport Height (jib tucked under) 2.45m

Platform Capacity 230kg
Drive Speed 5km/h
Gradeability 35% (19°)
Axles Oscillation -
Turning Radius (Inside) 1.7m
Turning Radius (Outside) 3.25m
Jib Swing 355° non-continuous
Turntable Swing ±90°
Platform Rotation ±90°
H-Tail Swing 0m
Max. Working Slope -
Max. Wind Speed 12.5m/s

Battery 24×2V/330Ah
Charger 48V/35A
Drive Motor AC 32V/3.3kW
Lift Motor DC 48V/4.5kW
Auxiliary Power Electric pumpDC
Hydraulic Tank Capacity 15L
