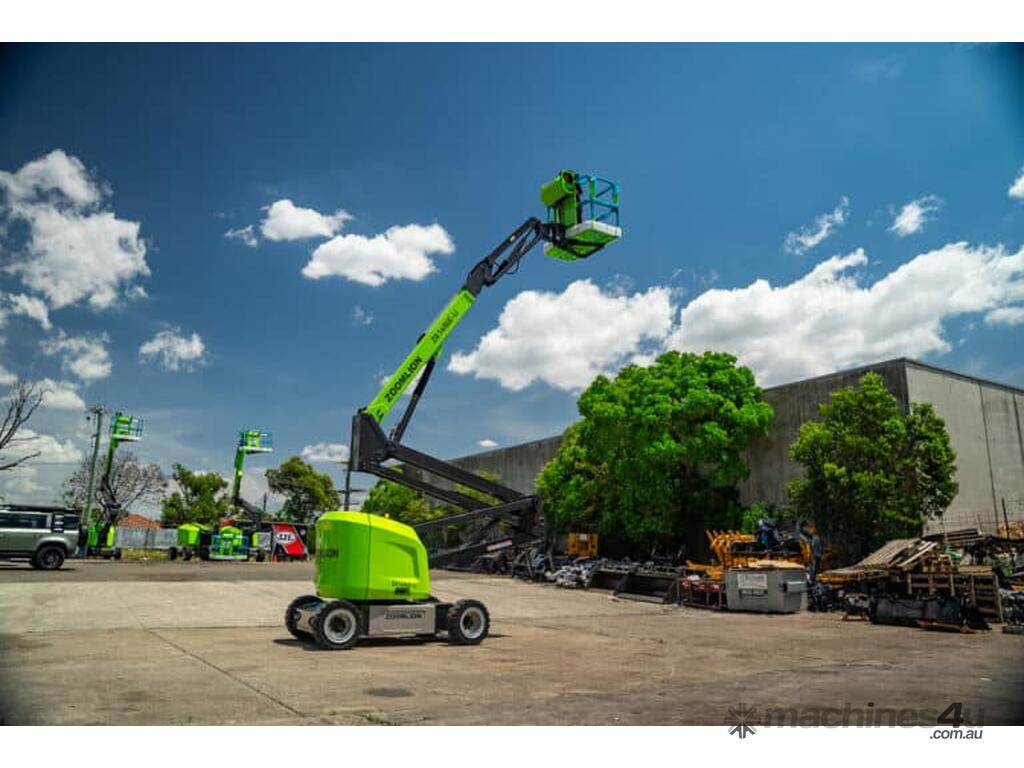

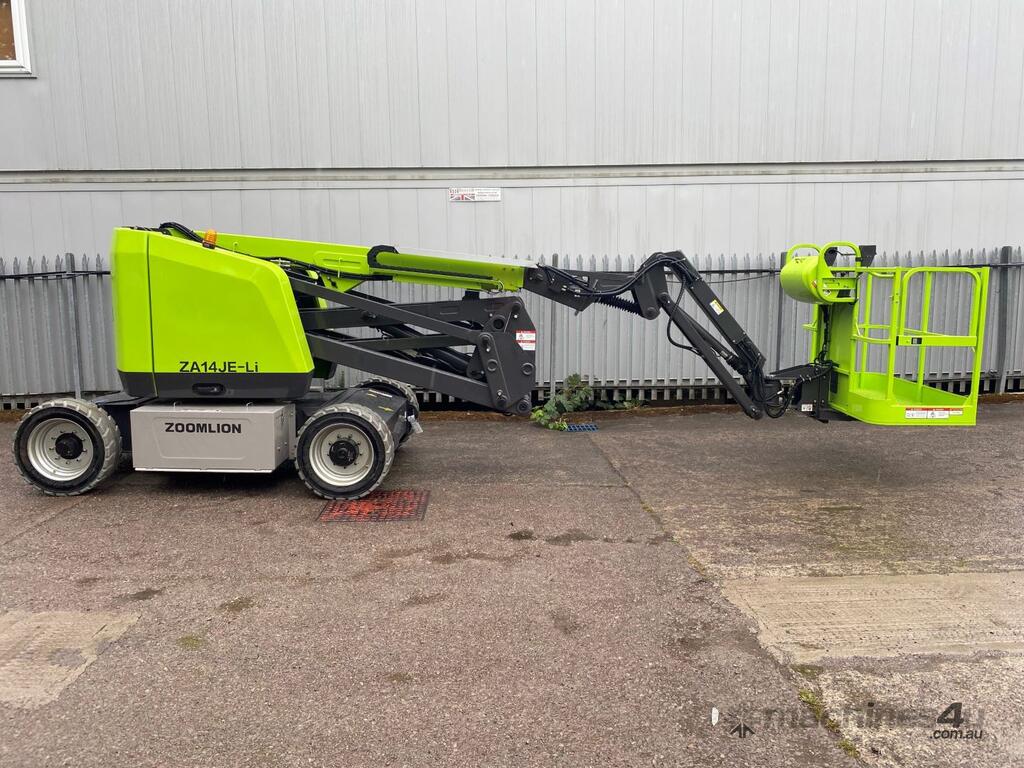

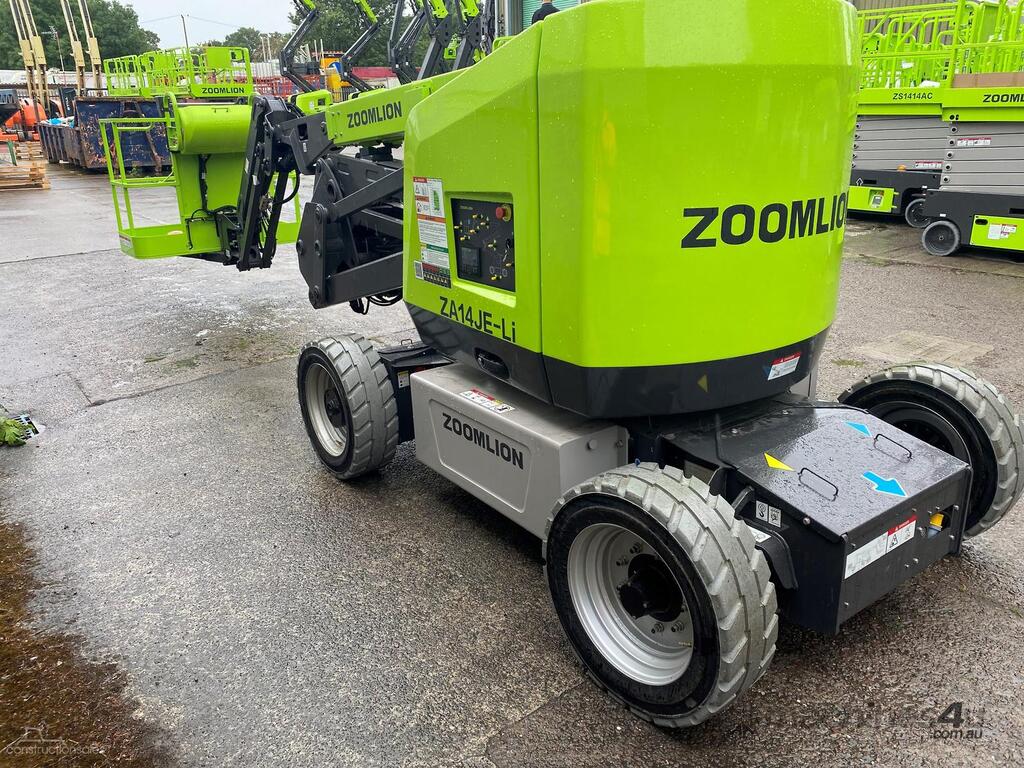

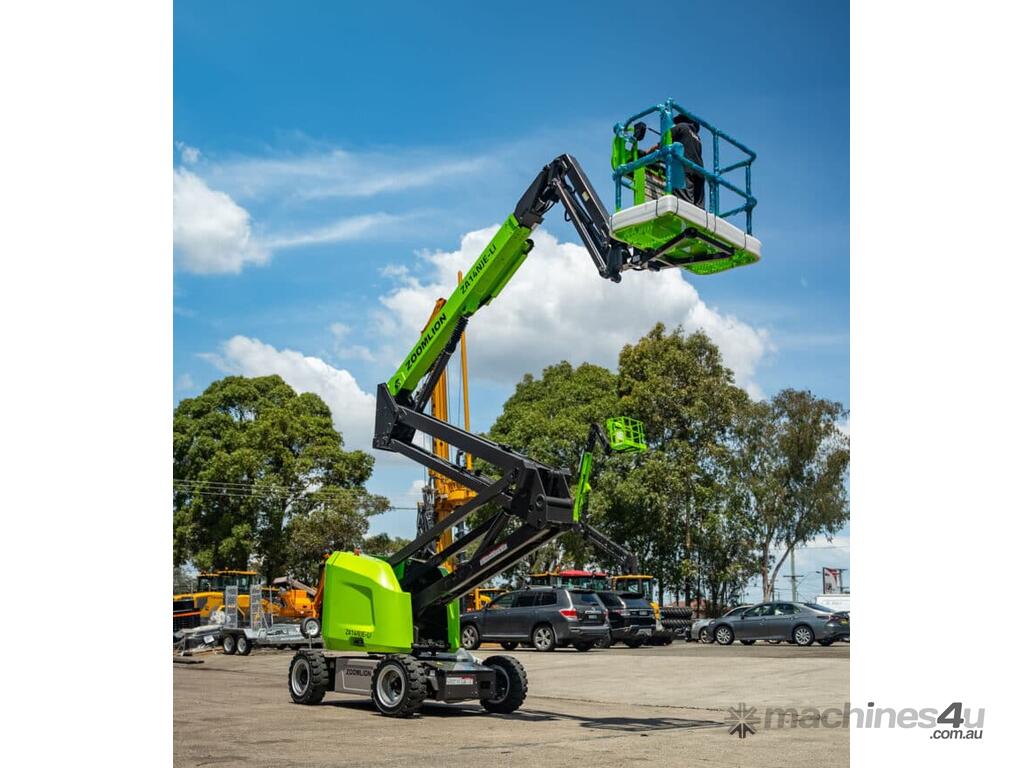

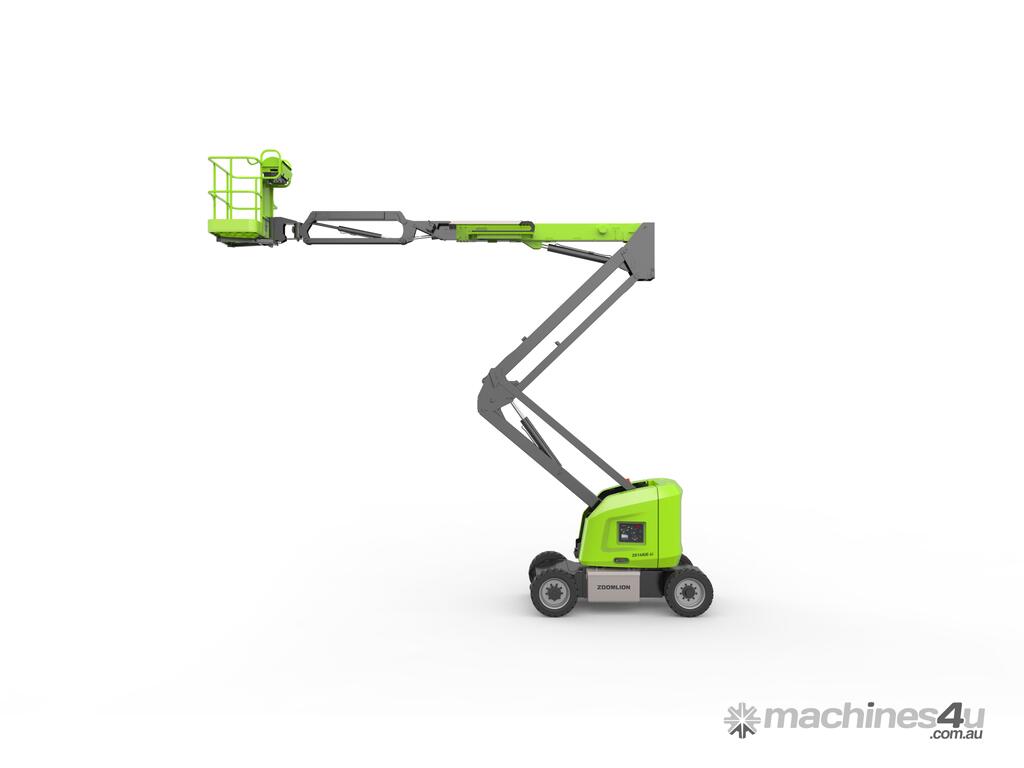

Center layout, great structural rigidity, and small boom deflection
Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control
Independent auxiliary power system for more secure application
Large-capacity lithium battery features long-lasting battery life
IStandard fast charger for short charging time of 7 hours
Accurate and efficient traveling AC drive
system provides strong power and stable
control, motor maintenance-free
Work Height 16m
Platform Height 14m
Horizontal Outreach 8.14m
Up and Over Height 7.74m
Platform Capacity 230kg
Drive Speed 5.4km/h
Gradeability 30% (17°)
Turning Radius (Inside) 0.79m
Turning Radius (Outside) 3.15m
Turntable Swing 360° non-continuous
Platform Rotation ±90°
H-Tail Swing 0.2m
Max. Working Slope 3/4°
Max. Wind Speed 12.5m/s
Battery 48V/315Ah Li-ion battery
Gross 6700kg
