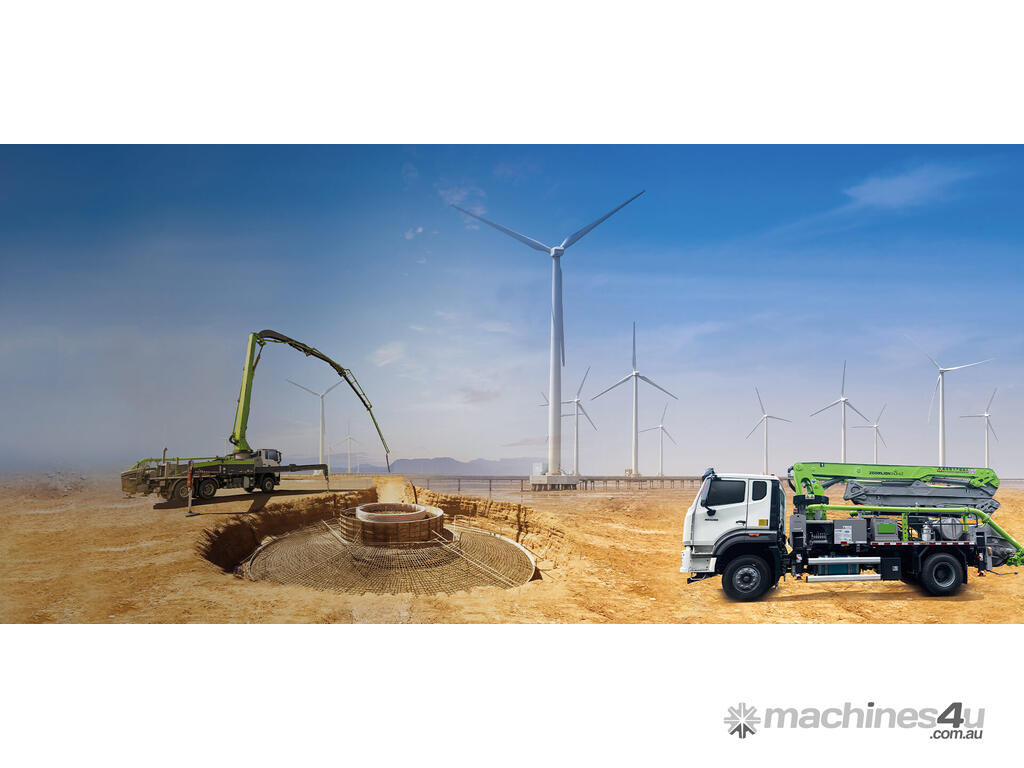

ZOOMLION 56X-6RZ (FOUR-AXLES) Truck-mounted Pump

ZOOMLION 56X-6RZ (FOUR-AXLES) Truck-mounted Pump.

ADVANTAGE INTRODUCTION
- Energy Saving: Self-adaptive variable power distribution control technolog
- High-Efficiency: Good site adaptability (one side support)
- High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.
- Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.
- Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.

BOOM
Maximum vertical reach: 56m
Maximum horizontal reach: 51m
Maximum depth reach: 40.2m
Minimum unfolding height: 15.8m
Section numbers: 6
Boom type: RZ
Pipeline diameter: 125mm

PUMP
Maximum theorical output: 180m3/h
Maximum theorical pressure on concrete: 113bar
Concrete cylinders (diam. x stroke): 260mm x 2100mm
Hydraulic circuit: Closed

CHASSIS
Chassis brand: Multiple Choices
