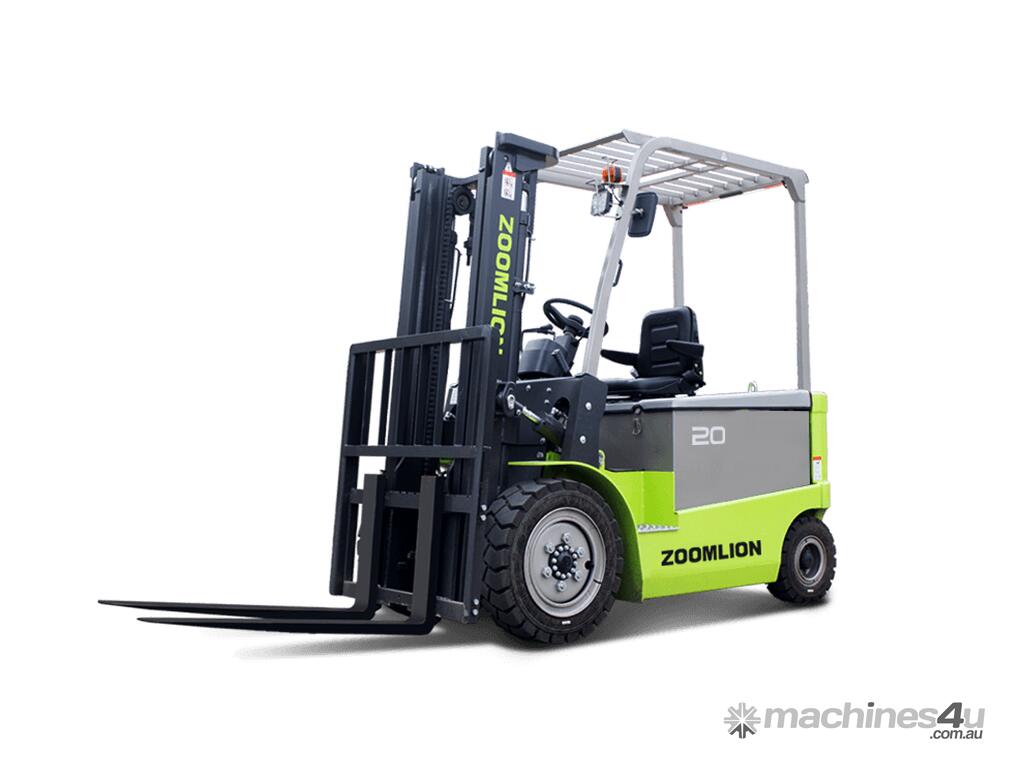

ZOOMLION FB20-25H Electric Forklift

ZOOMLION FB20-25H Electric Forklift.
- Alternate walking motor and lifting motor with automatic protection and free maintenance.
- Curtis LED screen with settings of walking and lifting performance; it can monitor the running of motor, thus get working hours and fault code.

ADVANTAGE INTRODUCTION
- Maintenance free AC motor and Curtis controller are used to ensure smooth operation.
- Optional lithium iron phosphate battery, maintenance free, zero pollution, fully charged within 2 hours, warranty period of 5 years/10,000H.
- The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.

Performance
Rated capacity 2000 kg
Load centre 500 mm
Lifting height 3000 mm
Free lifting height 145 mm
Tilting angle 6 degrees/12 degrees
Turning radius 2090 mm
Front overhang 475 mm
Tread 454 mm
Wheelbase 1450 mm
Fork spread(Min./Max.) 920 mm
Working aisle width with pallet(Ast) 3885 mm
Service weight -
Operating pressure for attachment 117.3 kg/cm²

Speed
Travel (Laden) 13 km/h
Travel(Unladen) 14 km/h
Lifting(Laden) 0.28 m/s
Lifting(Unladen) 0.4 m/s
Lowering (Laden) 0.45 m/s
Lowering(Unladen) 0.4 m/s

Gradeability
Laden 0.15
Unladen 0.15

Power
Driven motor 11 kW
Pump motor 14 kW
Battery 48 V/630 Ah
Controller AC

Size
Rear Wheel 18xPR
Front Wheel 7.PR
Overall Dimension(LxHxW) 3279 mmx1995 mmx1150 mm
Weight 3950 kg
