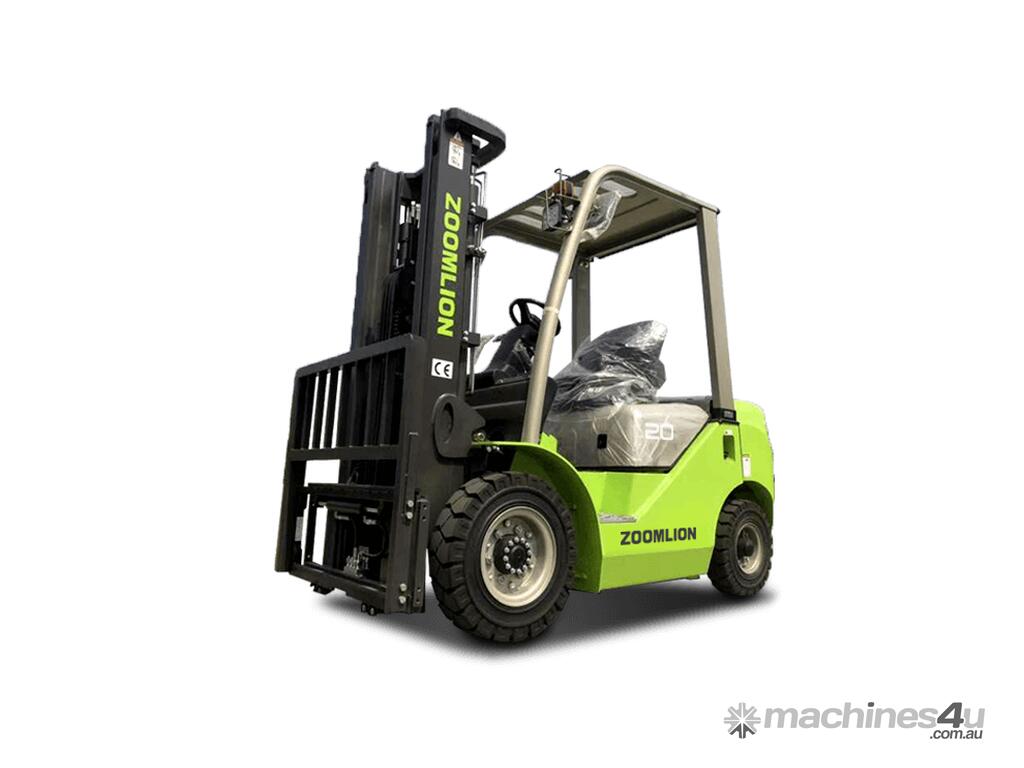

ZOOMLION FD20-35H Internal Combustion Forklift

ZOOMLION FD20-35H Internal Combustion Forklift.
- Combine Isuzu C240/4JG2, Mitsubishi S4S diesel engine and Nissan K25 gasoline engine with automatic transmission design, operator has got a powertrain that delivers strong load handling and smooth acceleration.
- LED Display offers useful information, such as the fuel meter, water temperature indicator and hour meters. USB charger and power outlet are special designed for the convenience of operator.

ADVANTAGE INTRODUCTION
- Japanese Kubota engine has passed EPA certification and is widely used in European and American markets.
- Exquisite operating platform and integrated LED display can display all driving information and provide maximum comfort.
- The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.

Performance
Rated capacity 2000Kg
Load centre 500mm
Lifting height 3000mm
Free lifting height 135mm
Tilting angle 6 degrees/12 degrees
Turning radius 2240mm
Front overhang 473mm
Tread 430mm
Wheelbase 1600mm
Fork spread(Min./Max.) -
Working aisle width with pallet(Ast) -
Service weight -
Operating pressure for attachment 17.5MPa

Speed
Travel (Laden) 18Km/h
Travel(Unladen) 19Km/h
Lifting(Laden) 400mm/s
Lifting(Unladen) 430mm/s
Lowering (Laden) ?600mm/s
Lowering(Unladen) ?300mm/s

Gradeability
Laden 0.2
Unladen -

Power
Battery 90Ah/12V

Size
Rear Wheel 7.PR
Front Wheel 6.PR
Overall Dimension(LxHxW) 2570x2090x1160
Weight 3350
