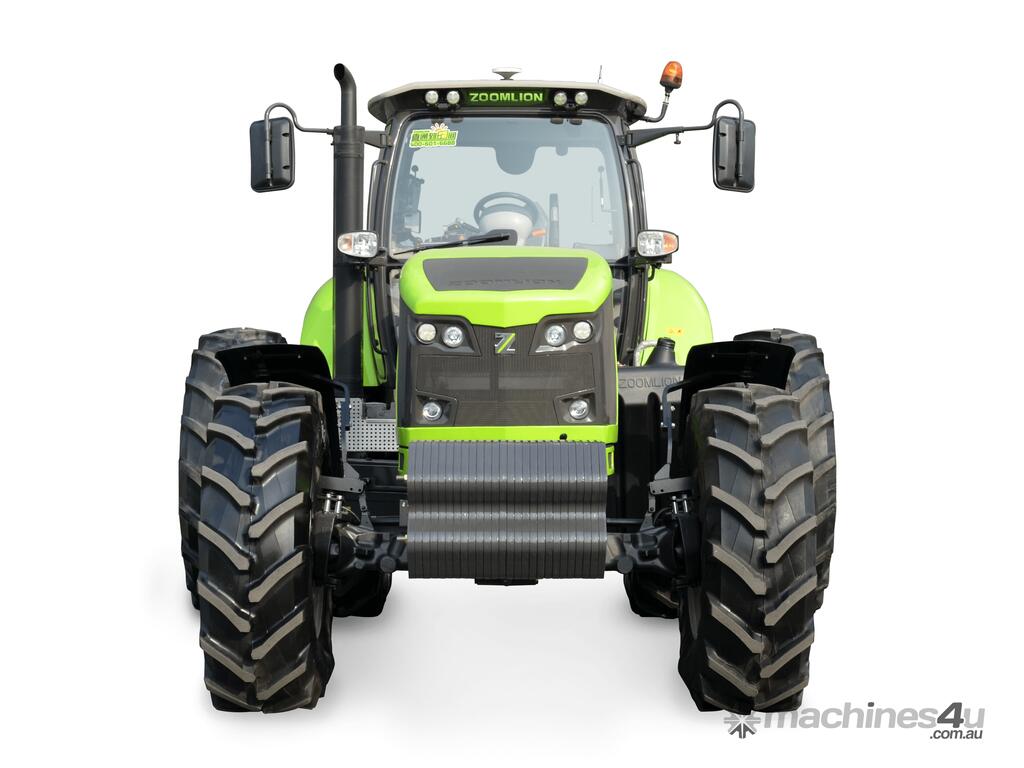

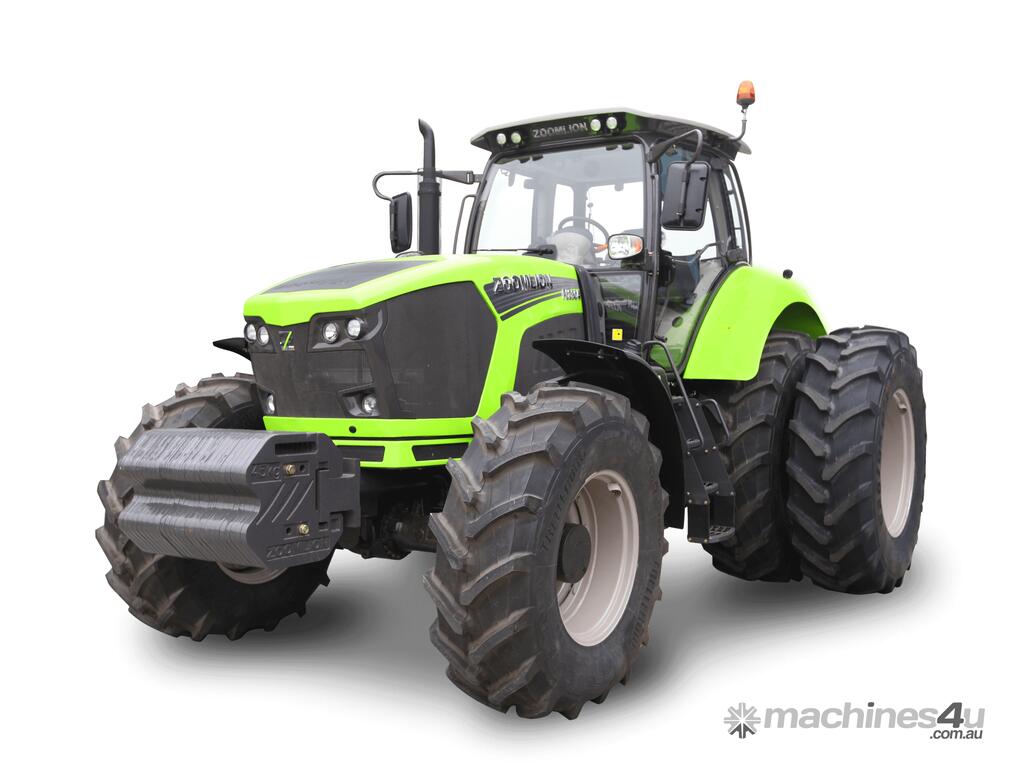

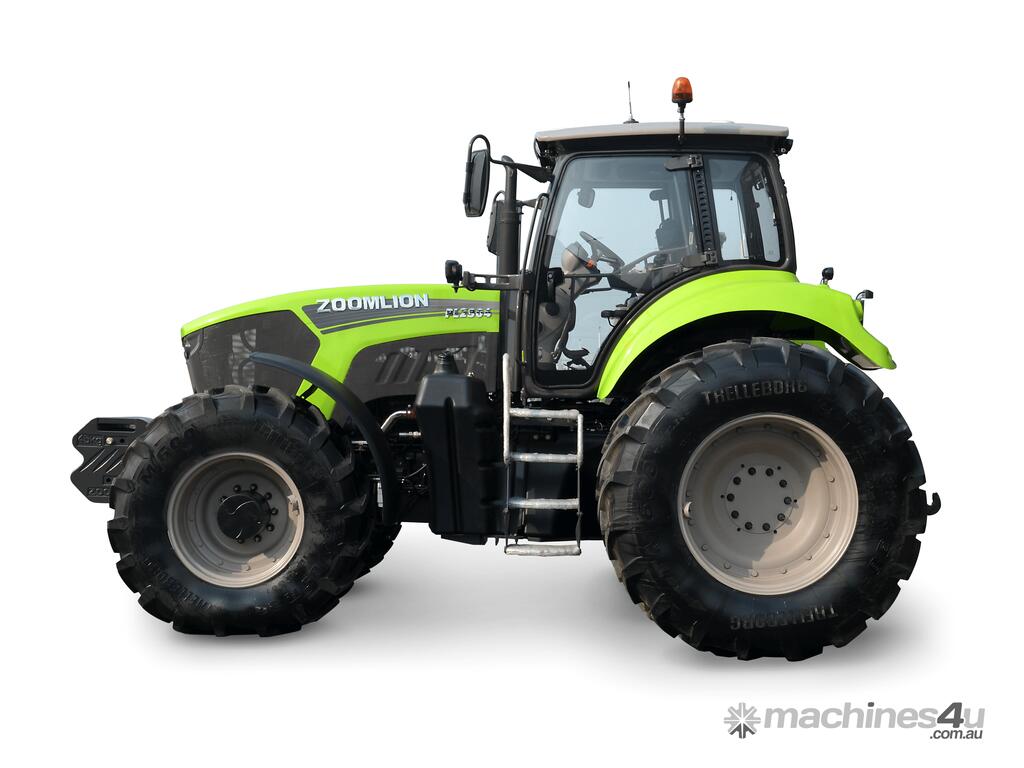

ZOOMLION PL2304 Wheeled Tractor.
HIGH-POWERED POWER SHIFT WHEELED TRACTOR.
- 230 high-pressure common rail high-end diesel engine
- 40F+40R interval power shift gearbox with automatic shifting kinetic energy
- Intelligent all-electric hydraulic control system
- Automatic PTO function, conveniently turning on the edge of a field
- GPS navigation and unmanned driving function as option
ADVANTAGE INTRODUCTION
- All indexes and performances meet the European technical standards
- 230HP High pressure common rail high end diesel engine
- 40F+40R interval power shift gearbox
- Be provided with whole machine all-electric hydraulic control system with the function of fault self diagnosis
- The automatic PTO function enables the tractor to release and combine with the PTO clutch automatocally when turning on the turnrow
Overall dimension (LxW x H) mm: 5715x2610x3200 (Single tyre)
Wheelbase mm: 3085
Minimum mass during operation kg: 8575 (Single tyre)
Minimum ground clearance mm: 430
Engine emission: National III
Rated power kw: 169.5
Fuel consumption rate g/kW•h: less than or equal to 228
Cluth type: multi-plate wet clutch
Number of gears of the gearbox: 40F+40R
Tyre size (front wheel / rear wheel): 420/90R30?520/85R42
Type of hydraulic lifting system: Split type
Maximum lifting capacity KN: ?60
Tillage control method: Electro hydraulic control
Hydraulic output multiway valve: 4-position electronic-hydraulic proportional multi tandem valve

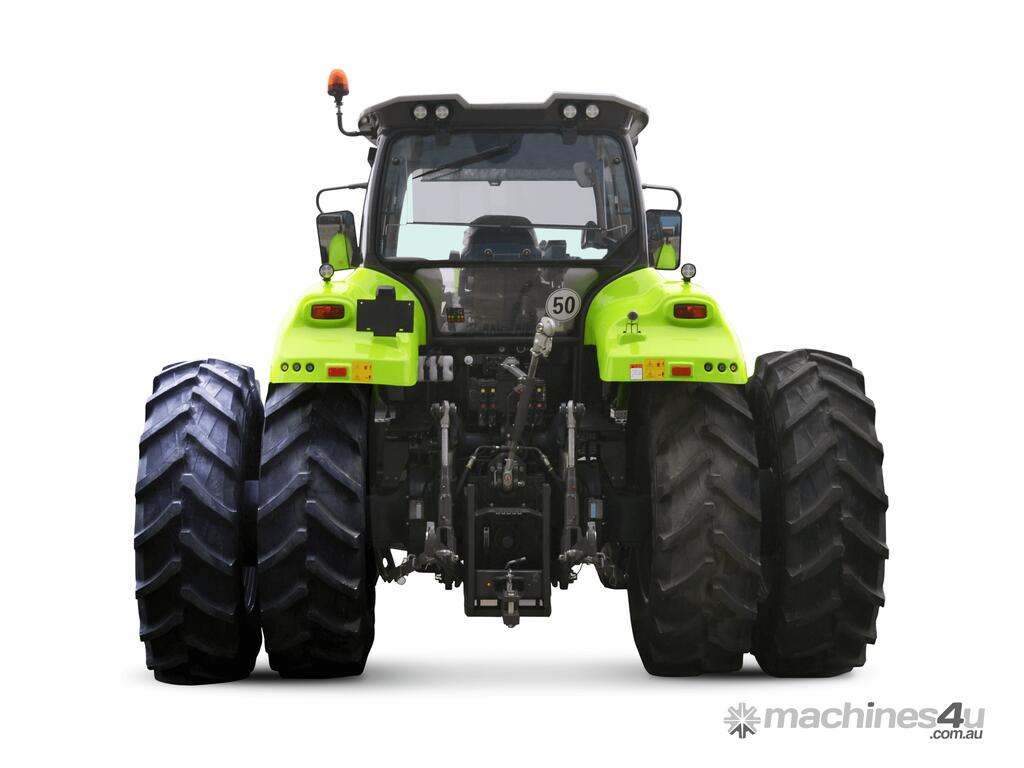

Hydraulic hitch: Three-point rear suspension,category III
Traction force KN: ?74
PTO output power kW: ?148
Power output speed r/min: 540E/1000N/1000E

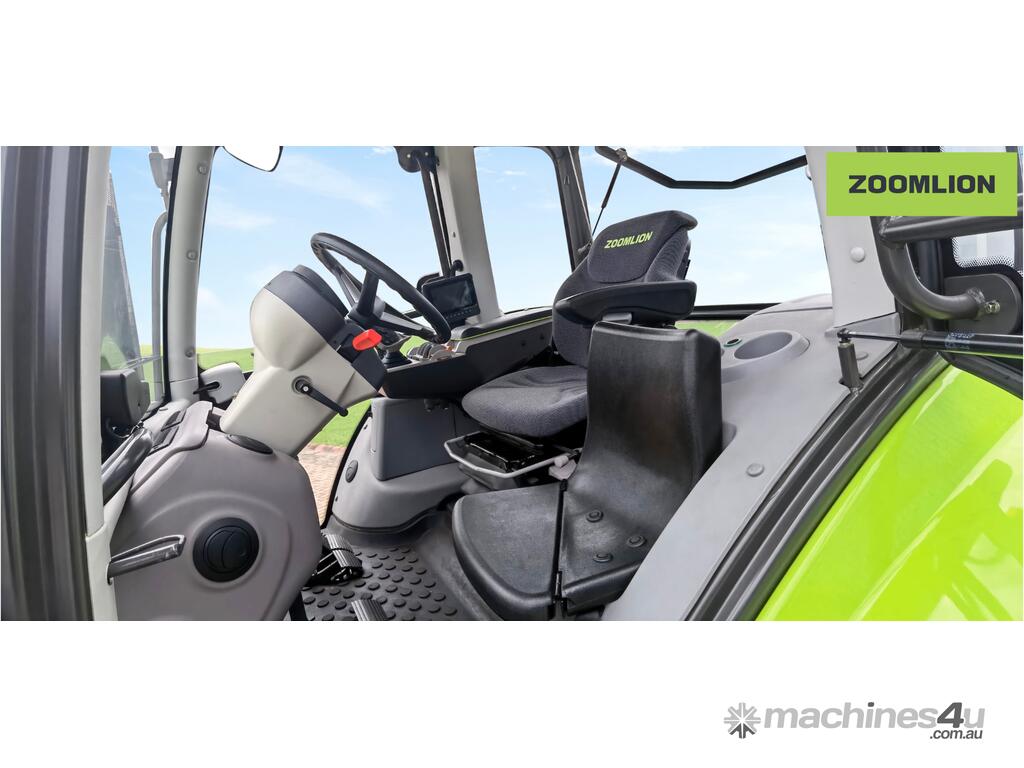

Safety shelf or cab: Air-conditioned cab
