ZOOMLION RL205-10/12 Topless Hydraulic Luffing Jib Crane

ZOOMLION RL205-10/12 Topless Hydraulic Luffing Jib Crane.
The world's fastest luffing-to-trolley automatic changing tower crane.

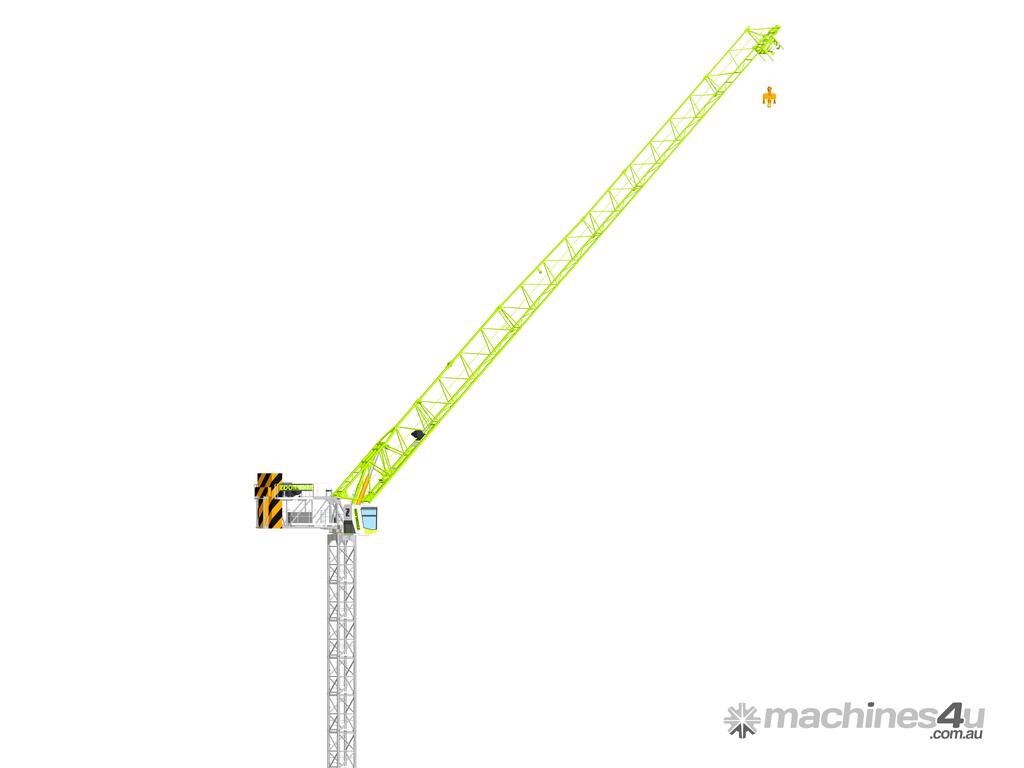

The jib can operate in the range of 10 degrees~87 degrees, the maximum stop angle of the jib in out of service state is 74 degrees( 16m ), which is about 10 degrees larger than the traditional boom. The length of the counter jib is 7.1m. Compared with the luffing crane mode, the trolleying efficiency is increased by more than 50% , and the 50m trolleying distance is shortened from 2 mins to 1 min. Compared with the luffing jib tower crane of the same tonnage level, the lifting performance is about 8% higher and the luffing speed is about 30% higher. The minimum working radius is shorter, which is more conducive to internal climbing and anchorage installation and removal.

ADVANTAGE INTRODUCTION
Fast Installation & Dismantling, Container Saving
- Erect the upper part by 4 lifts within 3 hours
- The upper part of RL165 can save 1*40HQ container

Performance Highlights
- Equal altitude luffing, in position efficiency improved by30%

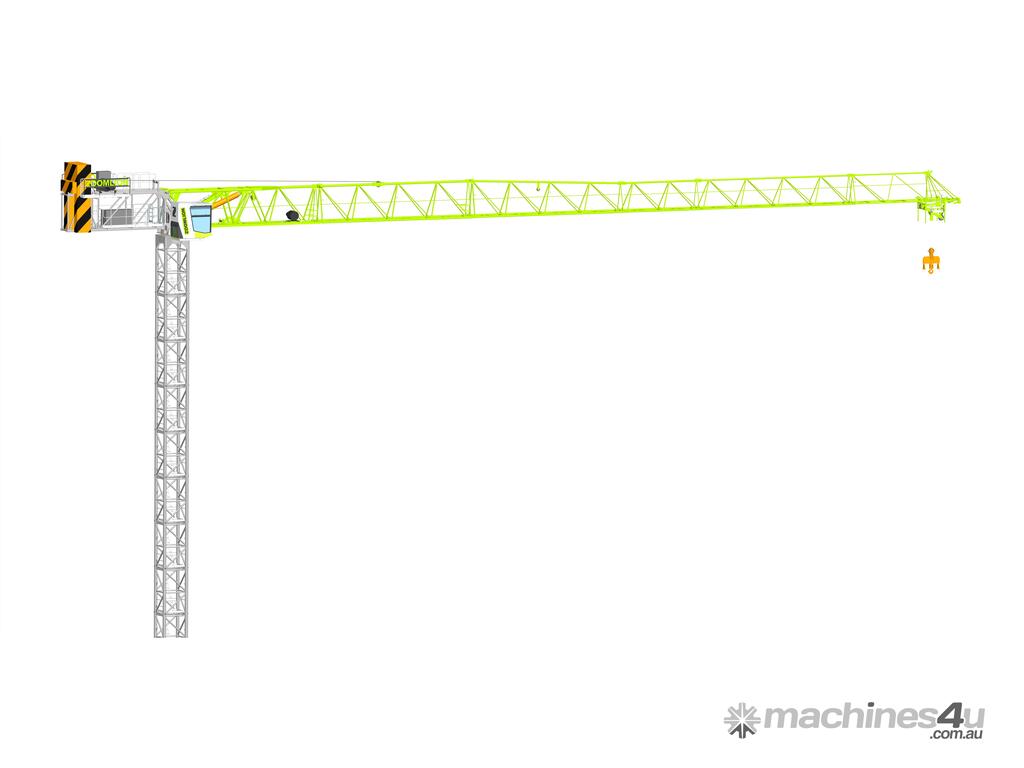

- Flattop/Luffing Mode can be switched in 5 minutes.

High Safety, High Reliability
- The hydraulic luffing system adopts double locking technology, triple protection, preventing oil cylinder leakage and oil pipe burst
- Equipped with ZOOMLON ETI digital control system real-time feedback,real-time control

High intelligence
- Remote calibration
- Remote fault diagnosis

Maximum FSH [L68] : 49.65m
Maximum FSH [RB] : 62.85m

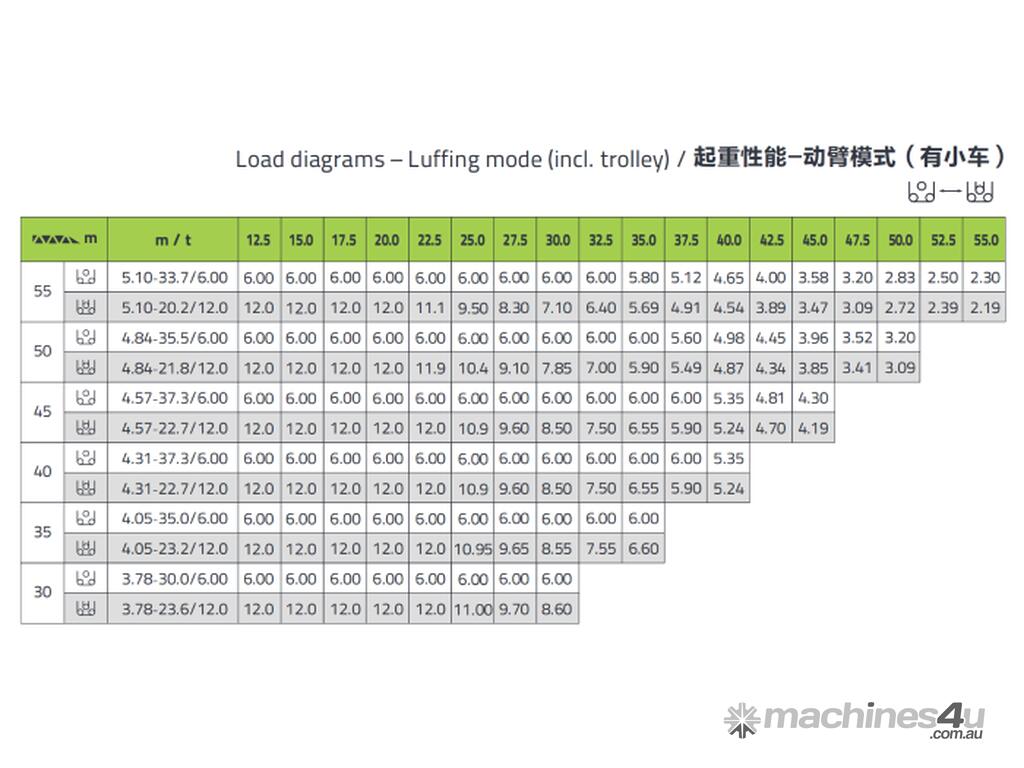

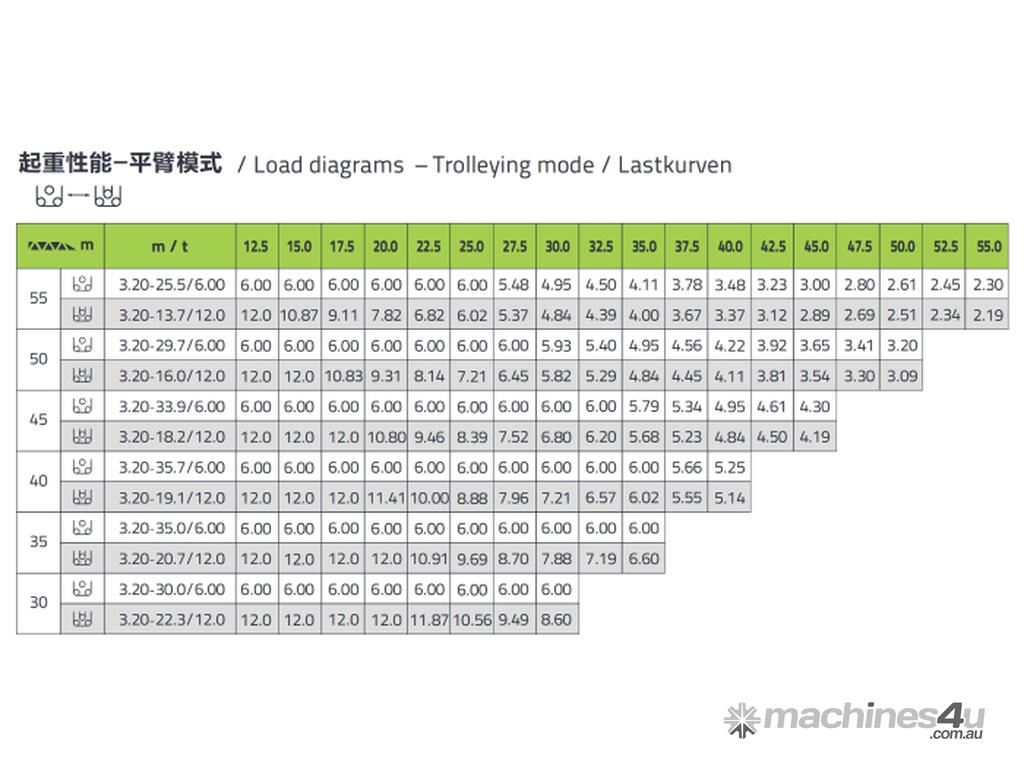

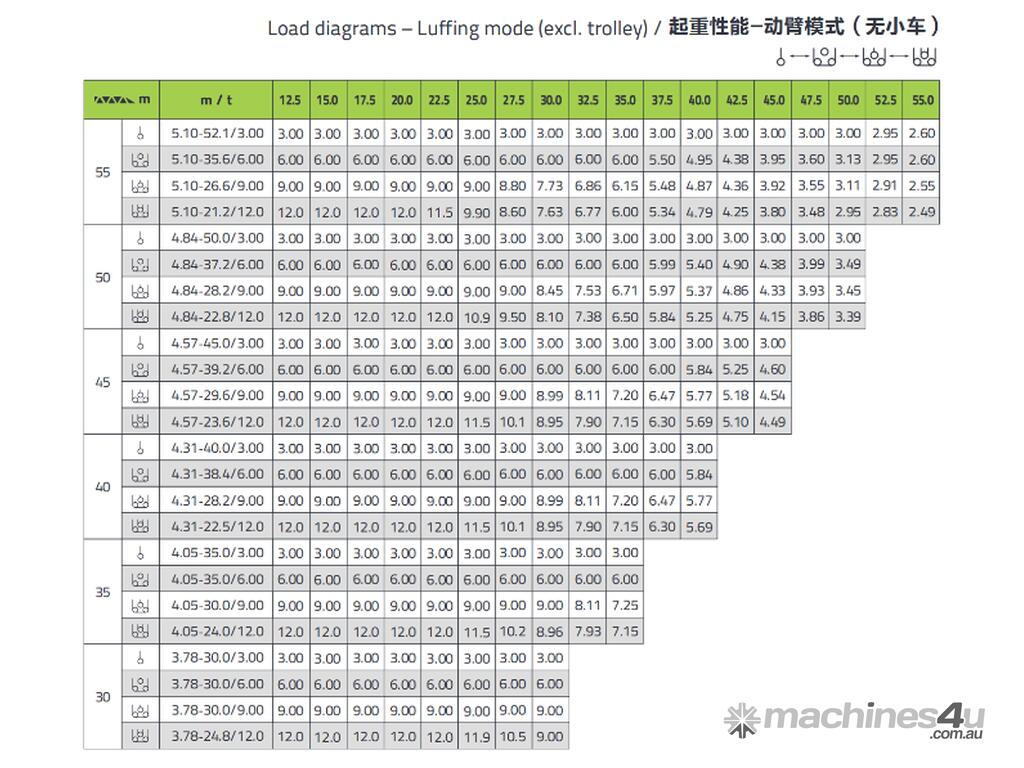

Maximum Hoisting Capacity : 10/12t
Maximum Working Radius : 55m
